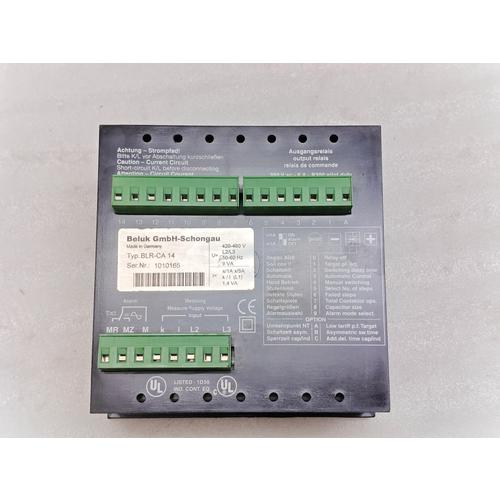

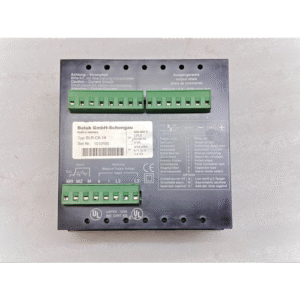

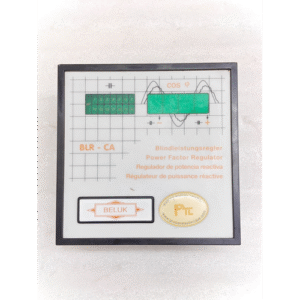

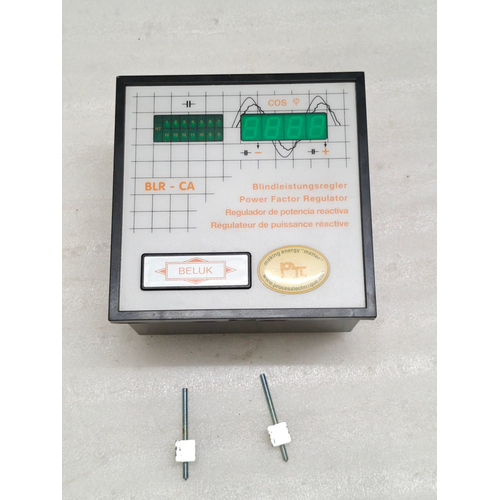

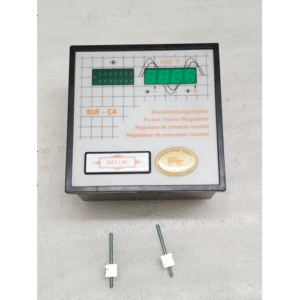

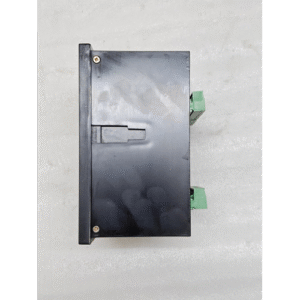

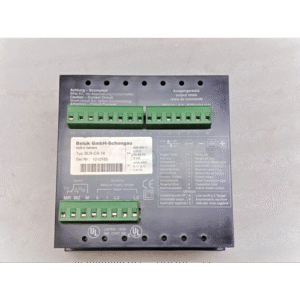

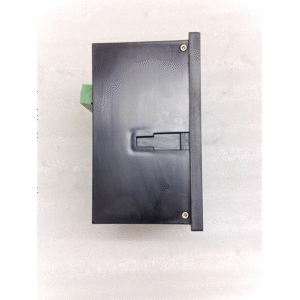

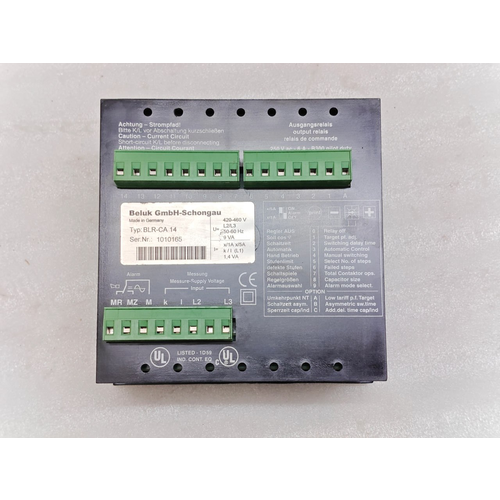

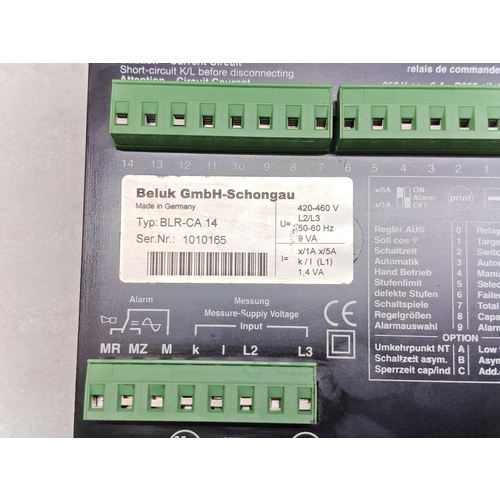

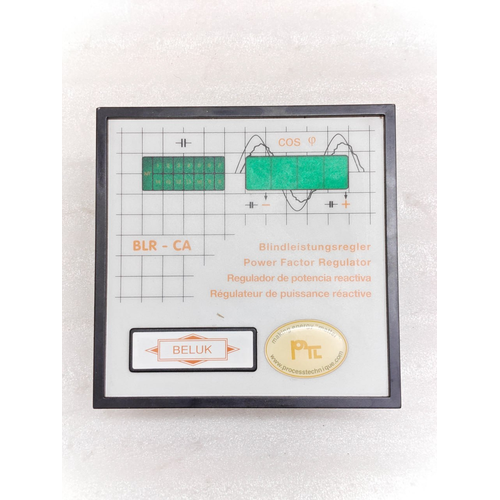

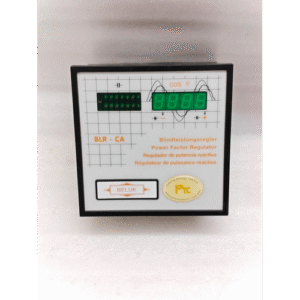

BELUK GmbH SCHONGAU BLR- CA 14 DIGITAL DISPLAY POWER FACTOR CONTROL REGULATOR 11:46
$269.10
1 in stock
Did you like this product? Add to favorites now and follow the product.
Add to Wishlist
Add to Wishlist
Description
BELUK GmbH SCHONGAU BLR- CA 14 DIGITAL DISPLAY POWER FACTOR REGULATOR
TECHNICAL DATA:
| Measurement System: | Single phase electronic measurement system for connection to phase-phase voltage, 420-460 V. Operating frequency 50 or 60 cpa to he stated on order. voltage supply burden 9 VA max. – according to number ot steps switched in (tacility tor connecting to wide range ot other voltages available). Current transtormer output 5 A or 1 A. Class 1 to 3 (burden 1.4 vA). Measurement system operates in all tour quadrants and analyses non-sinusoidal voltage and current waveforms |
| Switch Rating: | 3000 VA per contact, 250 v AC(energizing) 1500 VA /250 V(hold): 460 V available on request |
| 1. Target Power Factor Range: (Normal Tariff) | 0.70 lag … 1.0 … 0.90 lead, shown on digital display (tunction switch position 1) |
| Step Switching Time: | Adjustable from 5 1200 sec. (function switch position 2) |
| No-volt Release: | Automatic disconnection of all capacitors following voltage failure after only 35 msec |
| Automatic switching will recommence 90 seconds aher restoration of supply | |
| Hand Operation: | By means of + – push buttons (function switch position 4) |
| Ambient Temperature: | – 10°C … + 70°C |
| Manufacturing Specifications: | Insulation protection in accordance with VDE 0160 creepage air paths in accordance with VDE 0110, group C. type tested. EMV guidelines 89/336/EEC; CE identification mark 93/68/EEC |

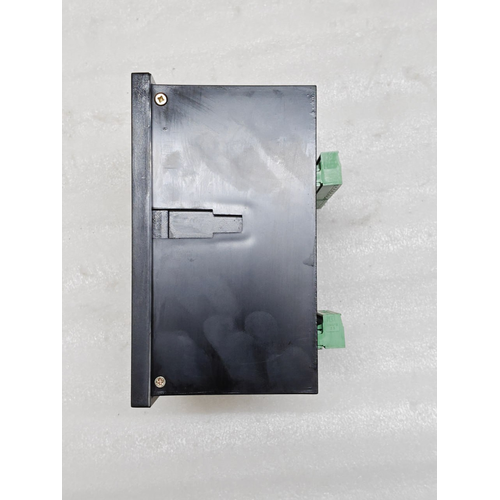

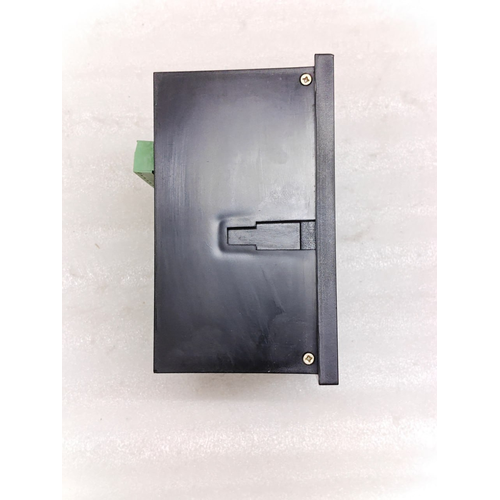

| Casing: | Instrument casing 144×144 mm Total depth including plug 95 mm. flame retardant to 94 V-O |
| Mounting Position: | As required |
| Protection: | IP 30 |
| Weight: | 1 3 kg. |

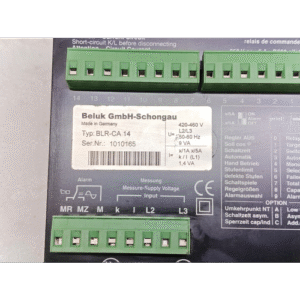

| Connections: | Plug-in terminal block |
| cos phi Indication: | Only when in automatic operation (function switch position 3 – as set on delivery from factory) |
| Current Path: LISTED SER NO. COUNTRY | 1.4 A (1 A on request) 1D59 1010165 GERMANY |
Additional information
| Product Conditioned | USED |
|---|---|
| BRAND | BELUK |
| MPN | BLR-CA 14 |
| MODEL | BLR-CA 14 |
| Country/Region of Manufacture | Germany |
Brand
BELUK
Be the first to review “BELUK GmbH SCHONGAU BLR- CA 14 DIGITAL DISPLAY POWER FACTOR CONTROL REGULATOR 11:46”
Related products
Semco SemSound PSP – D00018 Network Control Unit Amplifier
Original price was: $371.07.$368.00Current price is: $368.00.Available:1
Sold: 0

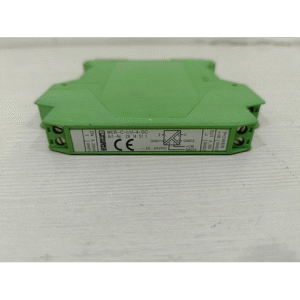

Phoenix Contact MCRCIU4DC Industrial Control System Free Shipping!!!!!!
