IFM optical distance sensor/IFM/01D105/O1D105 /O1DLF3kG / with analog output T AK 1503 11:23
$134.10
1 in stock
Did you like this product? Add to favorites now and follow the product.
Add to Wishlist
Add to Wishlist
Description

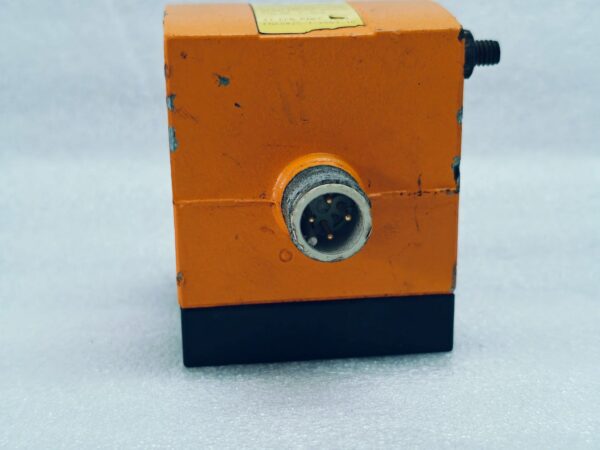

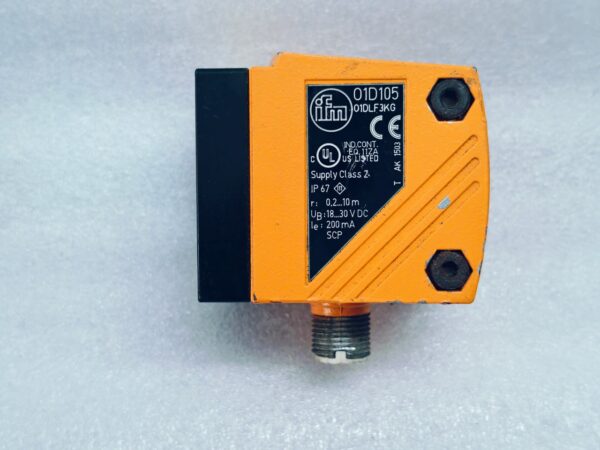

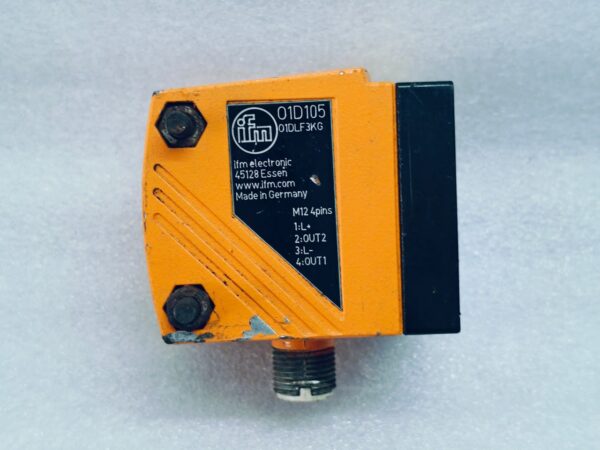

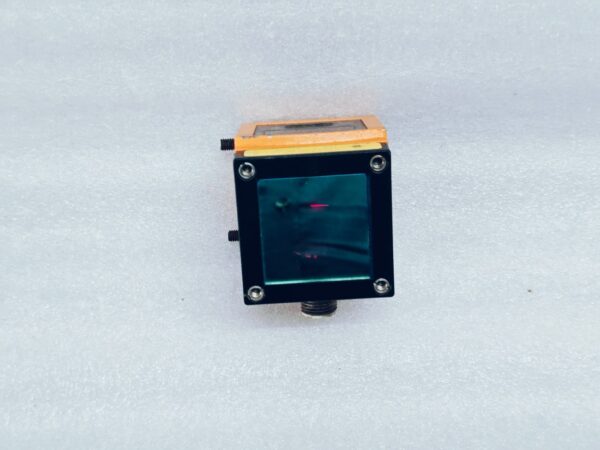

IFM optical distance sensor/IFM/01D105/O1D105 /O1DLF3kG / with analog output T
- Electrical design DC PNP
- Output OUT1: normally open / closed programmable
- OUT2: normally open / closed programmable or analogue (4…20 mA / 0…10 V, scalable)
- Light spot diameter [mm] 6 ( Range 10 m )
- Sampling rate [Hz] 1…33
- Operating voltage [V] 18…30 DC
- Current consumption [mA] < 150
- Current rating [mA] 2 x 200
- Short-circuit protection pulsed
- Reverse polarity protection yes
- Overload protection yes
- Life expectancy typ. [h] 50000
- Display Switching status 2 x LED yellow
- Operation LED green
- Distance, programming 4-digit alphanumeric display
- Ambient temperature [°C] -10…60
- Protection IP 67, III
- Housing materials housing: diecast zinc; window: glass; LED window: polycarbonate
- Analogue output
- current output [mA] 4…20 according to IEC 61131-2
- Max. load [Ω] 250
- voltage output [V] 0…10 according to IEC 61131-2
- Min. load [Ω] 5000
- EMC EN 60947-5-2
- Connection M12 connector
- Weight [kg] 0.282

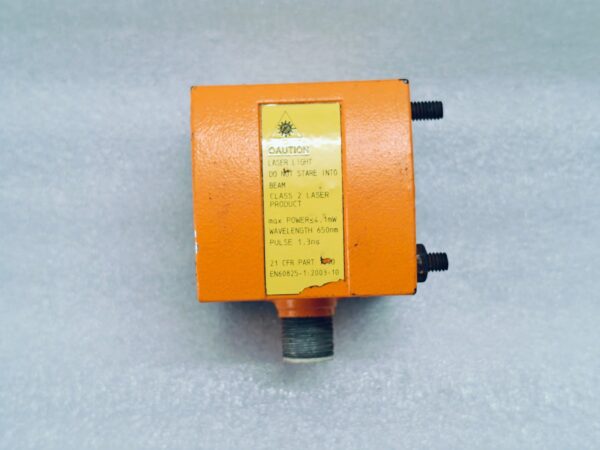

- Remarks Caution: Laser Light
- Power <= 4.1 mW wavelength = 650 nm
- pulse 1.3 ns
- Do not stare into beam
- Avoid exposure
- Class 2 laser product
- EN 60825-1:2003-10
- cULus – Class 2 source required
- Accessories (optional) Protective cover E21133
- COUNTRY OF MANUFACTURER GERMANY
Additional information
| Product Conditioned | USED |
|---|---|
| BRAND | IFM |
| MODEL | 01D105 O1DF3KG |
| MPN | 01D105 O1DF3KG |
| TYPE | Laser distance sensor |
| Manufacturer | GERMANY |
