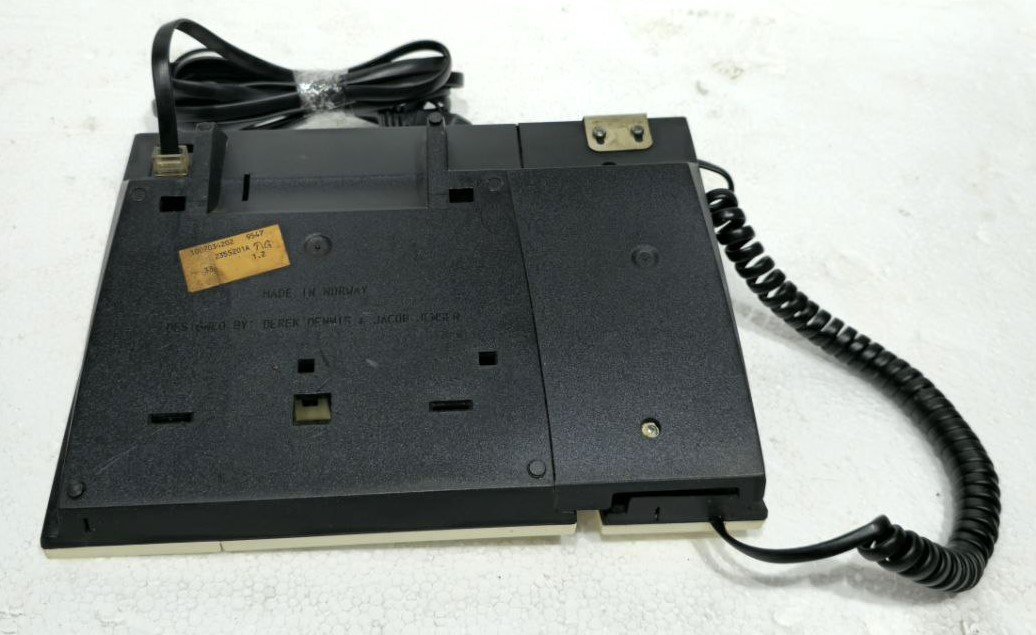

ZENITEL VINGTOR STENTOFON VMP-619 MASTER STATION WITH HANDSET 1007034202 #3

Engineered for critical communications in demanding environments, the Zenitel Vingtor-Stentofon VMP-619 is a high-performance master station that combines flexible mounting options with exceptional audio clarity. Designed to integrate seamlessly with the AlphaCom E exchange, this unit provides reliable and instantaneous communication for industrial, marine, and security applications. This specific model includes the essential handset for confidential conversations, making it the ideal choice for control rooms, ship bridges, and security command centers .

Key Features & Benefits

• Dual-Mounting Flexibility: The VMP-619 features a combined desk top and wall mount design, allowing it to adapt to any workspace layout or console configuration .

• Rapid Access Programming: Take control with 10 programmable single-touch keys. These keys provide instant access to critical functions like group calls, priority calling, or specific substations, ensuring swift action during emergencies .

• Superior Audio Quality: Experience crystal-clear communication with Vingtor-Stentofon’s renowned broadband audio. The station features a voice-operated duplex for handsfree use via the powerful 1W loudspeaker and volume control bar. For private discussions, simply lift the included handset to switch to full-duplex mode .

• Advanced Supervision & Reliability: Built for mission-critical systems, the VMP-619 includes advanced supervisory functions. It supports line monitoring to detect faults in the network or station electronics and tone testing to verify the microphone and speaker integrity. System status can be reported to AlphaWeb or third-party management systems via SNMP, Syslog, or OPC .

• Rugged & Compliant Design: With an IP-42 rating, the station is protected against solid objects and dripping water, making it suitable for industrial indoor use. It also features a selectable Private/Open mode switch, allowing users to choose between receiving direct audio or a ringing tone for incoming calls .

Technical Specifications

• Product Number: 1007034202

• Mounting: Combined Desk Top and Wall Mount

• Audio Output: Built-in 1W (63 Ohm) loudspeaker

• Microphone: Electret microphone with automatic sensitivity adjustment

• Keys: 10 Programmable single-touch keys

• Interface: 4-wire interface; Powered from exchange via 2-pair twisted cable

• Connectivity: Modular jack connection with delivered cable and plug-box

• Cabling Requirement: 2-pair twisted cable 0.5 mm² / 24 AWG (Max. loop resistance 240 Ohm)

• Dimensions (W x H x D): 168 mm x 75 mm x 176 mm

• Operating Temperature: 0°C to +40°C

• Ingress Protection: IP-42

Applications

The VMP-619 is the perfect solution for:

• Marine & Offshore: Vessel bridges and engine rooms (Emergency/Intercom) .

• Industrial Facilities: Factory floors and control rooms requiring durable communication.

• Security & Access Control: Entry points and security command centers.

• Transportation Hubs: Tunnels, control towers, and stations.
