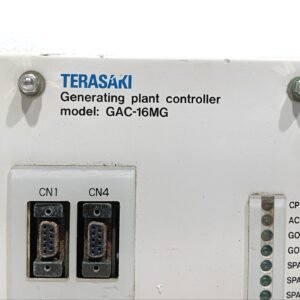

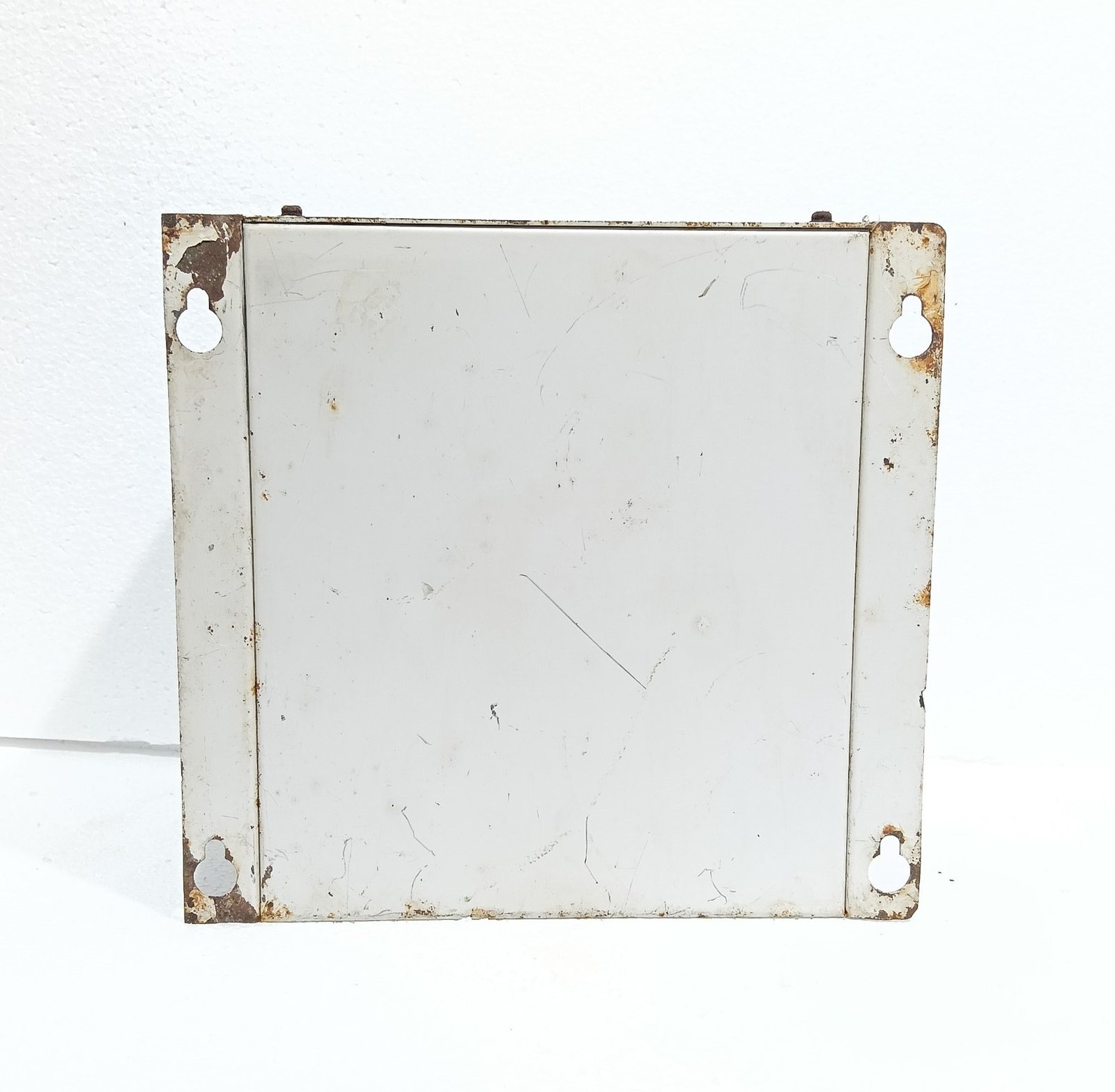

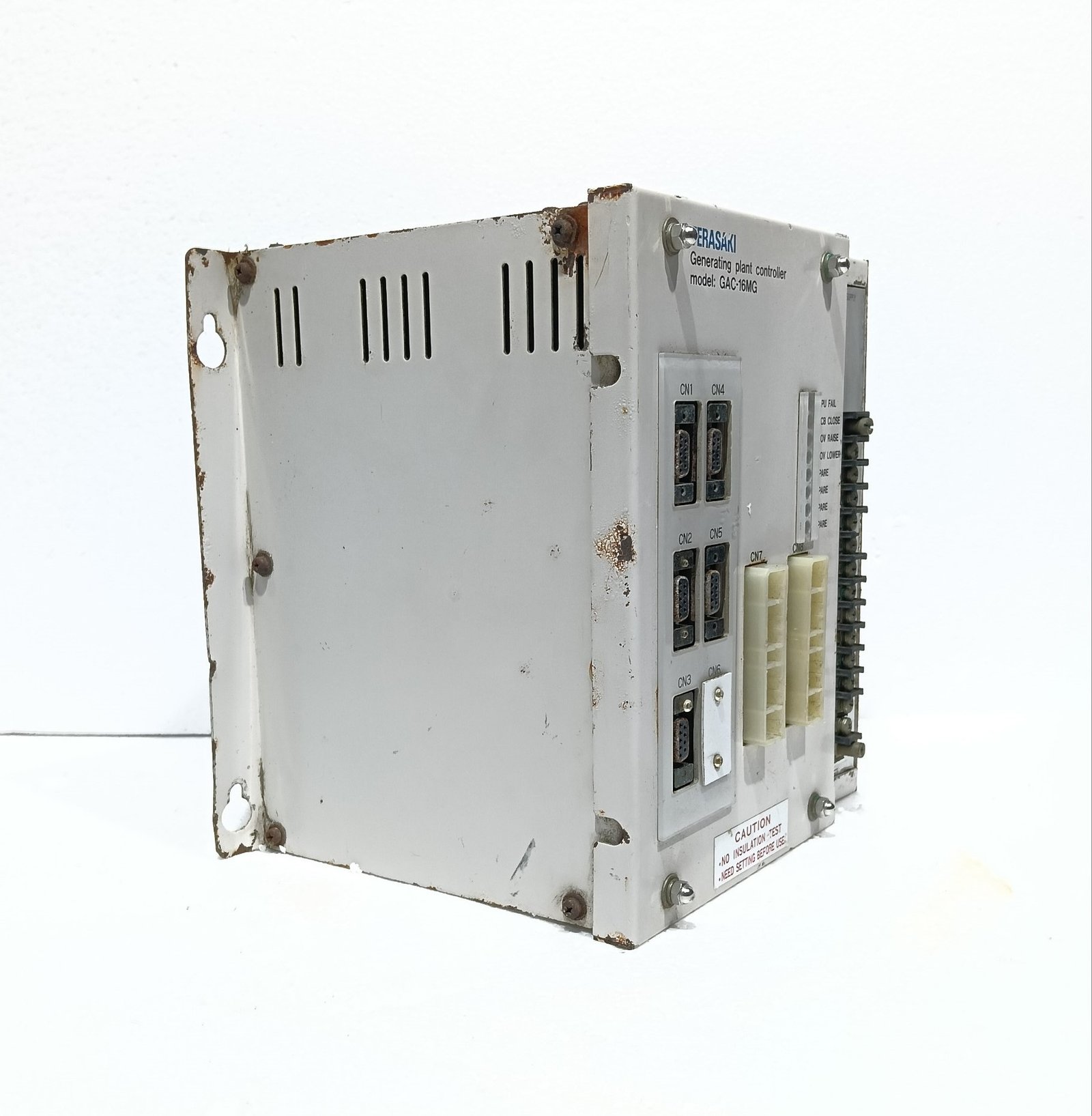

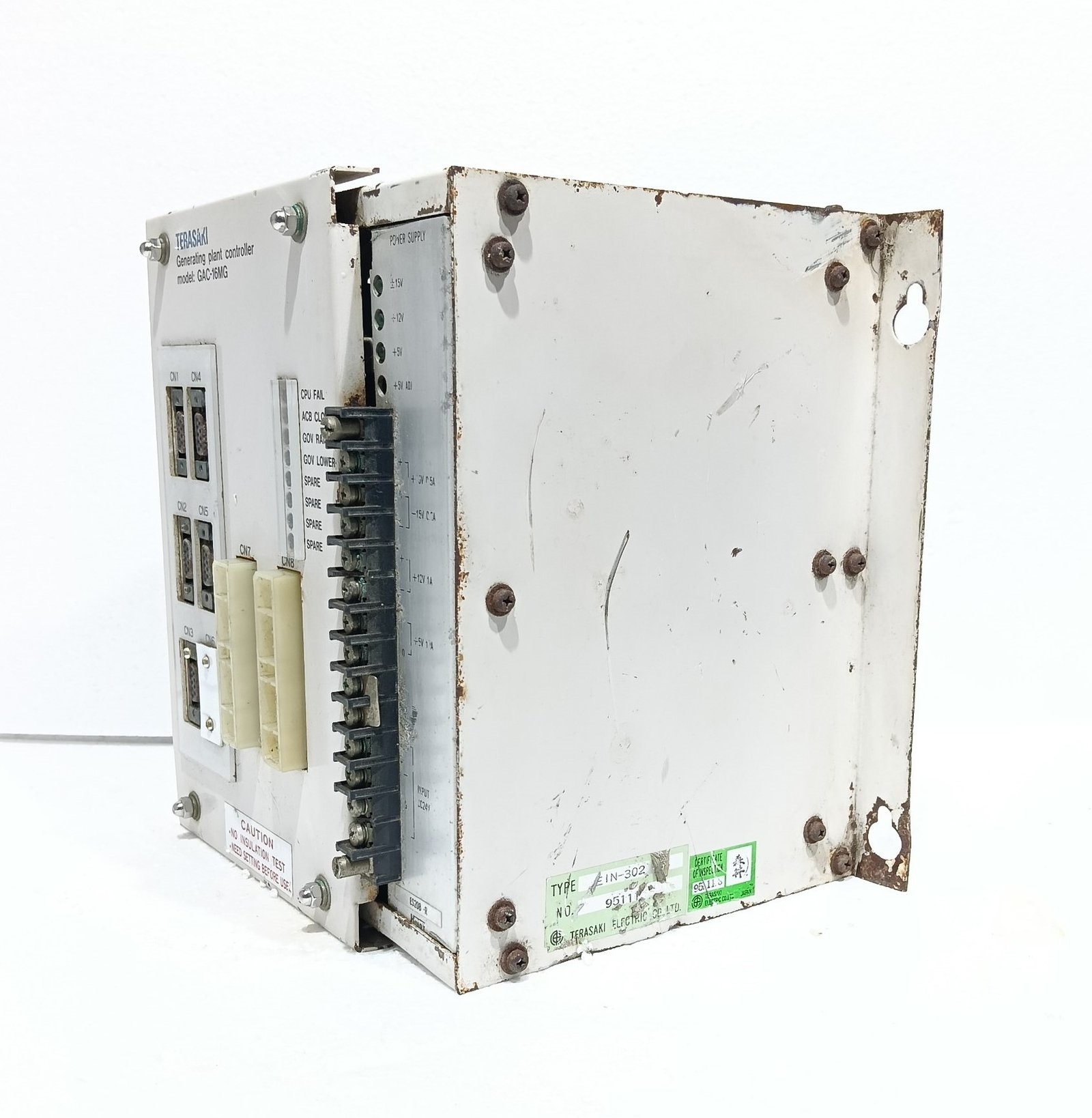

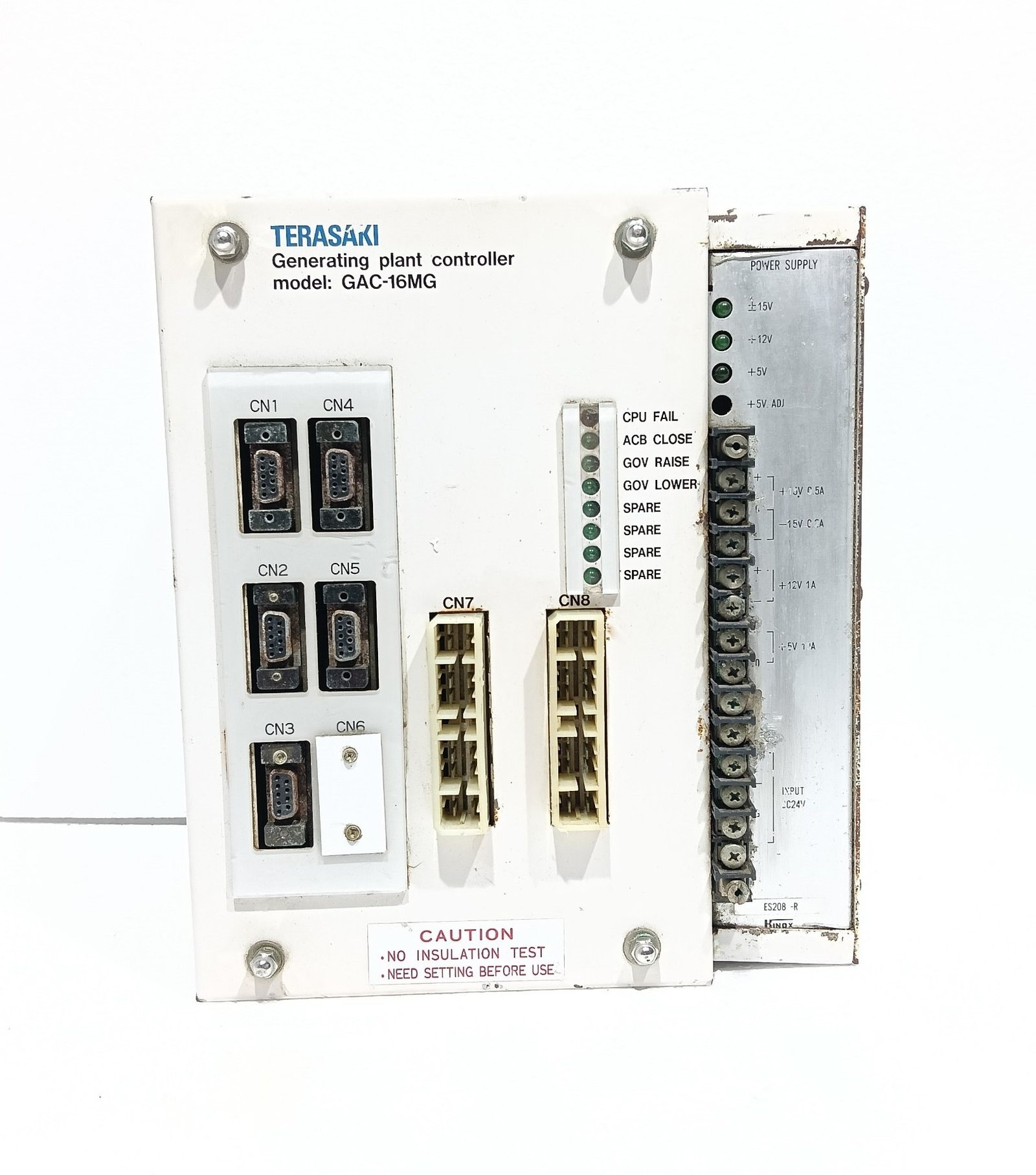

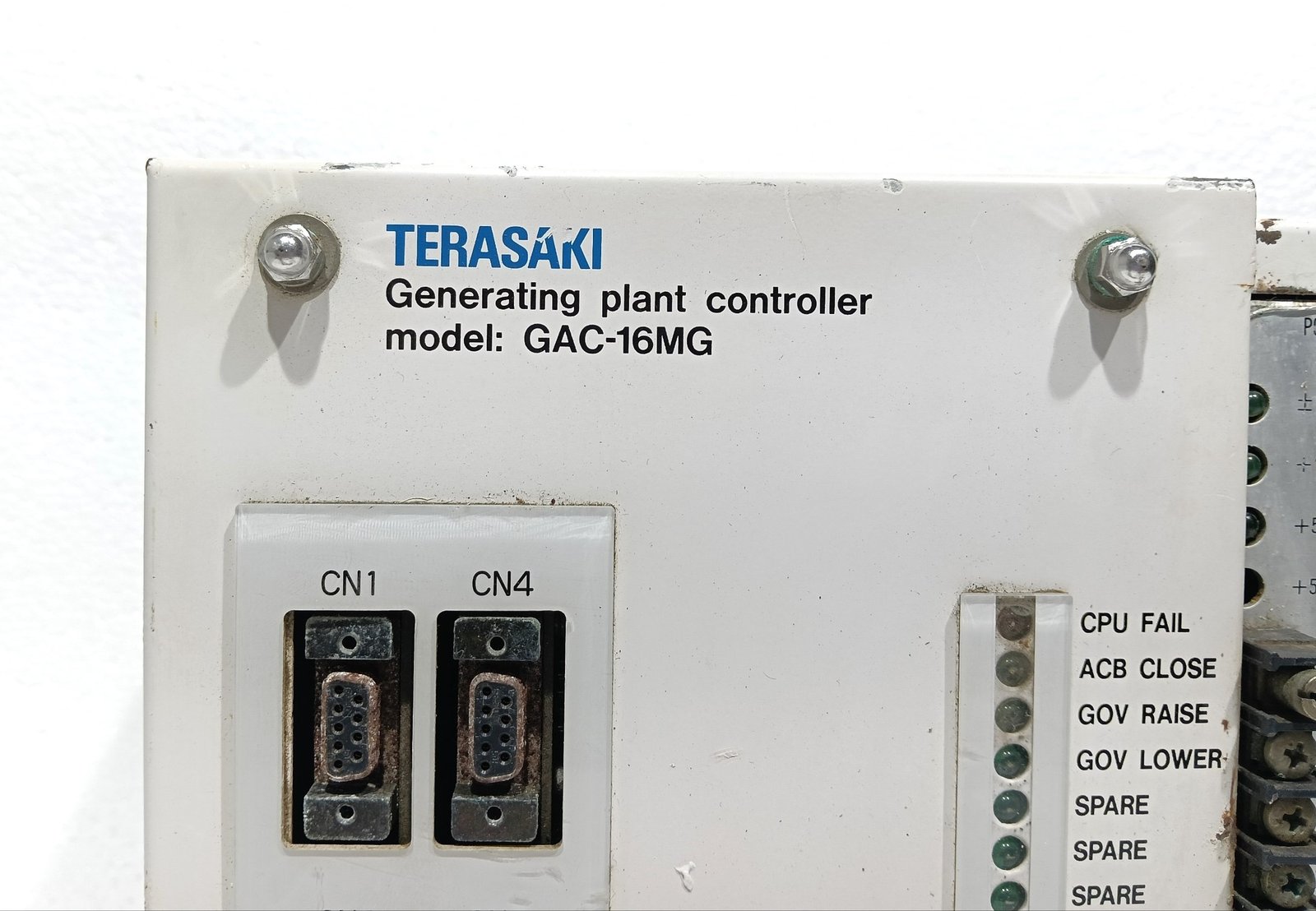

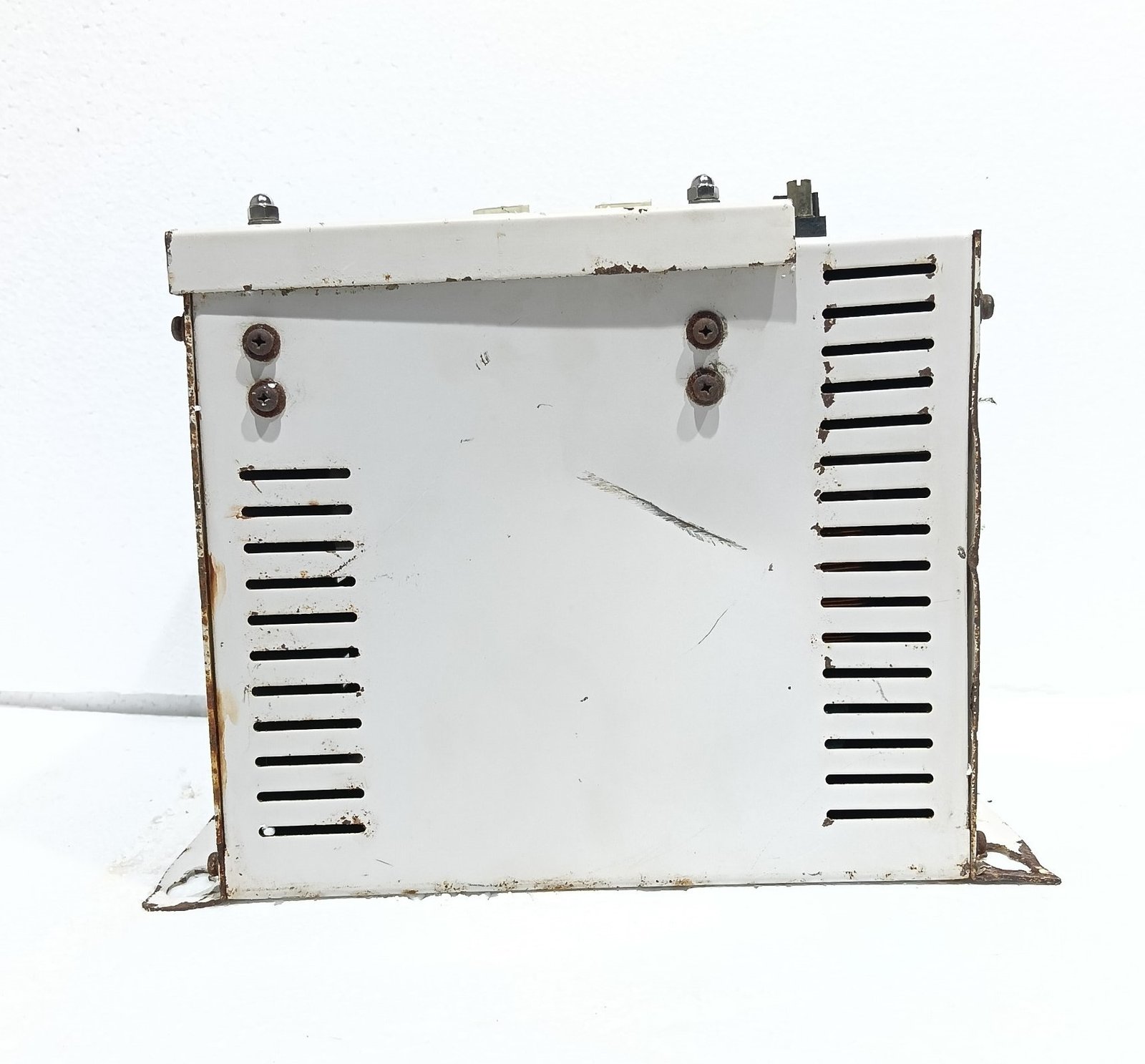

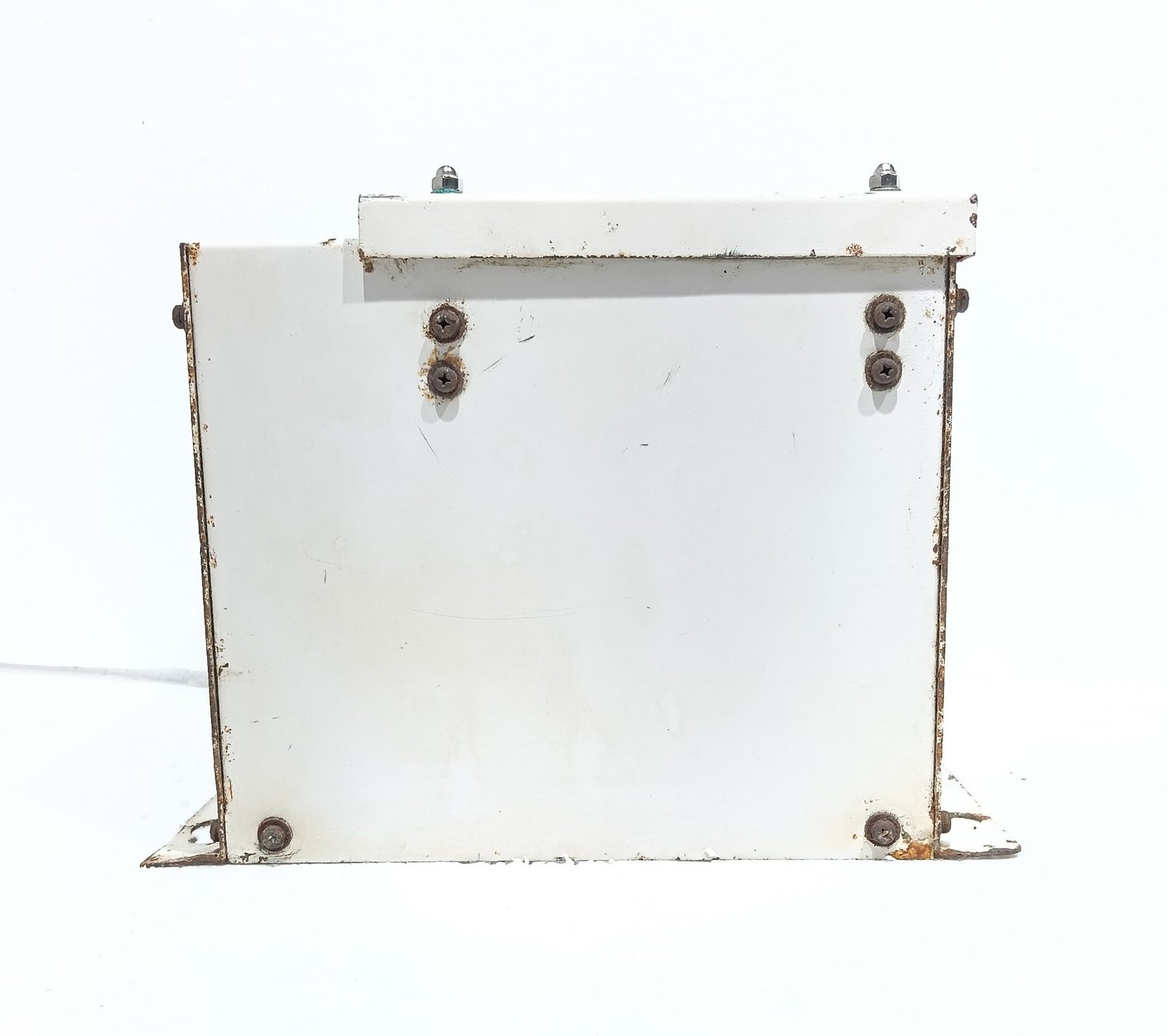

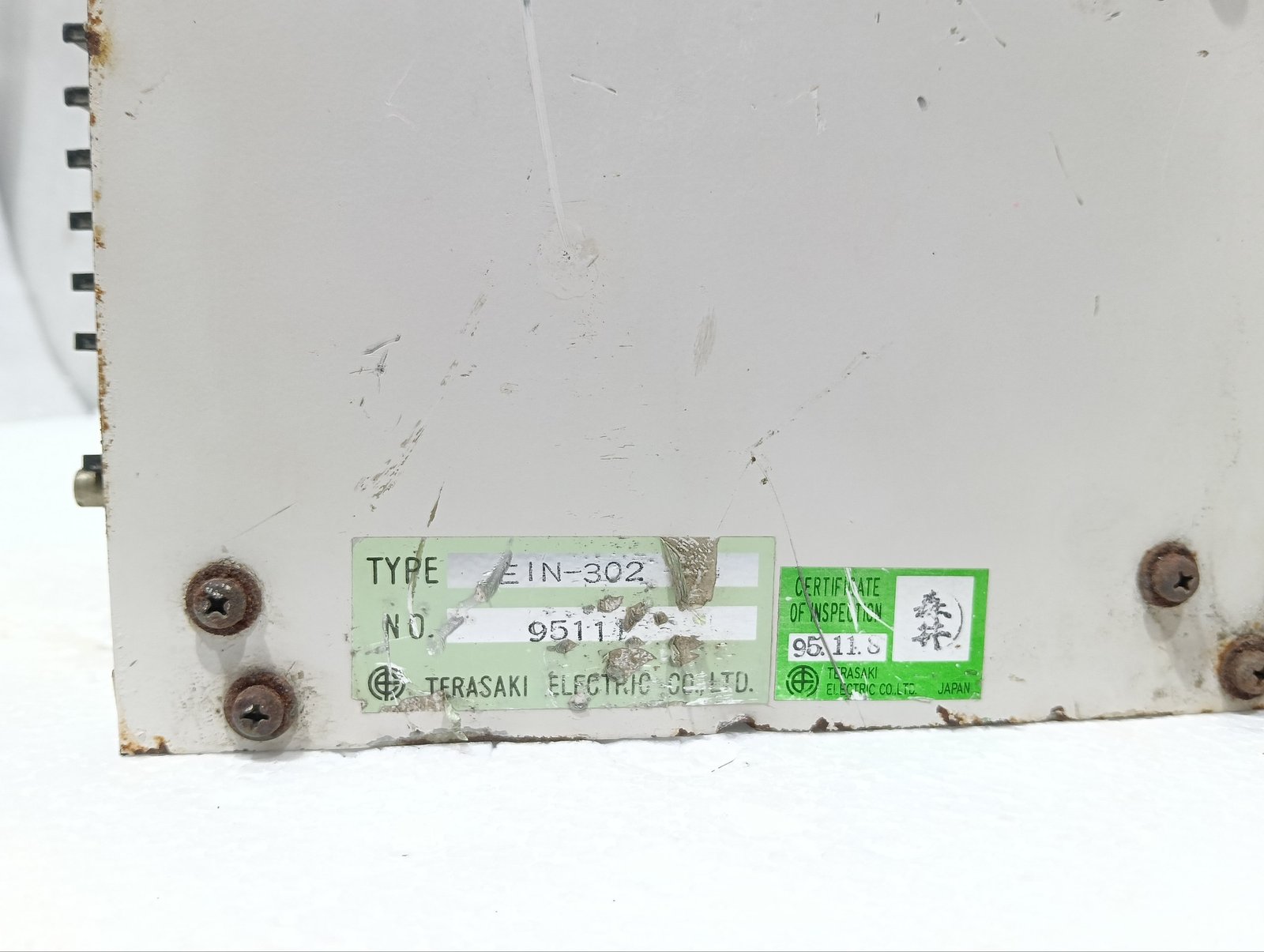

The Terasaki GAC-16MG (Type: EIN-302) is a sophisticated, multi-functional generating plant controller designed for comprehensive management of marine and industrial power generation systems. Manufactured by Terasaki Electric Co., Ltd. in Japan, this controller serves as a core component of Terasaki’s decentralized power distribution systems, providing independent control for individual generator sets within a multi-generator plant .
The GAC-16MG represents a distributed control philosophy, where each generator is equipped with its own autonomous controller, eliminating the need for centralized synchronizing panels and significantly enhancing system reliability . If a single unit fails, it does not affect the operation of other generators in the plant.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model | GAC-16MG |
| Part Number | EIN-302 |
| Brand | Terasaki |
| Country of Origin | JAPAN |
| Control Voltage | 24 V DC (±10%) |
| AC Input (Sensing) | 100V – 440V AC |
| Frequency | 50/60 Hz |
| Power Consumption | <15 W during normal operation |
| Control Capacity | Supports up to 16 generator logic channels |
| Communication Interface | RS-485 |
| Digital Inputs | 16 programmable inputs (dry contact) |
| Relay Outputs | 8 form-C relays, 5 A @ 250 V AC |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Mounting Type | Panel-mounted module |
| Protection Class | IP20 (control cabinet installation required) |
Applications
- Marine Power Plants: Main and auxiliary generator management on cargo ships, tankers, bulk carriers, and container vessels
- Offshore Platforms: Stable power supply for drilling and accommodation modules
- Industrial Cogeneration: Diesel or gas generator set control in factory microgrids
- Critical Facilities: Automatic Mains Failure (AMF) control for hospitals and data centers
- Emergency Power Systems: Standby generator management for large-scale infrastructure
