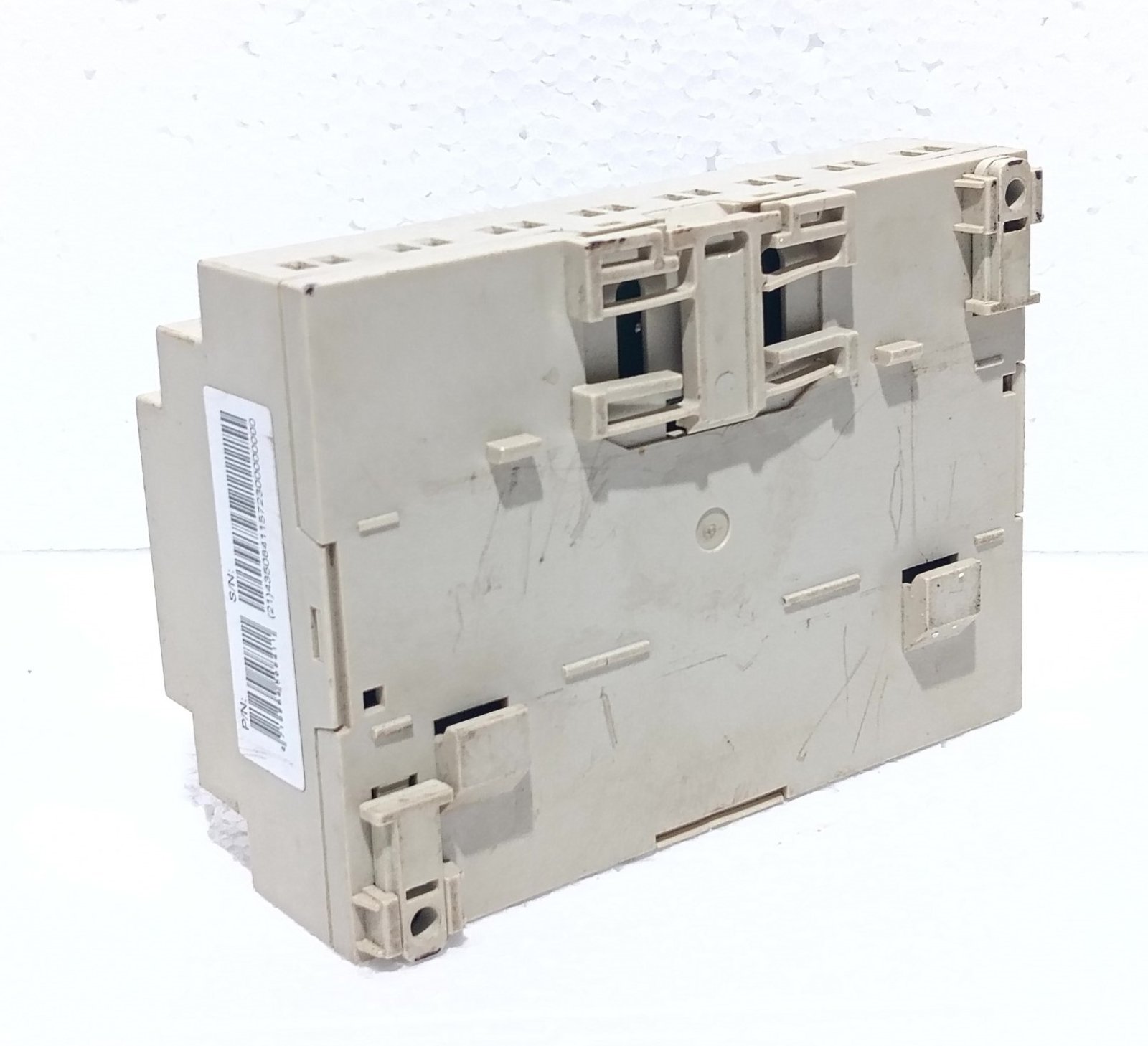

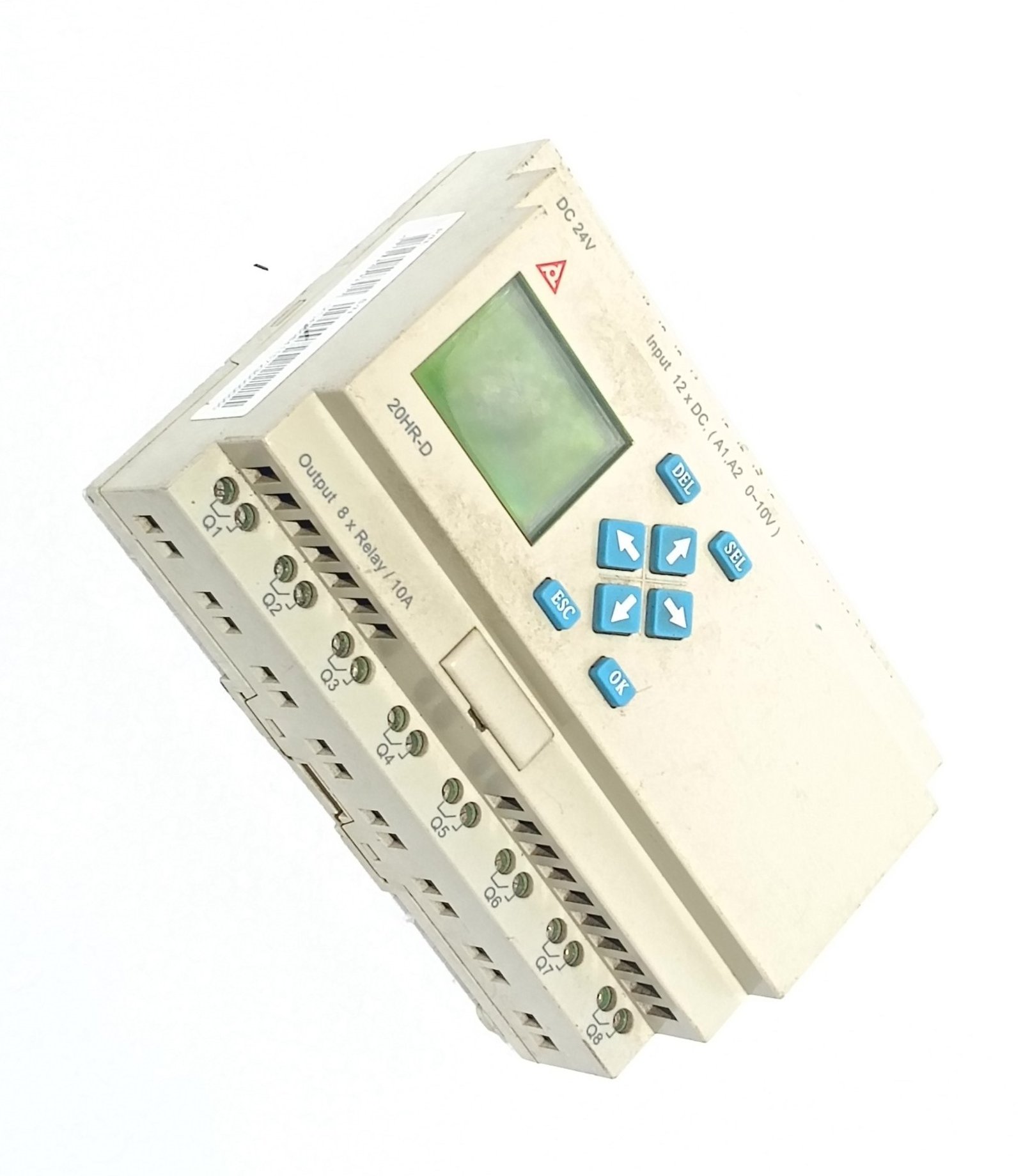

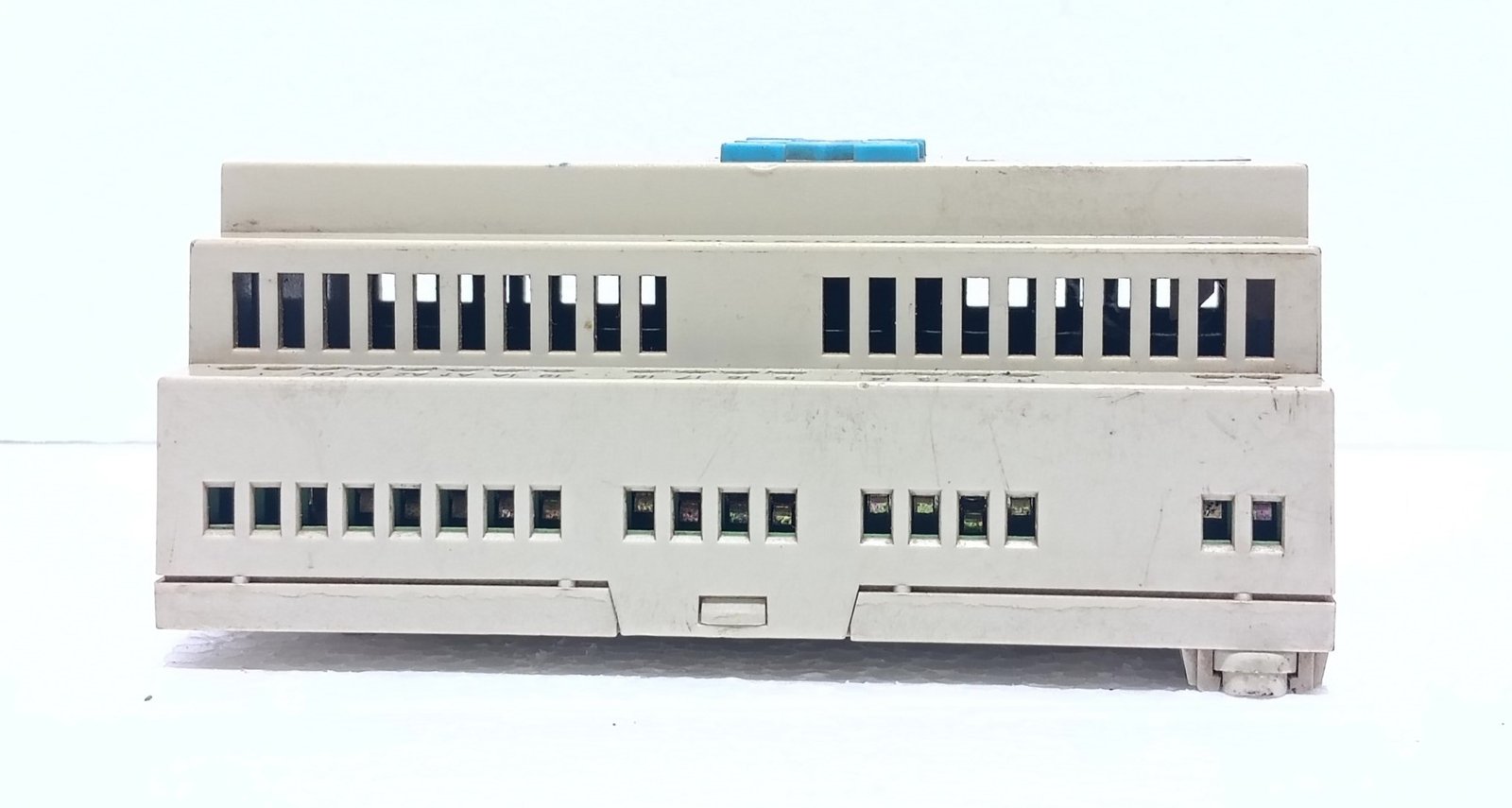

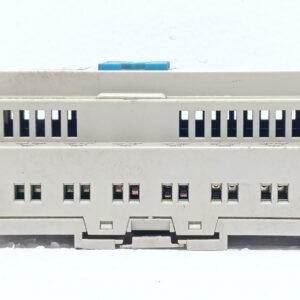

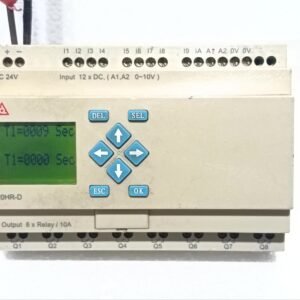

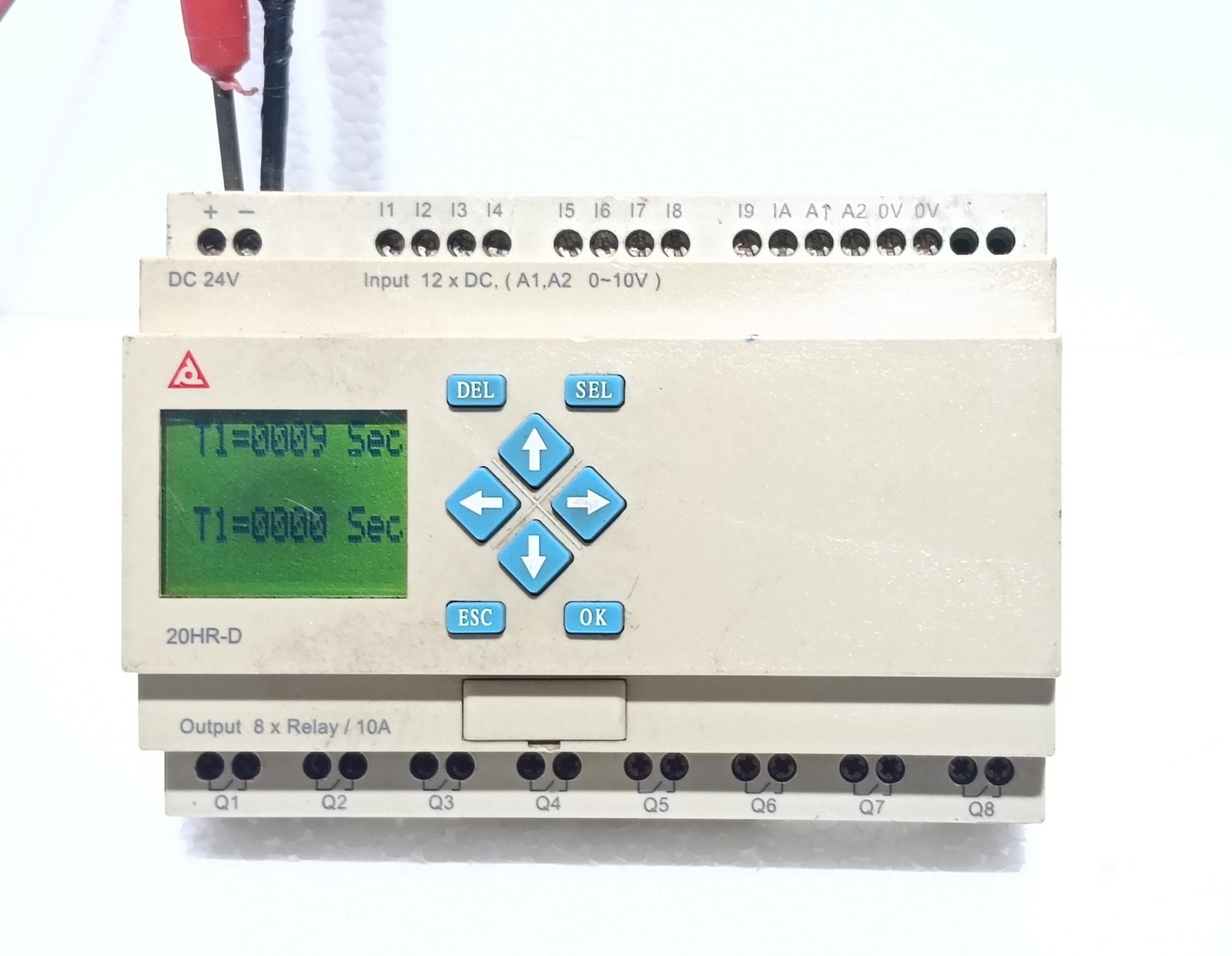

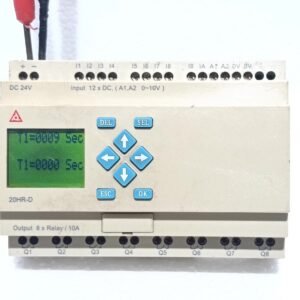

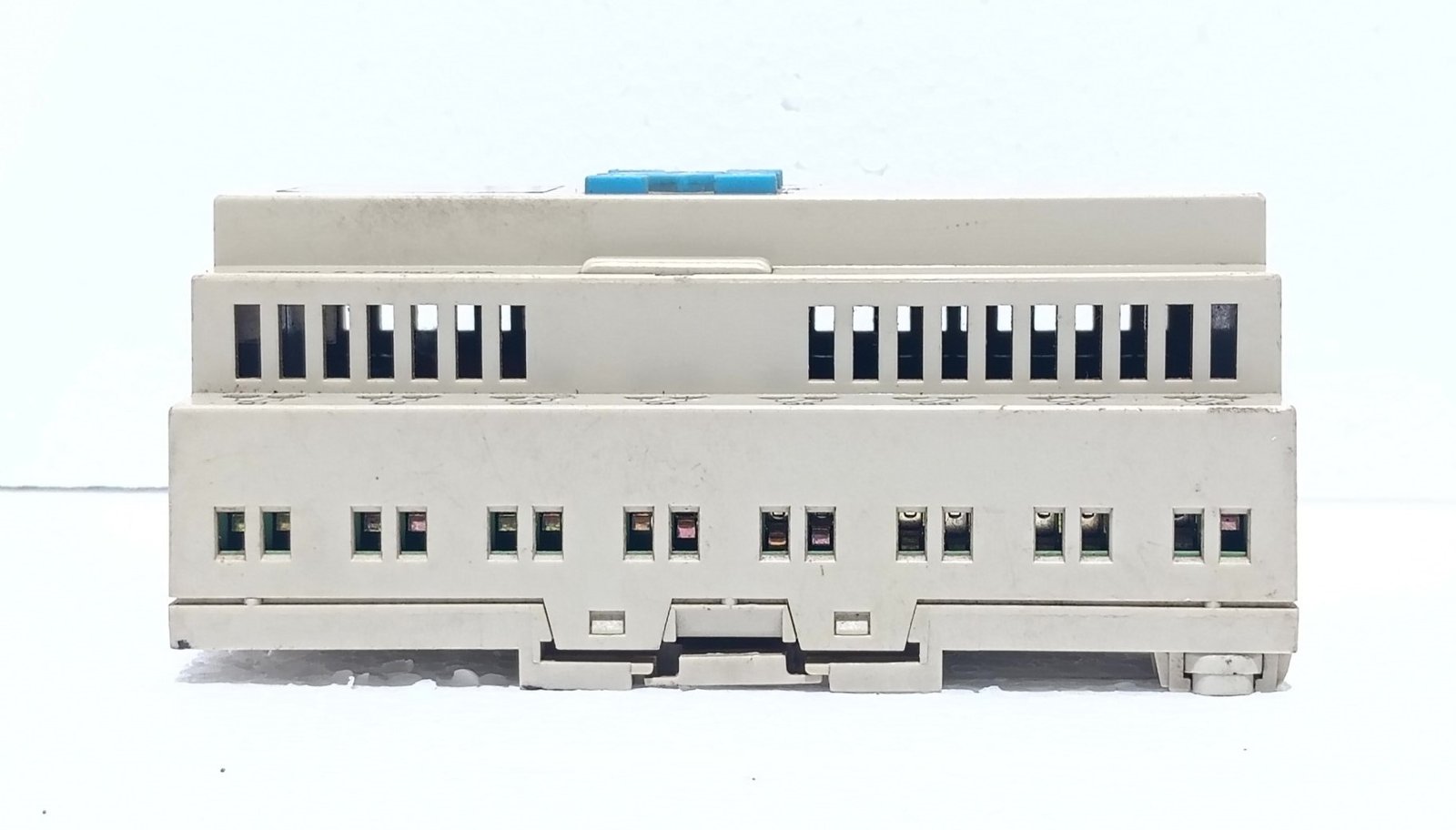

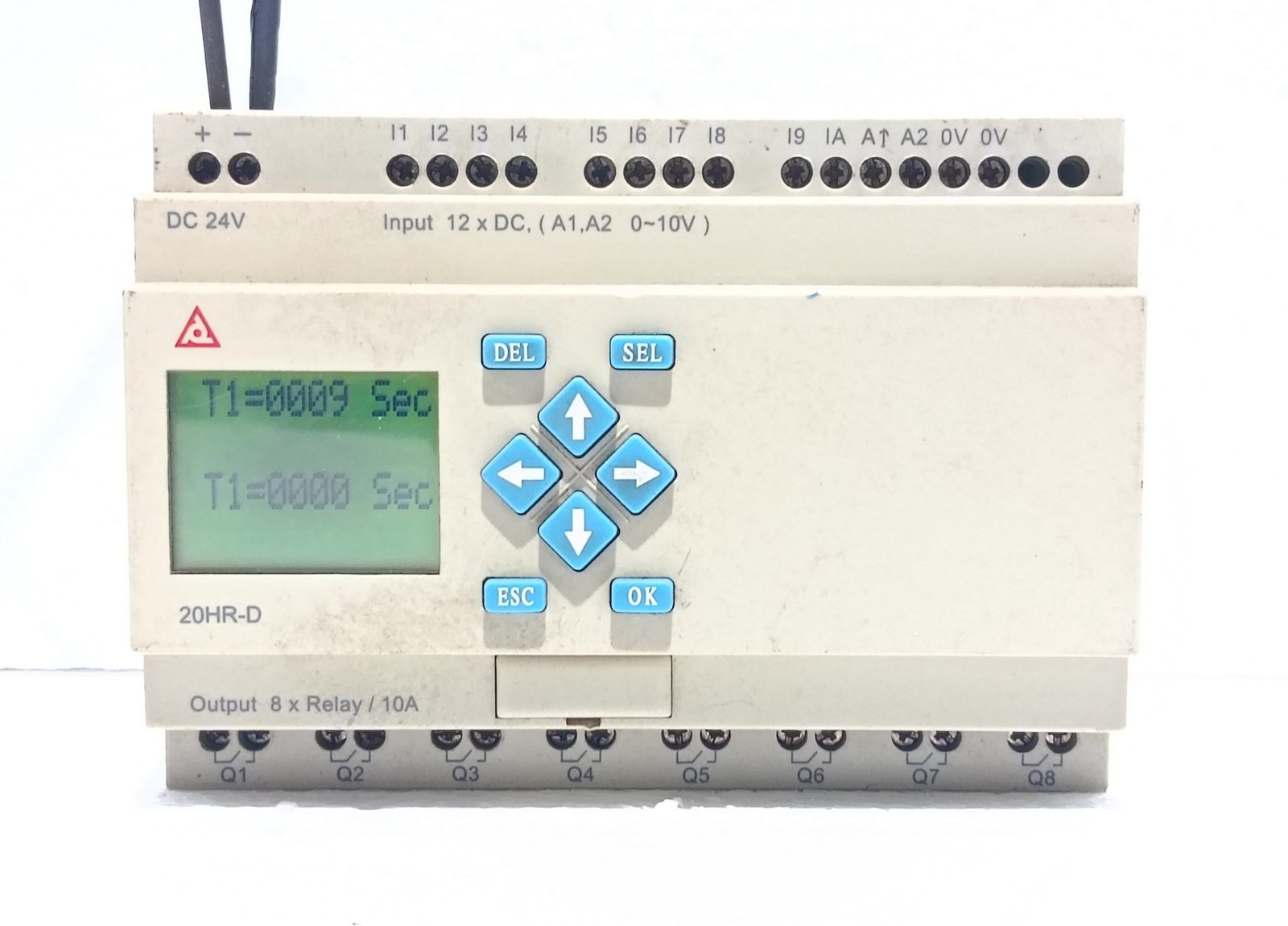

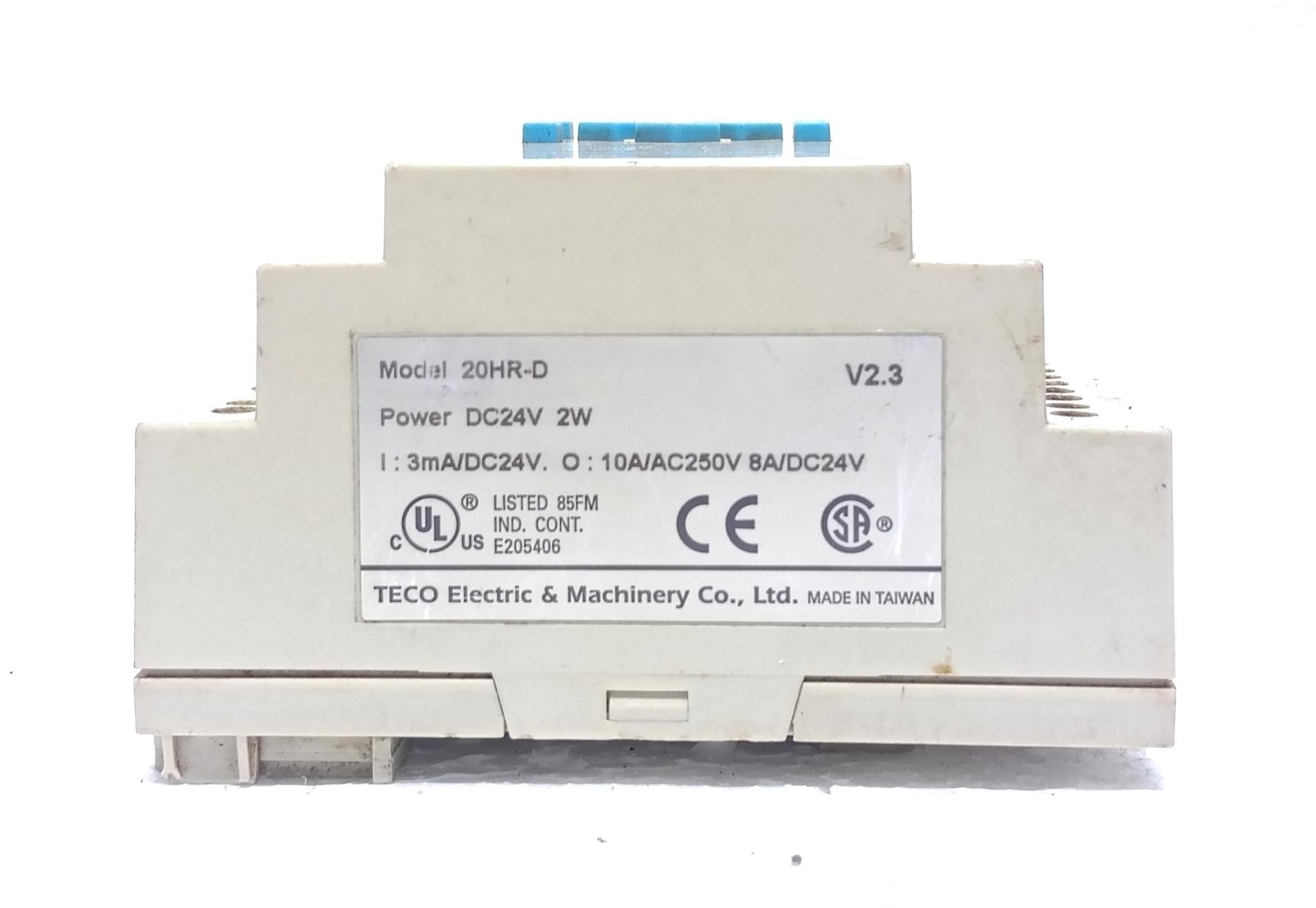

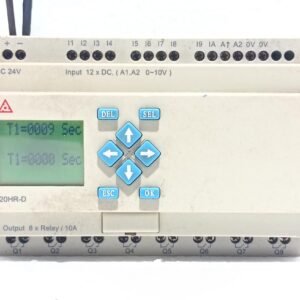

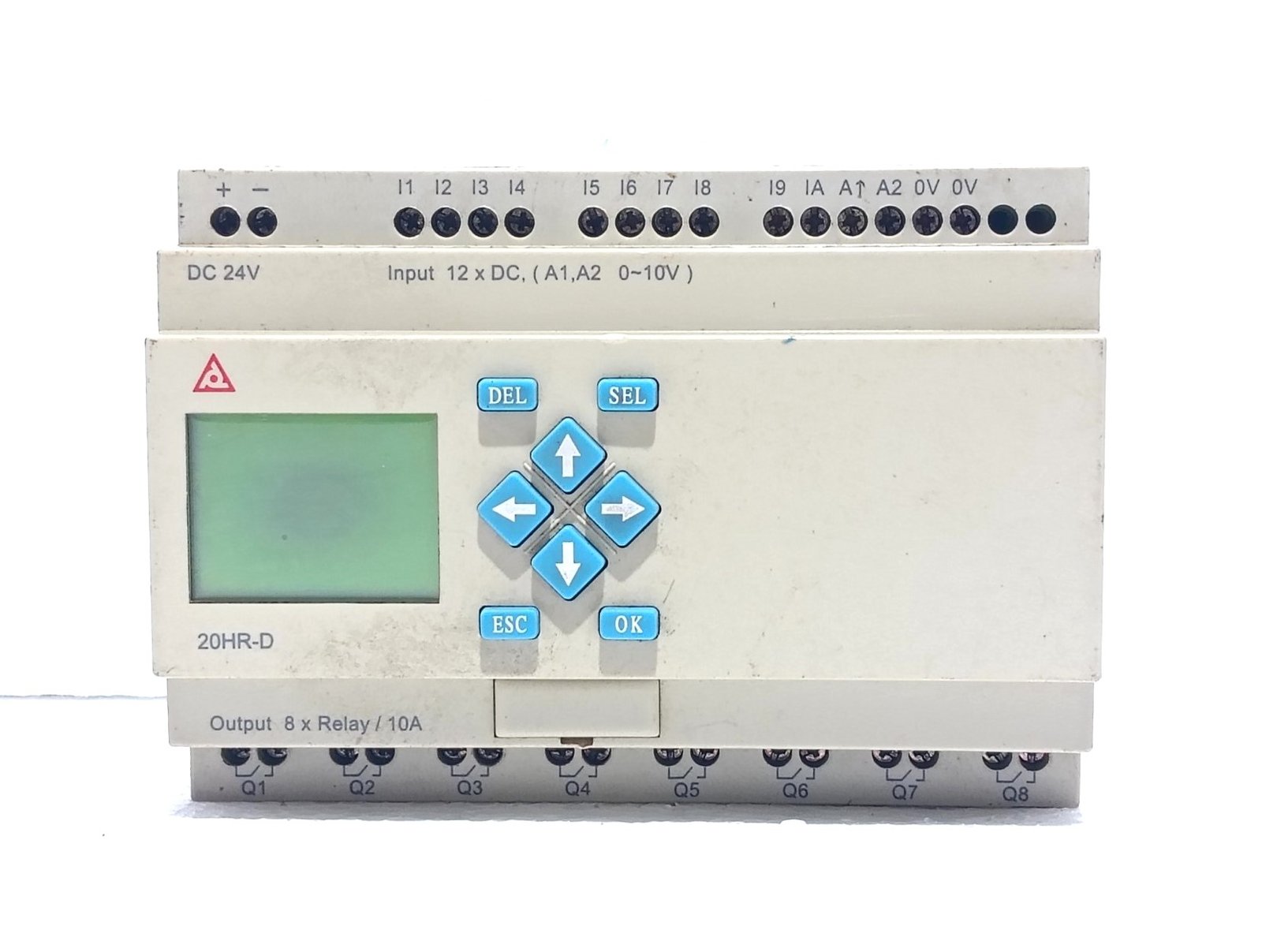

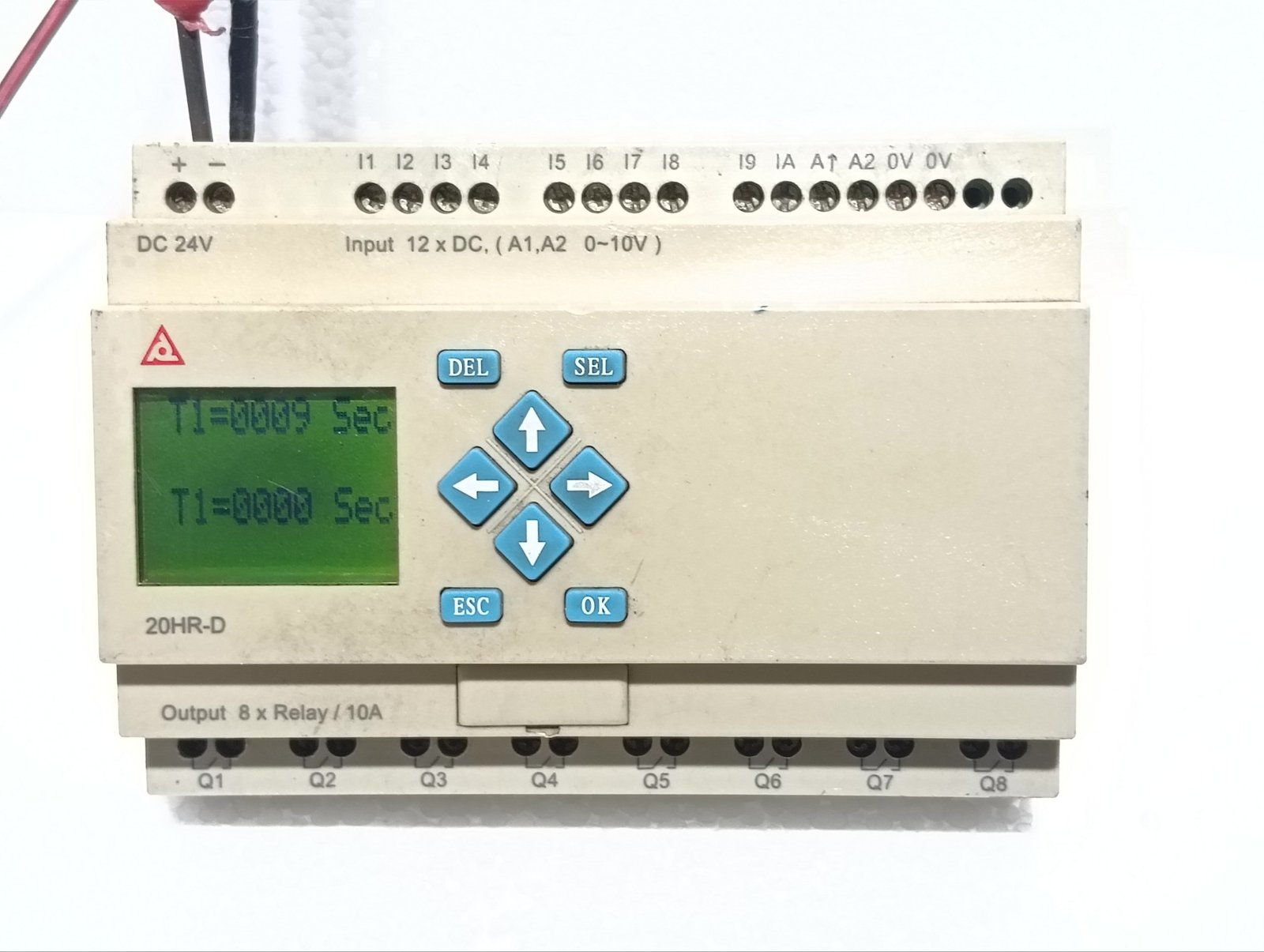

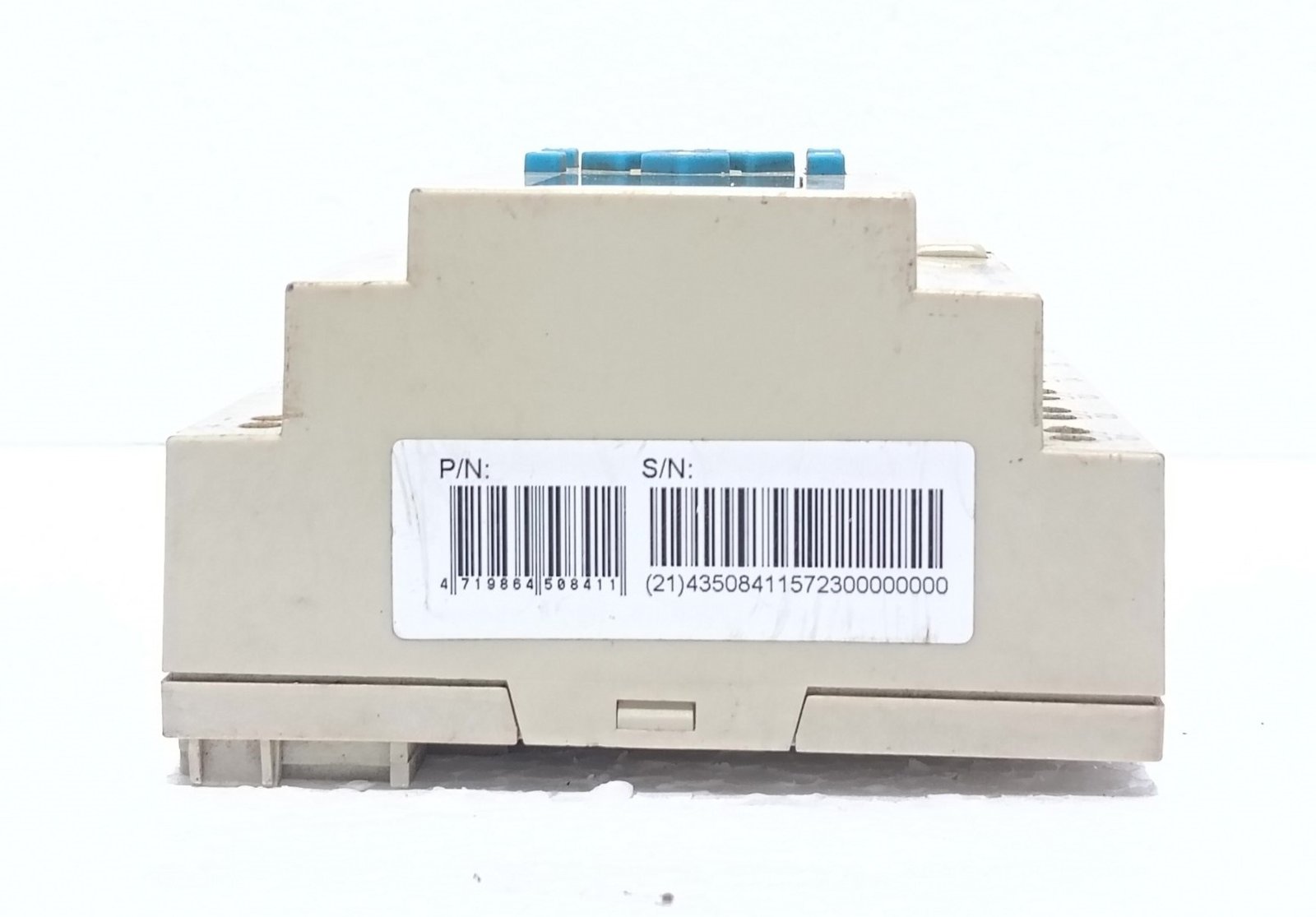

The TECO 20HR-D (24VDC, 2W) is a next-generation programmable logic relay designed for small to medium-scale automation tasks. With firmware version V2.3 and part number 435084115723, this unit combines the flexibility of a PLC with the simplicity of a smart relay.
Key Specifications
-
Model: 20HR-D
-
Power Supply: 24V DC (±20%)
-
Power Consumption: 2W (max)
-
I/O Configuration:
-
12 Digital Inputs (sink/source, including 4 high-speed counters up to 5kHz)
-
8 Relay Outputs (2A per point, resistive load)
-
-
Display: 4-line LCD with backlight (128×64 pixels)
-
Memory: 4000 steps (Flash)
-
Programming: Via front panel keys or PC software (FBs/WinProLadder compatible)
-
Communication: Built-in RS485 (Modbus RTU master/slave)
-
Firmware Version: V2.3
-
Certifications: CE, UL, RoHS
Features & Benefits
-
Expandable – Supports up to 7 expansion modules (digital, analog, temperature).
-
Real-time clock – For time-based control and scheduling.
-
High-speed counting – 4 independent 5kHz counters for encoders or pulse monitoring.
-
User-friendly programming – Ladder logic or FBD. No advanced PLC skills required.
-
Compact DIN-rail design – Saves panel space (90×70×56 mm).
Applications
-
Conveyor belt control
-
Lighting and HVAC automation
-
Pump and valve sequencing
-
Small machine control (packaging, labeling)
-
Irrigation and greenhouse systems
