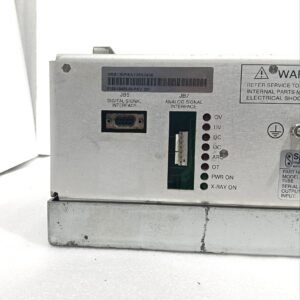

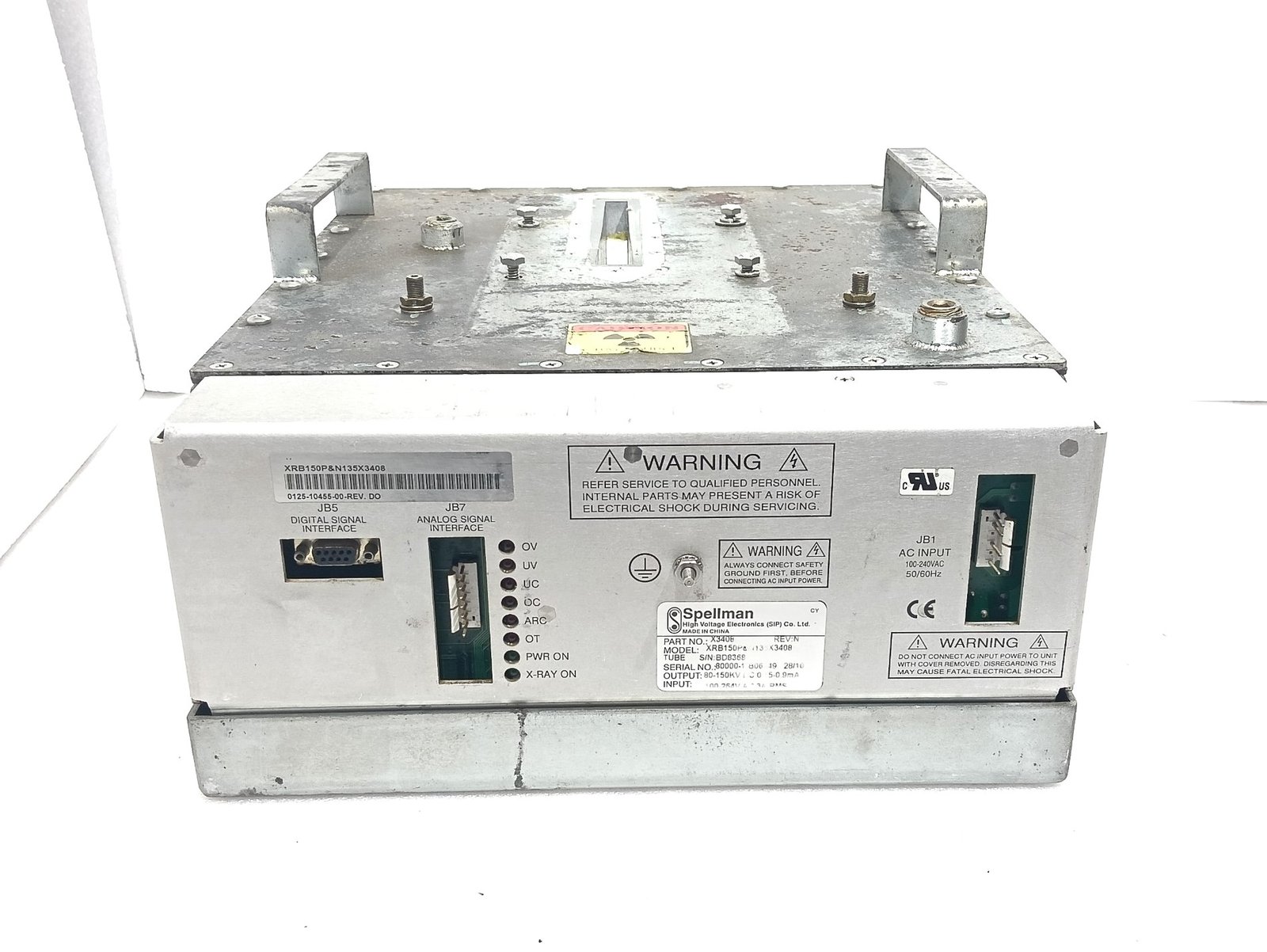

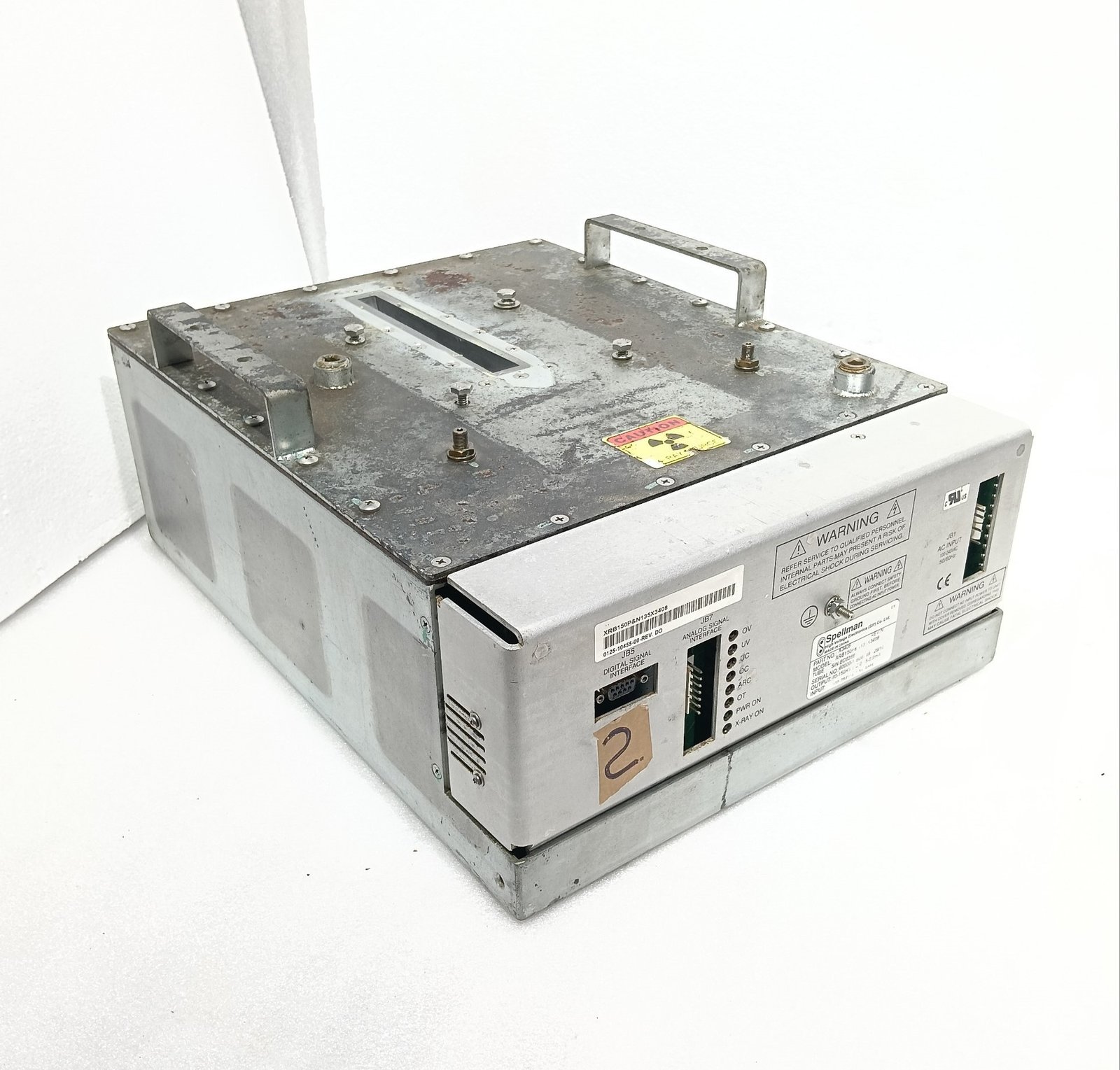

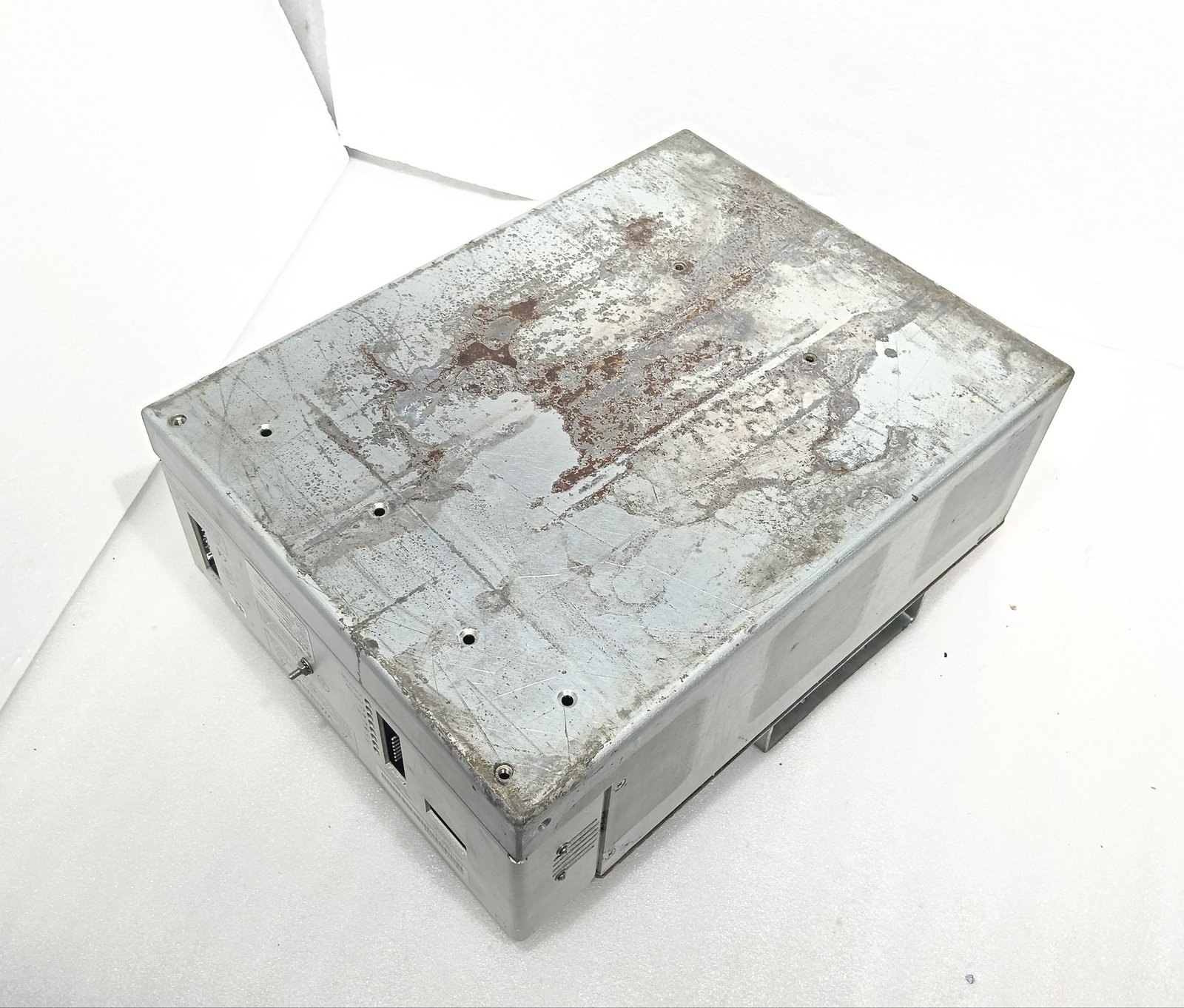

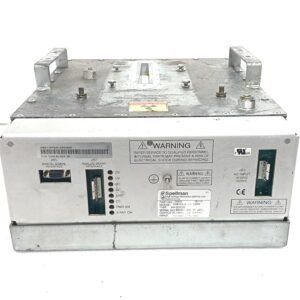

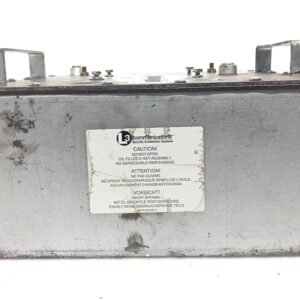

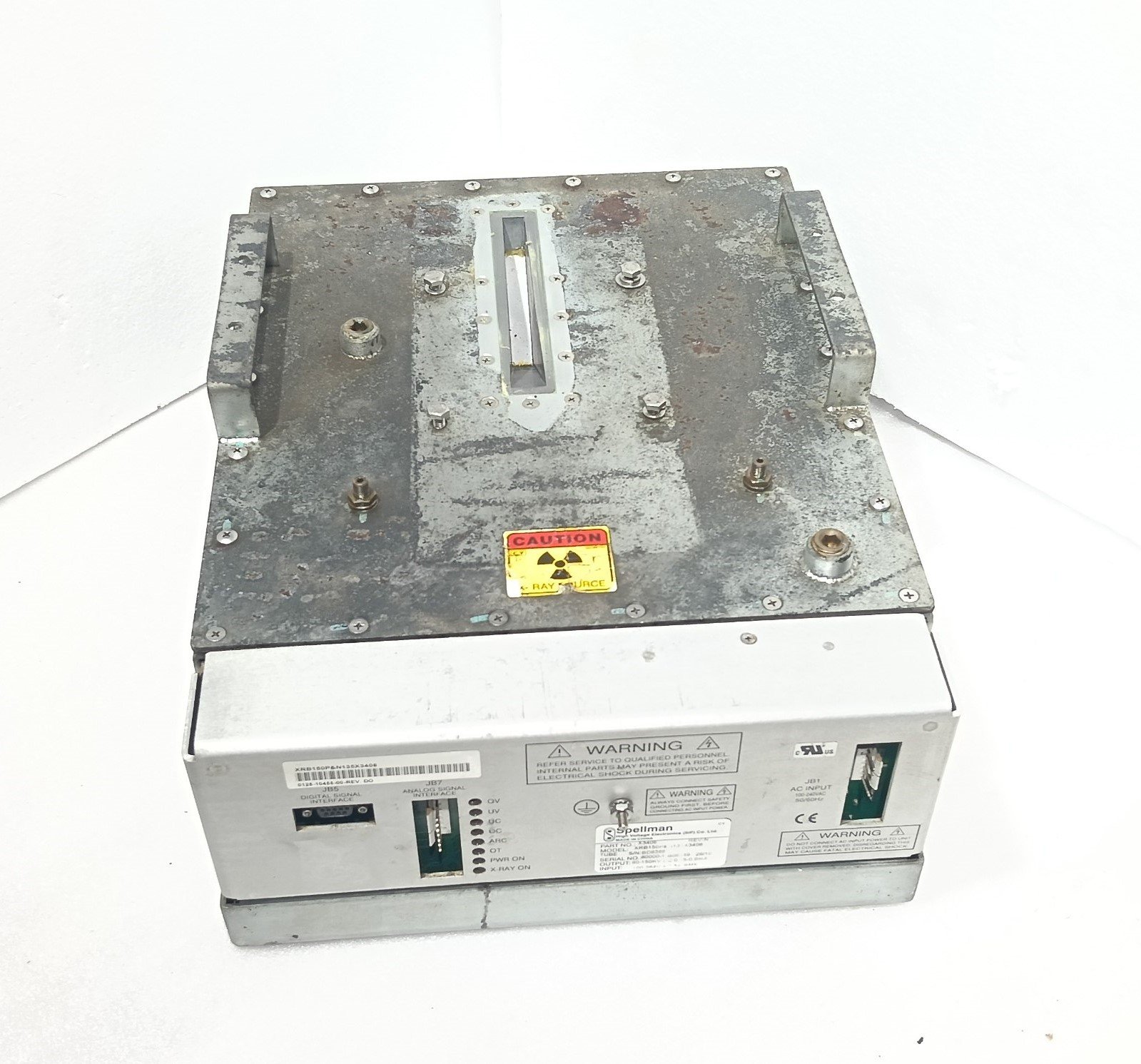

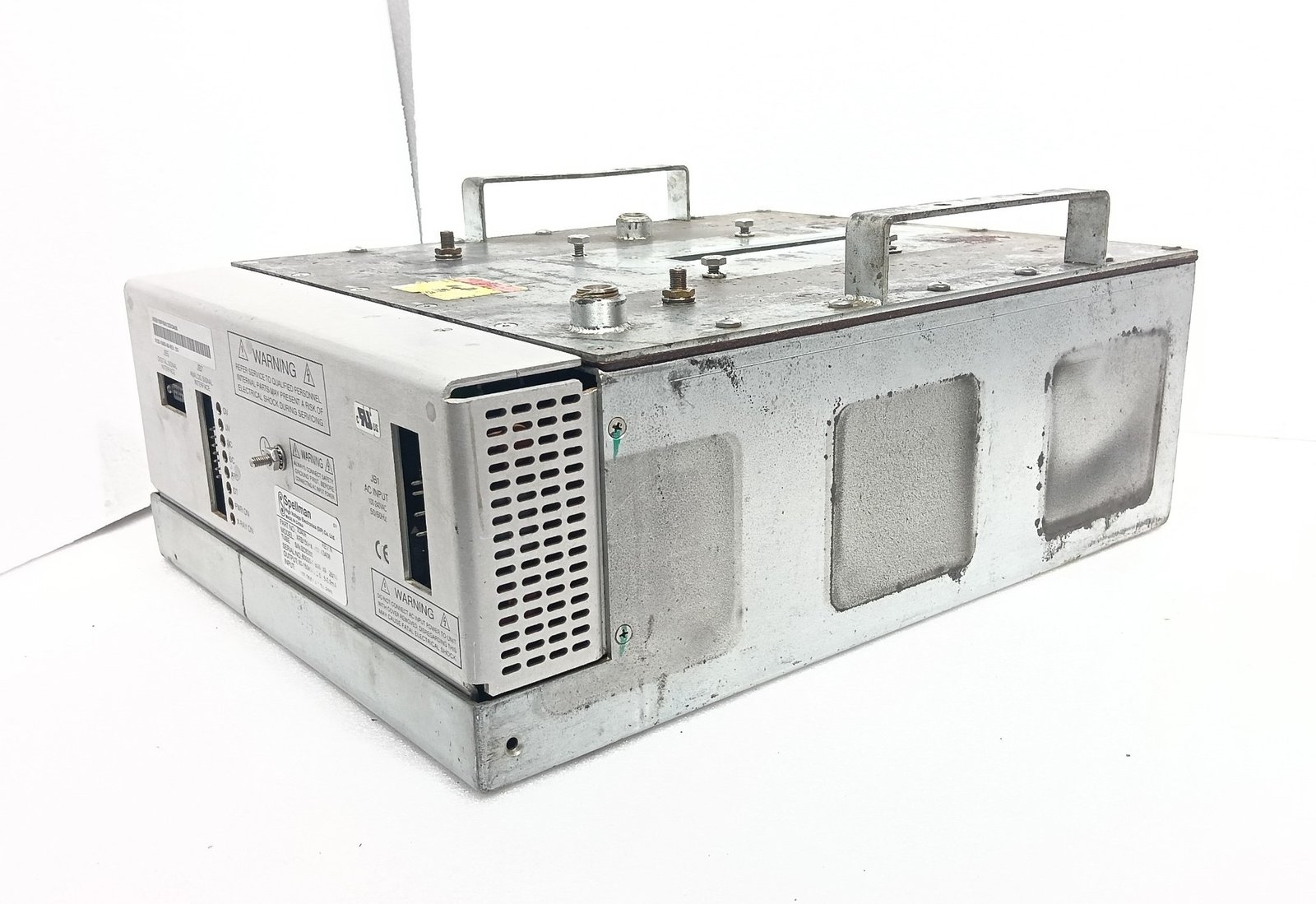

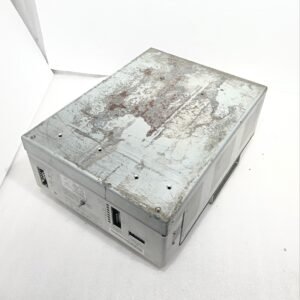

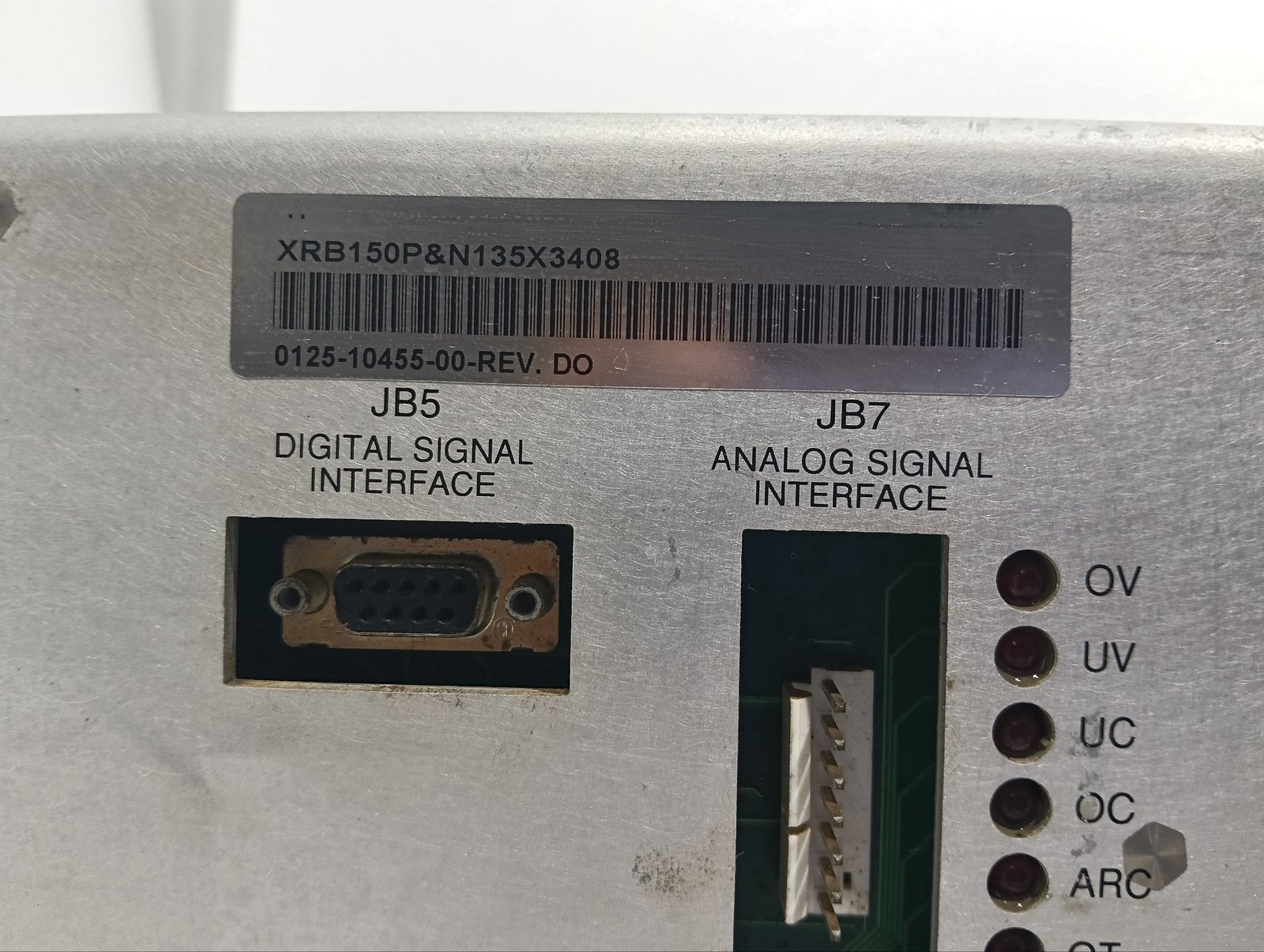

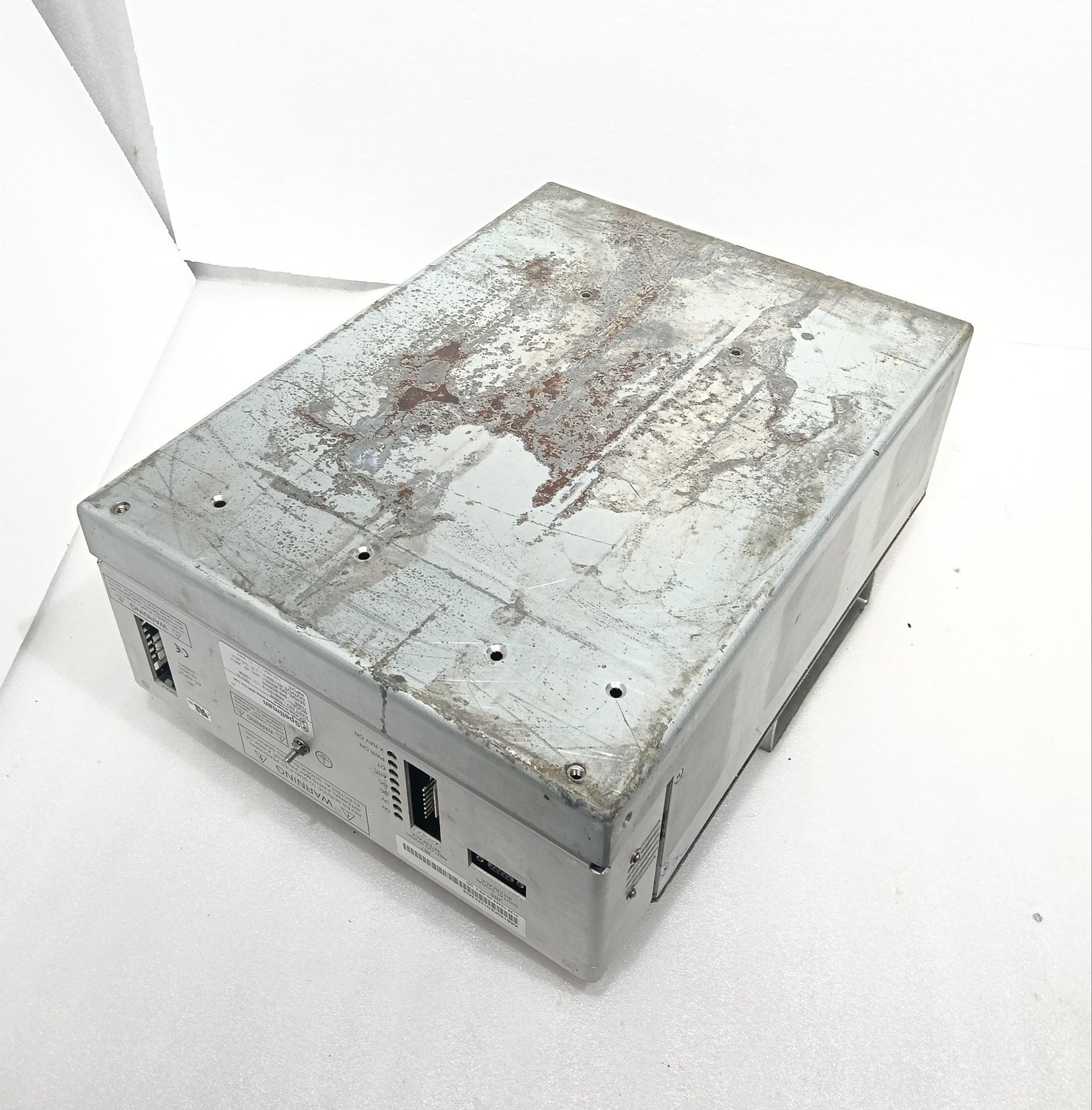

The Spellman X3408 is a high-voltage generator power supply designed for X-ray inspection and analysis applications. It is a controller board/module that forms part of Spellman’s extensive line of industrial X-ray generators, recognized for their reliability, compact design, and precision in demanding OEM environments .
Spellman High Voltage Electronics is the world’s leading provider of high-voltage power converters and X-ray sources for medical, industrial, security, semiconductor, analytical, and laboratory applications .

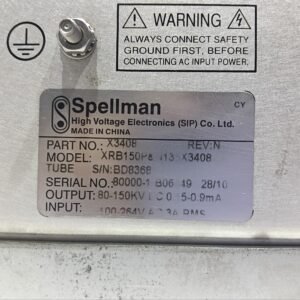

Key Specifications
| Parameter | Details |
|---|---|
| Model | X3408 |
| Board/PCB Revision | BD8368 |
| Application | X-ray generator controller / power supply module |
| Compatibility | 160kV X-ray generator systems (replacement/controller board) |
Product Features
Based on Spellman’s industry-standard X-ray generator platforms, the X3408 series is expected to incorporate:
- High Voltage Output Capability – Designed for X-ray tube control up to 160kV applications
- Controller Board Architecture – Functions as the control interface between system electronics and the high-voltage X-ray tube
- OEM Integration Ready – Intended for installation as a component within a larger X-ray inspection system
- Encapsulated High Voltage Section – Oil-free design eliminates leaks and environmental concerns while providing high dielectric strength
Typical Applications
This power supply board is suited for use in:
- Industrial X-Ray Inspection – Non-destructive testing and quality control
- Security Scanning Systems – Baggage and cargo inspection equipment
- Analytical Instrumentation – X-ray fluorescence and diffraction systems
- Medical Imaging Equipment – Diagnostic X-ray systems
