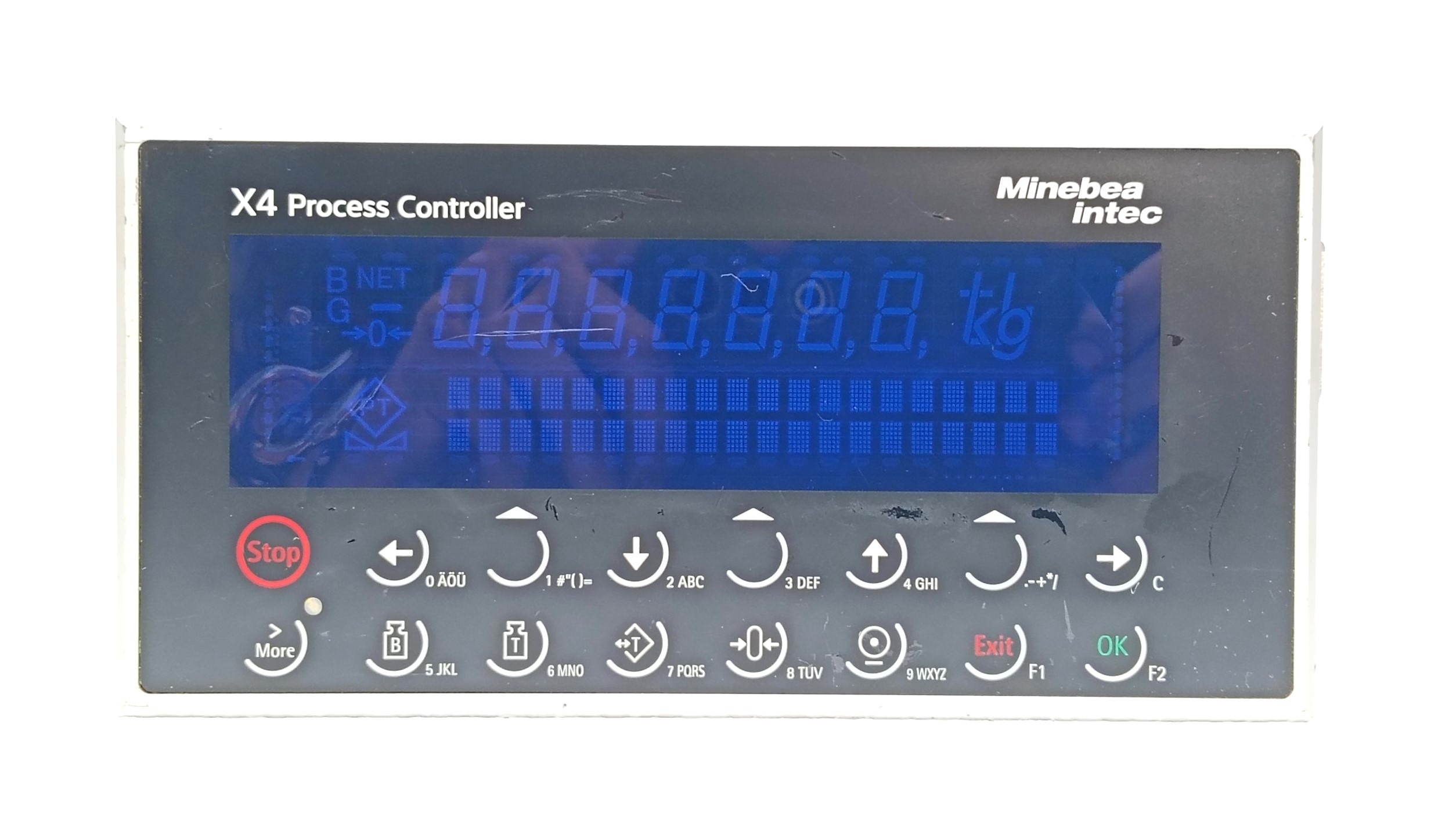

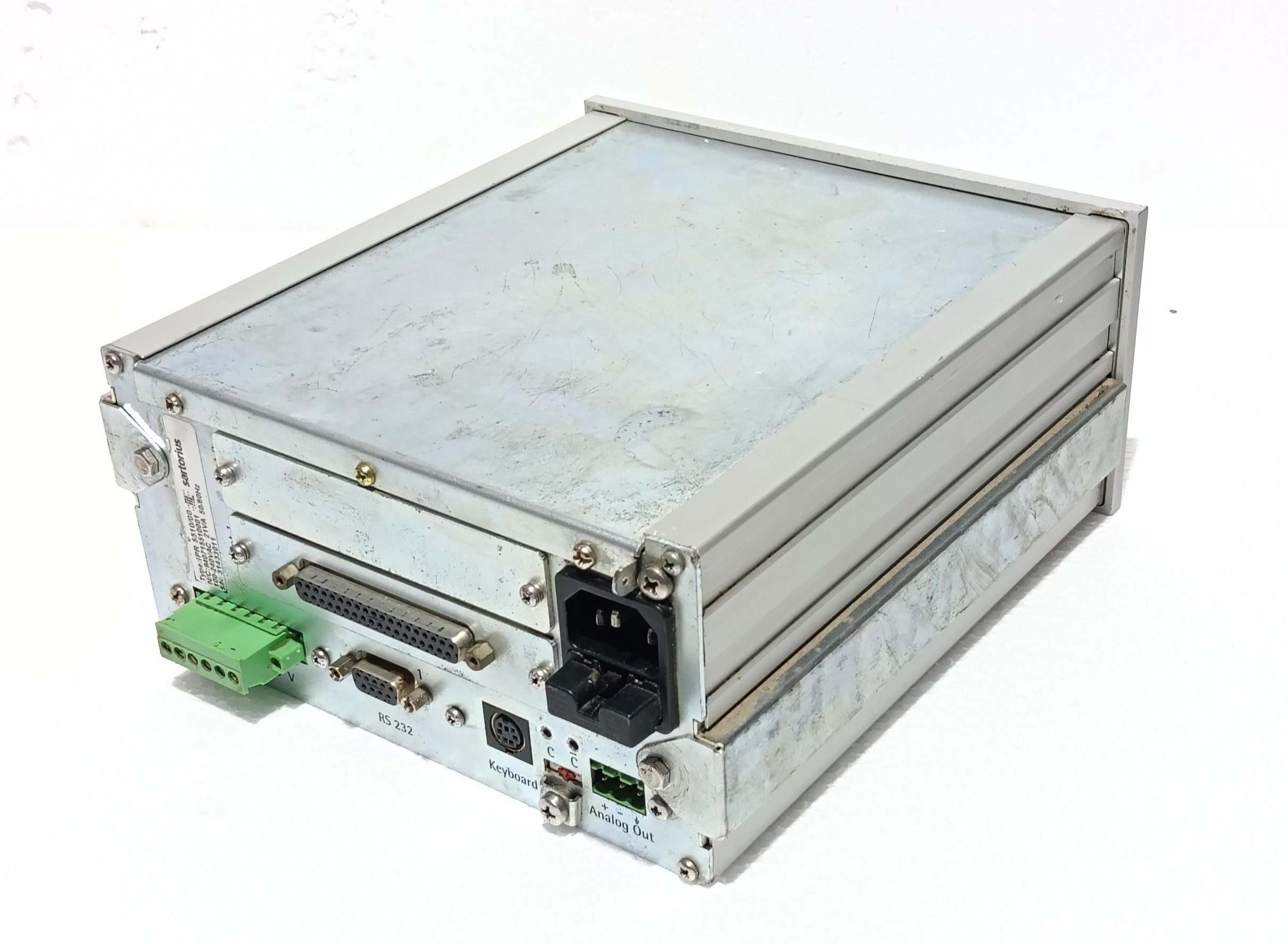

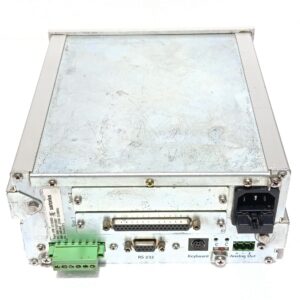

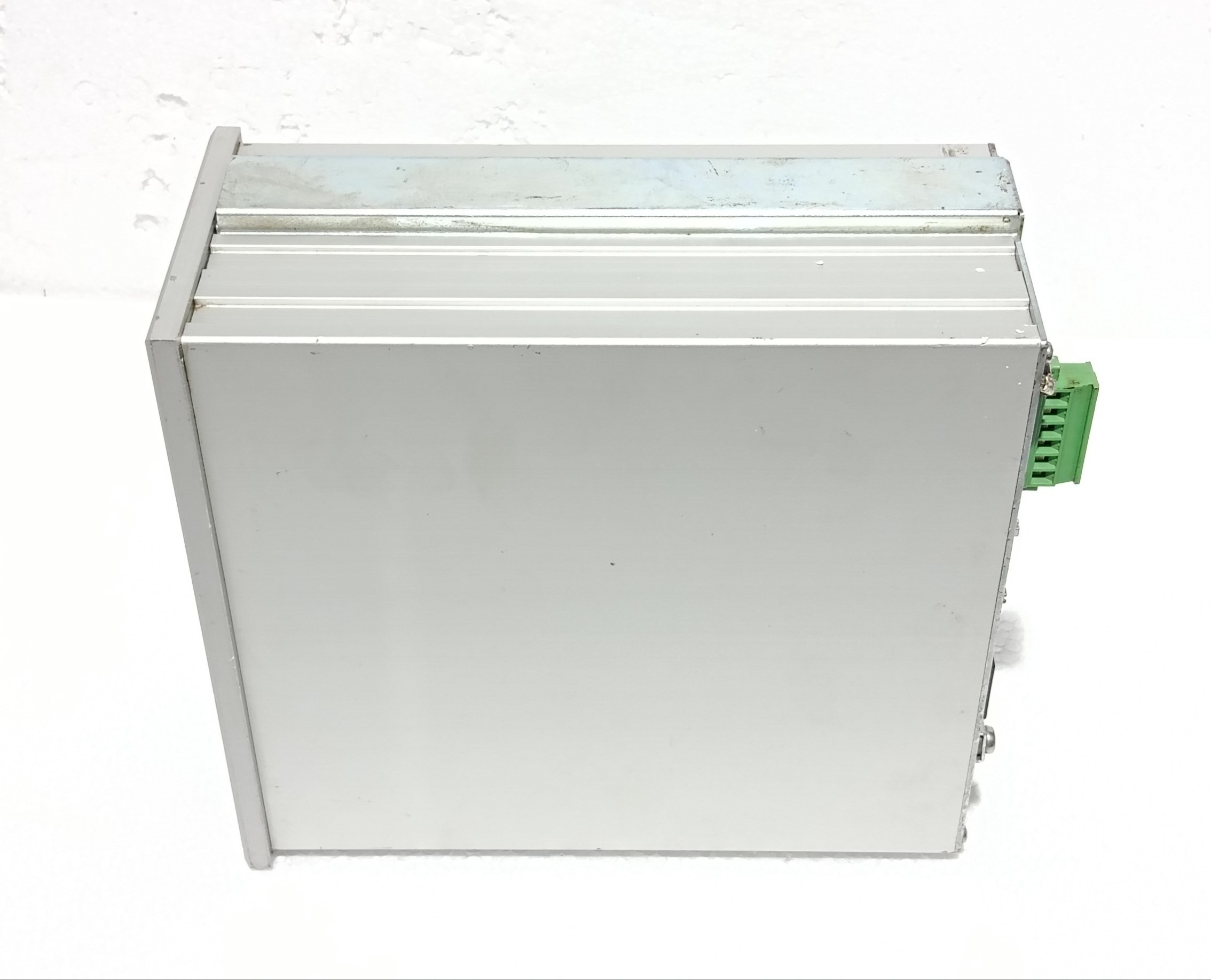

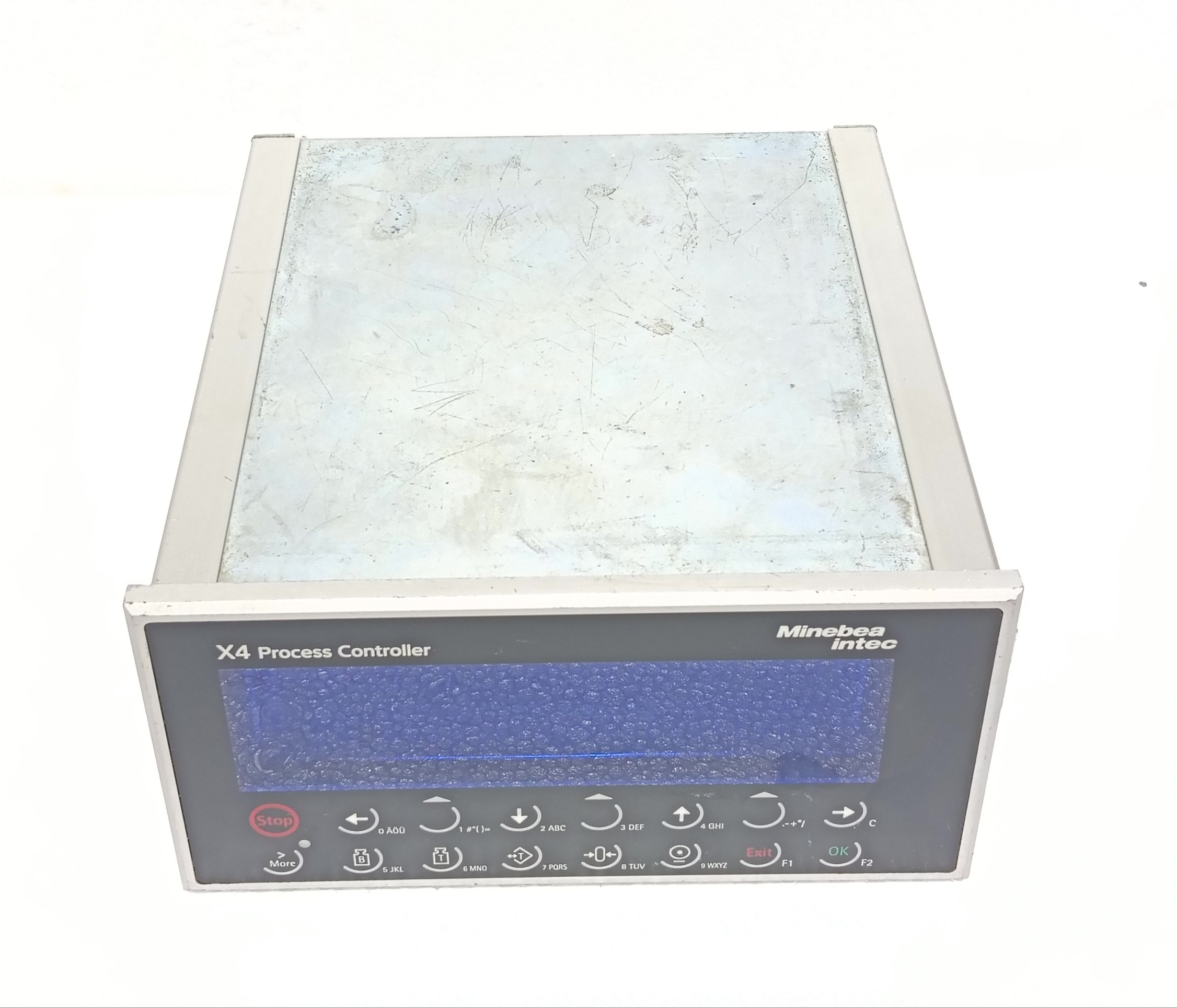

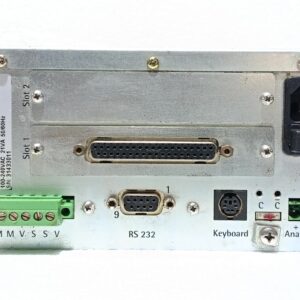

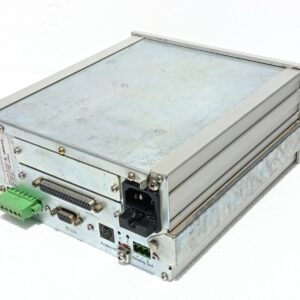

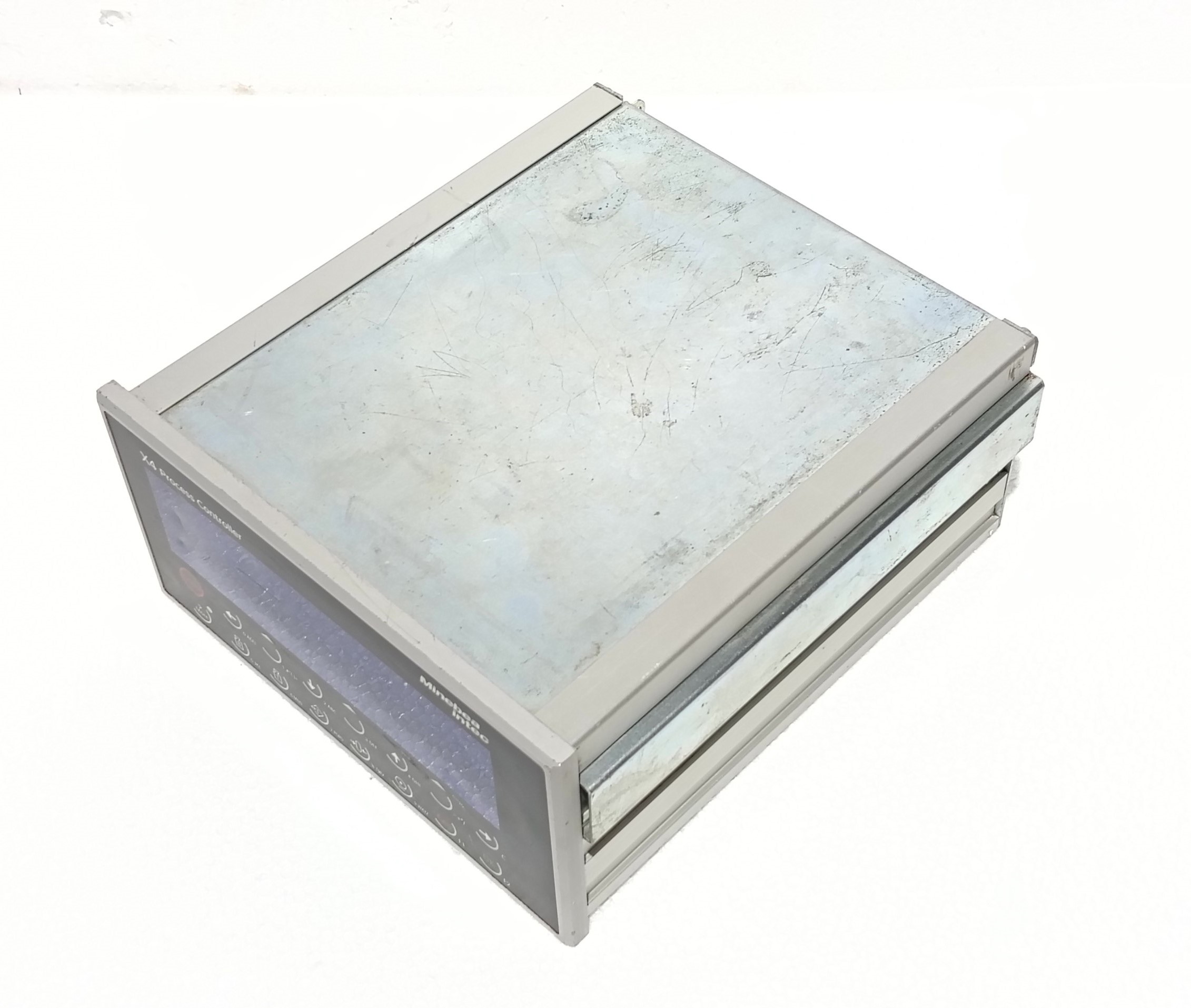

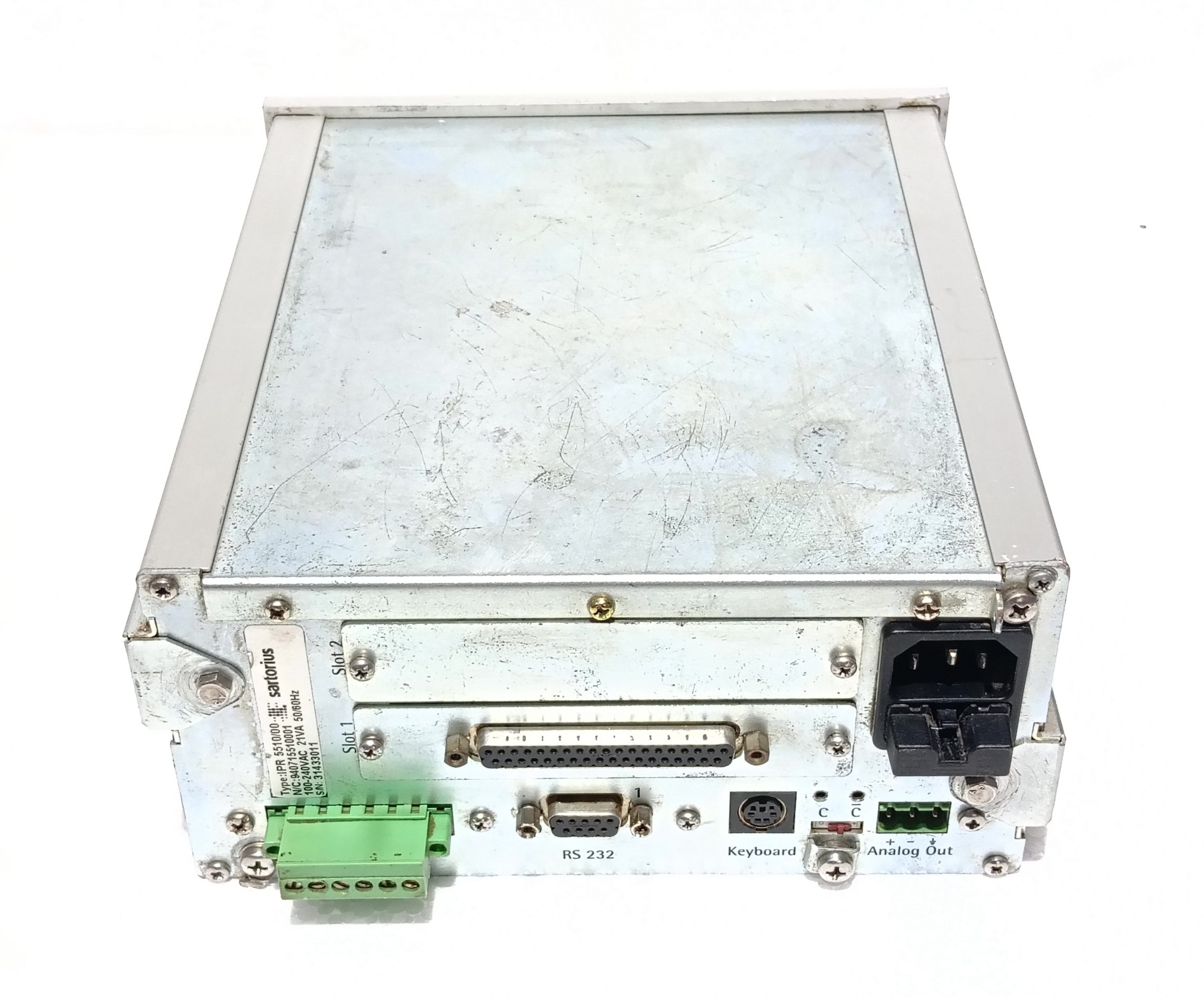

The Sartorius X4 IPR 5510/00 is a high-precision industrial process controller designed for demanding weighing, dosing, and batching applications. This unit is Profibus-fitted (factory-integrated Profibus-DP interface), enabling seamless integration into automated production lines and PLC-based control systems.
Operating on universal 50/60Hz power supply, the 31433011 version offers reliable performance in both European and North American frequency environments.
Key Features & Benefits
- Profibus-DP Interface (Fitted) – Direct fieldbus connection for real-time data exchange, remote configuration, and diagnostics. Reduces wiring complexity.
- Multi-Range Weighing – High-resolution weight measurement (up to ±2 million internal divisions) for precision batching, filling, and checkweighing.
- IP65 Front Panel Protection – Resistant to dust and water jets, suitable for wash-down environments (food/pharma).
- Universal Power Supply (50/60Hz) – No frequency conversion needed; operates on 100-240V AC, 50 or 60 Hz.

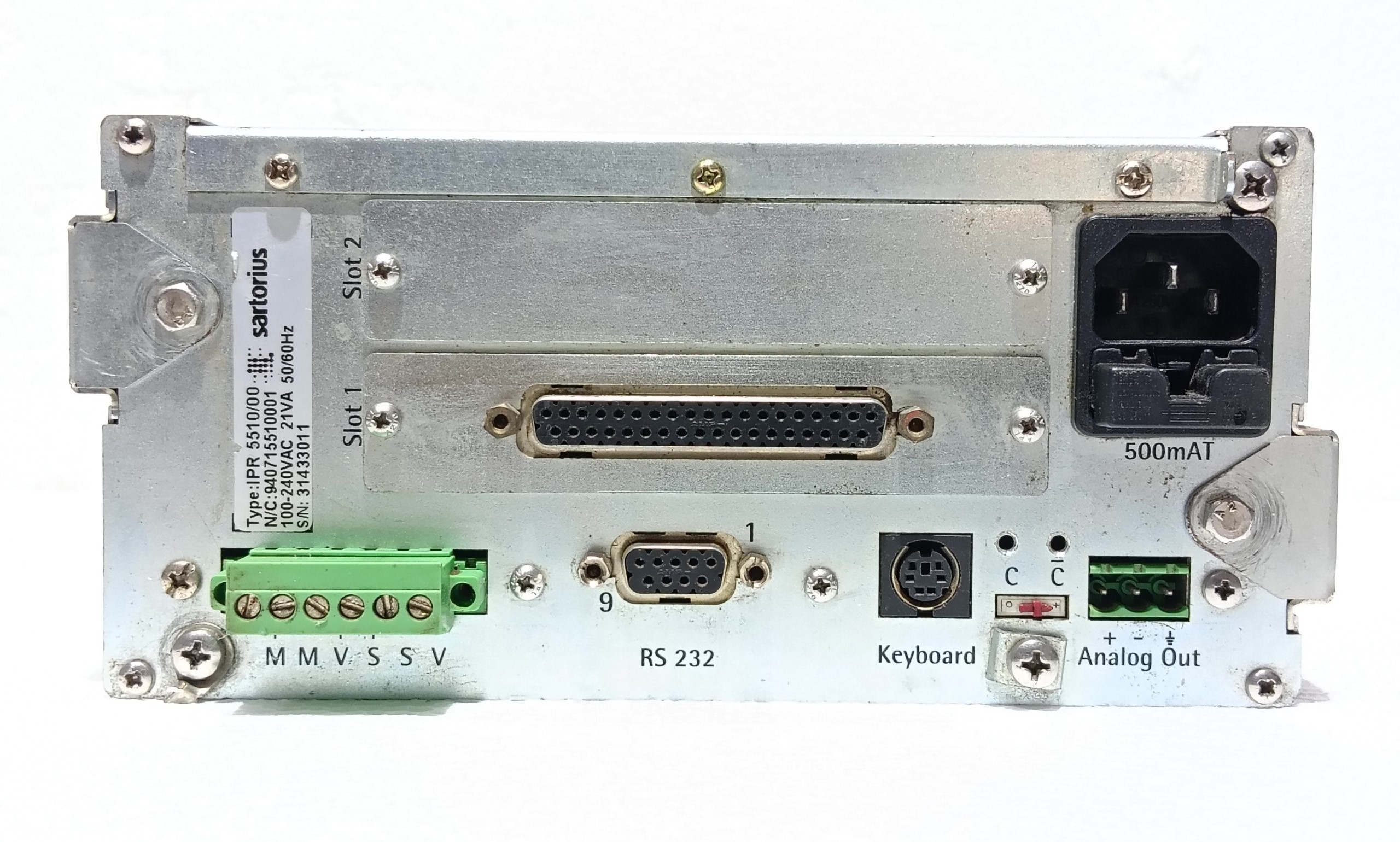

- Flexible I/O Options – Digital inputs/outputs for direct actuator/PLC control; optional analog outputs for continuous process signals.
- Sartorius X4 Ecosystem Compatibility – Easily integrates with Sartorius load cells, terminals, and software.
Technical Specifications
| Parameter | Detail |
|---|---|

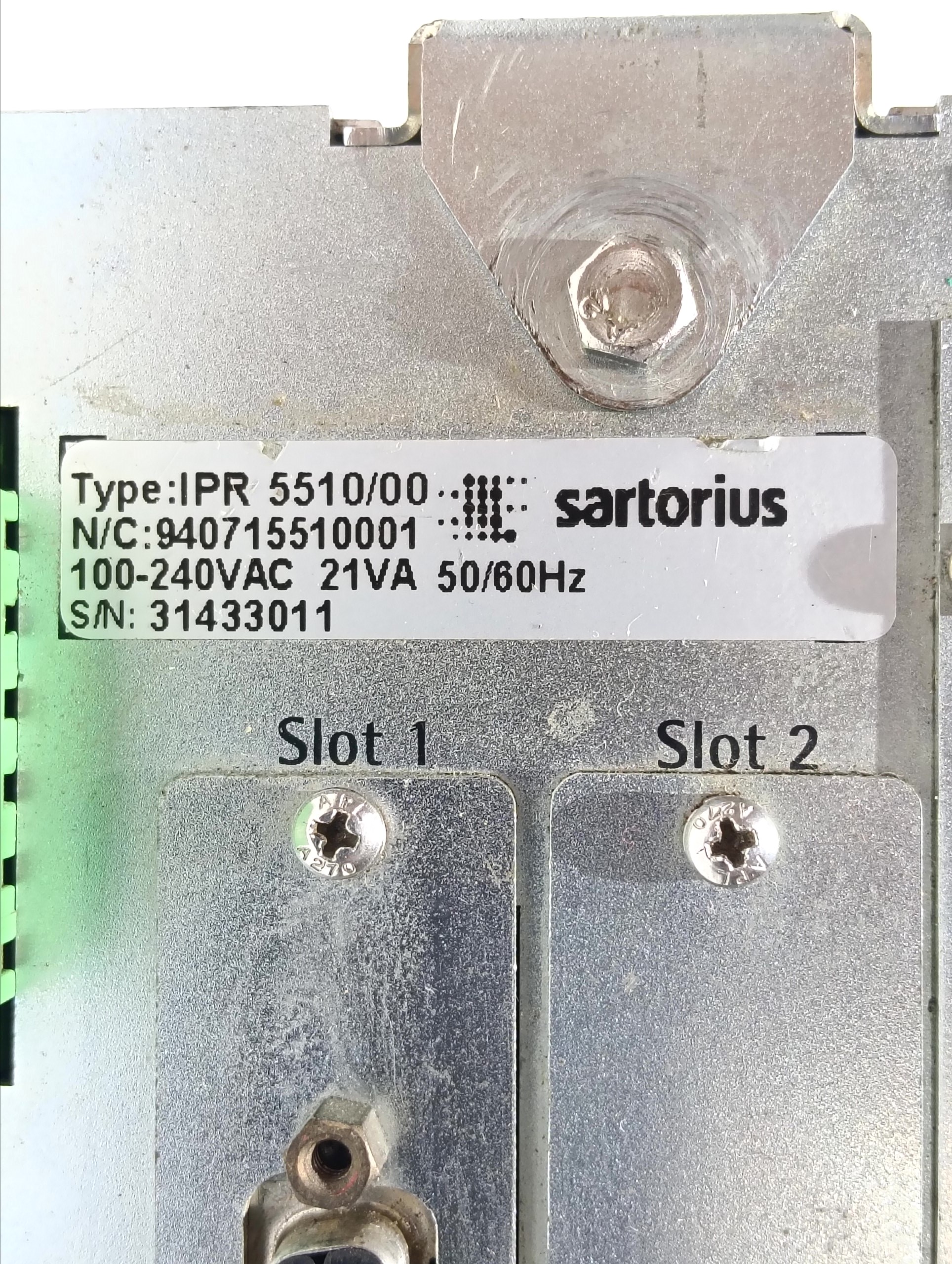

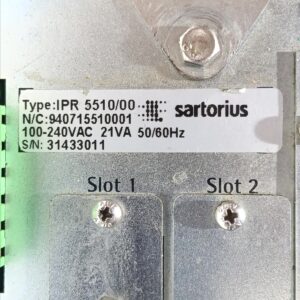

| Model | IPR 5510/00 |
| Part Number | 31433011 |
| Type | Process Controller / Weighing Terminal |
| Bus Interface | Profibus-DP (Fitted, slave capability) |
| Power Supply | 100–240 V AC, 50/60 Hz (auto-sensing) |

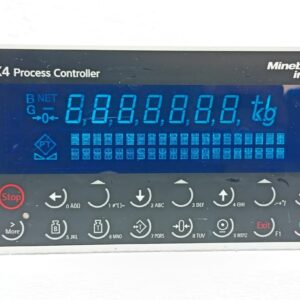

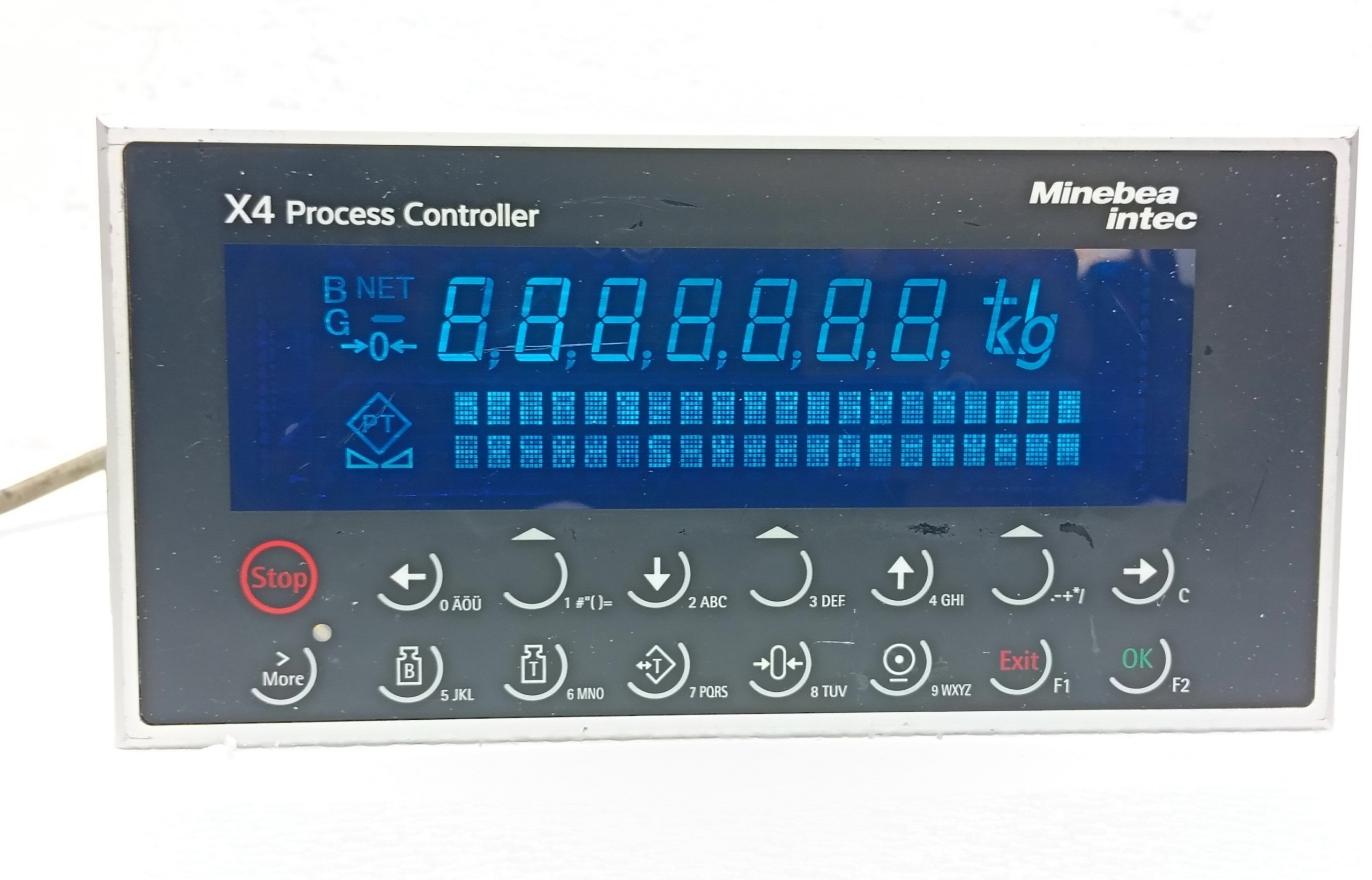

| Display | Backlit graphical LCD (alphanumeric + bar graph) |
| Housing | Stainless steel / Die-cast aluminum front |
| Protection Class | IP65 (front), IP20 (rear) |
| Operating Temp | -10°C to +40°C |
| Standards | CE, UL/cUL, FCC Class A |
Typical Applications
- Pharmaceutical batching (GMP-compliant)
- Chemical dosing & filling machines
- Food & beverage batch weighing (hygienic design)
- Automated checkweighing with Profibus feedback to PLC
- Level & inventory monitoring in tanks/vessels
- Retrofit / replacement for existing Sartorius X4 systems
