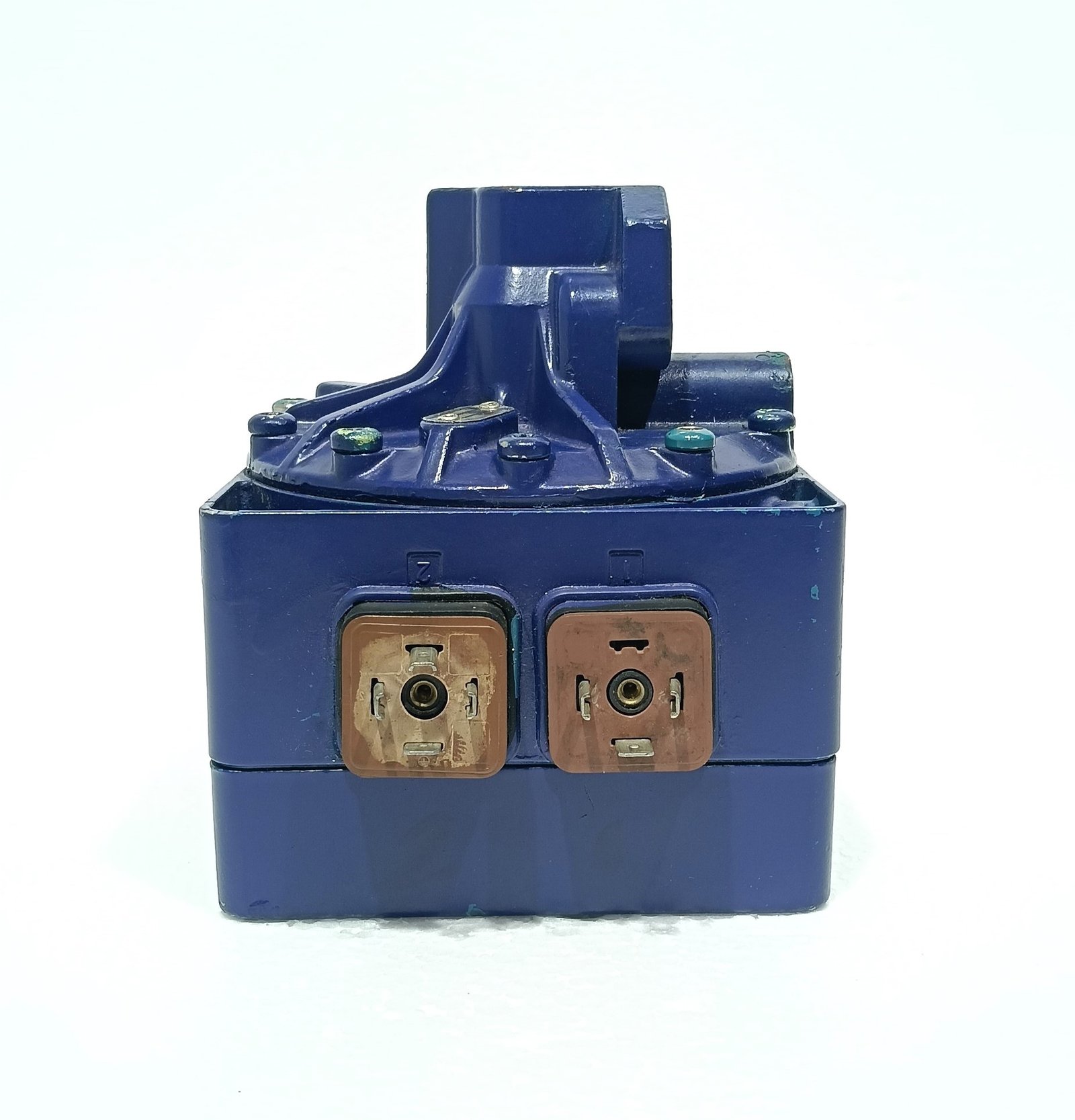

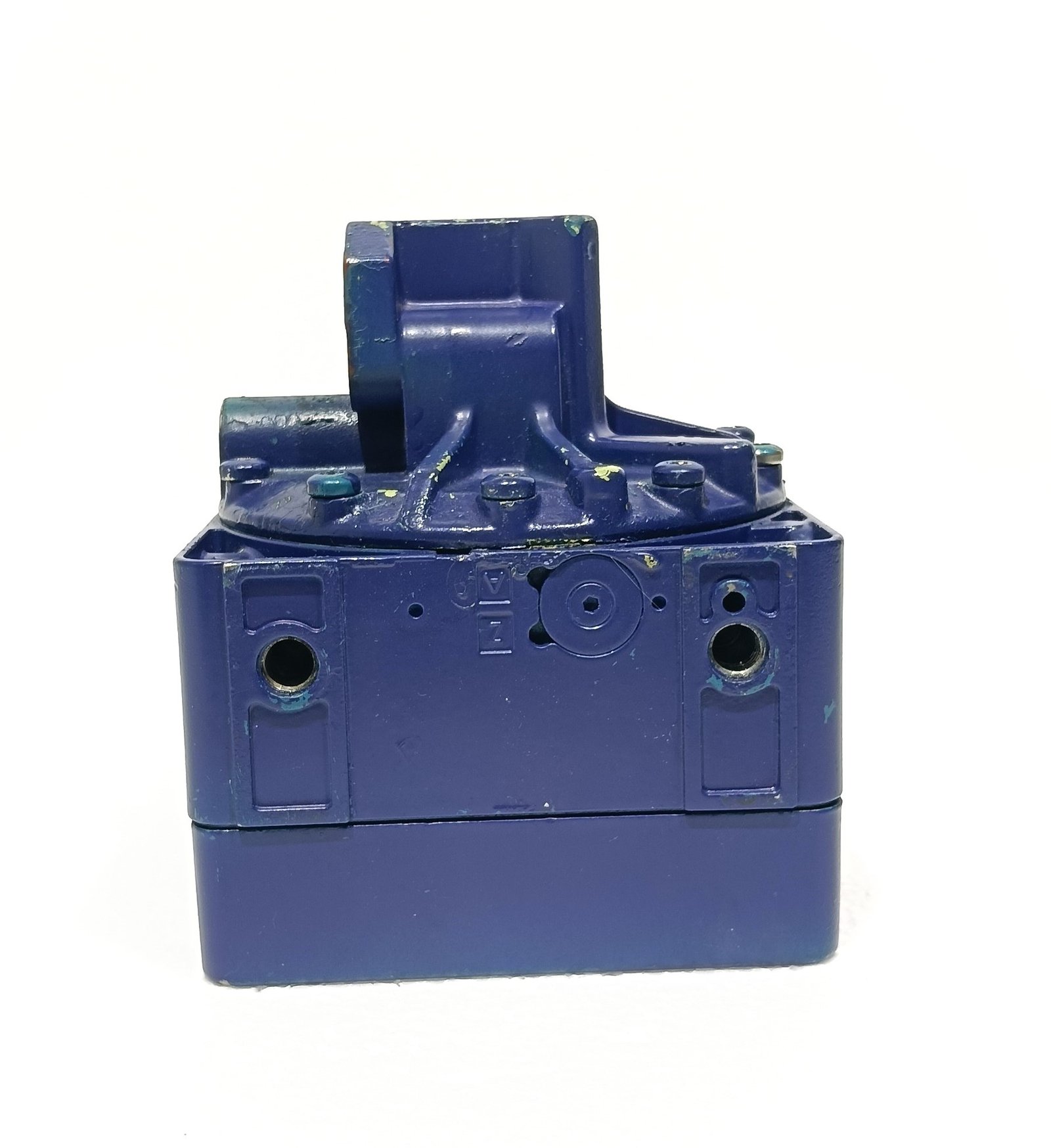

The REXROTH AVENTICS 3460565500 is a high-precision electro-pneumatic (E/P) proportional pressure regulator, originally from the Rexroth Mecman product line, now integrated into the AVENTICS brand under Bosch Rexroth . This device converts standard industrial electrical signals into proportional pneumatic pressure outputs, making it an essential component for precision pneumatic control applications .

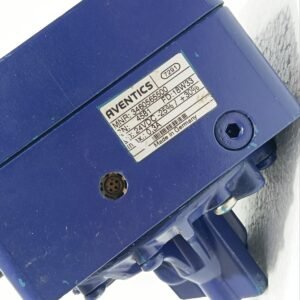

Brand: AVENTICS (formerly Rexroth Mecman / Bosch Rexroth Group)
Type: EP-REGULATOR NW3 0-6BAR

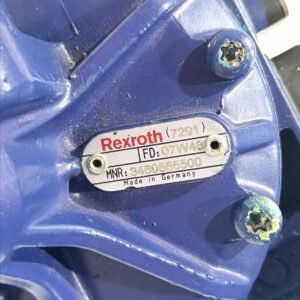

Origin: Made in Germany
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Function | Electrical-to-pneumatic (E/P) proportional pressure control |
| Input Signals | 0-10V DC or 4-20mA analog signals |
| Output Pressure Range | 0 – 6 bar (adjustable) |
| Supply Pressure | Max. 8–12 bar (clean, dry compressed air) |
| Nominal Size | NW3 |
| Flow Rate | Approx. 300 Nl/min (at 7 bar supply, 6 bar output, 0.2 bar differential) |
| Power Supply | 24V DC (-25% / +30% tolerance) |
| Max. Current | 0.3A |
| Protection Class | IP65 |
| Operating Temperature | -20°C to +60°C |
| Media | Compressed air, oil-free, dried, filtered (5μm recommended) |
| Hysteresis Error | As low as 0.02 bar |
| Linearity | < 1% F.S. |
| Repeatability | < 0.5% F.S. |
| Body Material | Aluminum alloy |
| Seal Material | NBR / EPDM |
| Weight | Approx. 3 kg |
Key Features
-
High-precision control: Linear output with minimal hysteresis and excellent repeatability
-
Fast response: Dynamic regulation suitable for high-frequency applications
-

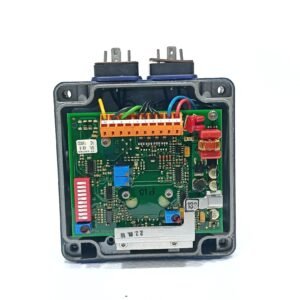

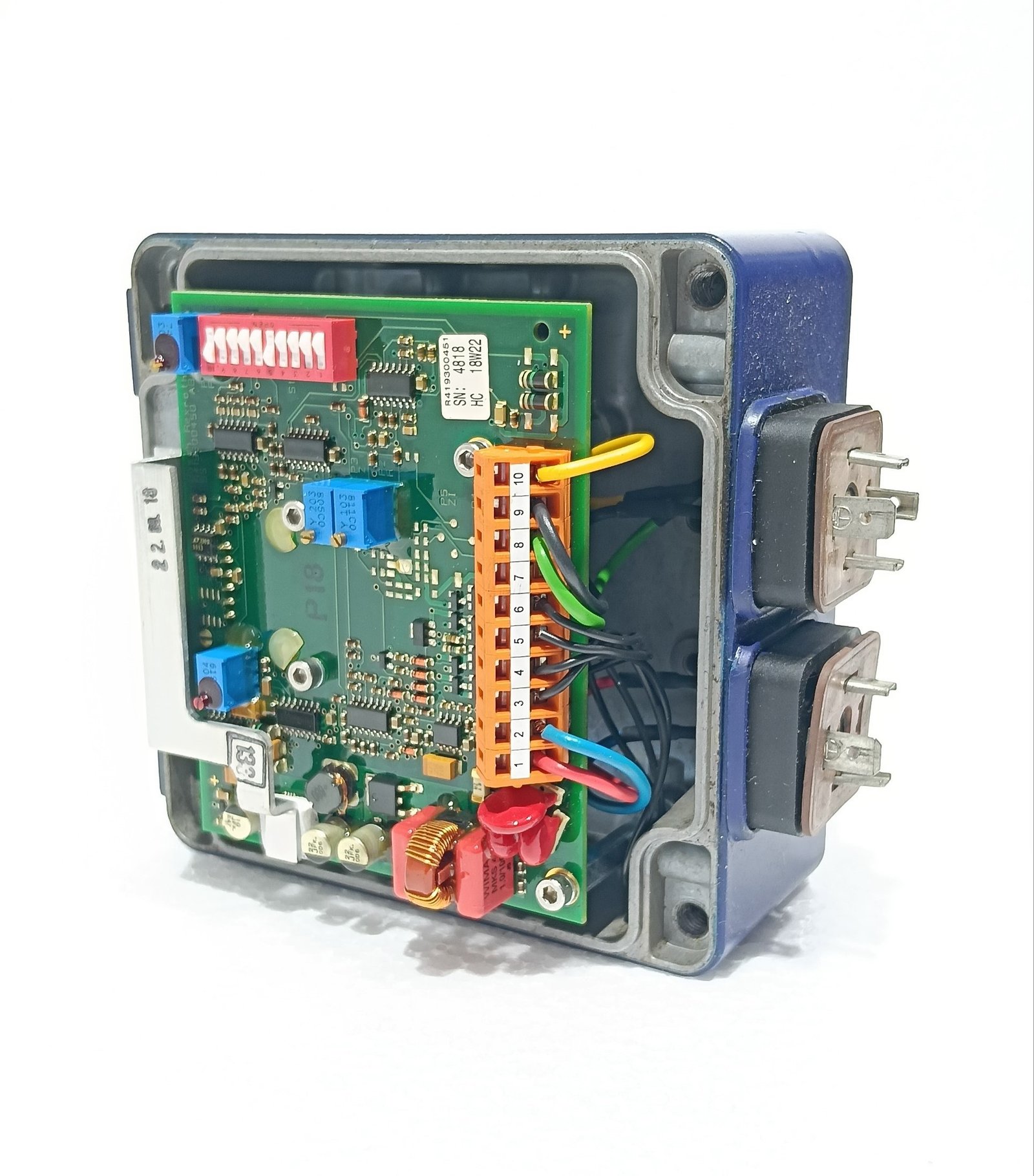

Integrated design: Combines electronics and pneumatics in a compact unit
-
Industrial durability: IP65-rated for harsh factory environments
-
Energy efficient: Low power consumption (0.3A max.)
Applications
The 3460565500 is widely used in industrial automation systems requiring precise pressure control :
-
Packaging Machinery: Constant pressure sealing and tension control for various material thicknesses
-
Automotive Manufacturing: Electrode pressure control in spot welding for consistent weld quality
-
Printing Equipment: Web tension regulation and brake pressure control
-
Tire Manufacturing: Roller pressure control in tire building machines
-
General Automation: Robotic grippers, clamping systems, and pneumatic actuators
-
Process Control: Flow, pressure, and temperature regulation in chemical and industrial processes
Typical Industries
Automotive, packaging, printing, tire manufacturing, rail transportation, shipbuilding, chemical/petroleum, food machinery, and general industrial automation
