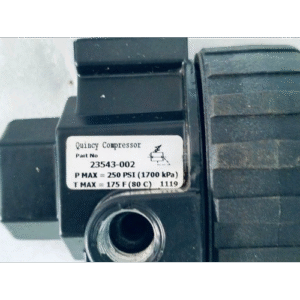

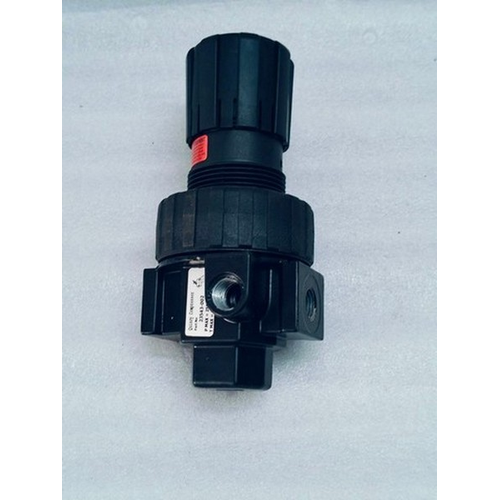

QUINCY COMPRESSOR 23543-002 REGULATOR P MAX 250 PSI

The Quincy Compressor 23543-002 is a high-quality, industrial-grade air pressure regulator designed for precise control of downstream air pressure in compressed air systems. This specific model is a genuine Quincy OEM (Original Equipment Manufacturer) part, ensuring perfect compatibility and reliable performance with Quincy compressors and air systems.

Primary Function:
Its core purpose is to reduce and regulate the main air line pressure (which can be as high as the compressor’s maximum output) to a lower, stable, and safe pressure suitable for powering specific air tools, spray guns, pneumatic actuators, and other downstream equipment.

Key Features & Benefits:

• Precise Pressure Control: Allows users to accurately dial in the required pressure for a specific application, ensuring optimal tool performance and finish quality.

• High Inlet Pressure Tolerance: The “P MAX 250 PSI” rating indicates it can handle an inlet pressure of up to 250 PSI, making it suitable for use with a wide range of industrial compressors.

• Reliable Regulation: Maintains a consistent outlet pressure even as inlet pressure fluctuates or air demand varies, preventing tool damage and ensuring consistent operation.

• Integrated Pressure Gauge: This regulator includes a gauge that displays the regulated, downstream pressure, allowing for easy and accurate adjustment.

• Filtration Capability (Typical in this style): Many regulators of this type, including this Quincy model, often include a filter bowl to remove water and particulate contaminants from the air line, protecting valuable tools and equipment.

• Automatic Drain (Possible Feature): Some versions may include an automatic drain for the filter bowl, which helps to eject accumulated condensate without manual intervention.

• OEM Quality: As a genuine Quincy part, it is engineered to meet the brand’s stringent standards for durability and performance, ensuring a long service life in demanding environments.

Technical Specifications:

• Part Number: 23543-002

• Manufacturer: Quincy Compressor

• Product Type: Air Pressure Regulator with Filter & Gauge (FRL Unit – Filter, Regulator, Lubricator, though lubricator may be separate or not included).

• Maximum Inlet Pressure (P MAX): 250 PSI (Pounds per Square Inch)

• Common Outlet Pressure Range: Typically adjustable from 0 to 150 PSI or similar (refer to the specific product manual for exact range).

• Port Sizes: Common sizes for this type of regulator are 1/4″ NPT (National Pipe Taper) or 3/8″ NPT. It is critical to verify the specific port sizes for this part number.

• Mounting: Typically bracket-mounted for stable installation on a wall or machine.

Common Applications:
This regulator is essential in any shop or industrial setting using compressed air, including:

• Automotive and Repair Shops

• Woodworking and Cabinet Shops

• Manufacturing and Assembly Lines

• Pneumatic Control Systems

• Spray Booths and Finishing Stations
