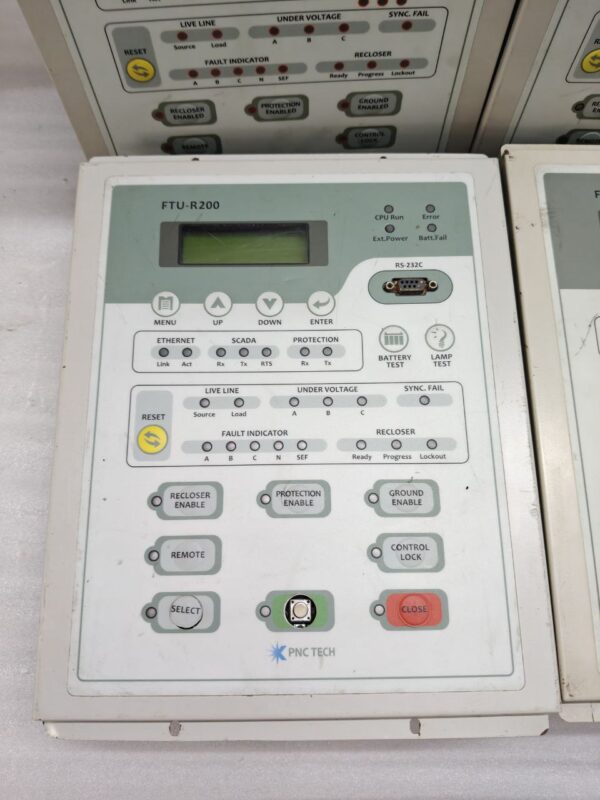

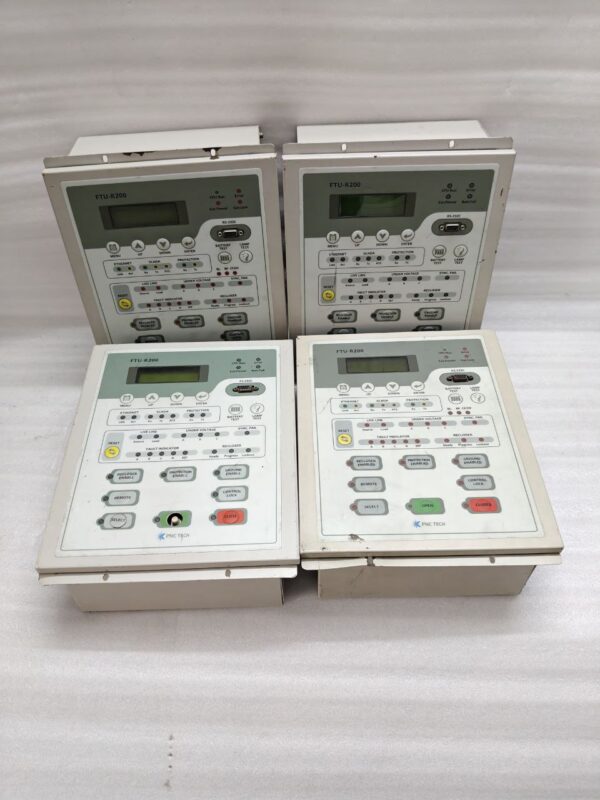

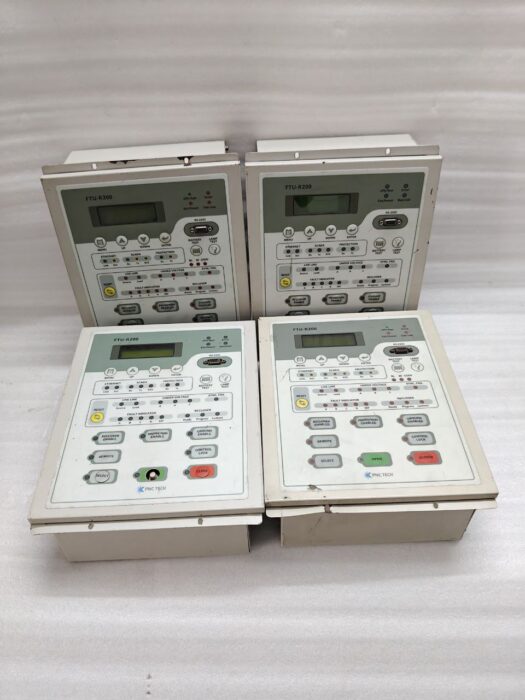

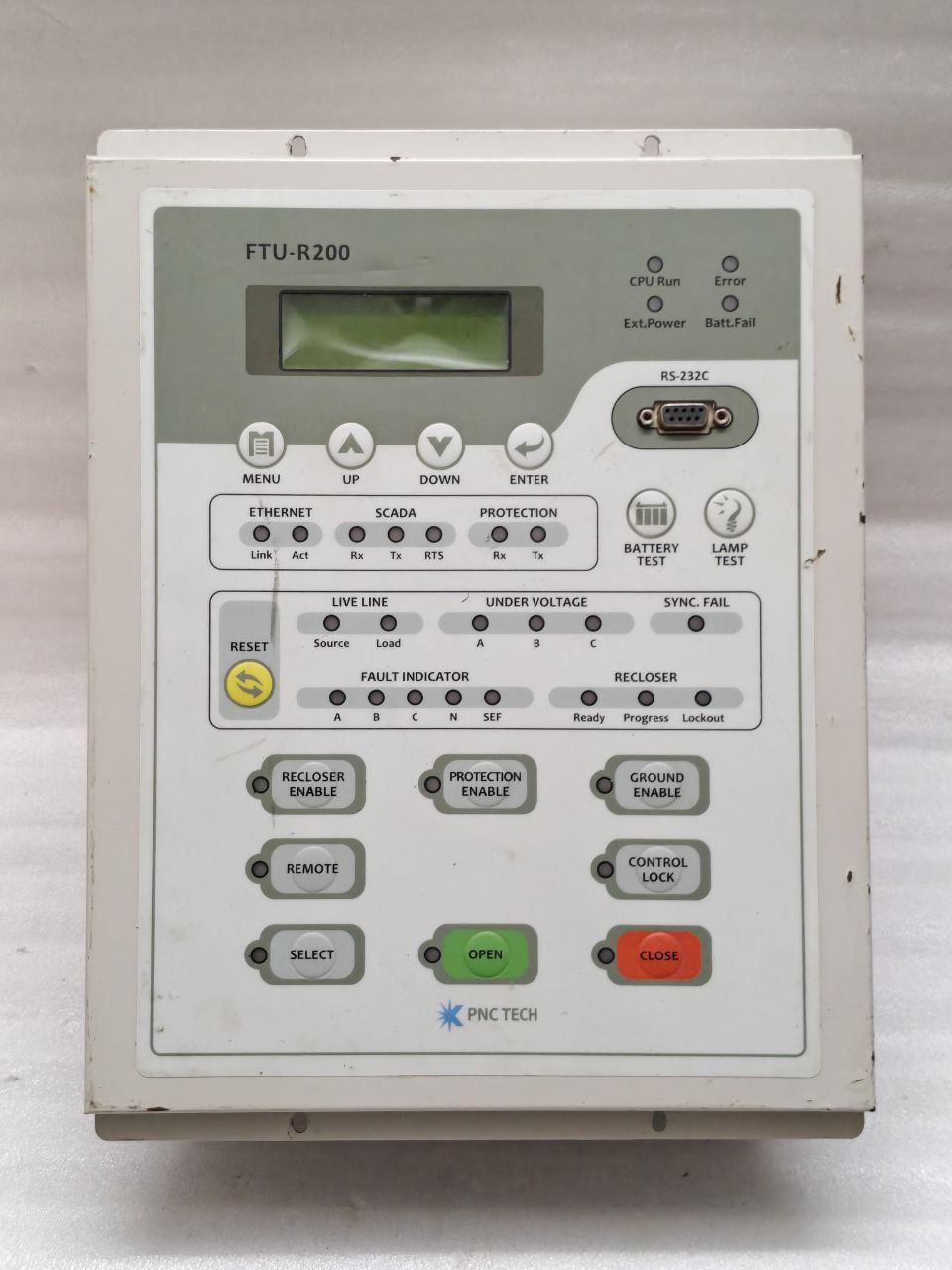

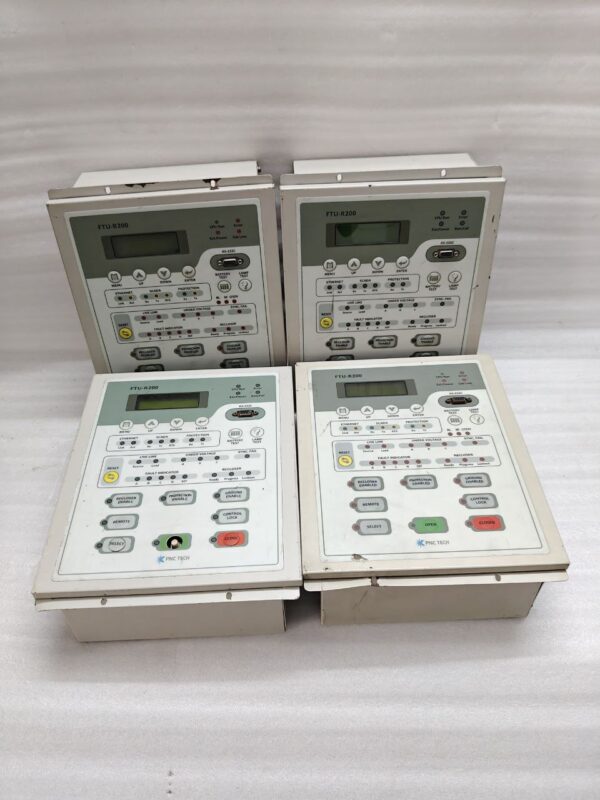

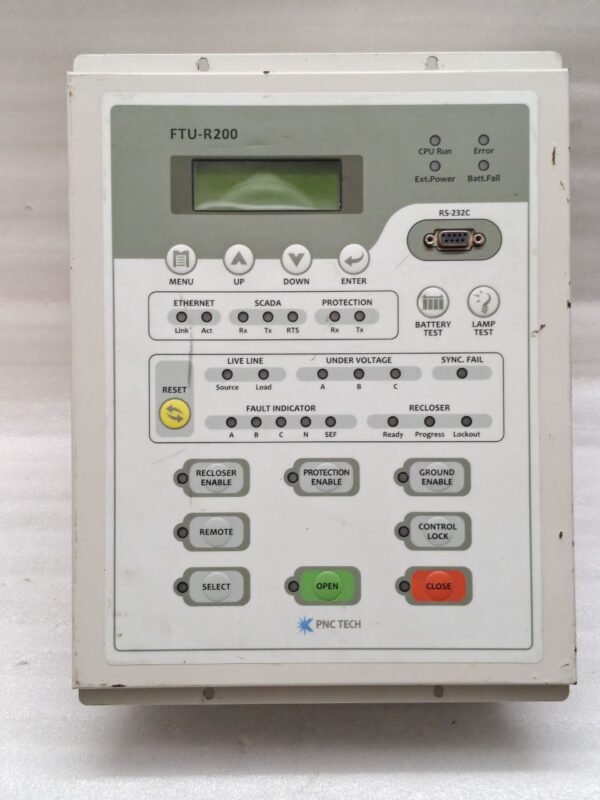

The FTUR200 model of protection relay supplies the intelligence to the network and handles the network protection and in many cases even the RTU functionality. The protective relay senses the faults, assists the vacuum circuit breaker module in a recloser to clear the fault on the line. Panel is available in multiple languages.

Key features:

• 100% remote configuration and control;
• Integrated multi-functions on new microprocessor based platform – Fault detection & Protection, Metering, Control, Status monitoring, Power quality monitoring;
• Directional protection, Negative sequence protection, SEF and lots of built-in over-current protection curves including IEC, ANSI/IEEE, Recloser curves and customized curves;
• Distance to fault function;
• 4 setting groups and automatic setting group change function;
• 4 quadrants energy metering & load profiling;
• Multi-port, multi-protocol communication support (DNP3.0, DNP3.0 over TCP/IP, IEC60870-5-101/104), modem control & dial-up function for SCADA;
• DNP3.0 subset level 3 with information index mapping & class assignment;
• Built-in Protocol monitor for integrating FTU with SCADA system;
• Built-in Fault simulator with multiple sequences;
• Large size memory for load profiling, event and fault recording. Available Disturbance waveforms with COMTRADE format;
• Configurable digital inputs and outputs;
• Intelligent power supply & battery charger with built-in self-diagnosis & test function;
