PID TEMPERATURE CONTROLLER GEFRAN 600 R R 0 0 1 F047572 100-240VAC/DC 13292633 12:26

• BRAND: GEFRAN
• SN: 13292633
• CODE: F047572
• TYPE: 600-R-R-0-0-1
• SUPPLY: 100…240 VAC, 50/60 HZ
• VERSION: FW4.00
• COUNTRY: ITALY

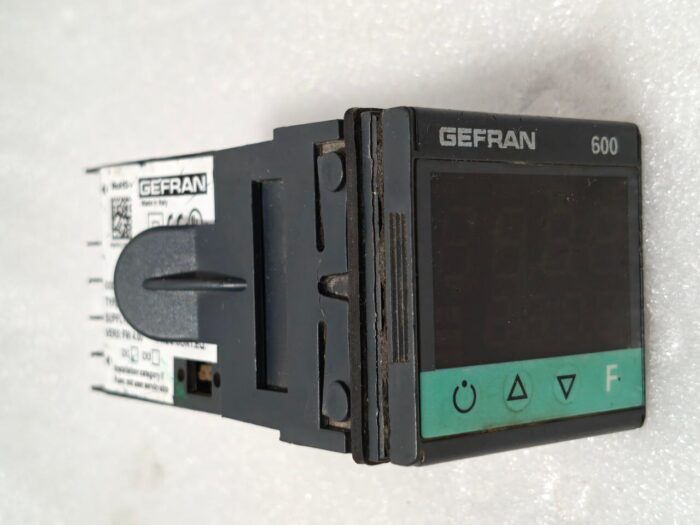

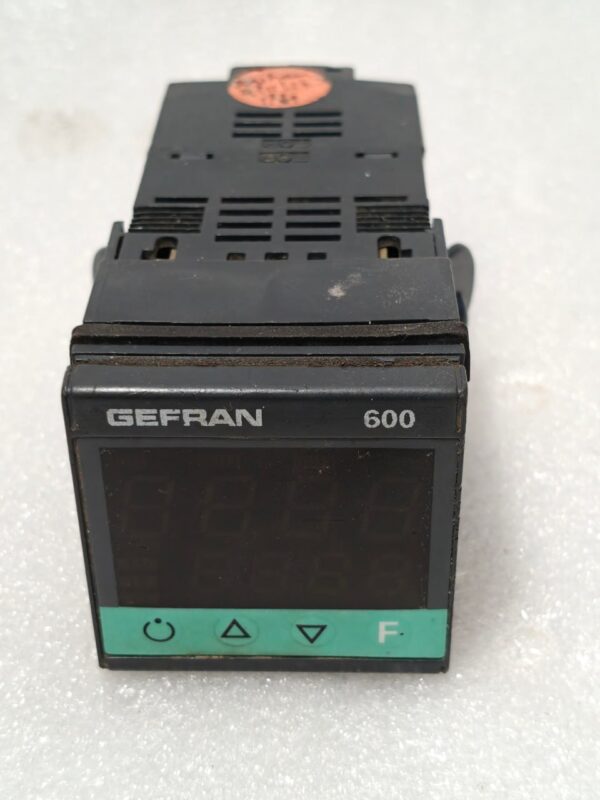

This is a Gefran 600 series, high-performance, single-input PID temperature controller. It’s designed for precise regulation of temperature in industrial processes such as plastic molding, packaging, food processing, and HVAC systems. The “R” designation indicates it’s a standard, relay-output model.

Detailed Breakdown of the Model Code: GEFRAN 600 R R 0 0 1

• GEFRAN: The manufacturer (Gefran is an Italian company known for industrial automation components).

• 600: The product series. This is a versatile and widely used series of digital controllers.

• R (First “R”): Output Type. This “R” stands for Relay Output. This is a mechanical or solid-state relay used to switch a high-power load (like a heating element) on and off.

• R (Second “R”): Input Type. This “R” stands for a specific thermocouple type. In the Gefran 600 series, “R” typically means a Pt100 (RTD) input. (It’s crucial to verify this in the manual, as codes can vary, but “R” is most commonly for RTD).

• 0: Supply Voltage Option. A “0” in this position often indicates a standard or default option, which is overridden by the specific voltage listed later (100-240VAC/DC).

• 0: Control Action. A “0” here usually signifies Heating action (the output turns on to increase temperature).

• 1: Front Panel Protection. The “1” indicates a standard front panel with an IP65 rating. This means it is dust-tight and protected against low-pressure water jets, making it suitable for harsh industrial environments.

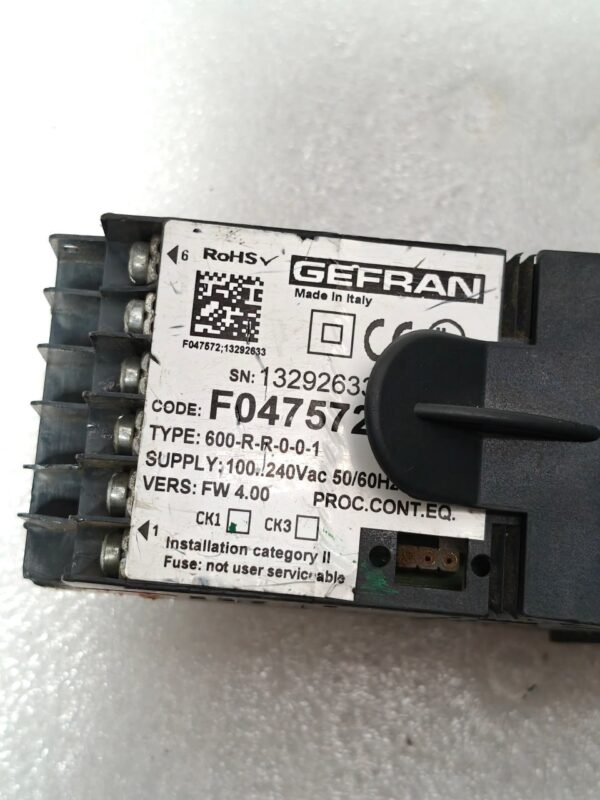

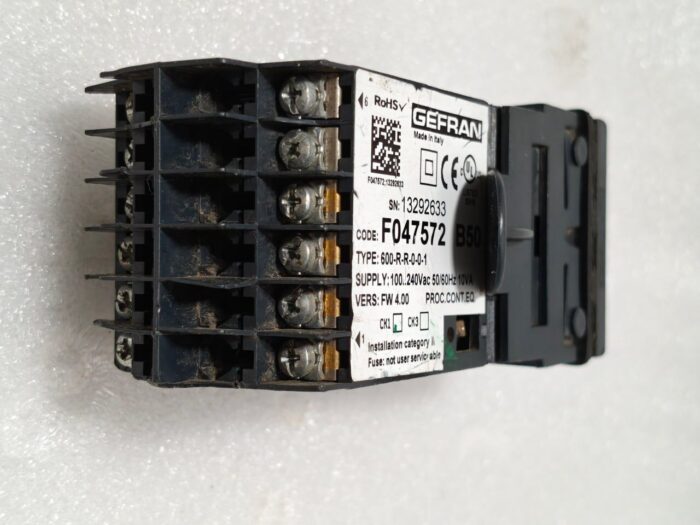

Other Identifiers on the Label

• F047572: This is the unique serial number for this specific unit. It is used for tracking, warranty, and manufacturing lot.

• 100-240VAC/DC: Power Supply Specification. This is a very versatile power input. The controller can operate on:

  • AC Voltage: Anywhere from 100 to 240 Volts Alternating Current (covering standard voltages in most of the world, like 115V in North America and 230V in Europe).

  • DC Voltage: It can also run on a DC power source within the same voltage range.

• 13292633: This is likely an internal part number or article number used by Gefran or the distributor (SEO) for ordering and inventory purposes.

• SEO PRODUCT DESCRIPTION: “SEO” likely stands for the distributor or the company that integrated this controller into their system. This tag confirms that the provided string is the official product description for their sales and procurement records.
