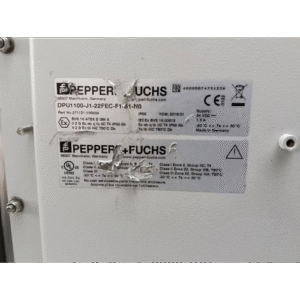

- PEPPERL + FUCHS
- WWW.PEPPERL-FUCHS.COM
- 68307 MANNHELM, GERMANY
- DPU1100-J1-22FEC-F1-S1-NO
- PART NO: 271721-100004
- IP66, YOM: 2018/01
- BVS 16 ATEX E 084 X
- II2 GEx eb q IIC T4 IP66 Gb
- II2 Ex tb IIC T80C Db
- IECEx BVS 16.0061X
- Ex eb q ib IIC T4 IP66 Gb
- Ex tb IIC T80C Db
- 24VDC, 1.5A
- -20C<= Ta <=50C
- MADE IN GERMANY
- CLASS I, DIVISION 2, GROUPS A,B,C,D; T4
- CLASS II, DIVISION 2, GROUPS G; T4
- CLASS III
- -20C<= Ta <=50C
- CLASS I ZONE 2, GROUP IIC; T4
- CLASS II ZONE 22, GROUP IIB; T85C
- CLASS III ZONE 22, GROUP IIIA; T85C
- -20C<= Ta <=50C
Product Overview

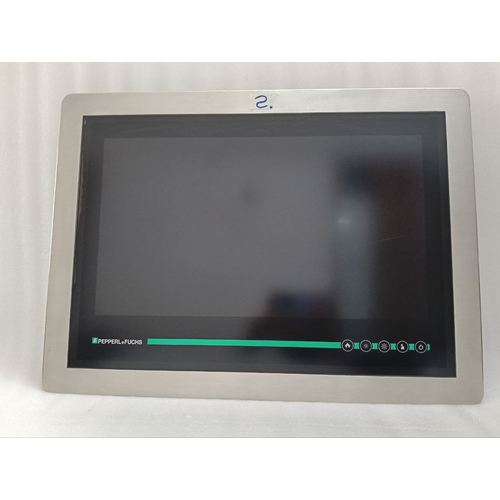

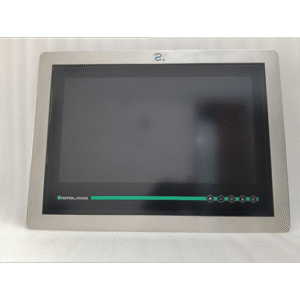

The Pepperl+Fuchs DPU1100-J1-22FEC-F1-S1-N0 is a robust, modular display and control unit designed for use in industrial environments, particularly in hazardous areas and demanding automation applications. It serves as the human-machine interface (HMI) for Pepperl+Fuchs’ remote I/O systems, such as the Modular Controller SLC 700, allowing users to visualize process data, control parameters, and diagnose system status directly on the machine or in the control room.
Its key characteristics are a 5.7-inch color TFT display, a resistive touchscreen, and a rugged metal housing that ensures high durability.
Detailed Feature Breakdown from the Ordering Code
The long product code (DPU1100-J1-22FEC-F1-S1-N0) is a structured identifier where each segment specifies a particular feature. Here’s a breakdown:
-
DPU1100: Base model of the Display Unit series.
-
J1: Housing Material & Protection Class. “J1” signifies a metal housing with a high protection class of IP66/NEMA 4X. This makes it dust-tight and protected against powerful water jets, suitable for harsh industrial washdown environments.
-
2: Display Type. A 5.7-inch diagonal screen.
-
2: Display Technology. Color TFT (Thin-Film Transistor) LCD, providing a clear and vibrant visual interface.
-
F: Touch Screen. Equipped with a resistive analog touchscreen. This type of screen can be operated with a stylus, gloved hand, or any object, which is essential in industrial settings.
-
E: Function Keys. This unit has 8 programmable function keys (with LED illumination) on the front panel. These can be configured for specific, frequently used commands.
-
C: Control Key. Includes an emergency stop button integrated into the front bezel. This is a critical safety feature for immediately halting machinery in an emergency.
-
F1: Software. Pre-loaded with the DPU Control Center firmware/software for configuration and operation.
-
S1: Sealing. Includes a standard seal for the display window.
-
N0: Special Version. “N0” indicates no special modifications; it is the standard version.
Key Specifications
| Feature | Specification |
|---|---|
| Model | Display Unit DPU1100 |
| Display Size | 5.7 inches |
| Display Technology | Color TFT LCD |
| Touchscreen | Resistive Analog |
| Housing | Metal |
| Protection Rating | IP66 / NEMA 4X |
| Front Panel Keys | 8 Programmable Function Keys (with LEDs) |
| Safety Feature | Integrated Emergency Stop Button |
| Communication | Typically interfaces with Pepperl+Fuchs SLC 700 / Remote I/O systems via a dedicated bus (e.g., CAN-based) |
| Primary Use | Human-Machine Interface (HMI) for industrial control and monitoring |
Typical Applications
This display unit is designed for integration into industrial automation systems where reliability and clear visualization are key. Common applications include:
-
Process Control & Visualization: Monitoring and controlling parameters like temperature, pressure, flow rates, and levels in chemical, pharmaceutical, or food and beverage plants.
-
Hazardous Areas: Serving as a local control panel for systems in zones where explosive atmospheres may be present (when used as part of a certified system).
-
Packaging & Material Handling: Controlling and diagnosing complex machinery on the production line.
-
Automotive Manufacturing: Providing an interface for robotic cell control and monitoring.
-
Water/Wastewater Treatment: Visualizing and managing the treatment process
