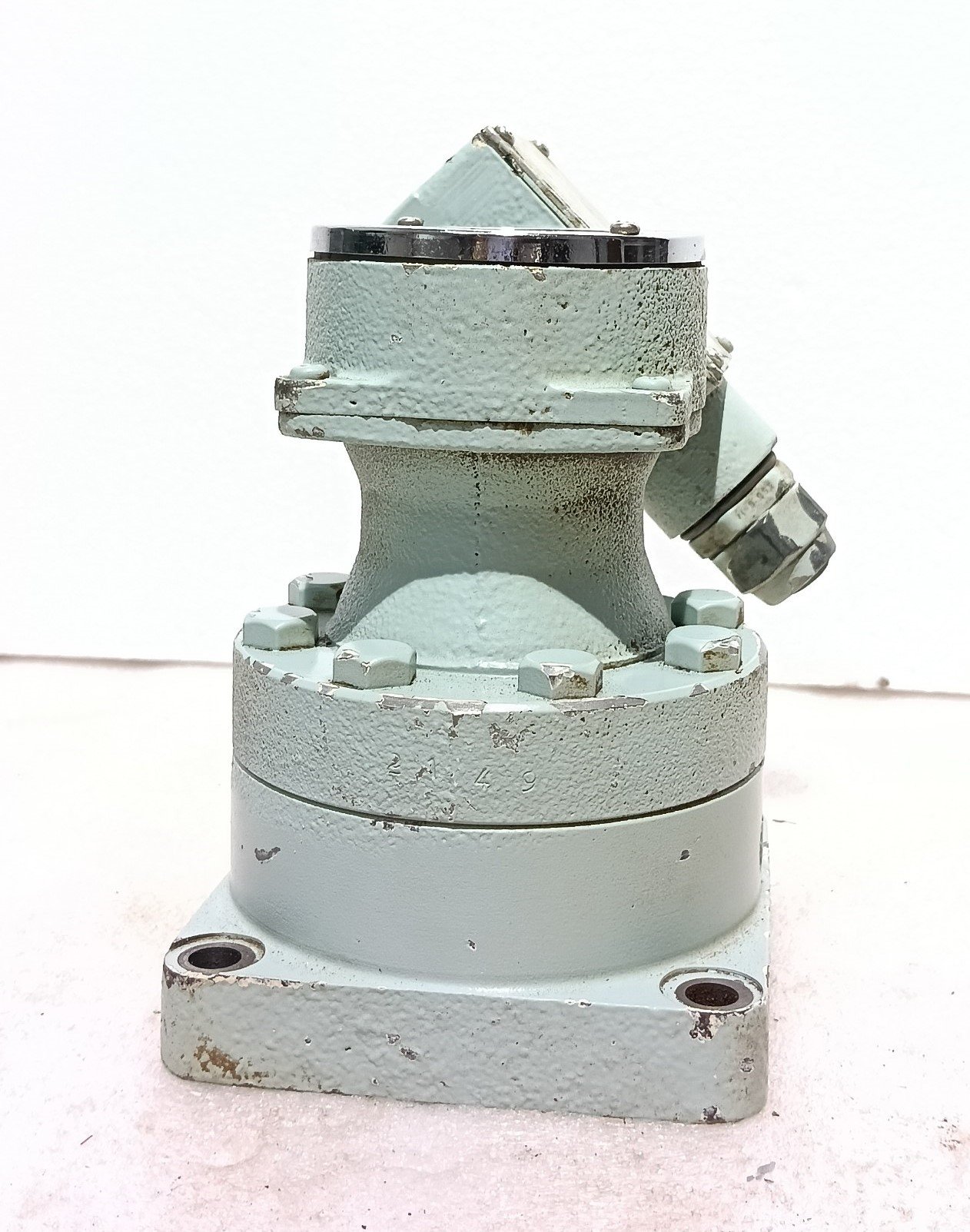

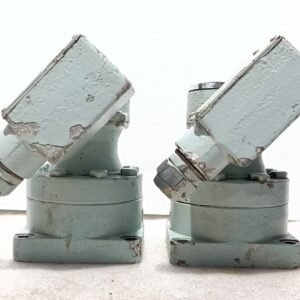

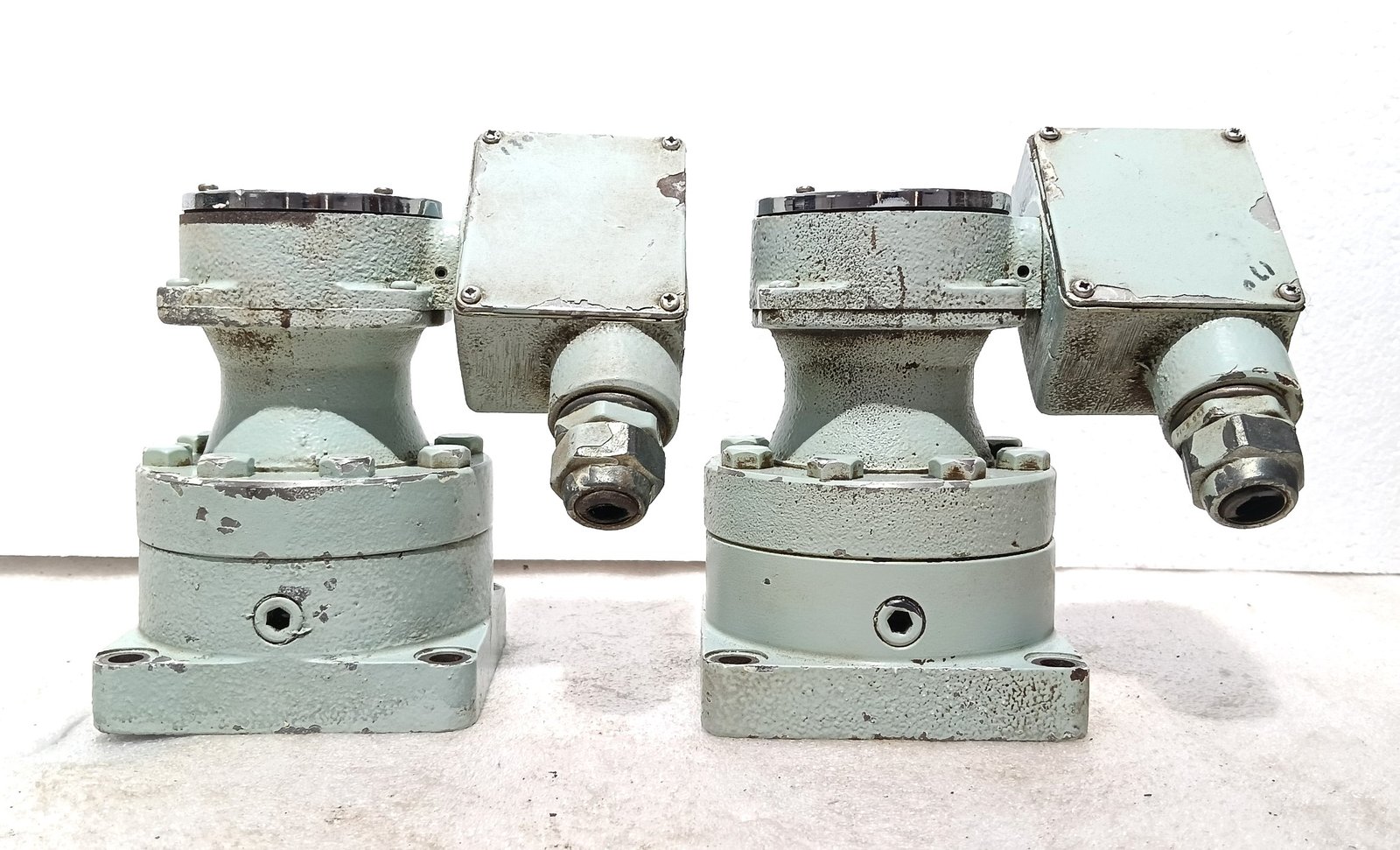

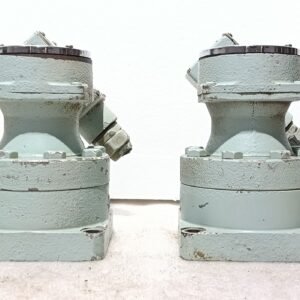

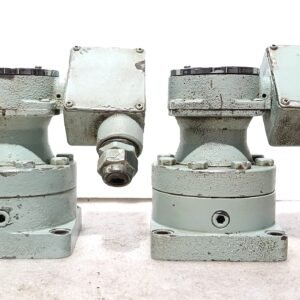

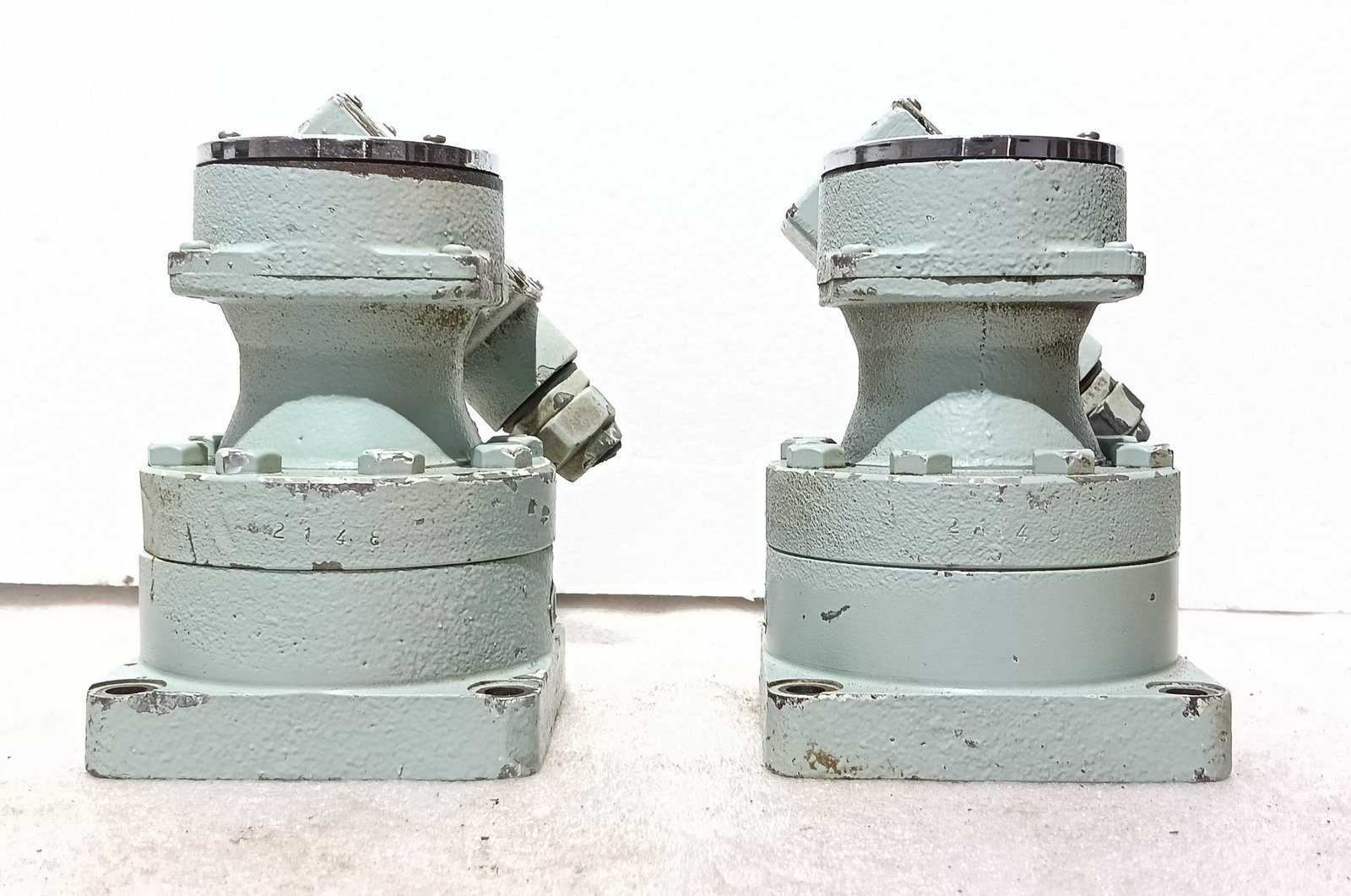

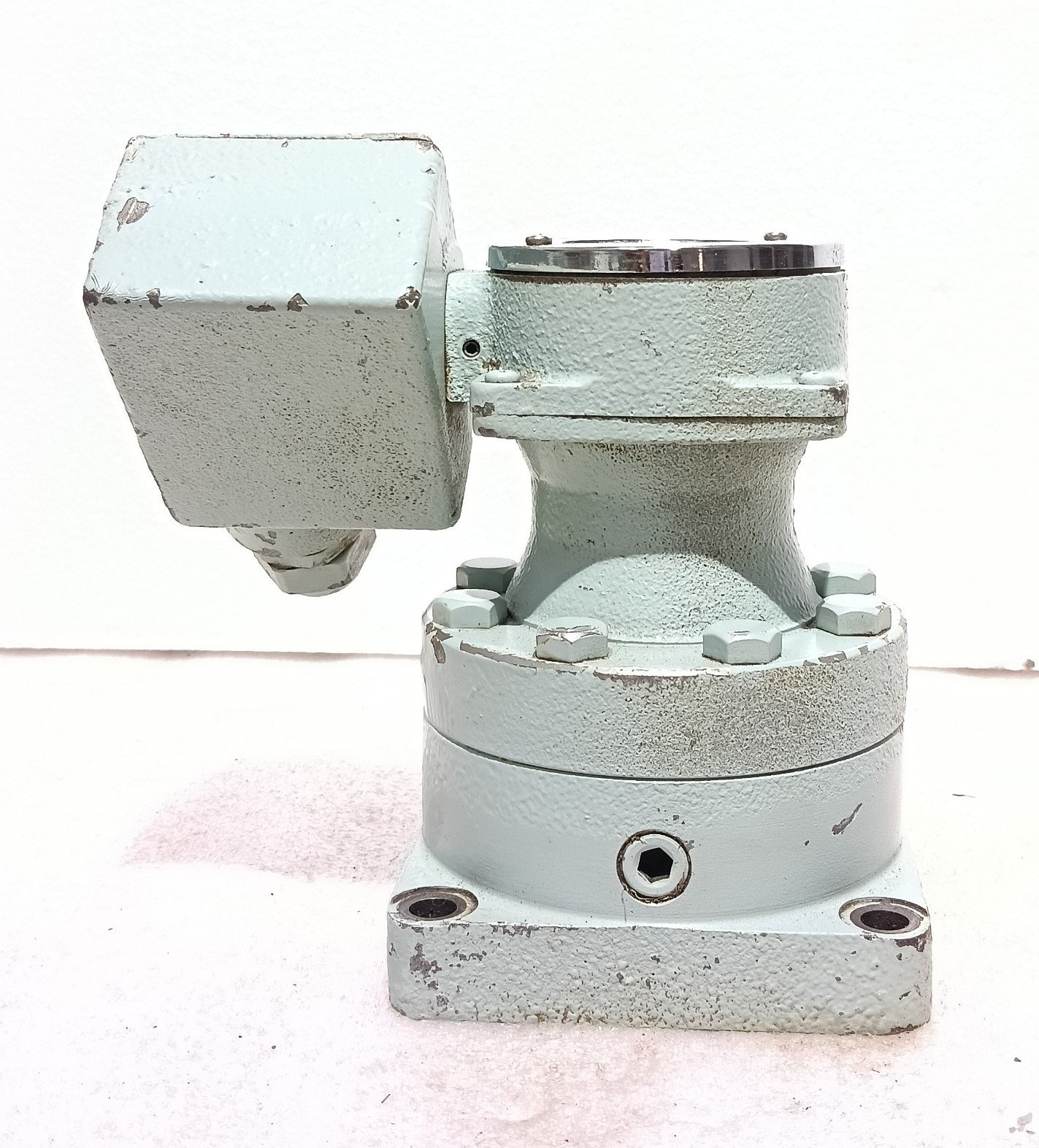

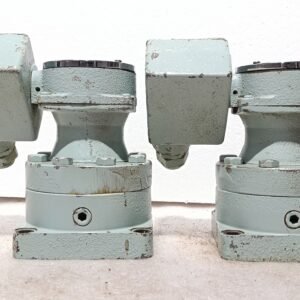

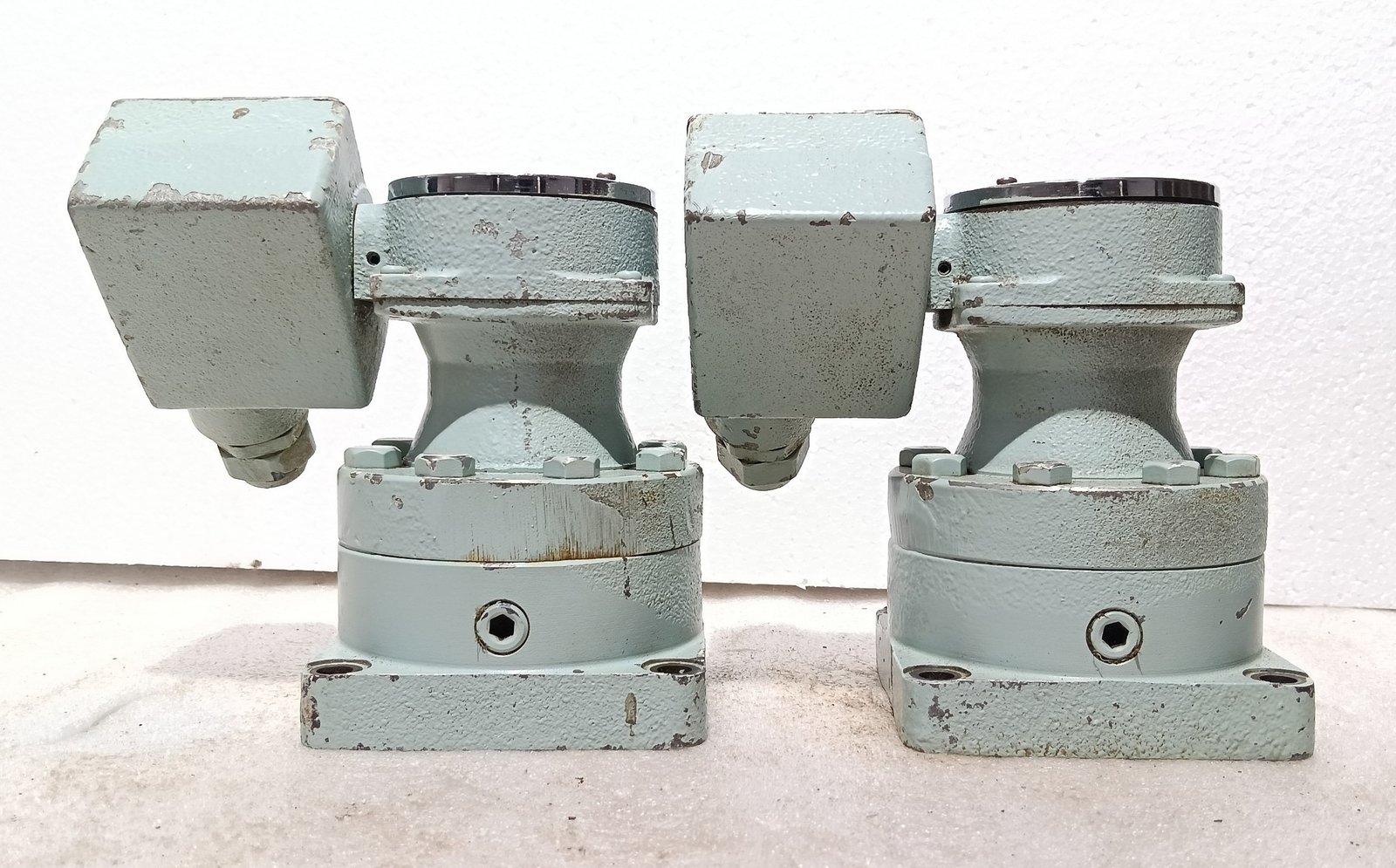

The OVAL PI 46B11-14330CC is a heavy-duty Valve Open/Shut Position Indicator designed for precise remote monitoring of rotary and linear valve positions. Engineered for reliability in harsh industrial environments, this limit switch box provides clear visual confirmation (Open/Shut status) and electrical signal feedback for automated process control.
Key Features
-
Model: PI 46B11-14330CC
-
Function: Valve open/shut position indication (2 x mechanical switches)
-
Lock Type: Y1-31 Lock (captive locking mechanism to prevent tampering)
-
Enclosure Rating: FS-F0 (Weatherproof / Dust-tight – suitable for outdoor or washdown environments)
-

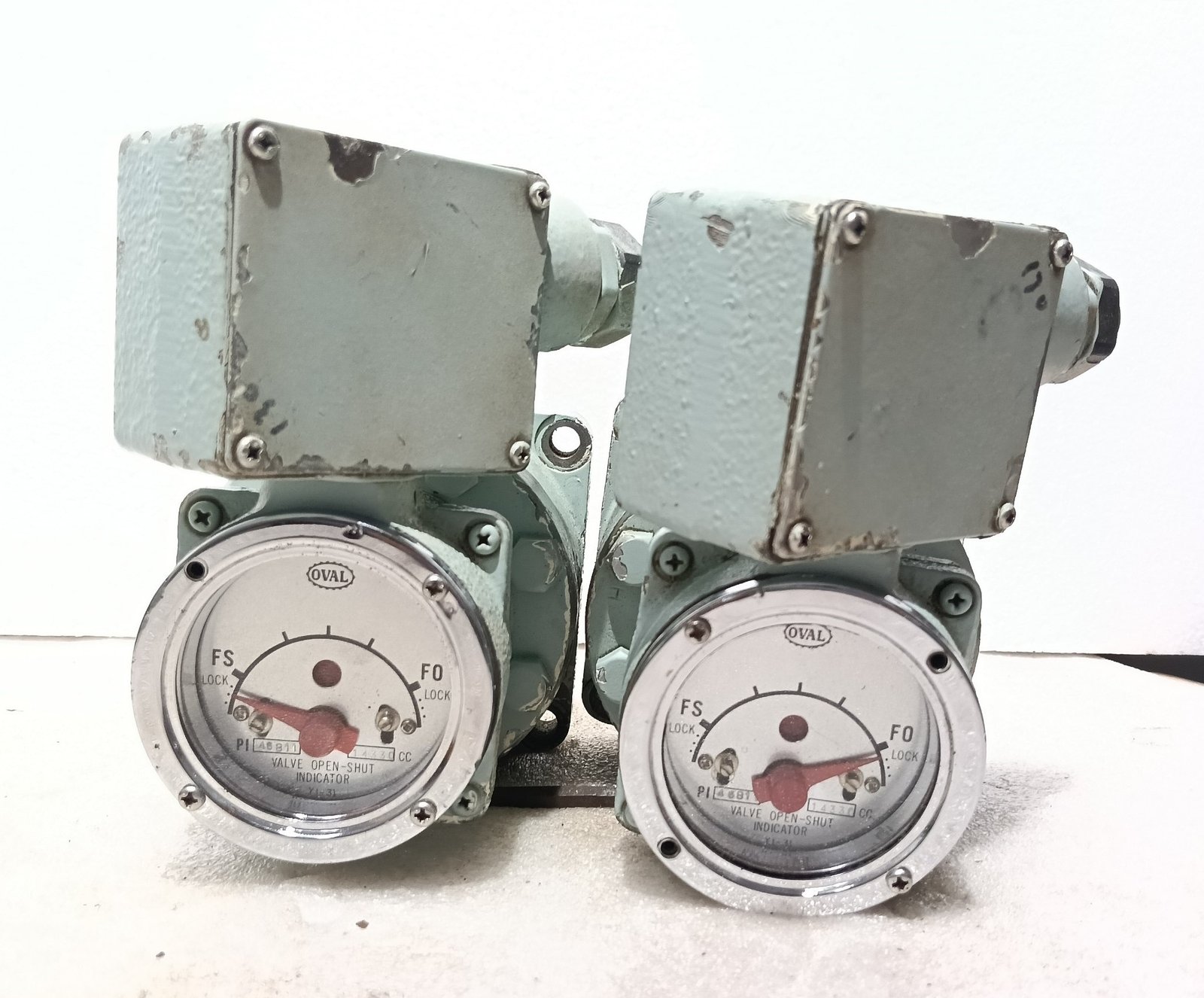

Visual Indicators: Highly visible open (red) and shut (yellow/green) dome cover
-
Electrical: Pre-wired terminal strip with cable entries (standard NPT/ metric threads as per base model)
-
Shaft Compatibility: Accepts Namur VDI/VDE 3845 bracket mounting and ISO 5211 valve topper
Applications
-
Automated butterfly, ball, and plug valves
-
Water/wastewater treatment plants
-
Chemical and petrochemical processing
-
HVAC and power generation
-
OEM valve automation skids
Technical Specifications (Typical for PI 46 Series)
| Parameter | Value |
|---|---|
| Model Code | 46B11-14330CC |
| Lock Designation | Y1-31 Lock |
| Ingress Protection | FS-F0 (IP65/67 equivalent) |
| Switch Type | 2 x SPDT mechanical (snap action) |
| Contact Rating | 5A @ 24VDC / 250VAC |
| Conduit Entry | 2 x NPT 1/2″ or M20 (verify on label) |
