OMRON CORPORATION C200H-PRO27 PROGRAMMING CONSOLE 1260U 00301021

The Omron C200H-PRO27 is a handheld programming console designed for direct, convenient interaction with specific OMRON SYSMAC programmable logic controllers (PLCs). It serves as the primary, most accessible tool for on-site programming, monitoring, and maintenance of the PLC without needing a computer.

Key Features and Benefits

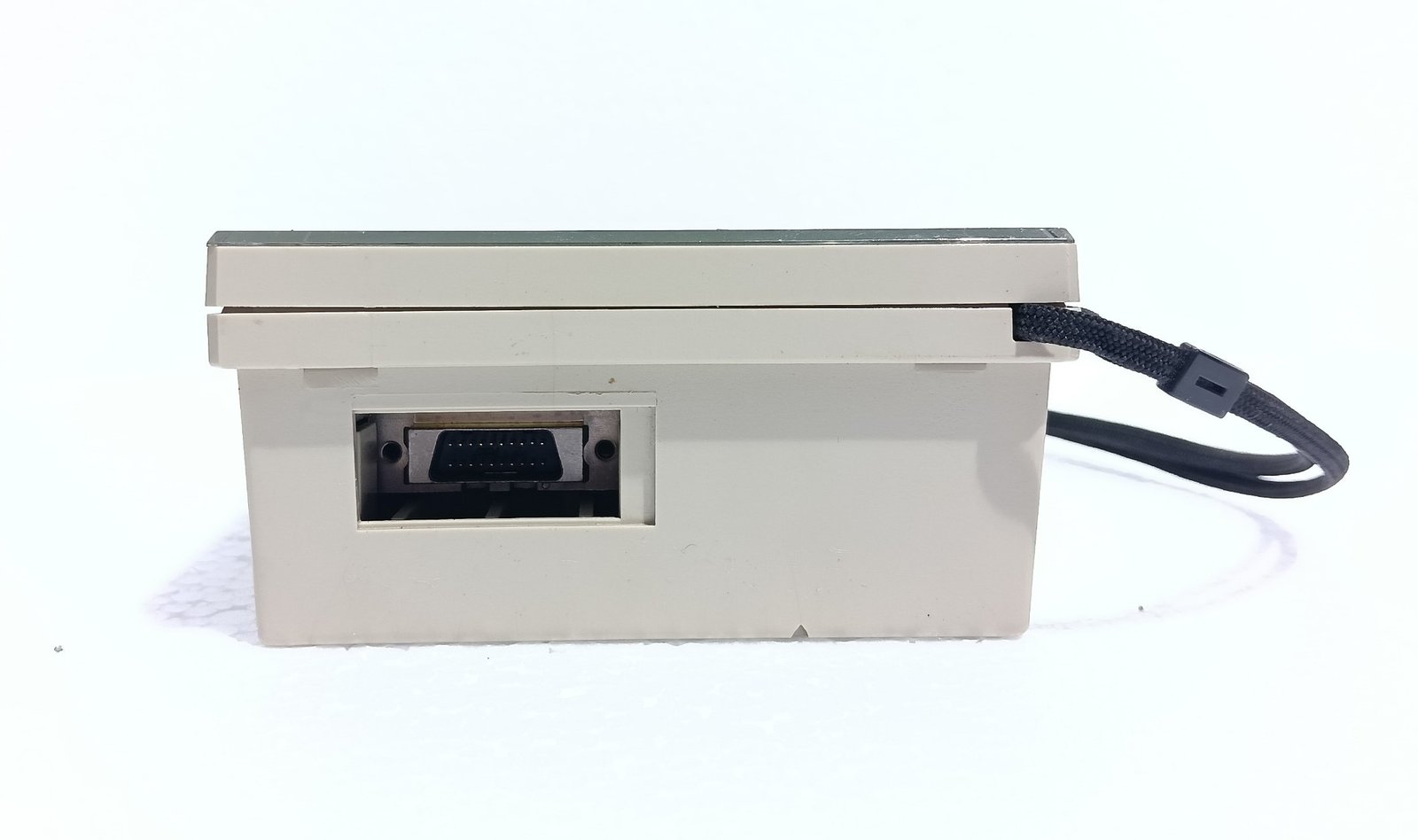

• Direct PLC Connection: The console connects directly to the CPU unit of compatible PLCs, providing a straightforward and portable programming interface.

• Enhanced Visibility: It features a backlit LCD screen that ensures clear visibility in various lighting conditions, from bright to dim environments.

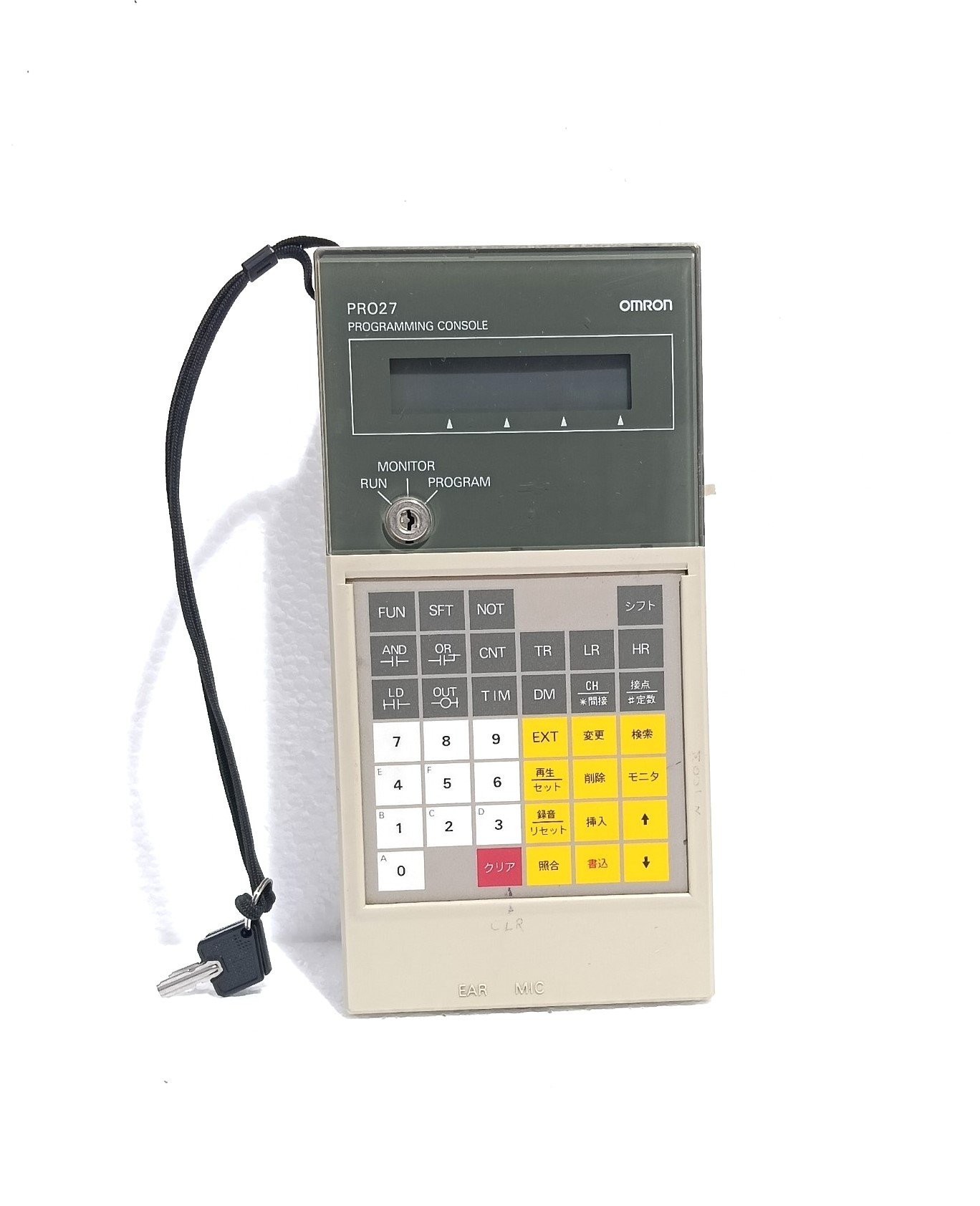

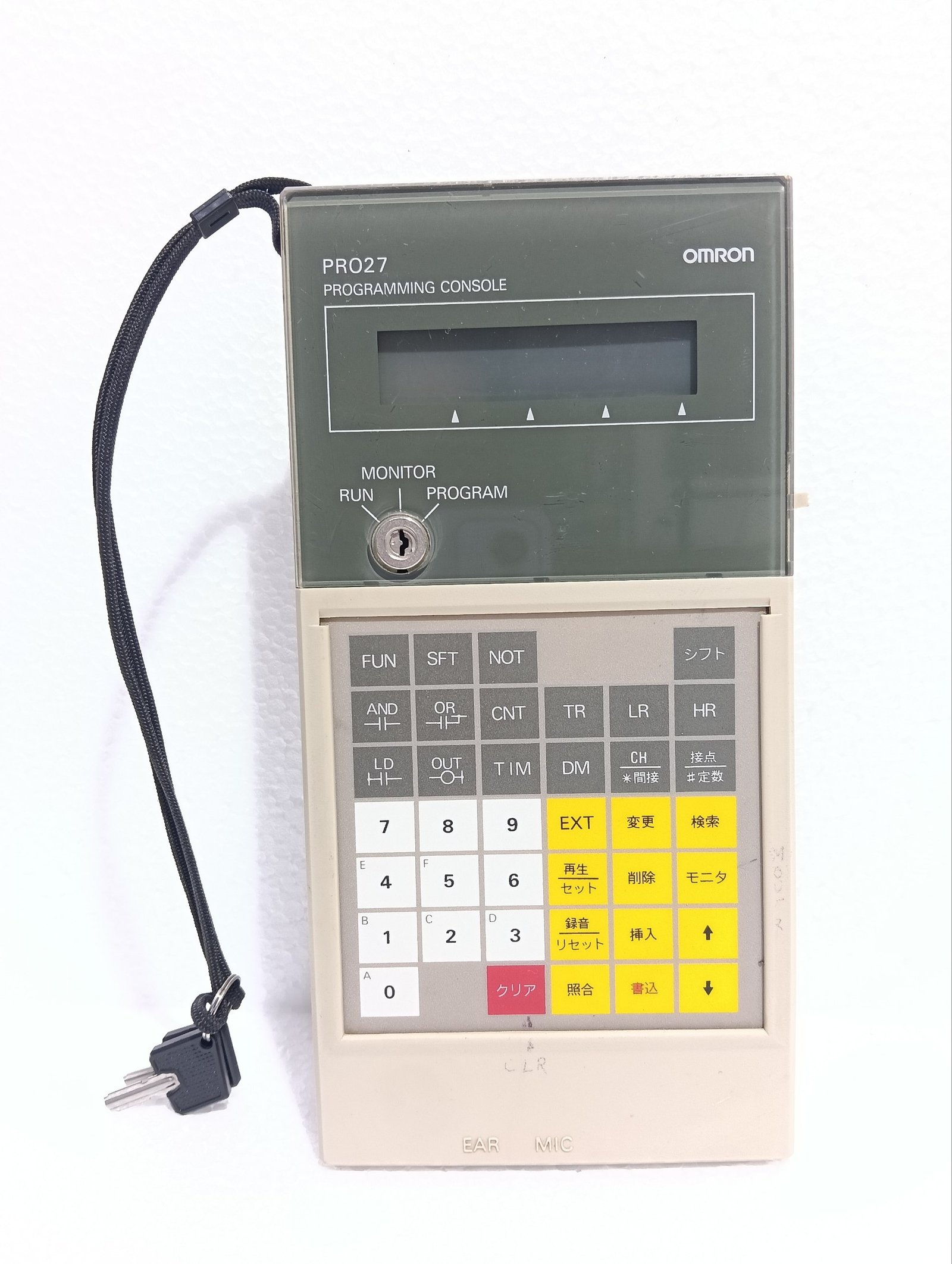

• User-Friendly Interface: The console is equipped with a comprehensive keypad, including numeric keys for data entry, operation keys, and dedicated instruction keys for efficient programming and command input.

• Versatile Vertical Orientation: It supports a vertical orientation, allowing for flexible use and viewing based on user preference.

Core Functionality

The C200H-PRO27 is a powerful tool for a wide range of tasks essential for PLC management:

• Programming & Editing: Users can perform comprehensive program editing functions, including writing, inserting, deleting, and searching for instructions and operands.

• Monitoring & Debugging: It allows for real-time monitoring of I/O relays, internal auxiliary relays, timers, counters, and data memory. Users can also change present values and perform forced set/reset operations on bits. Advanced features include differentiation monitoring and time chart monitoring for troubleshooting.

• System Setup & Maintenance: The console can be used to clear memory, set the PLC’s operating mode, read and set the internal clock, perform I/O table operations, and access fault information for diagnostics.

Technical Specifications

Applications

The C200H-PRO27 is primarily used in:

• Industrial automation field maintenance

• PLC programming without computer connection

• Real-time system monitoring and diagnostics

• Quick on-site troubleshooting and parameter adjustments

• Production line commissioning and testing
