Name: NSD VARICAM VS-5E 06219505 ELECTRONIC CAM CONTROLLER VS-5E-C - shipnavstore
Brand: NSD
SKU: 1750
Price: 200.00 USD
Availability: InStock

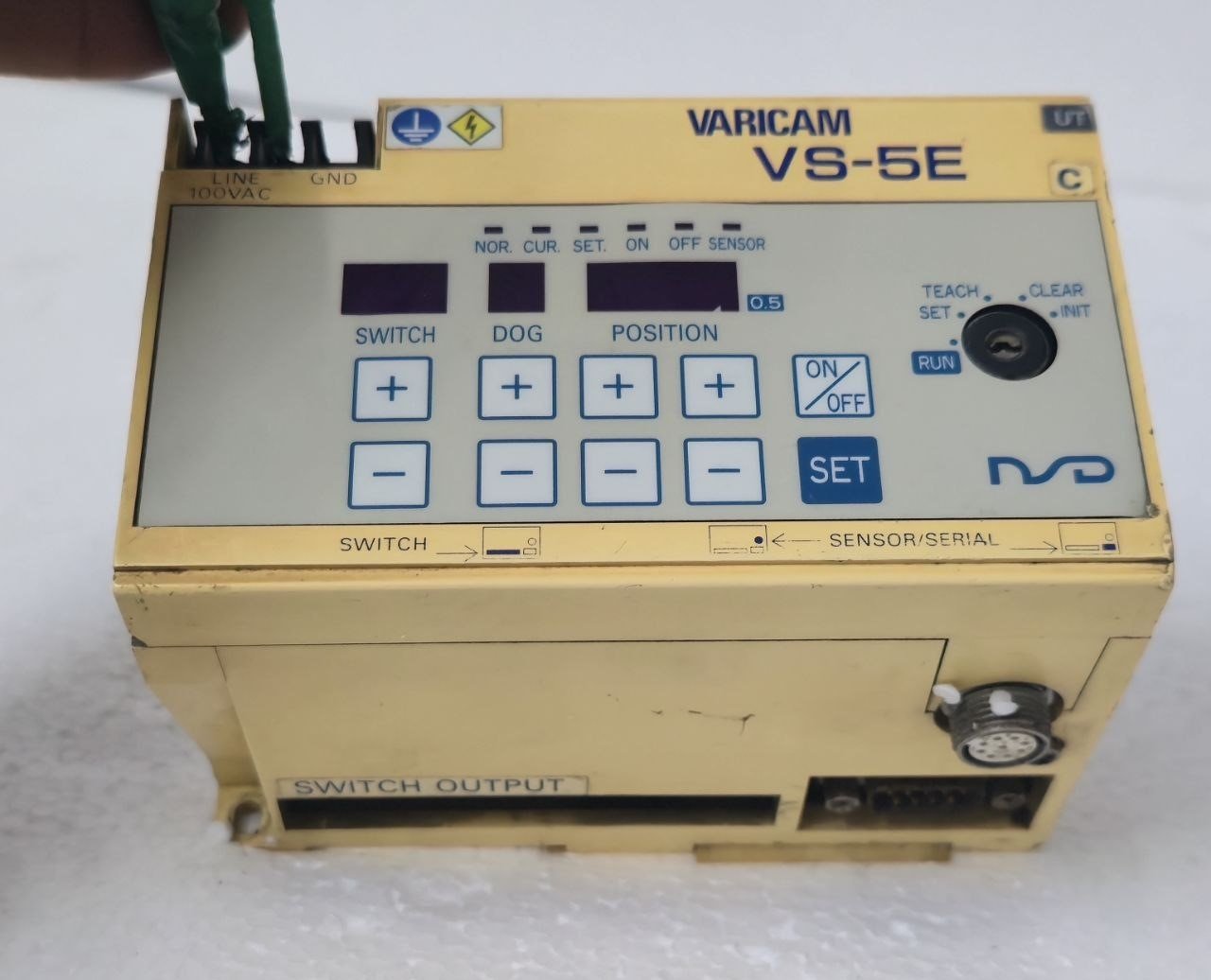

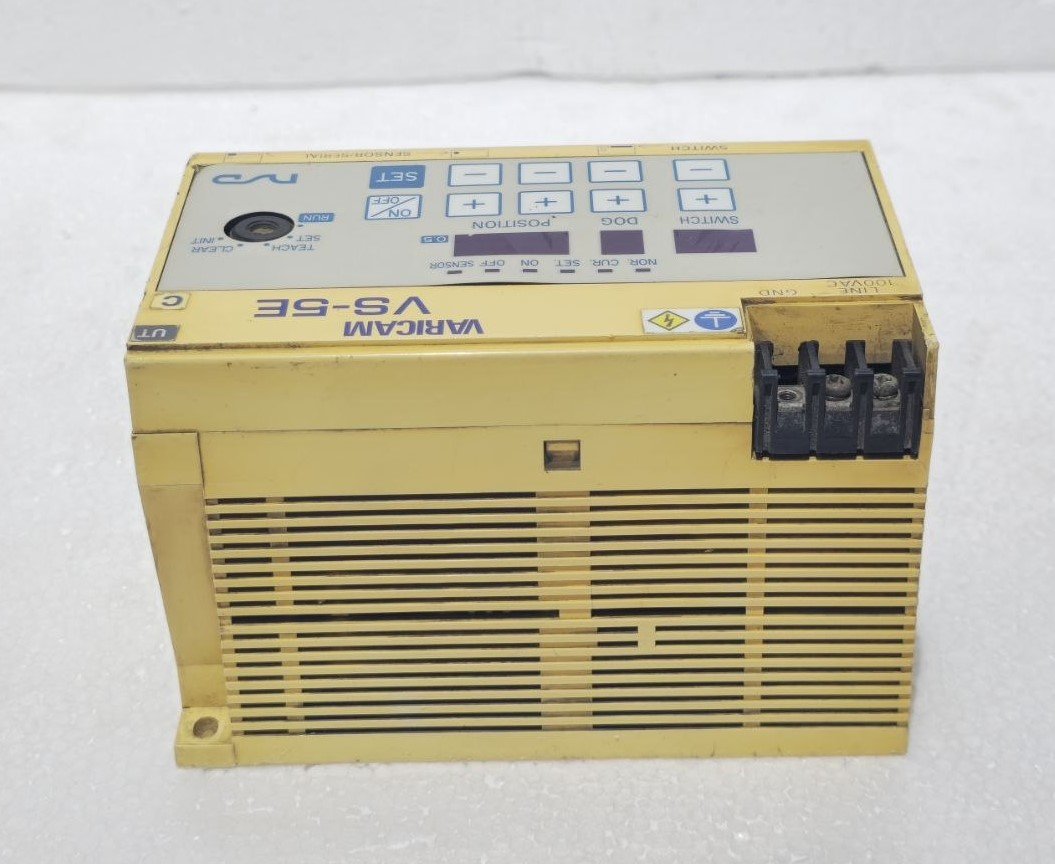

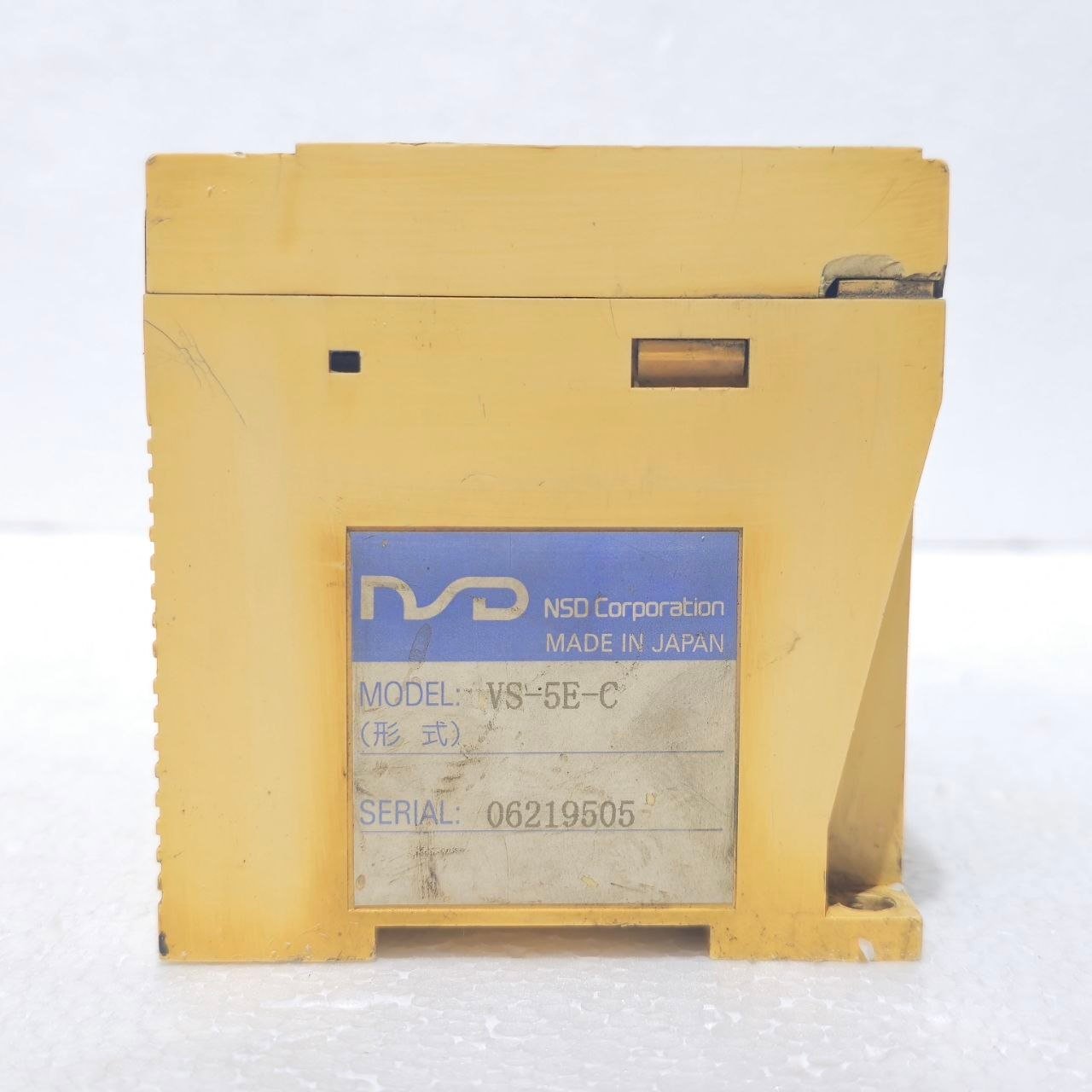

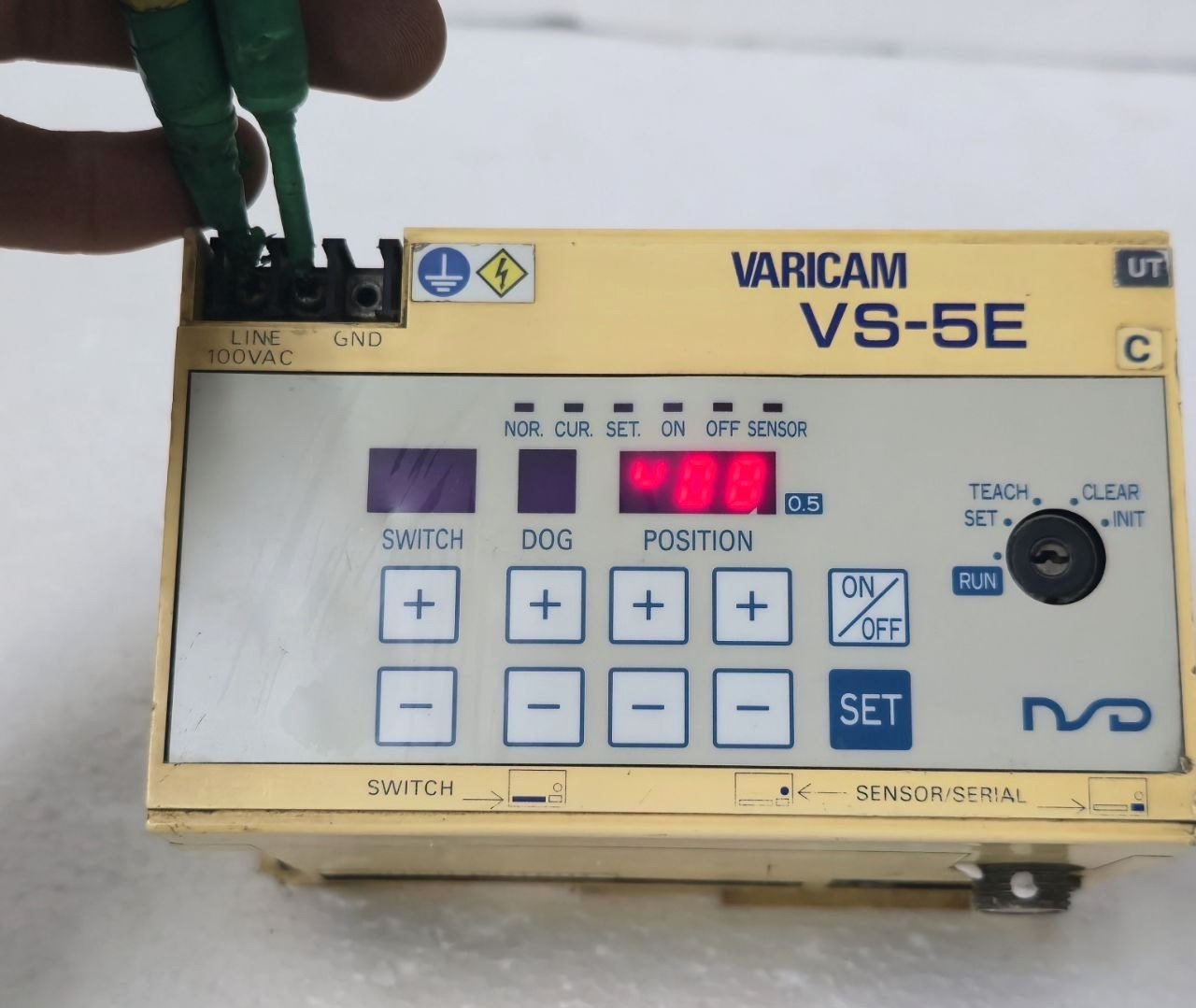

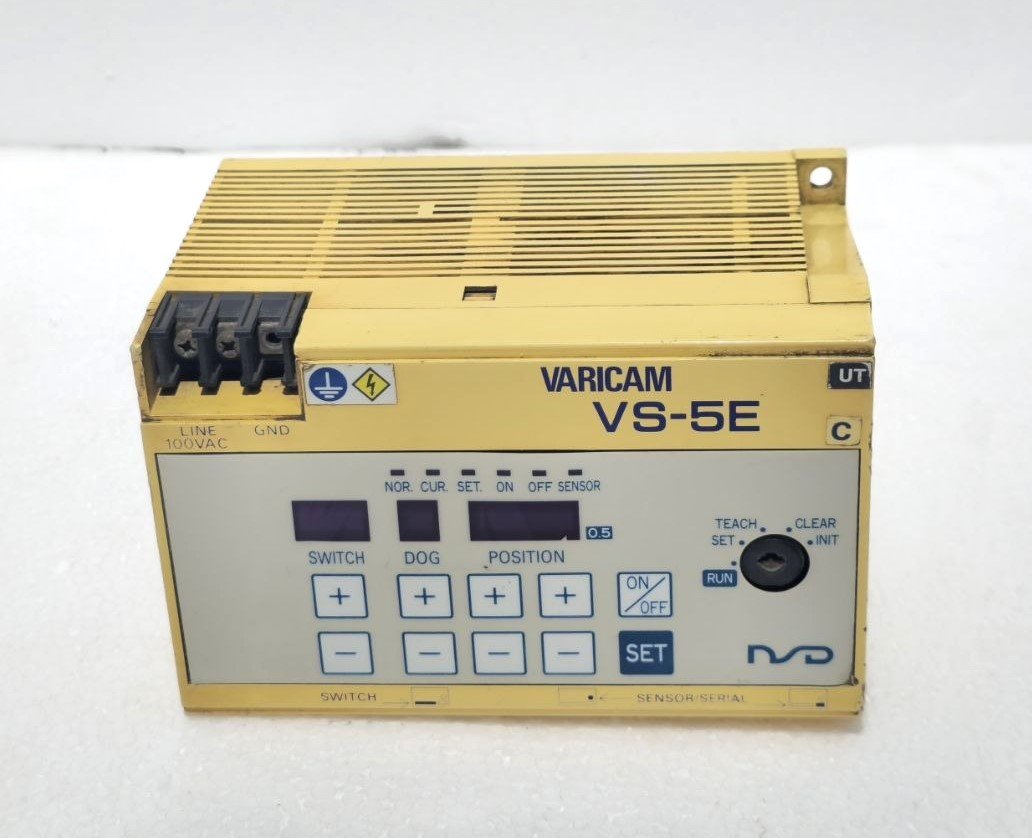

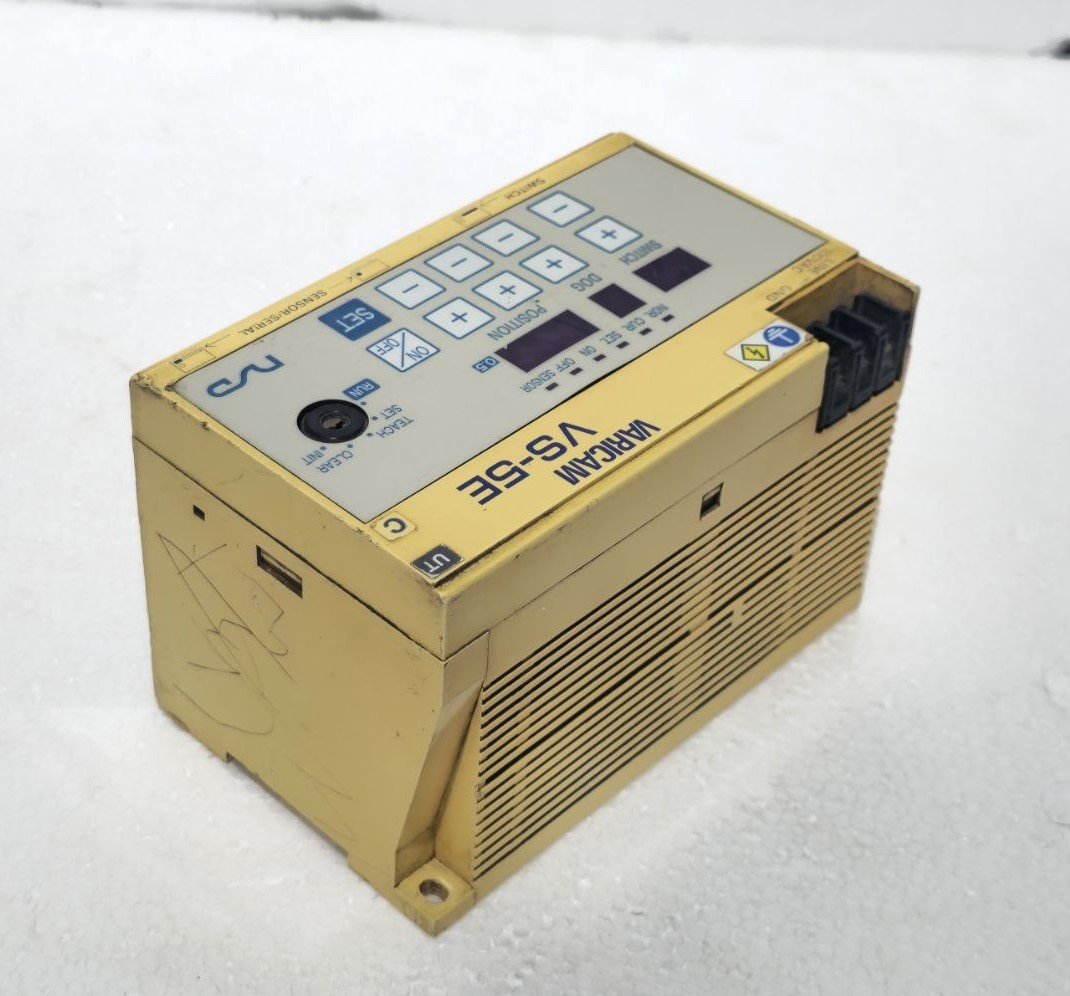

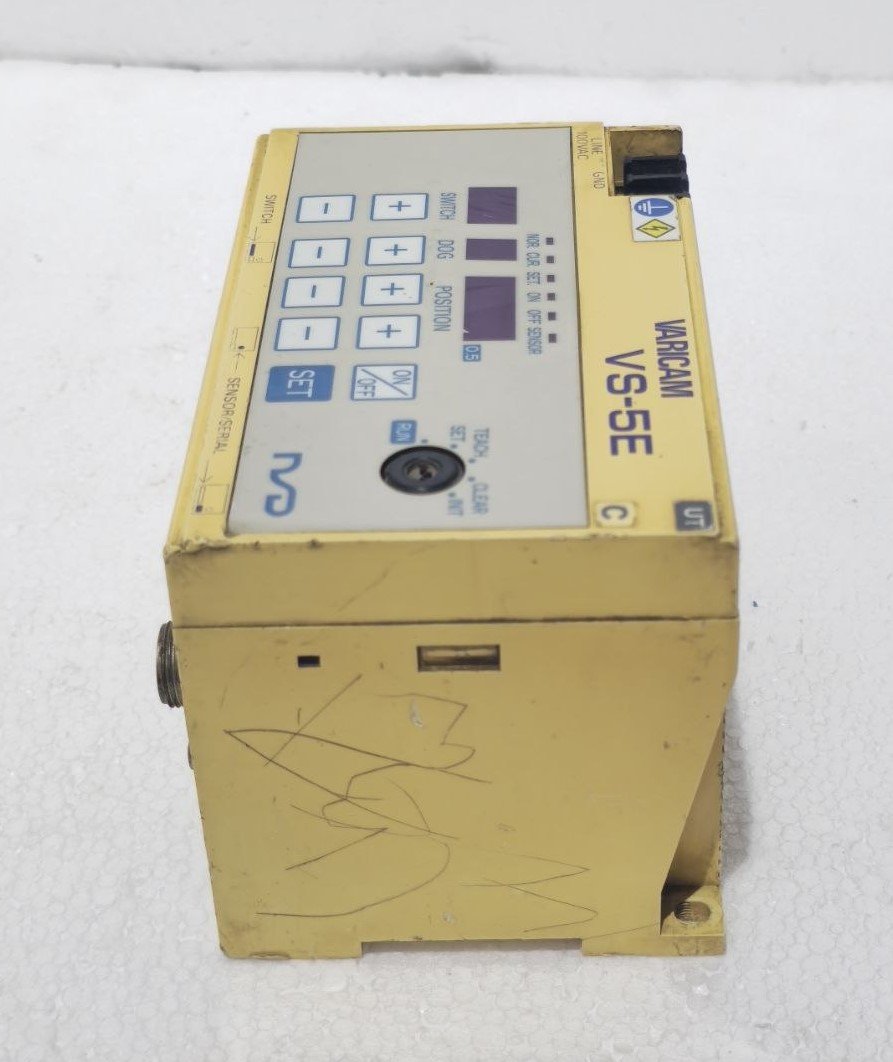

The NSD VARICAM VS-5E (Model: 06219505 / VS-5E-C) is a high-performance electronic rotary cam switch system designed to replace traditional mechanical cam limit switches in industrial automation. By utilizing electronic control and an absolute position sensor, the VS-5E eliminates the mechanical wear and time-consuming angular adjustments associated with physical cams, offering superior reliability, precision, and ease of use for high-speed production lines.

Key Features & Benefits

Eliminates Mechanical Cam Adjustments

Traditional mechanical cam switches require complex manual adjustments when timing changes. The VARICAM VS-5E allows operators to adjust ON/OFF angles instantly via the controller interface, drastically reducing downtime and setup errors .

High Precision & Durability

The system pairs with NSD’s unique ABSOCODER absolute position sensor. Unlike incremental encoders, the ABSOCODER does not require an origin return after power interruption and is built to withstand harsh factory environments including vibration, oil, and dust.

“Protected Switch” Functionality

To prevent accidental changes to critical machine timing, the VS-5E offers a Protected Switch function. This locks specific outputs against unintended modifications, requiring a specific cancellation procedure before adjustments can be made.

Flexible Timing Pulse Output

The controller supports configurable timing pulse outputs (60, 180, or 360 pulses per revolution). This feature is ideal for monitoring rotation speed and synchronizing peripheral equipment without needing additional sensors.

Remote Configuration & Backup

Equipped with an RS-232C communication port, the VS-5E allows for remote setup and serial communication. Settings can be backed up to a host controller, enabling quick disaster recovery or cloning settings across multiple machines without manual re-entry.

Technical Specifications

Specification	Detail
Model Number	06219505 / VS-5E-C
Type	Electronic Cam Controller (Programmable Limit Switch)
Output Points	24-point output (Program 1)
Power Supply	100 VAC
Sensor Compatibility	NSD ABSOCODER Series (Absolute Position Sensor)
Communication	RS-232C (9600/4800/2400 bps selectable)
Display	LED / 7-segment for current position and error codes
Ambient Temperature	0 to 55°C (32 to 131°F)
Ambient Humidity	20 to 90% RH (Non-condensing)
Environment	No corrosive gases, excessive dust, or direct water/oil splash

Applications

The NSD VARICAM VS-5E is ideal for OEMs and end-users in sectors requiring high cyclic rates and precise timing:

Packaging Machinery (Form-fill-seal machines)
Presses & Stamping Equipment
Assembly Lines
Food Processing Equipment
Printing Machinery
