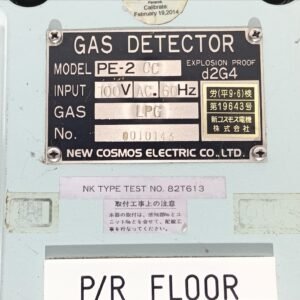

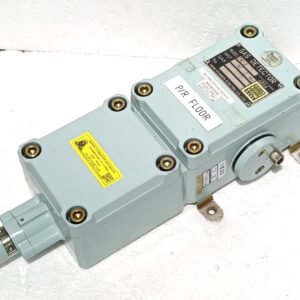

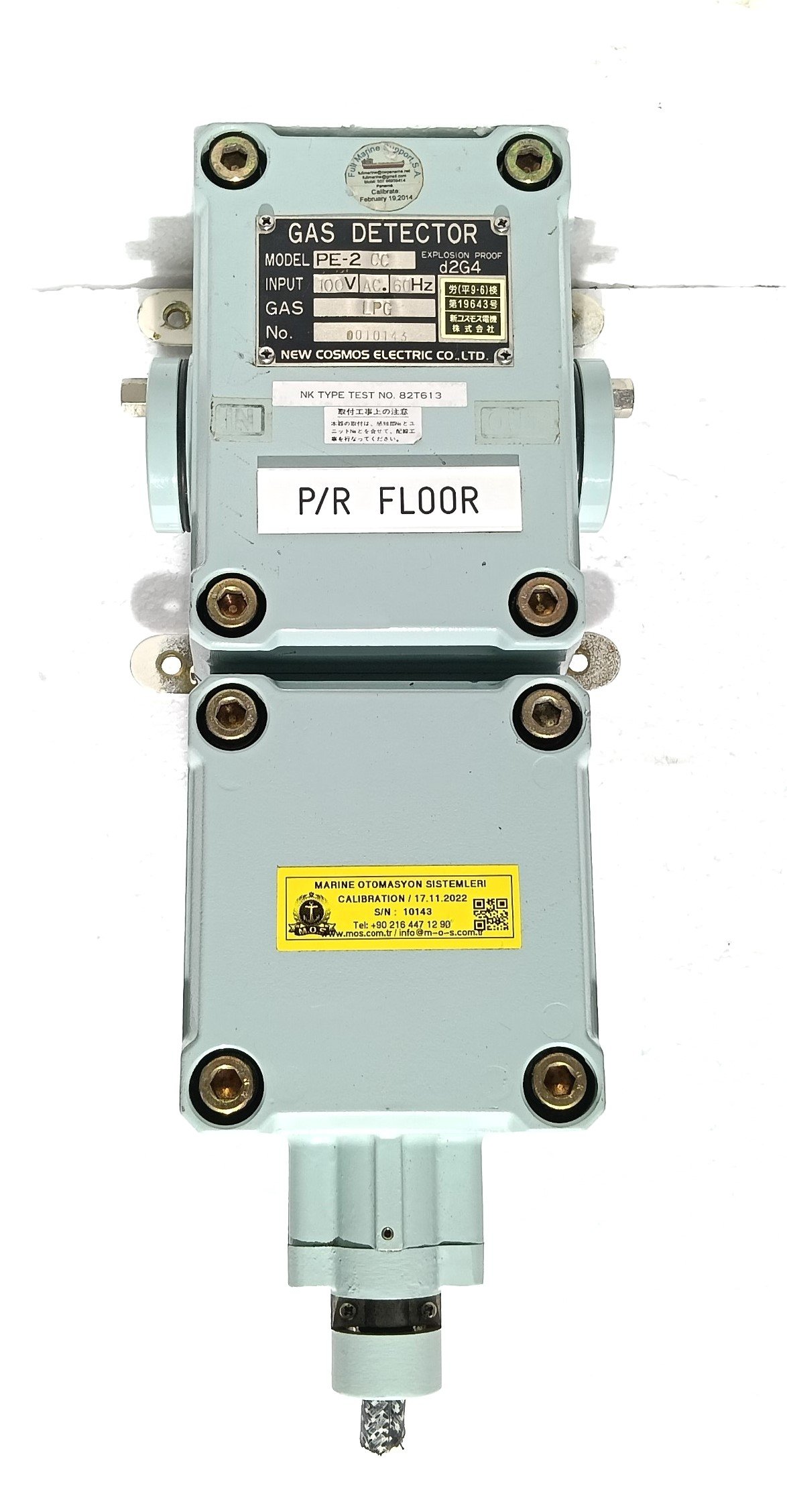

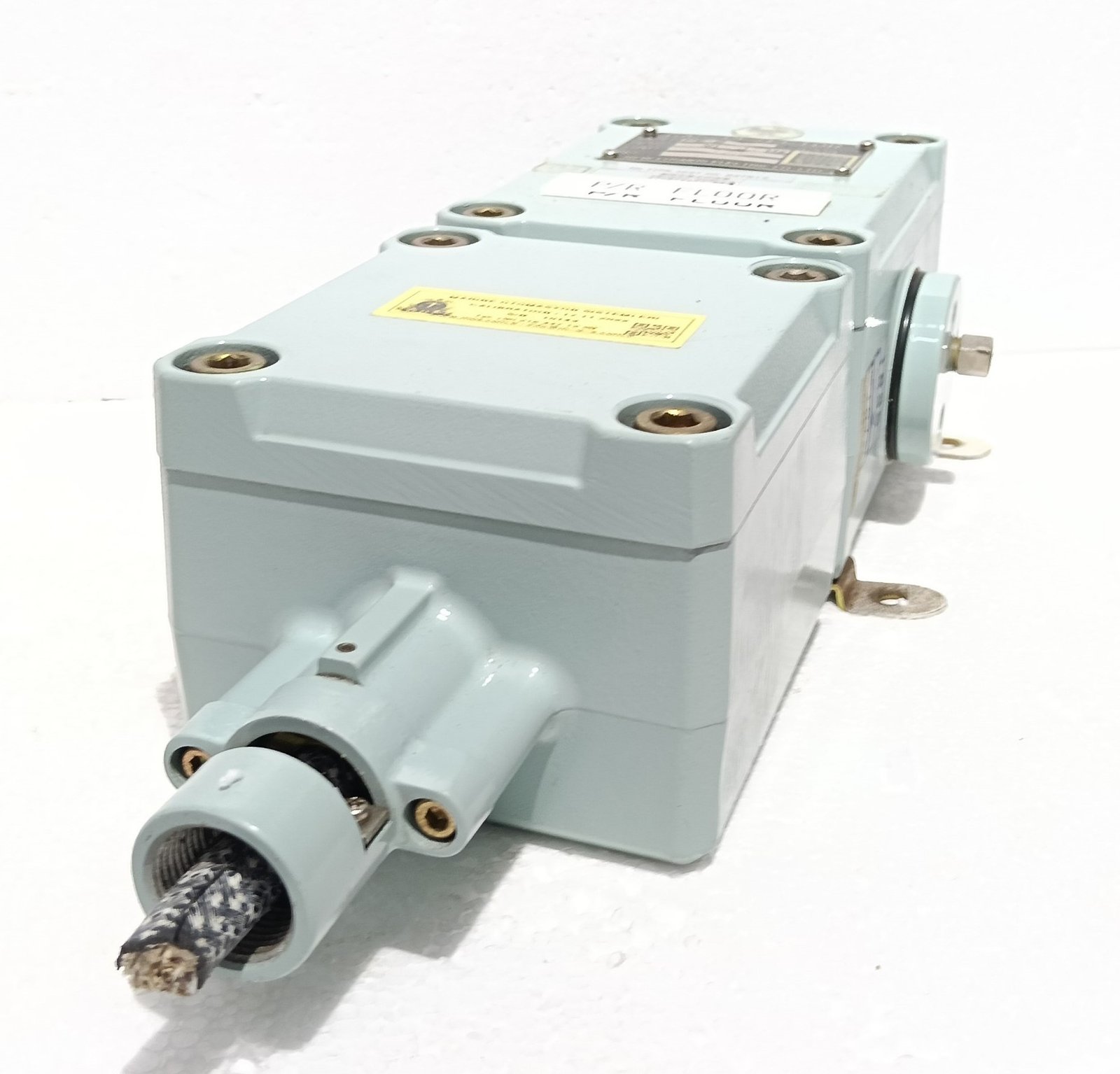

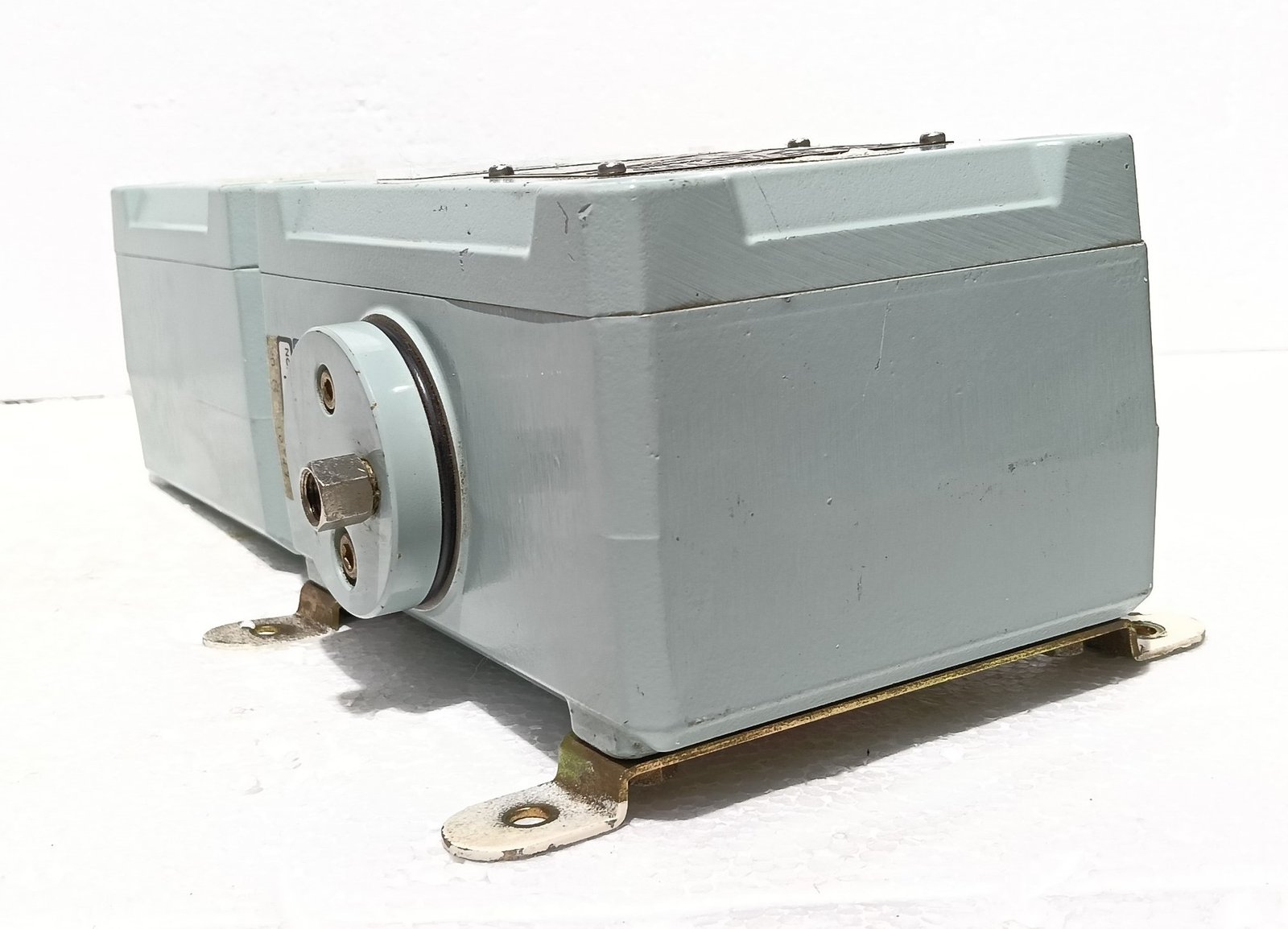

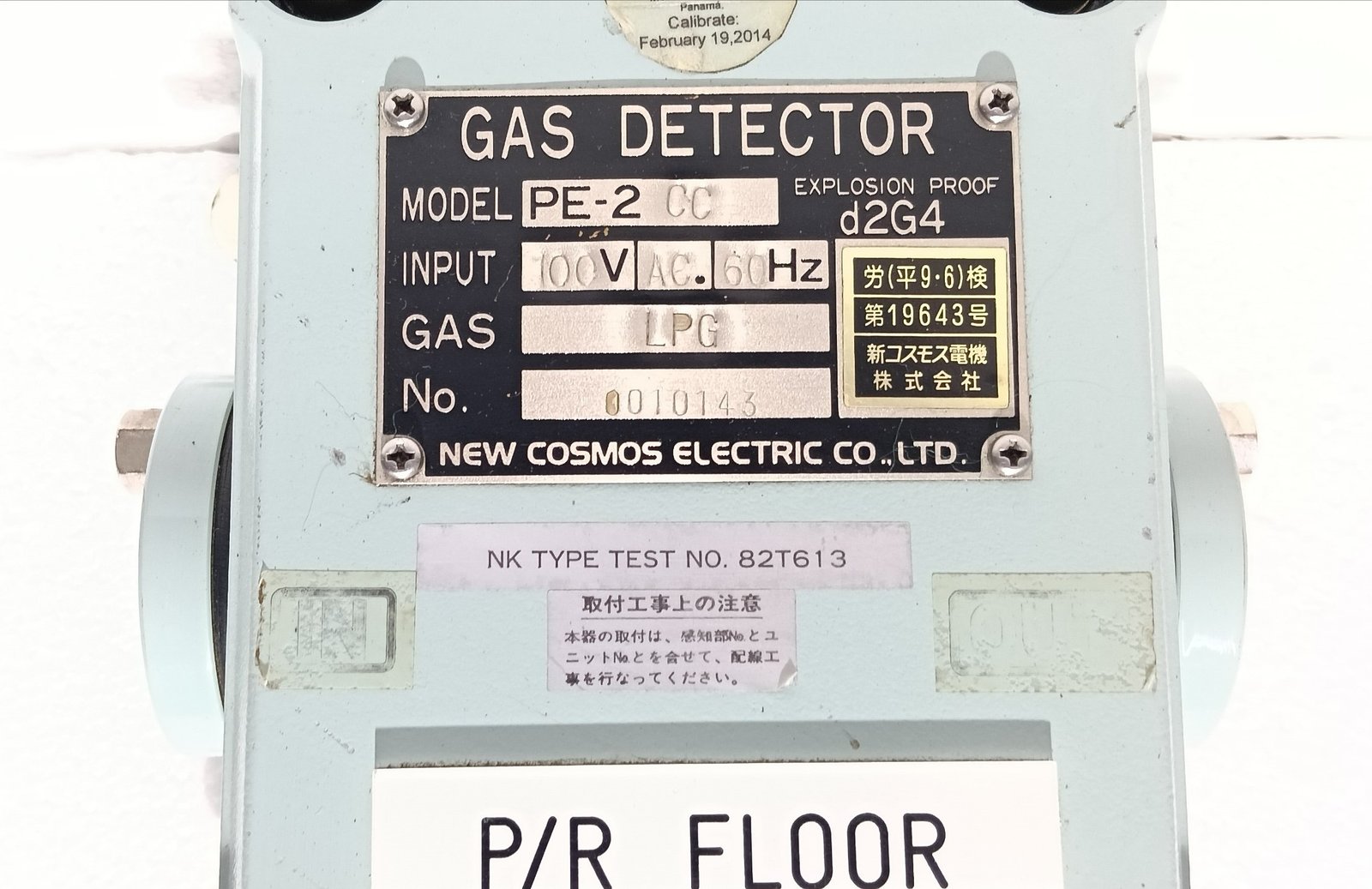

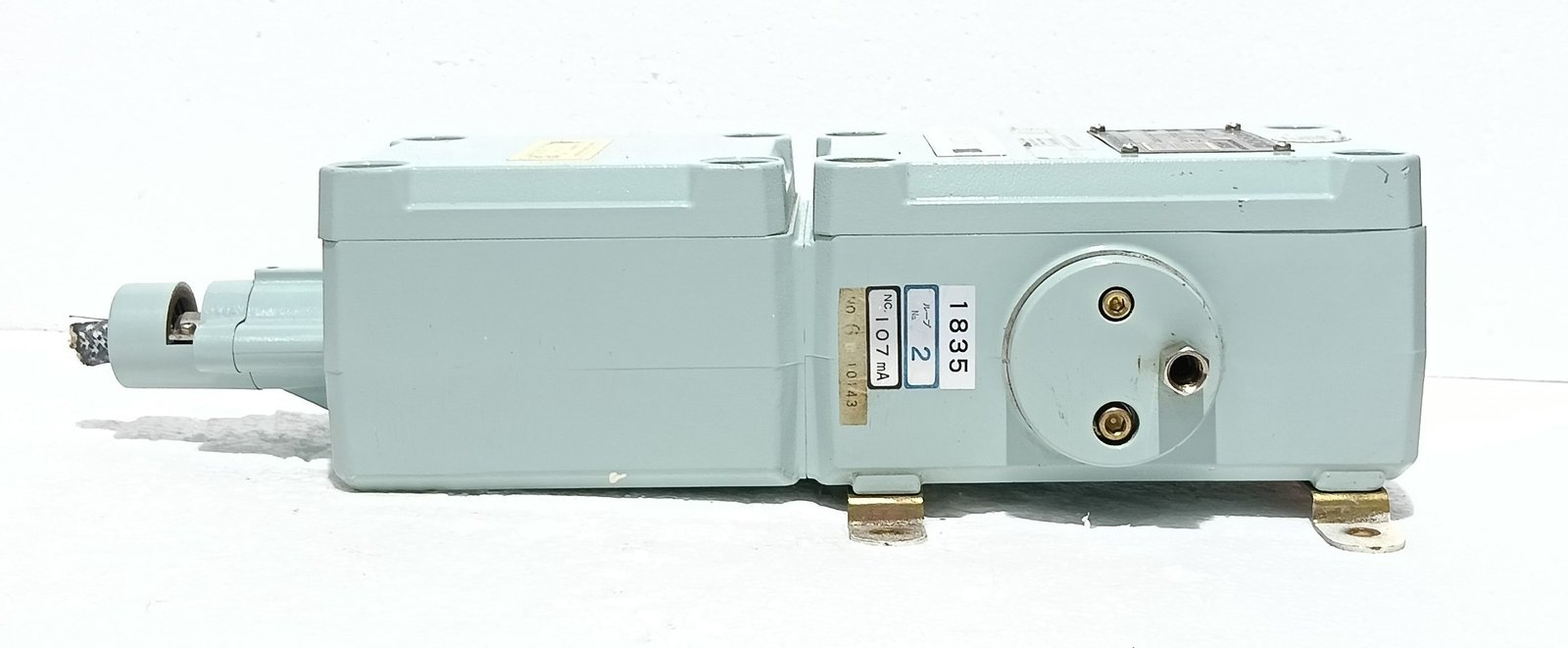

The New Cosmos Electric Model PE-2 CC is a fixed, explosion-proof gas detector specifically calibrated for Liquefied Petroleum Gas (LPG) . Designed for hazardous industrial environments, this unit features a D2G4 explosion-proof rating, ensuring safe, continuous monitoring where flammable gas leaks pose a risk. Operating on 100VAC, it is a trusted solution for Japanese and Asian industrial safety standards.
Key Features
-
Target Gas: LPG (Liquefied Petroleum Gas)
-
Explosion-Proof Rating: D2G4 (Japanese industrial standard for Zone 1 & 2 hazardous areas)
-
Power Supply: 100VAC (standard for Japan & specific export markets)
-
Sensor Type: Catalytic combustion (highly selective for LPG/ methane)
-
Output: Relay contact output (standard for external alarm/alarm panel integration)
-
Detection Principle: Diffusion type – no moving parts for high reliability
-
Enclosure: Heavy-duty cast aluminum with weather-resistant coating
Applications
-
LPG storage & filling stations
-
Petrochemical plants
-
Boiler rooms & industrial kitchens
-
Gas valve & piping galleries
-
Offshore platforms (specific to Japanese regulations)
Technical Specifications (Brief)
| Parameter | Detail |
|---|---|
| Model | PE-2 CC |
| Gas | LPG |
| Power | 100VAC ±10% 50/60Hz |
| Explosion Proof | D2G4 (Ex d ⅡB T4) |
| Detection Range | 0–100% LEL |
| Alarm Set Point | Factory set (e.g., 20% LEL) |
| Operating Temp | -10°C to +50°C |
| Dimensions | Approx. W120 x H160 x D80mm |
