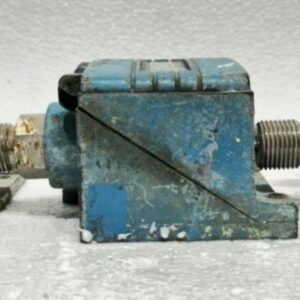

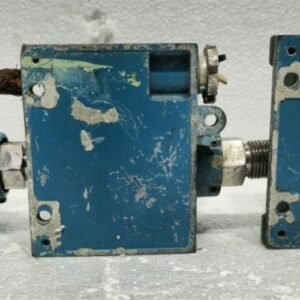

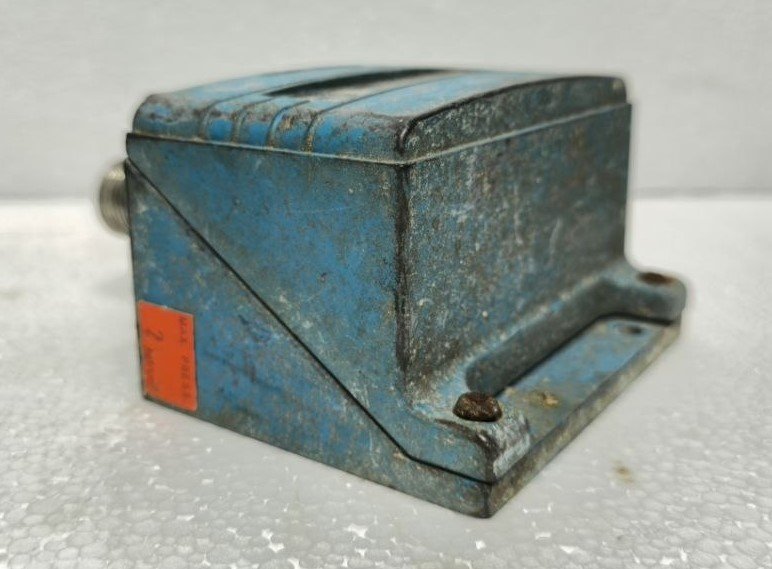

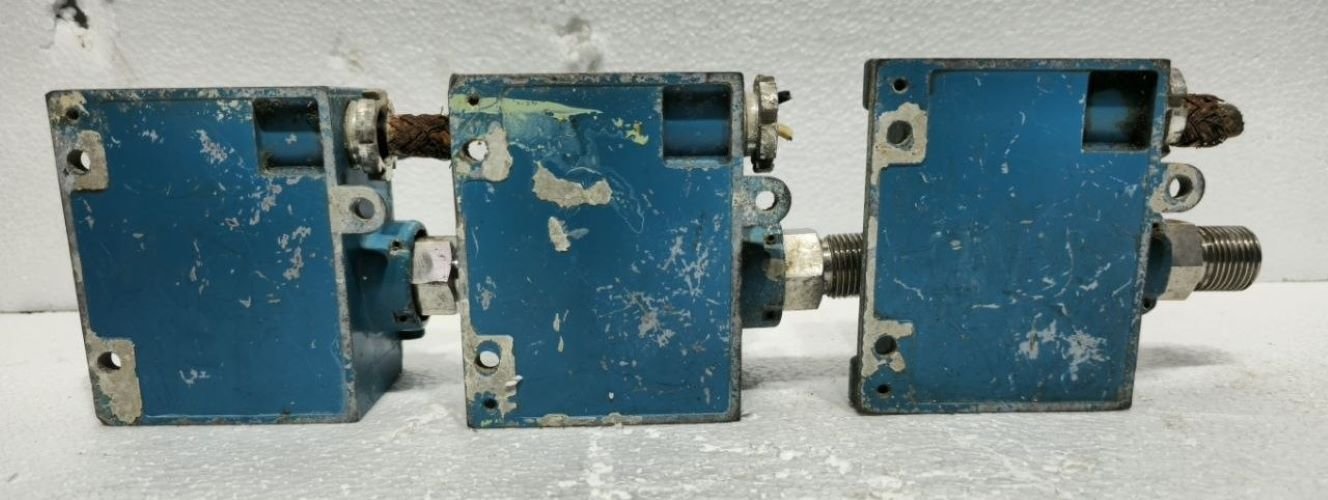

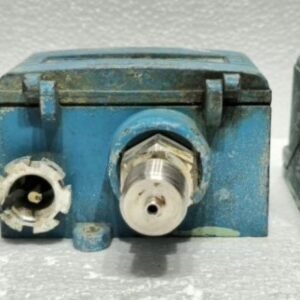

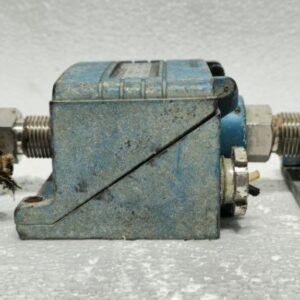

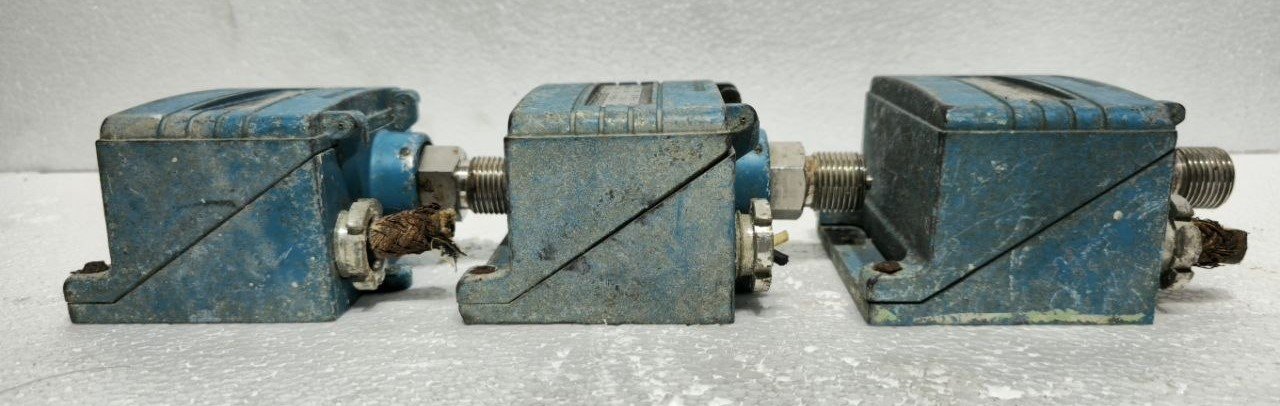

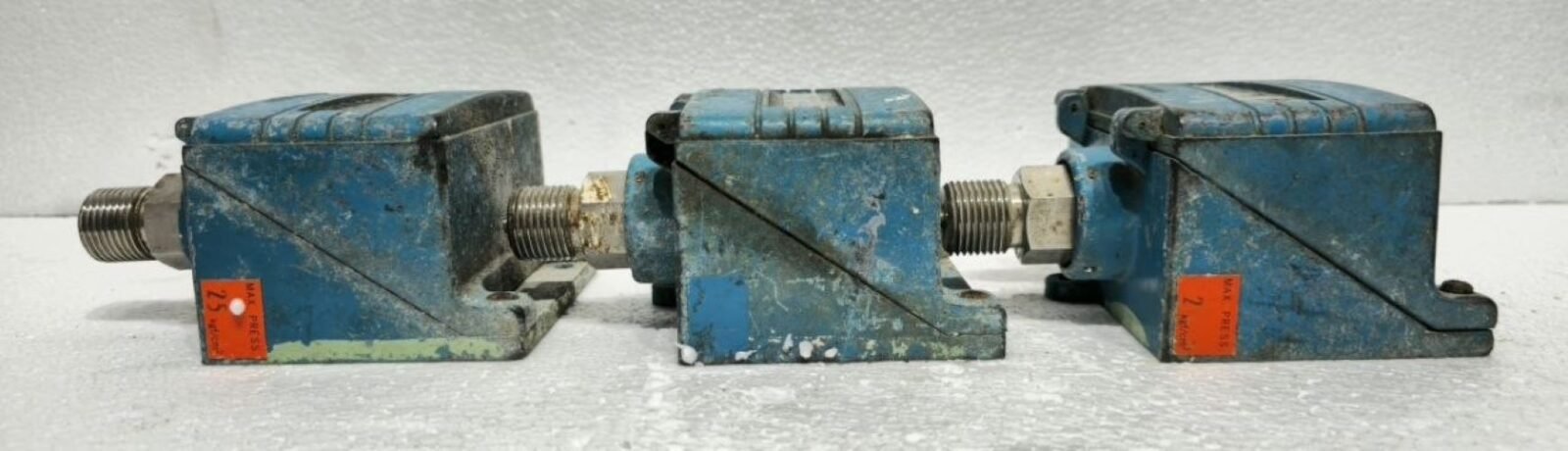

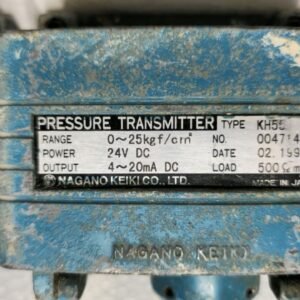

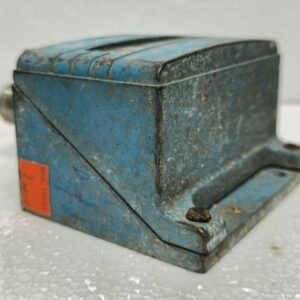

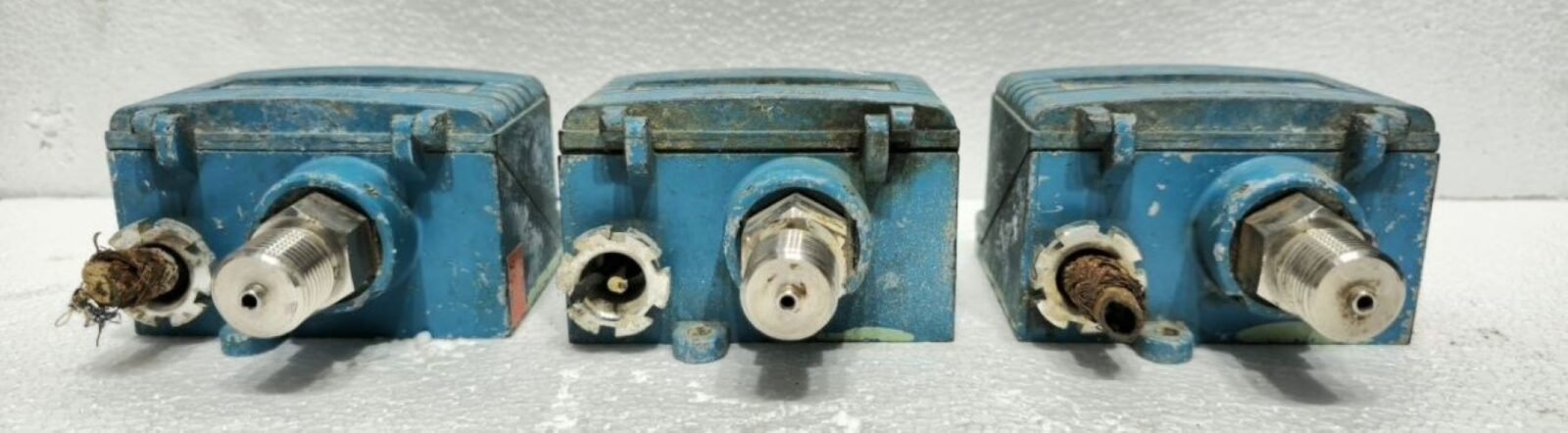

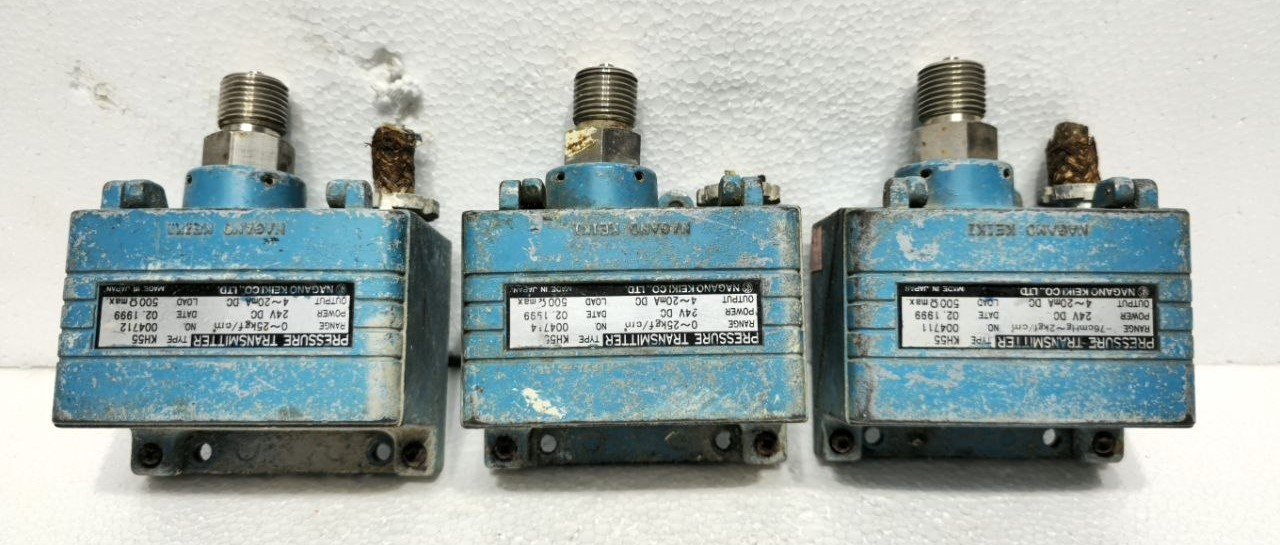

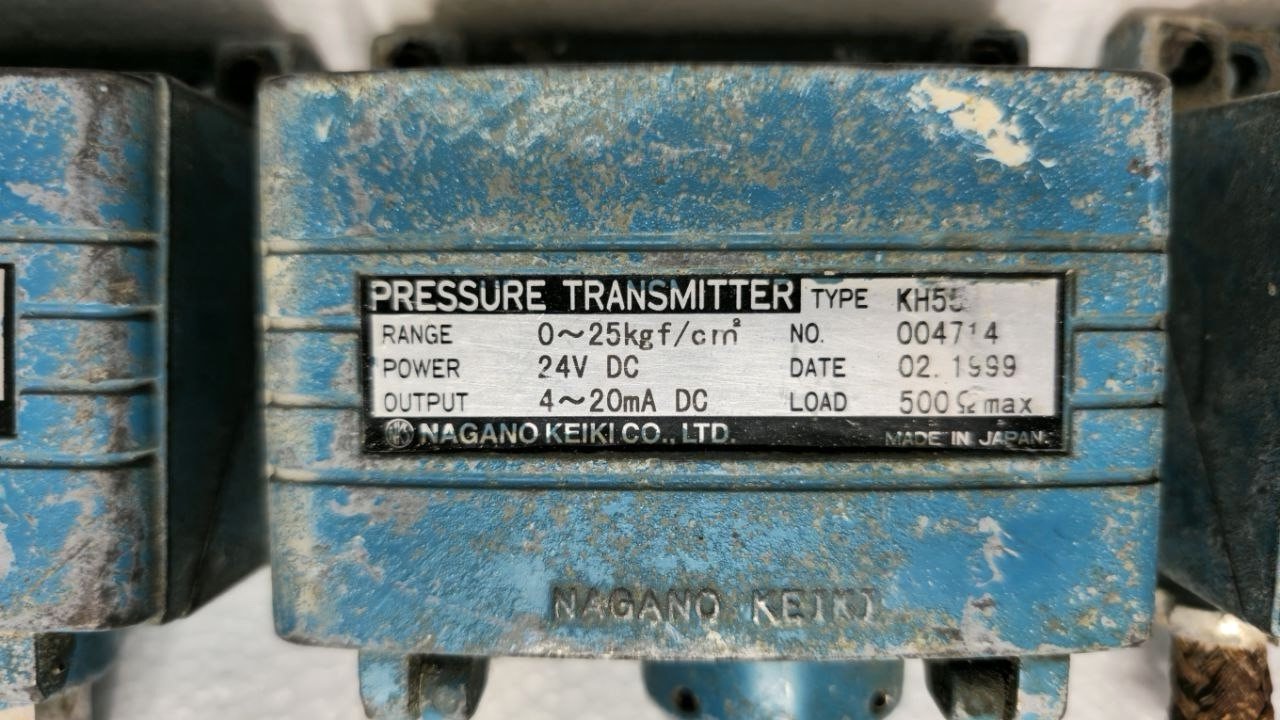

NAGANO KEIKI KH55 PRESSURE TRANSMITTER 0 ~25KGF/CM2 24VDC 4~20MA

₹9,542.00

SKU: 1685 Brand:
Product Conditioned

USED
Add to Wishlist
or

Free Shipping apply to all orders over $199

Guaranteed Money Back in 30 days return.

24/7 Customer Support

Categories: Tags: , ,

Share:

NAGANO KEIKI KH55 PRESSURE TRA...

₹9,542.00

3 in stock

Hotline Order:

(+101) 5620 - 8155

Email ID:

xstore@support.com

The Nagano Keiki KH55 Pressure Transmitter is a high-precision industrial sensor designed for reliable pressure measurement in demanding environments. With a pressure range of 0 to 25 kgf/cm², this transmitter converts physical pressure into a standard 4–20 mA analog output signal, powered by a 24 VDC supply. Ideal for hydraulic systems, industrial machinery, and process automation, the KH55 series is known for its excellent stability, corrosion resistance, and long-term reliability.

Key Features

  • Pressure Range: 0 to 25 kgf/cm²
  • Output Signal: 4–20 mA (2-wire system)
  • Power Supply: 24 VDC
  • High Accuracy: ±0.5% F.S.
  • Durable Construction: Stainless steel diaphragm and housing
  • Compact & Lightweight: Easy integration into existing systems
  • Protection Rating: Equivalent to IP65 (dust-tight and protected against water jets)
  • Wide Temperature Compensation: Stable performance in varying ambient conditions

Technical Specifications

Parameter Specification
Model KH55
Pressure Type Gauge (standard)
Measuring Range 0 – 25 kgf/cm²
Output 4 – 20 mA DC
Supply Voltage 24 VDC (operating range: 12–36 VDC)
Accuracy ±0.5% of full scale
Overpressure Limit 150% F.S.
Burst Pressure 200% F.S.
Operating Temp. -20°C to +80°C
Compensation Temp. 0°C to +70°C
Process Connection G1/4 (or as specified)
Wetted Material SUS316L (stainless steel)
Electrical Connection Cable type or DIN connector (depending on version)

Applications

  • Hydraulic presses and power units
  • Industrial water treatment systems
  • Compressed air monitoring
  • Machine tool hydraulics
  • General industrial pressure control
  • Test stands and calibration equipment
