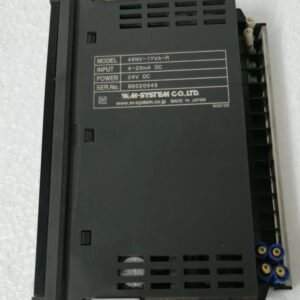

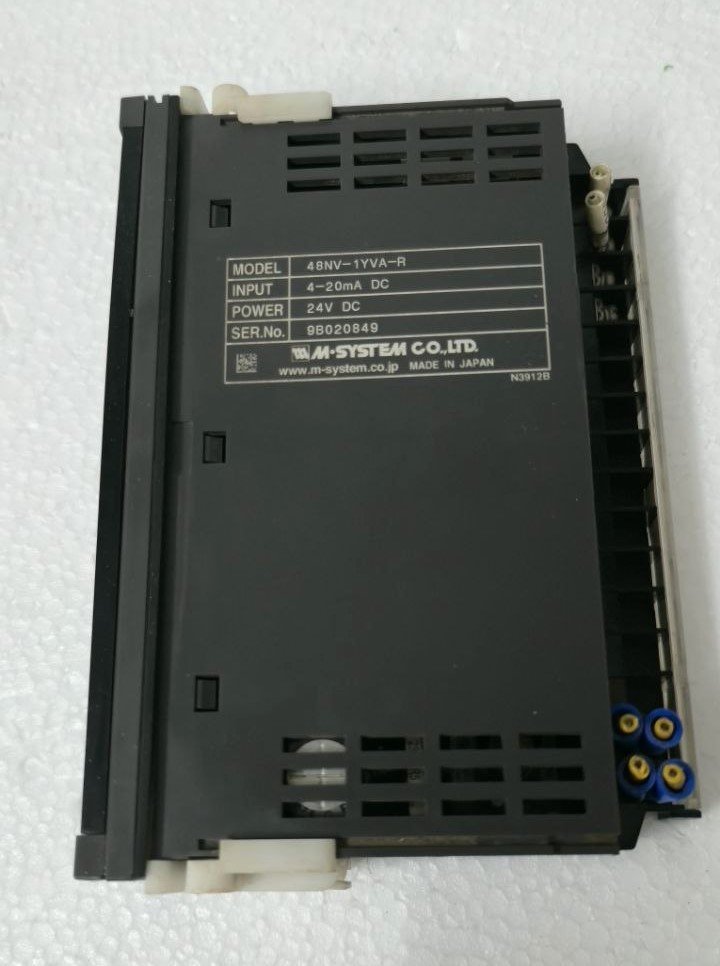

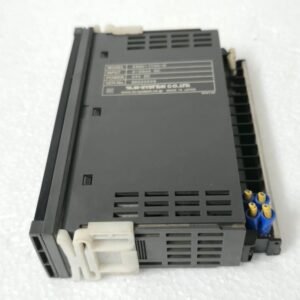

| The M-SYSTEM 48NV-1YVA-R is a high-precision dual bargraph indicator from the renowned 48N Series, designed for demanding industrial environments. This model offers simultaneous visual monitoring of two separate 4-20 mA process signals, converting them into bright, easy-to-read 101-segment LED displays .
Engineered for panel mounting, this device provides a clear, at-a-glance status of your critical process variables. With a rugged IP65 front cover and separable terminal blocks, the 48NV-1YVA-R combines durability with user-friendly installation and maintenance . |
Key Specifications at a Glance
|
Technical Specifications
General
- Construction:Â Panel flush mounting
- Isolation:Â Input 1 to Input 2 to Power
- Connection: M3 separable screw terminal (Torque 0.6 N·m)
- Weight:Â Approx. 300g (0.66 lbs)
Performance
- Response Time: ≤ 0.5 seconds
- Dielectric Strength:Â 2000V AC for 1 minute (Input to Power to Ground)
- Operating Temperature: -5 to +55°C (23 to 131°F)
- Power Consumption (Dual):Â Approx. 2W (DC)
Input Specifications (Standard)
- Type:Â DC Current
- Range:Â 4-20 mA
- Input Resistance: 10 Ω
- Minimum Span:Â 1 mA
Applications
- Flow Monitoring:Â Visualizing supply and return flow rates in water/wastewater treatment.
- Pressure Indication:Â Monitoring dual pressure zones in HVAC or hydraulic systems.
- Tank Level:Â Displaying levels of two different tanks on a single panel.
- Test Benches:Â Providing simultaneous readouts of RPM and Torque, or Pressure and Temperature.
