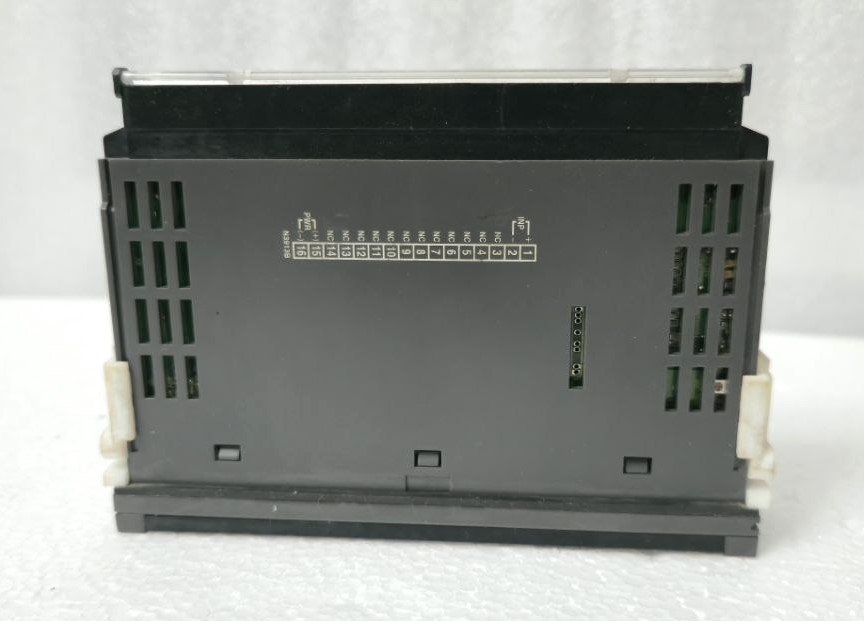

The M-System 48NV-1YVA-R is a precision panel-mounted bargraph indicator designed for industrial automation and process control. Part of the reliable 48N Series, this unit features a high-resolution 101-segment LED display, providing a clear visual representation of process variables.
Key Features:
-
High Resolution: 101 LED segments for precise trend indication at a glance.
-
Versatile Input: Factory calibrated for 4-20 mA DC (Input resistance 10Ω) but supports various DC current/voltage inputs.
-
Durable Design: IP65 rated front panel protection against dust and water jets, suitable for harsh environments.
-
Easy Maintenance: Features a separable terminal block for quick installation and a replaceable scale plate.
-
User Calibration: Front-panel calibration buttons allow for zero and span adjustments without special tools.
Specifications:
-
Model: 48NV-1YVA-R
-
Type: Single Bargraph Indicator
-
Bar Color: Amber (Y)
-
Input: 4-20 mA DC (Standard)
-
Power Supply: 24V DC (R) – Operating range 24V ±15%
-
Display: 101-segment LED
-
Accuracy: ±1% ±1 digit
-
Response Time: ≤ 0.5 seconds
-
Isolation: Input to Power
-
Dimensions: 36mm (W) x 144mm (H) x 103mm (D)
Applications:
-
Water level monitoring (0-500 mmH2O)
-
Tank level indication
-
Process value display in power plants and factories
-
Replacing analog meters with digital reliability
