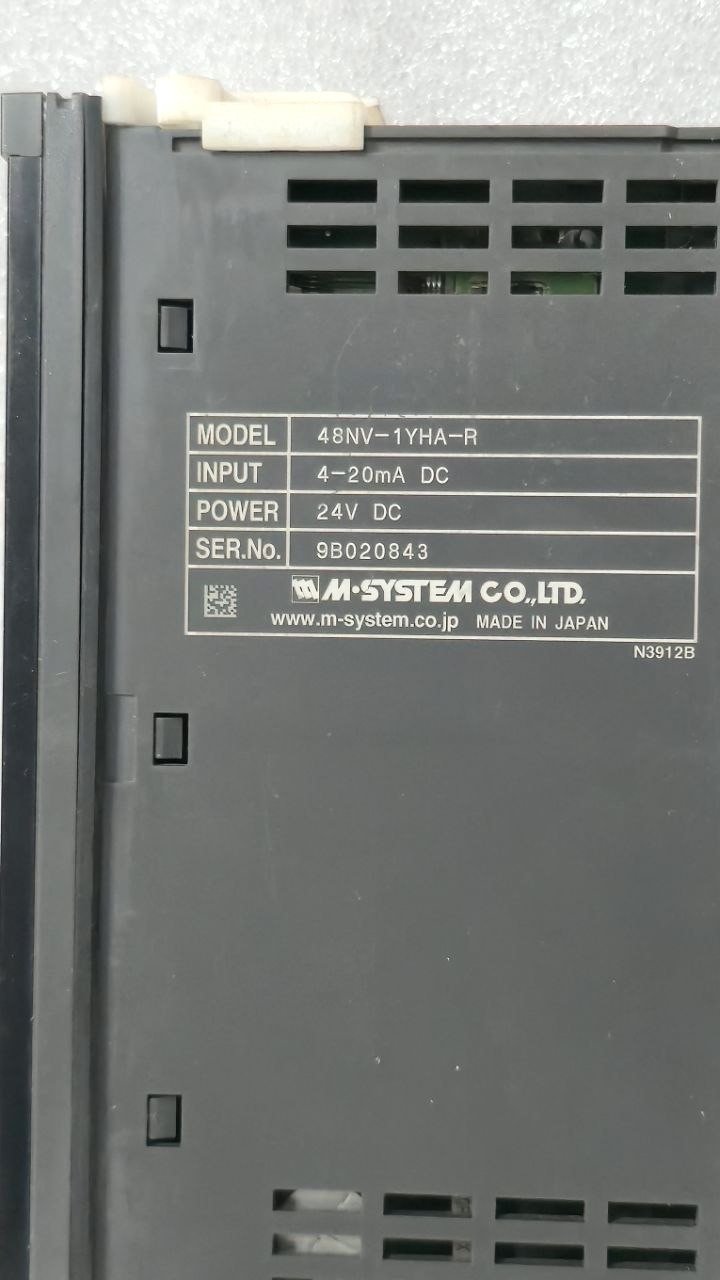

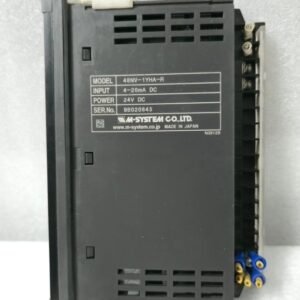

The M-System 48NV-1YHA-R is a high-resolution, dual-channel bargraph indicator designed for critical industrial process monitoring. Part of the reputable 48N Series, this model offers a bright LED display and is specifically factory-calibrated for your requirements, featuring a range of 0 to 7500 mmH2O. It operates on a standard 24V DC power supply, making it an ideal choice for upgrading panels or replacing existing M-System units .
Key Features & Benefits
-
Dual 101-Segment LED Display: Provides a clear, visual representation of two process variables simultaneously with high granularity .
-
Pre-Calibrated for 0-7500 mmH2O: Shipped ready to use with a custom scale plate displaying the 0-7500 mmH2O range, eliminating complex setup procedures .
-
Durable & Protective Design: Features an IP65-rated front cover, making it resistant to dust and water jets for reliable use in harsh industrial environments .
-
Flexible Mounting: Designed for vertical (V) panel mount installation, fitting standard M-System 48 Series cutouts .
Technical Specifications
| Specification | Detail |
|---|---|
| Model | 48NV-1YHA-R |
| Type | Dual Bargraph Indicator |
| Power Supply | 24V DC (Operational range 24V ±15%) |
| Input | 4-20 mA DC (Standard for the “A” code) |
| Display | 101-segment Amber (Y) LED |
| Range | 0 to 7500 mmH2O (Factory Set) |
| Accuracy | ±1% ±1 digit |
| Response Time | ≤ 0.5 seconds |
| Protection | IP65 (Front panel only, single mount) |
| Dimensions (WxHxD) | 38.1 x 142.9 x 103.2 mm (1.5 x 5.6 x 4.1 in) |
Applications
This indicator is perfect for water treatment, flow monitoring, level control, and pressure indication where a clear visual reference is required.
