KEB OPERATORS F5 GRAFIK LCD 00F5060-K000 STANDARD KEYBOARD OPERATOR SD CARD

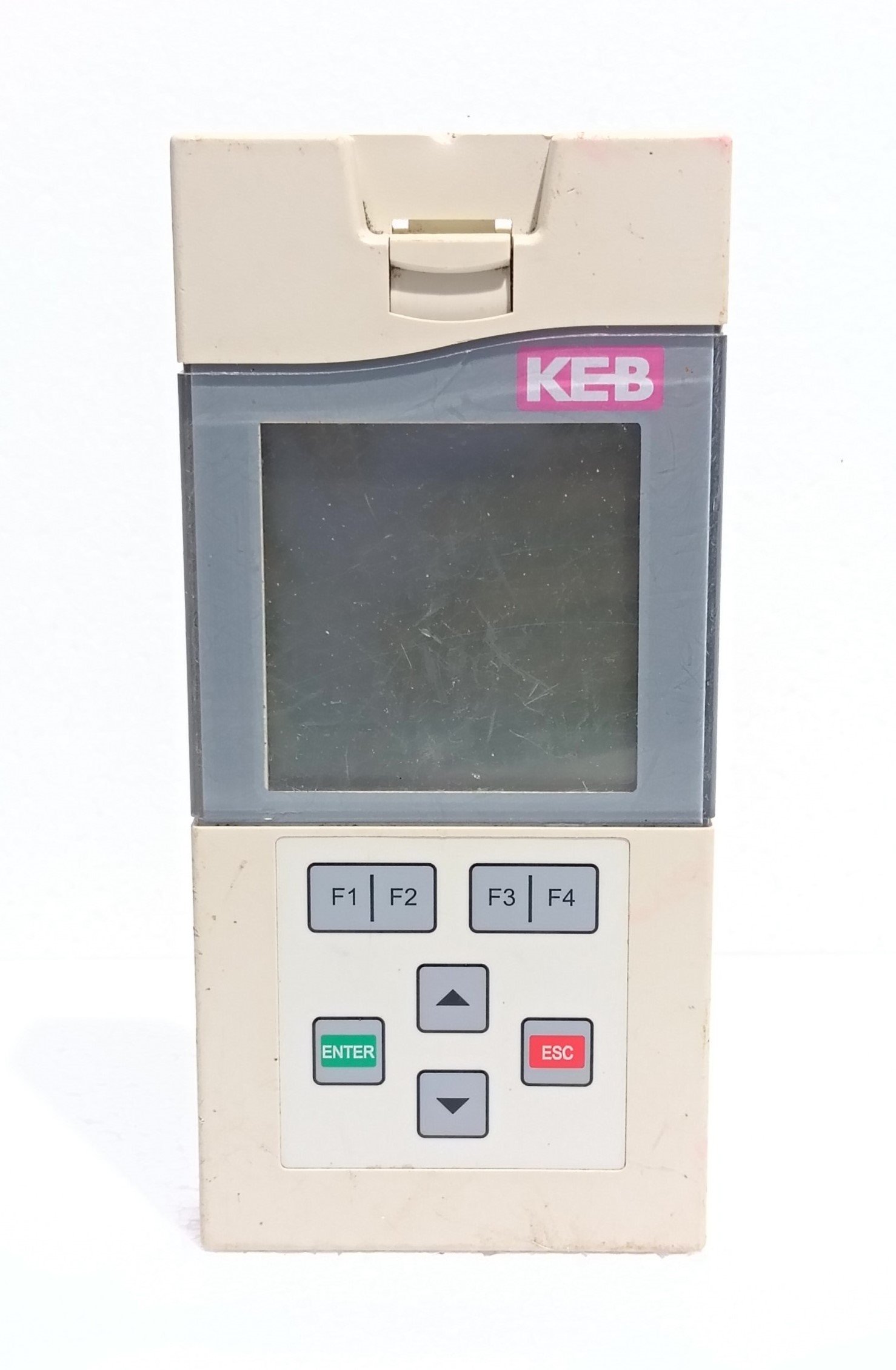

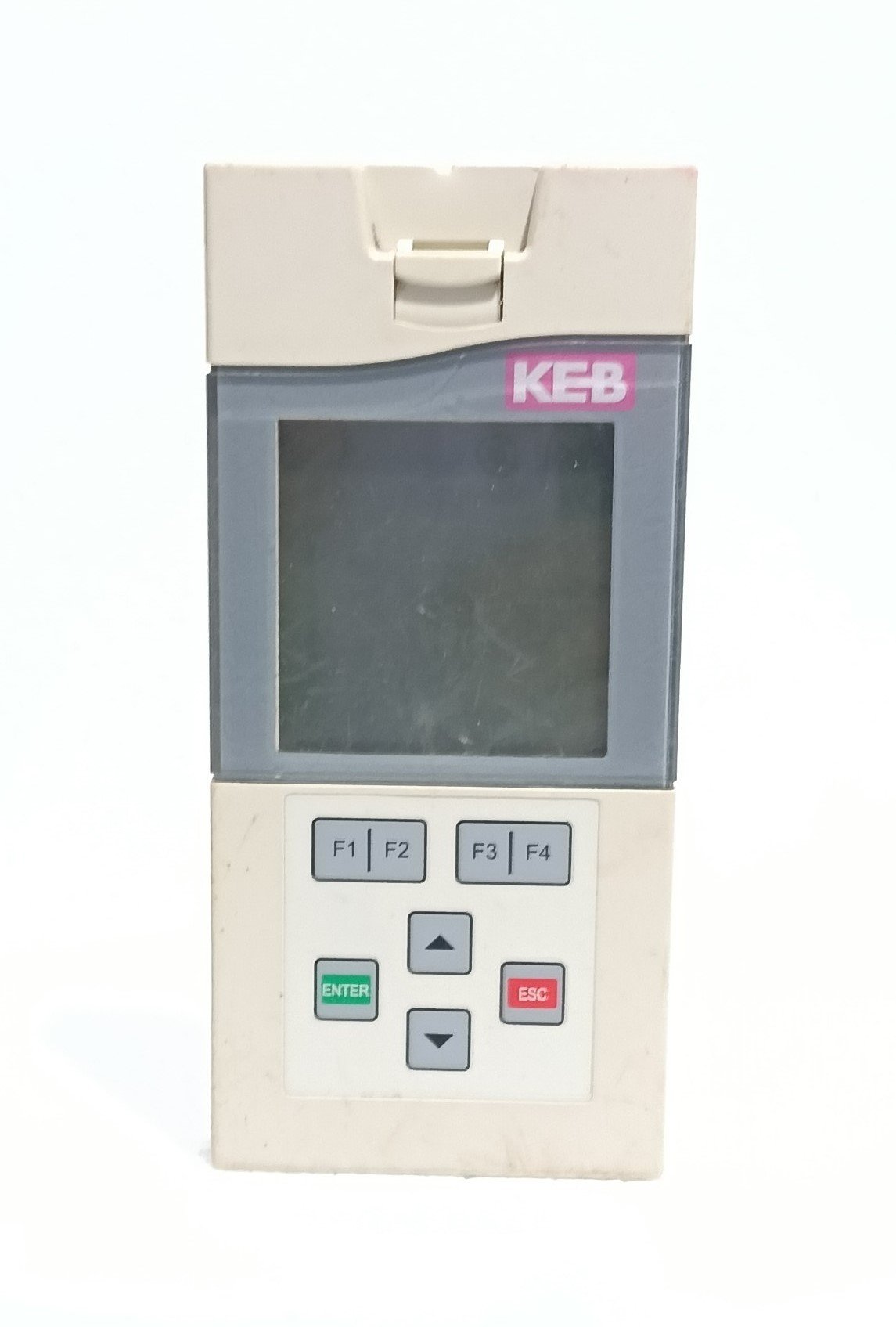

The KEB F5 Graphic LCD Operator (Part No. 00F5060-K000) is a plug-in programming and diagnostic unit designed for KEB COMBIVERT F5 series drives. This detachable operator panel features a clear text graphical display with an intuitive, menu-driven keyboard interface that eliminates the need for a connected computer during drive configuration.

Key Features

Display and Interface

• Graphic LCD screen with clear text display supporting multiple languages

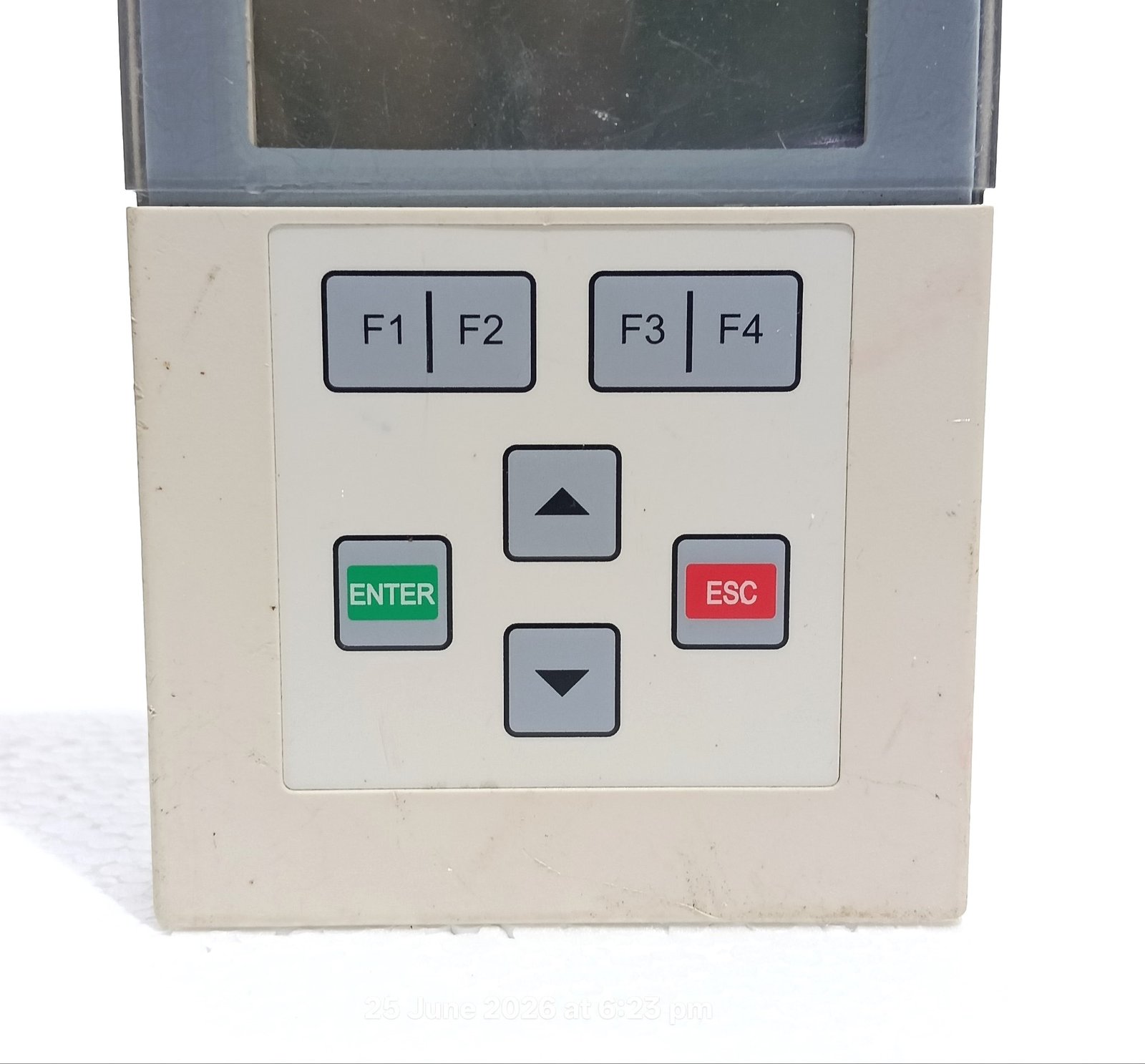

• Eight function keys with variable assignment for flexible control

• Menu-driven operation for easy navigation through inverter parameters

• Display shows comprehensive information including parameter names and values

Memory and Data Management

• Internal flash memory (accessed as drive C:) for storing system files, work lists, and parameter lists

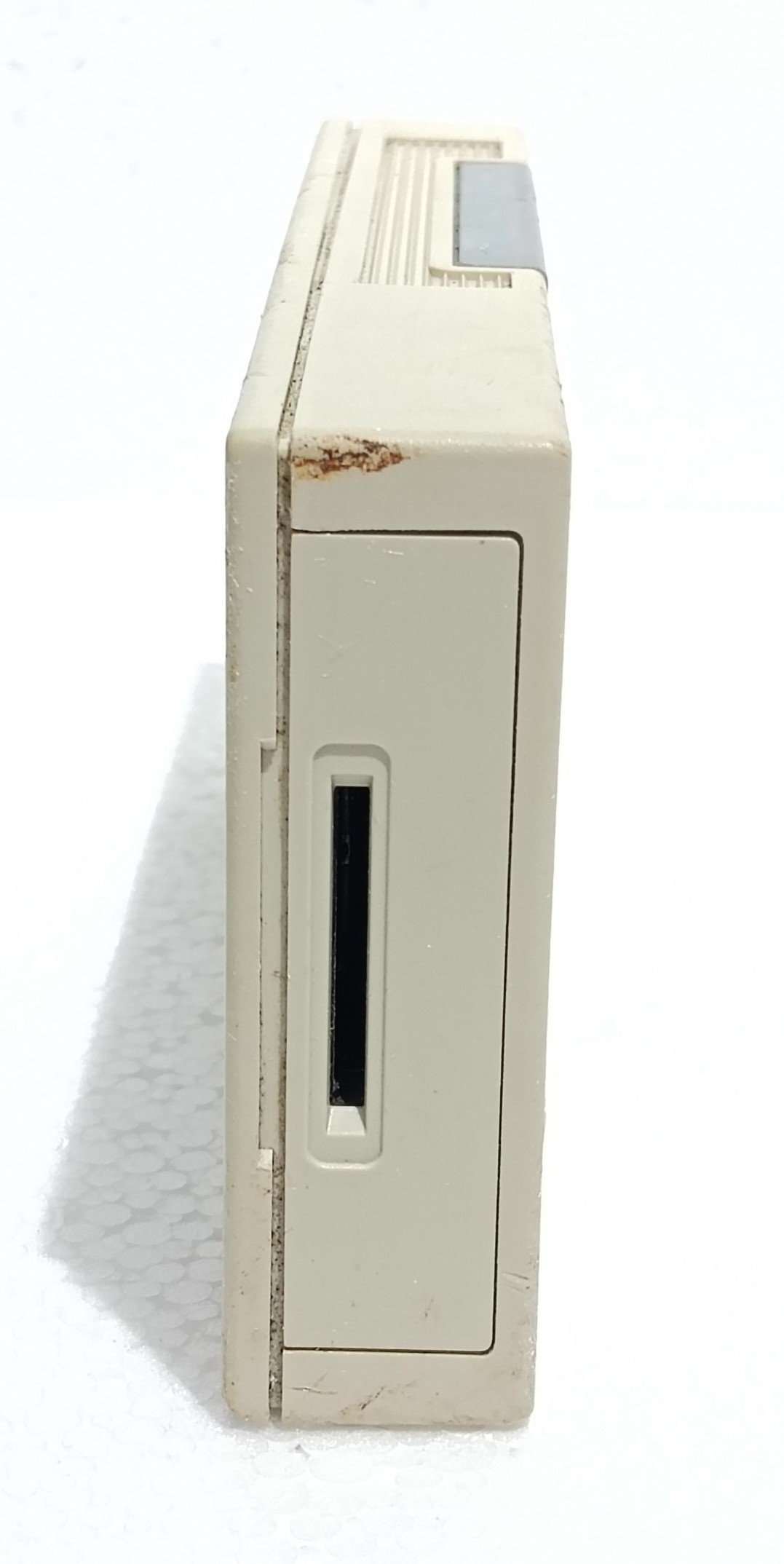

• External SD/MMC card slot on the underside of the unit (accessed as drive A:)

• Supports FAT16 and FAT32 file systems, compatible with Windows operating systems and external card readers

• Long file names up to 32 characters supported on both internal and external memory

• Upload/download functionality allows complete parameter sets to be saved to and loaded from internal memory or SD cards

Key Functions

• Up/Download: Load complete parameter lists from the inverter or store drive configurations for backup and cloning

• Copy: Transfer files between internal flash memory and external memory card

• Parameter modification: Change inverter parameters using “Up”/”Down” keys or numeric input

• Set selection: Direct or indirect set programming for drive configurations

Technical Specifications

Applications

The KEB F5 LCD Operator is ideal for:

• Configuring and commissioning KEB COMBIVERT F5 drives

• Troubleshooting and diagnostics

• Cloning drive settings across multiple units via SD card

• Field service where laptop access is inconvenient
