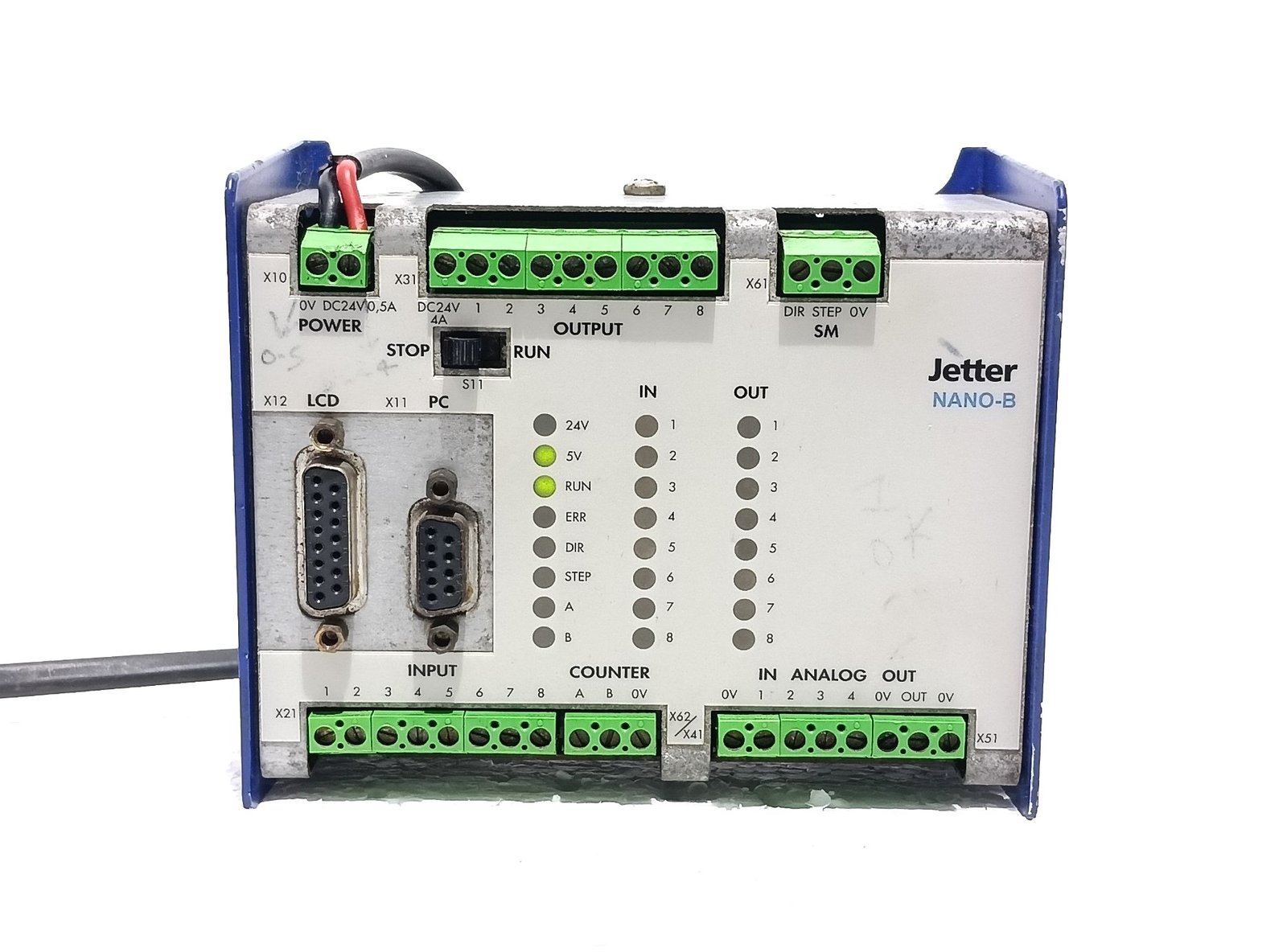

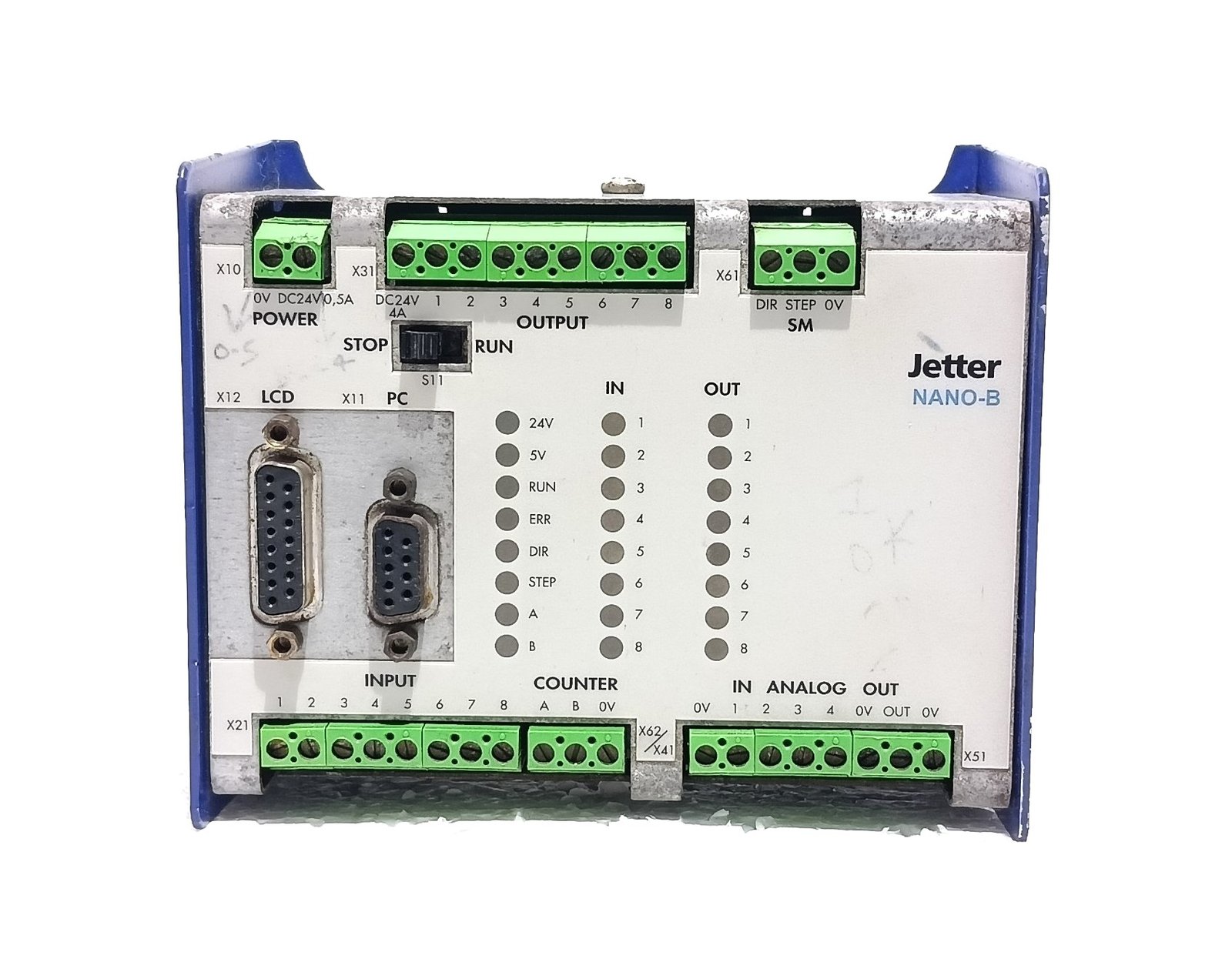

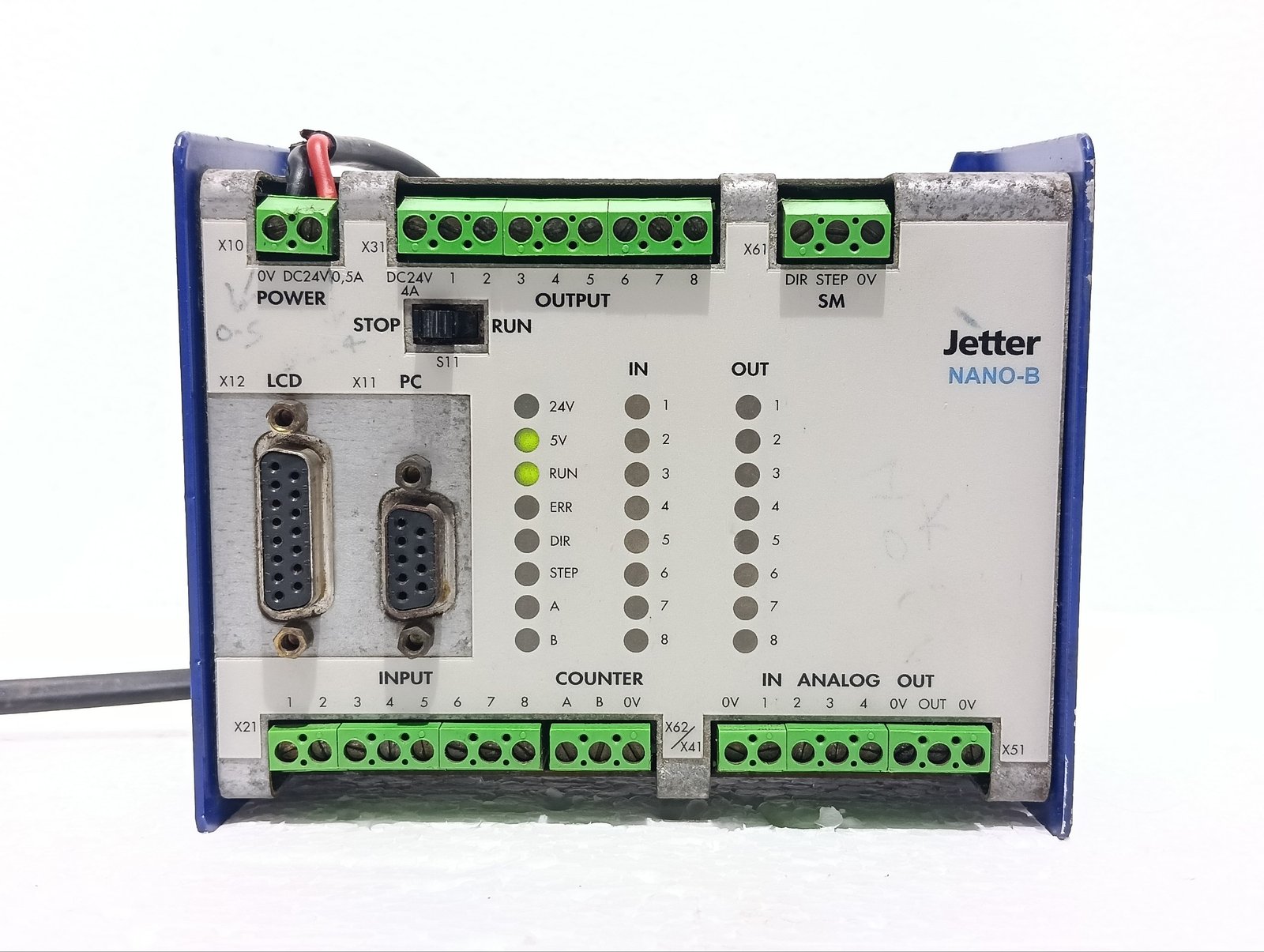

The Jetter NANO-B NB-CPU is a compact, high-performance process PLC designed for demanding industrial automation applications . As a core processing unit within Jetter’s renowned NANO series, this CPU module excels in environments where space is at a premium but high-speed logic and reliable control are non-negotiable . This versatile controller is ideally suited for controlling a wide range of machinery, including conveyors, production lines, and specialized handling systems .
Key Features & Benefits
The NANO-B NB-CPU integrates powerful control capabilities with a user-friendly interface, making it a dependable choice for OEMs and system integrators.
-

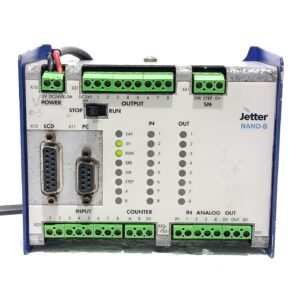

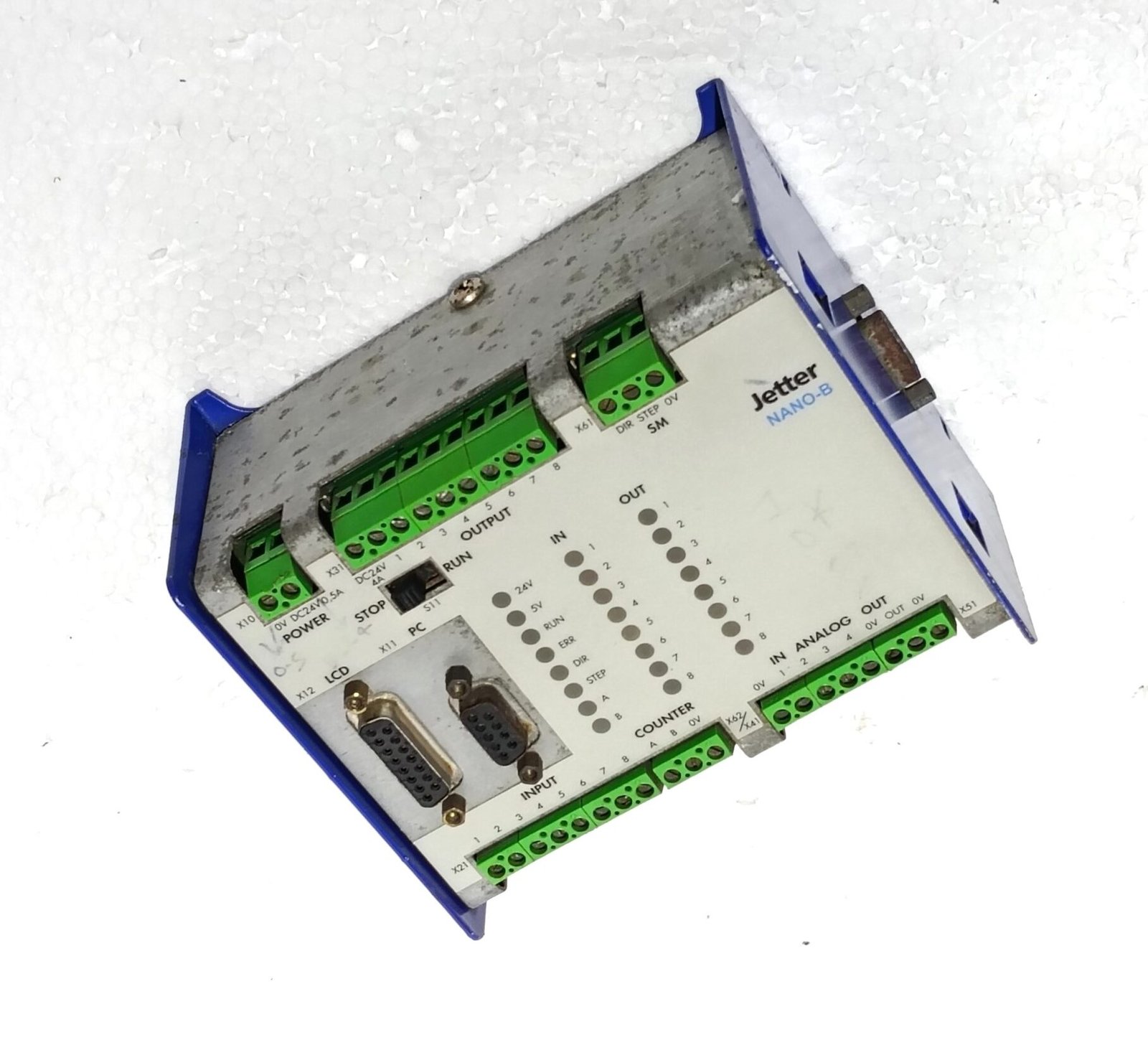

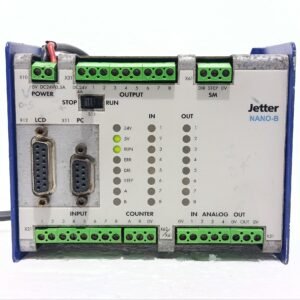

Versatile I/O Integration: The basic unit integrates a comprehensive set of I/O points, including 8 digital inputs, 8 digital outputs, 4 analog inputs, and 1 analog output . This allows for direct connection to a wide variety of sensors and actuators without needing numerous external modules.
-
Integrated Motion Control: Designed for applications requiring movement, the controller features a built-in stepper motor controller and supports up to 3 axes for servo control .
-
Multi-Interface Connectivity: The NB-CPU is equipped with a range of communication interfaces, including RS232, RS422, and RS485, enabling connection to programming software, visualization equipment (like LCD displays), and fieldbus systems like JETWay .
-
Real-Time Capabilities: An integrated real-time clock and high-speed counter (up to 10 kHz) make it perfect for time-sensitive control tasks and precision counting applications .
Technical Specifications
| Specification | Detail |
|---|---|

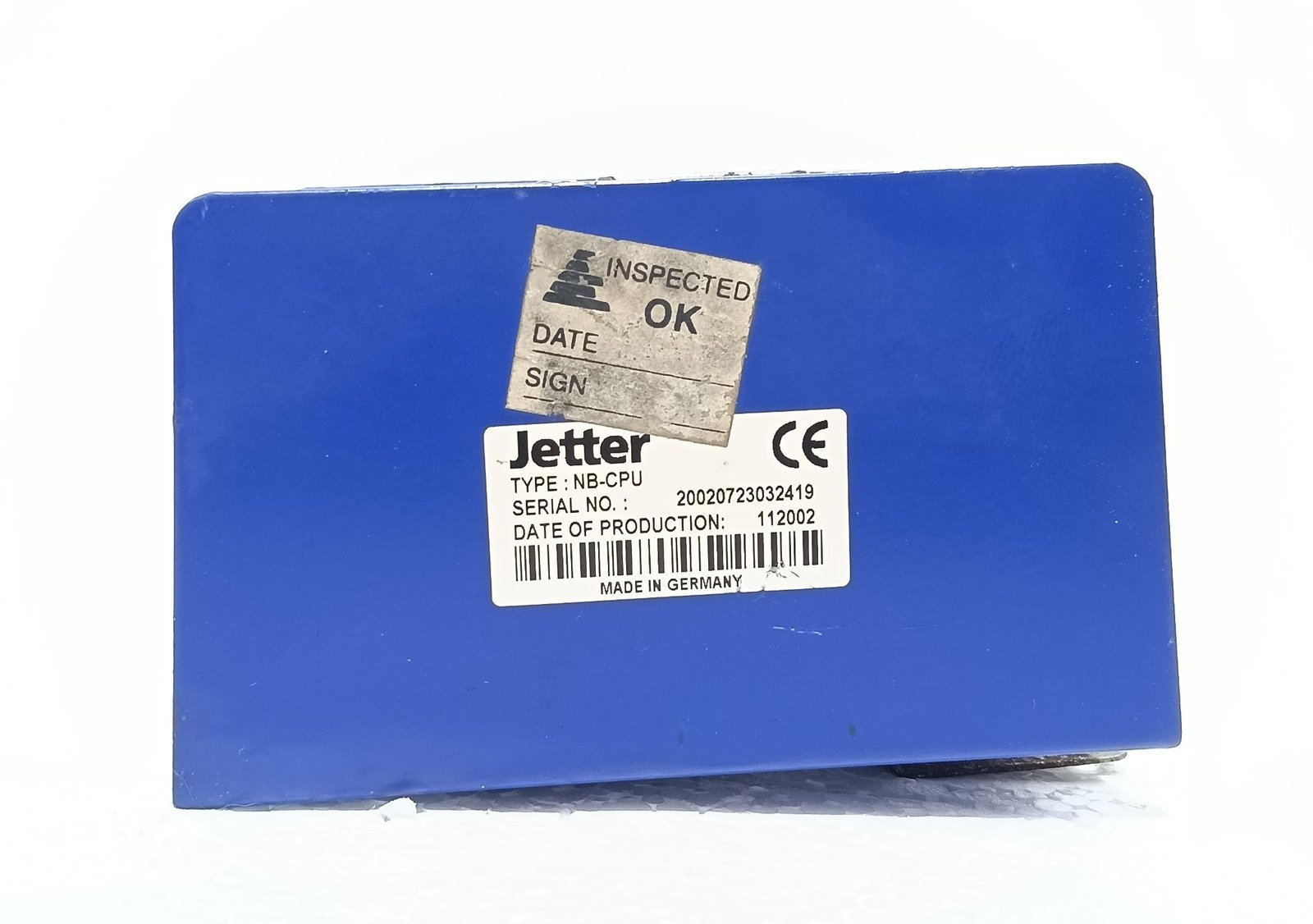

| Model | NB-CPU (NANO-B) |
| Power Supply | 24 VDC (20 – 30 V) |
| Digital Inputs | 8 (Numbered 101-108) |
| Digital Outputs | 8 (Sourcing 0.5A per output) |
| Analog Inputs | 4 |
| Analog Outputs | 1 |
| CPU Heat Loss | 2.5 W |
| Housing | Aluminum, powder-coated, black |
| Dimensions (H x W x D) | 114 x 110 x 70 mm |
| Weight | Approx. 720 g |

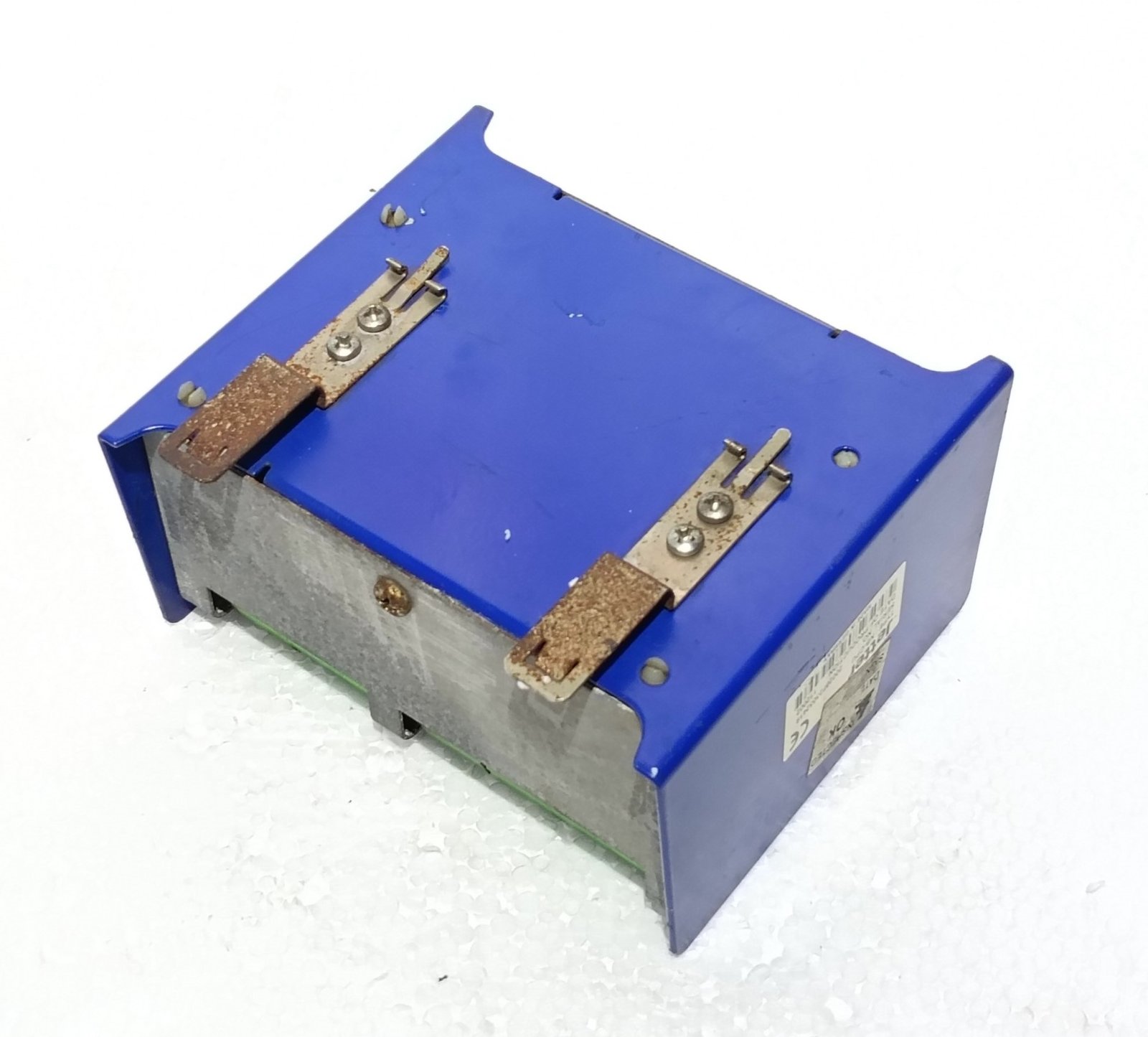

| Mounting | DIN Rail |
| Operating Temperature | 0 … 50 °C |
| Protection Class | IP 20 |
Applications & Use Cases
The powerful and compact nature of the Jetter NANO-B makes it ideal for controlling complex, space-constrained automation systems, including:
-
Conveyor Systems: Precise control of belt speed, direction, and sorting mechanisms.
-
Production and Packaging Machines: Coordinating multiple process steps for high-speed manufacturing.
-
Handling Machines: Controlling robotic arms or pick-and-place units with integrated motion control.
-
OEM Equipment: Embedding intelligent control into specialized industrial machinery
