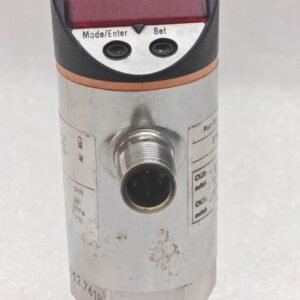

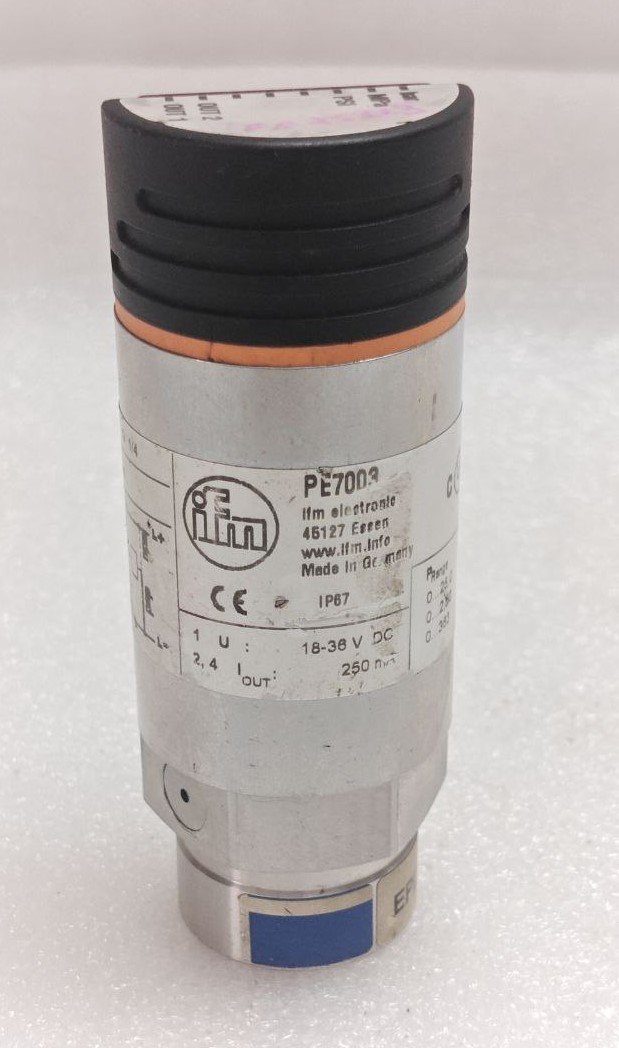

The IFM PE 7003 is a compact, high-performance digital pressure transmitter designed for a wide range of industrial applications. The specific model 12741B with a G 1/4 male process connection is a versatile sensor known for its robust construction, high accuracy, and easy integration via its IO-Link communication interface.
It is used to measure the pressure of gases or liquids and transmit this data digitally to a control system (like a PLC) for monitoring and control purposes.
Key Features & Specifications
| Feature | Specification |
|---|---|
| Manufacturer & Model | IFM Electronic, PE 7003 |
| Part Number | 12741B |
| Pressure Type | Gauge Pressure (Relative Pressure) |
| Measuring Range | 0…100 bar (0…1450 psi) [Confirm in specific datasheet, as ranges can vary] |
| Process Connection | G 1/4 Male (External Thread) |
| Electrical Connection | M12 x 1 connector, 4-pin |
| Output Signal | IO-Link 1.1 (Primary) & Switch/Switch+Analog (Fallback mode) |
| Supply Voltage | 10…30 V DC |
| Accuracy | Typically < ±0.5% Full Scale (including non-linearity, hysteresis, and repeatability) |
| Media | Compatible with air, gases, and non-aggressive liquids |
| Wetted Materials | Stainless steel (e.g., 1.4305), FKM (Viton) seals |
| Protection Class | IP67 / IP69K (Dust-tight and protected against high-pressure water jets) |
| Display | Integrated 4-digit LCD for easy setup and local pressure reading |
Detailed Product Description
1. Digital Communication (IO-Link)
This is the standout feature of the PE 7003. IO-Link is a point-to-point serial communication protocol that allows for far more than just transmitting a pressure value.
-
Rich Data: It transmits the exact measured pressure value, device status, and diagnostic information.
-
Parameterization: All device settings (e.g., measuring range, switching thresholds, response time) can be stored digitally and downloaded to the sensor. This makes device replacement incredibly easy (“cloning”).
-
Advanced Diagnostics: Provides information on operating hours, temperature warnings, and potential errors, enabling predictive maintenance.
2. Versatile Operating Modes
The transmitter can be configured in several ways to suit the application:
-
IO-Link Mode: For full digital integration into modern Industry 4.0 and IIoT environments.
-
Standard Mode (SIO): If the controller does not support IO-Link, it can operate as a standard device with:
-
Two switching outputs (PNP)
-
One switching output and one analog output (0…10V or 4…20mA)
-
3. Robust Design
-
Housing: Made from high-quality stainless steel (V4A / AISI 303), making it suitable for harsh industrial environments, including washdown areas in food & beverage or chemical applications.
-
Sealing: The IP67/IP69K rating ensures it is protected against dust, temporary immersion, and high-pressure/steam cleaning.
4. User-Friendly Operation
The integrated LCD display allows for:
-
At-a-glance viewing of the current pressure.
-
Simple on-site setup and configuration of switching points and other parameters using the button on the device.
-
Clear visualization of the device status and any error messages.
Typical Applications
The PE 7003 G 1/4 is used in countless industries and machines, including:
-
Hydraulic & Pneumatic Systems: Monitoring pressure in cylinders, pumps, and compressors.
-
Industrial Machinery: Presses, injection molding machines, welding equipment.
-
Mobile Equipment: Monitoring hydraulic systems in construction and agricultural machinery.
-
Process Automation: Controlling pressure in filtration systems, cooling circuits, and lubrication systems.
-
Test & Measurement Benches: Providing precise digital pressure readings.
