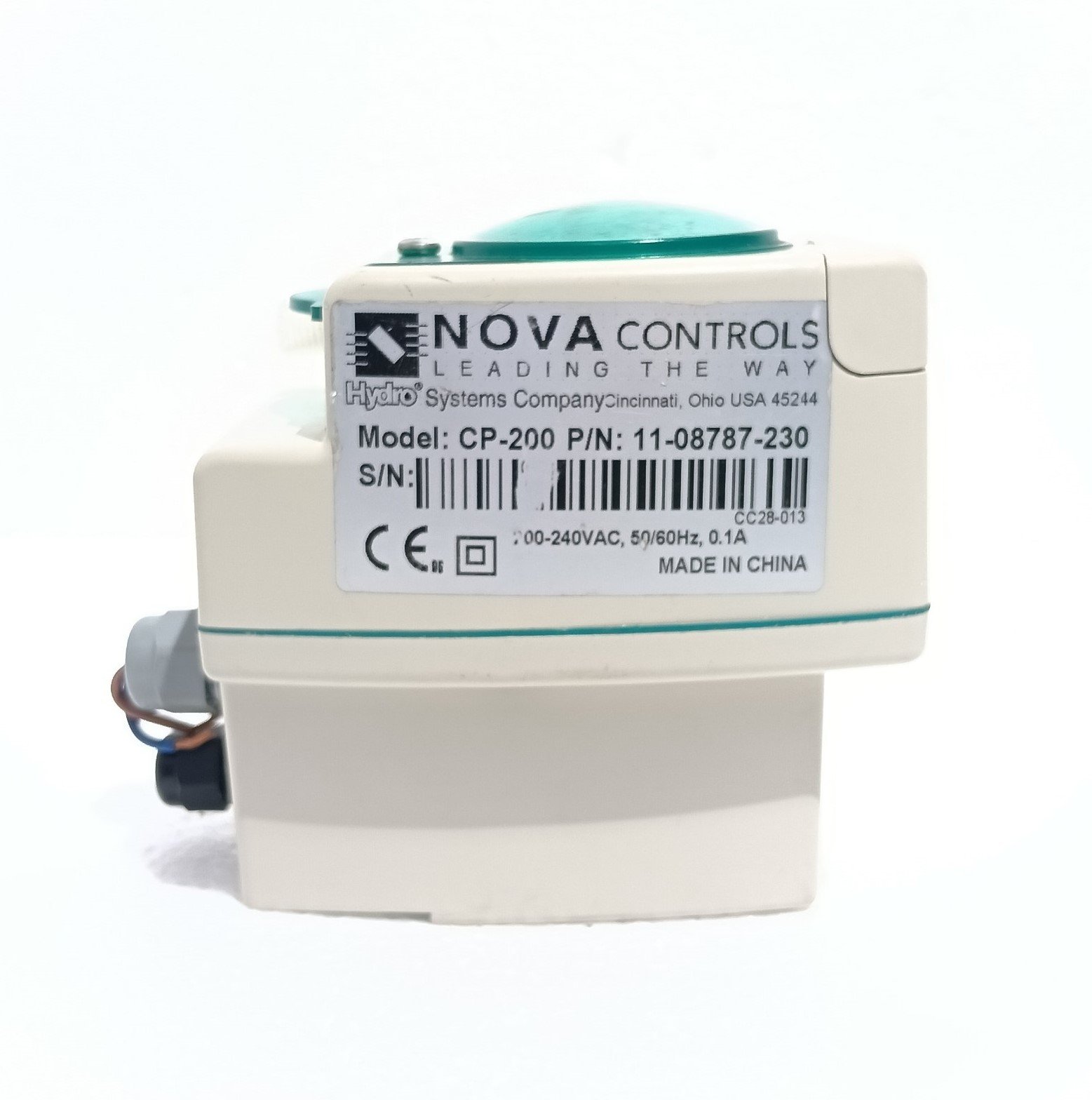

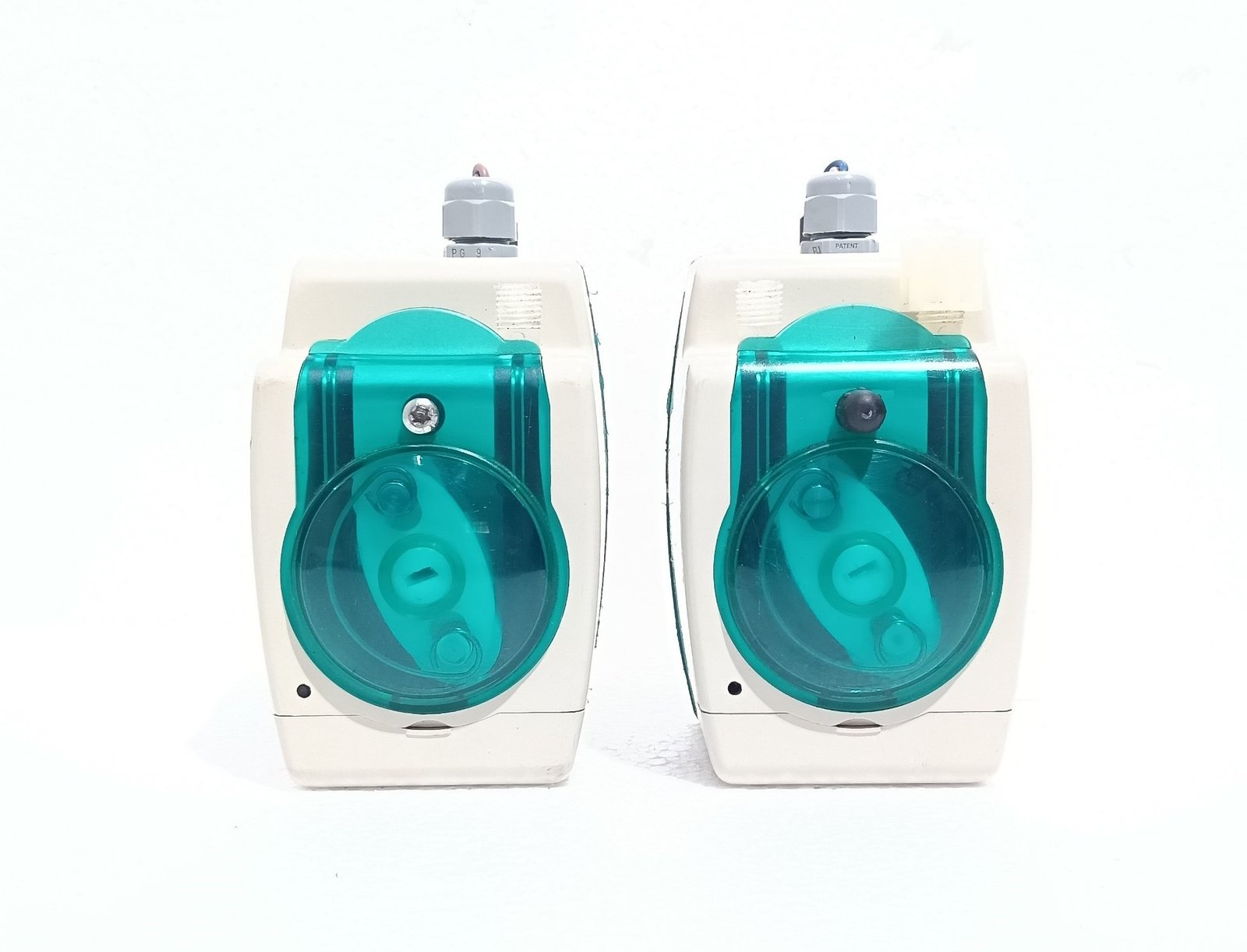

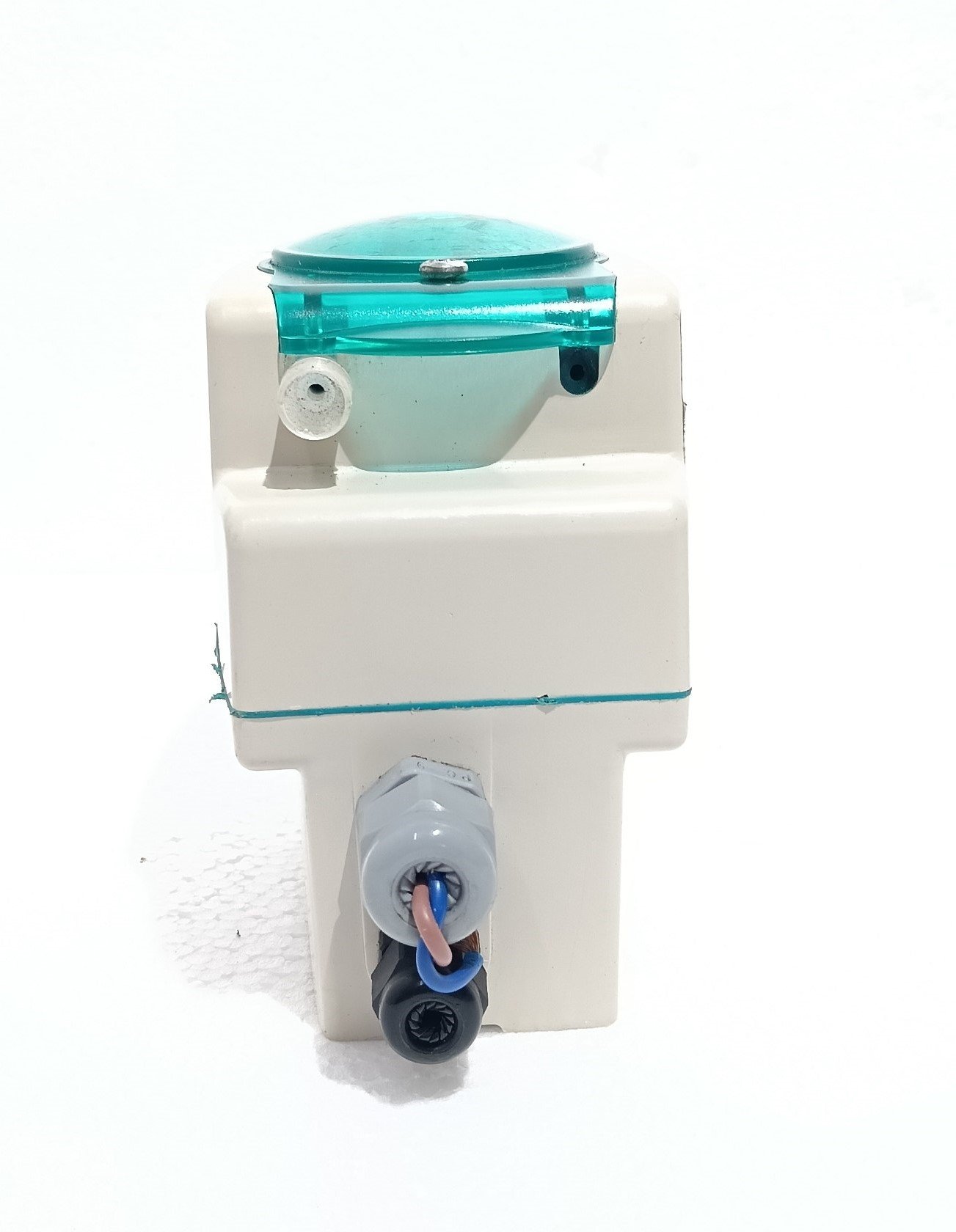

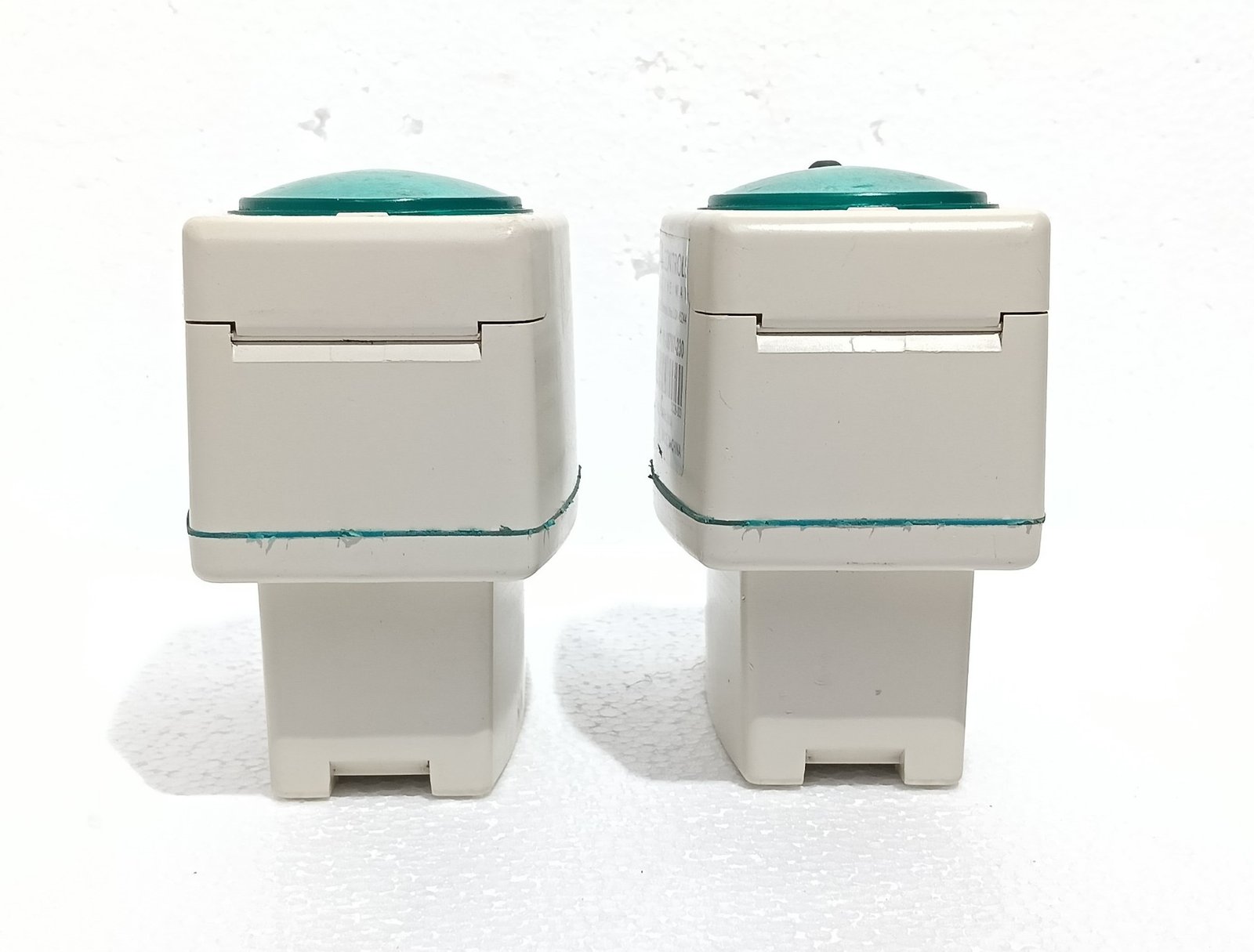

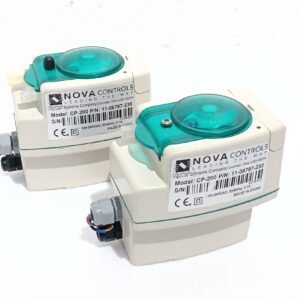

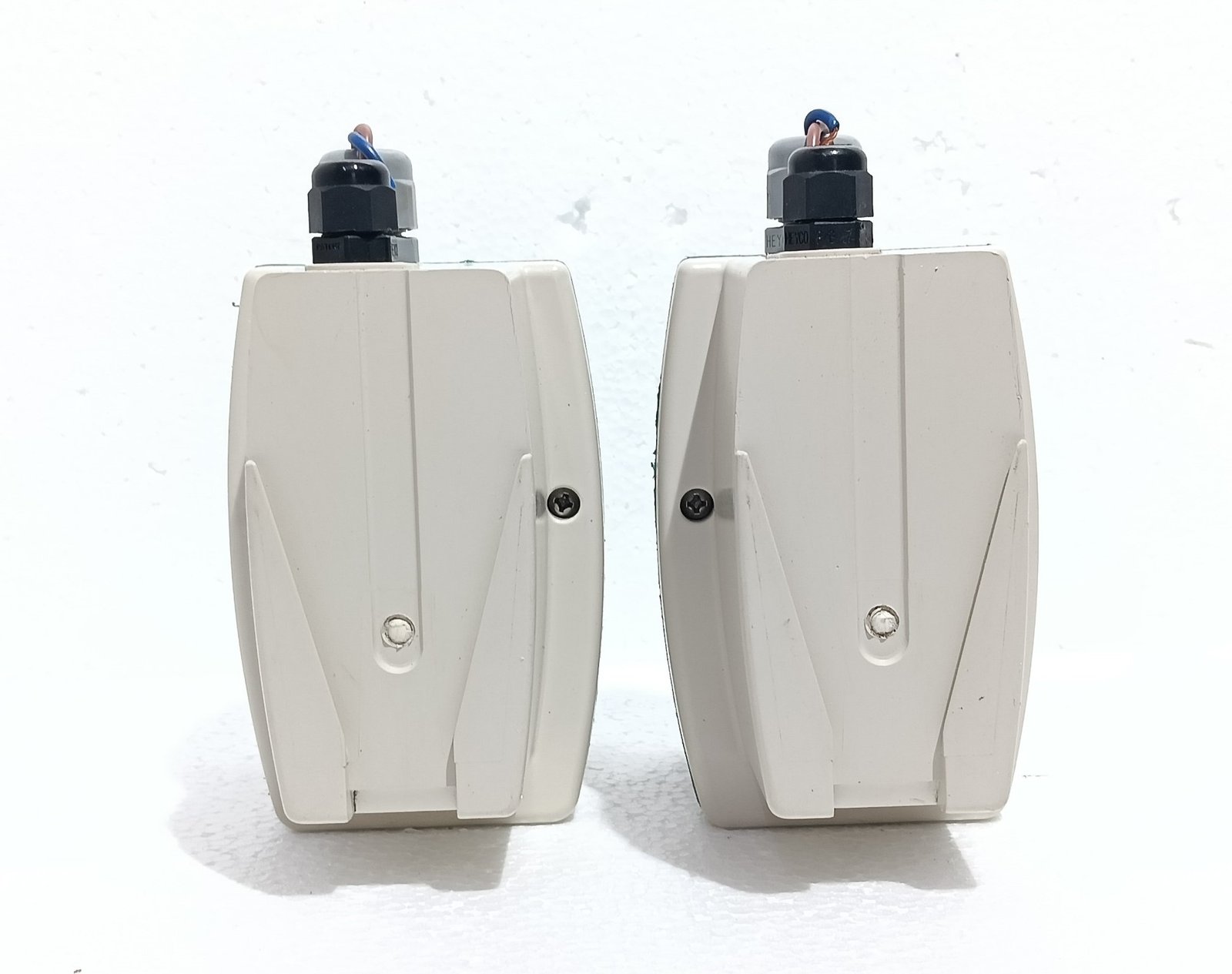

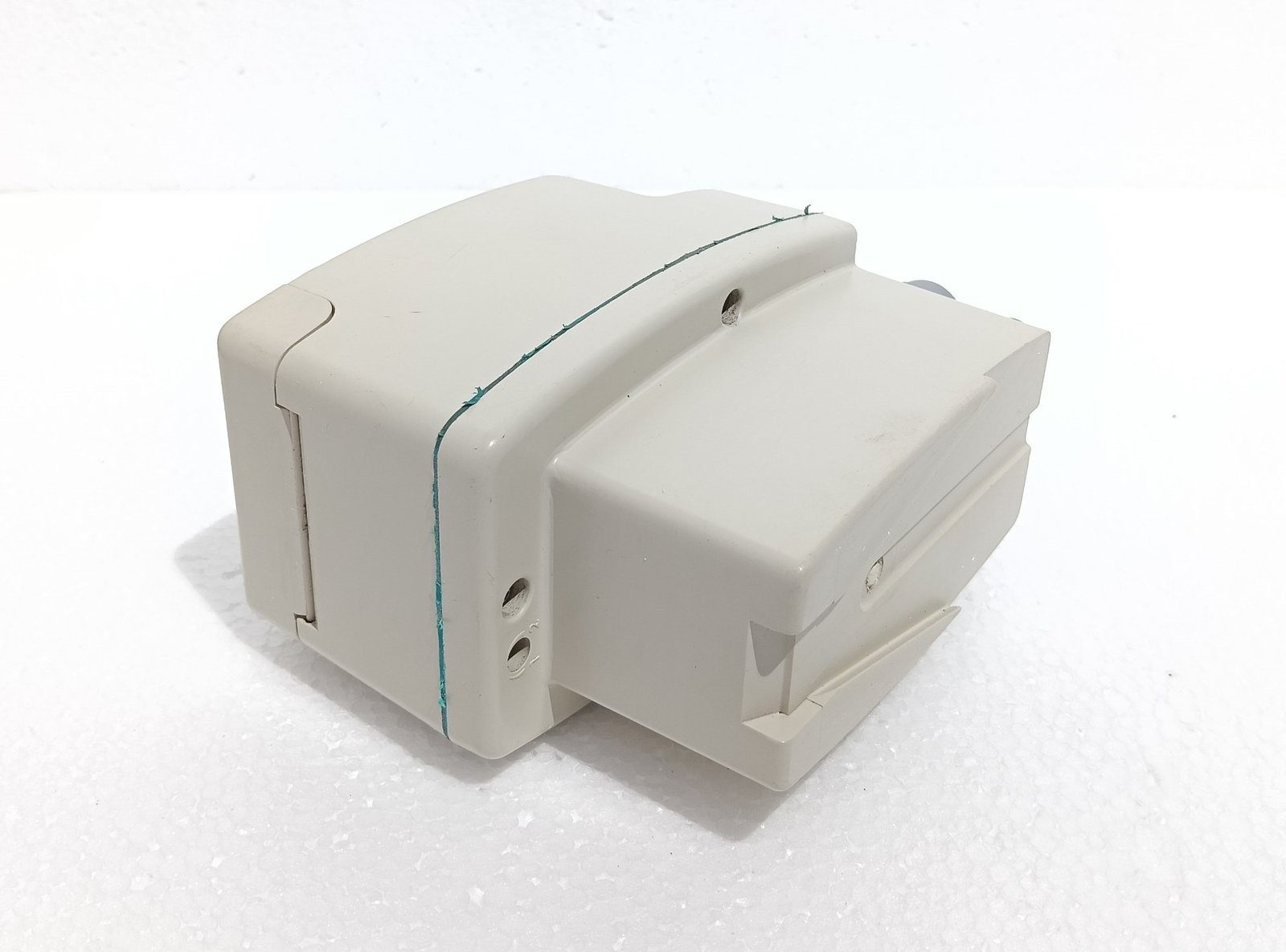

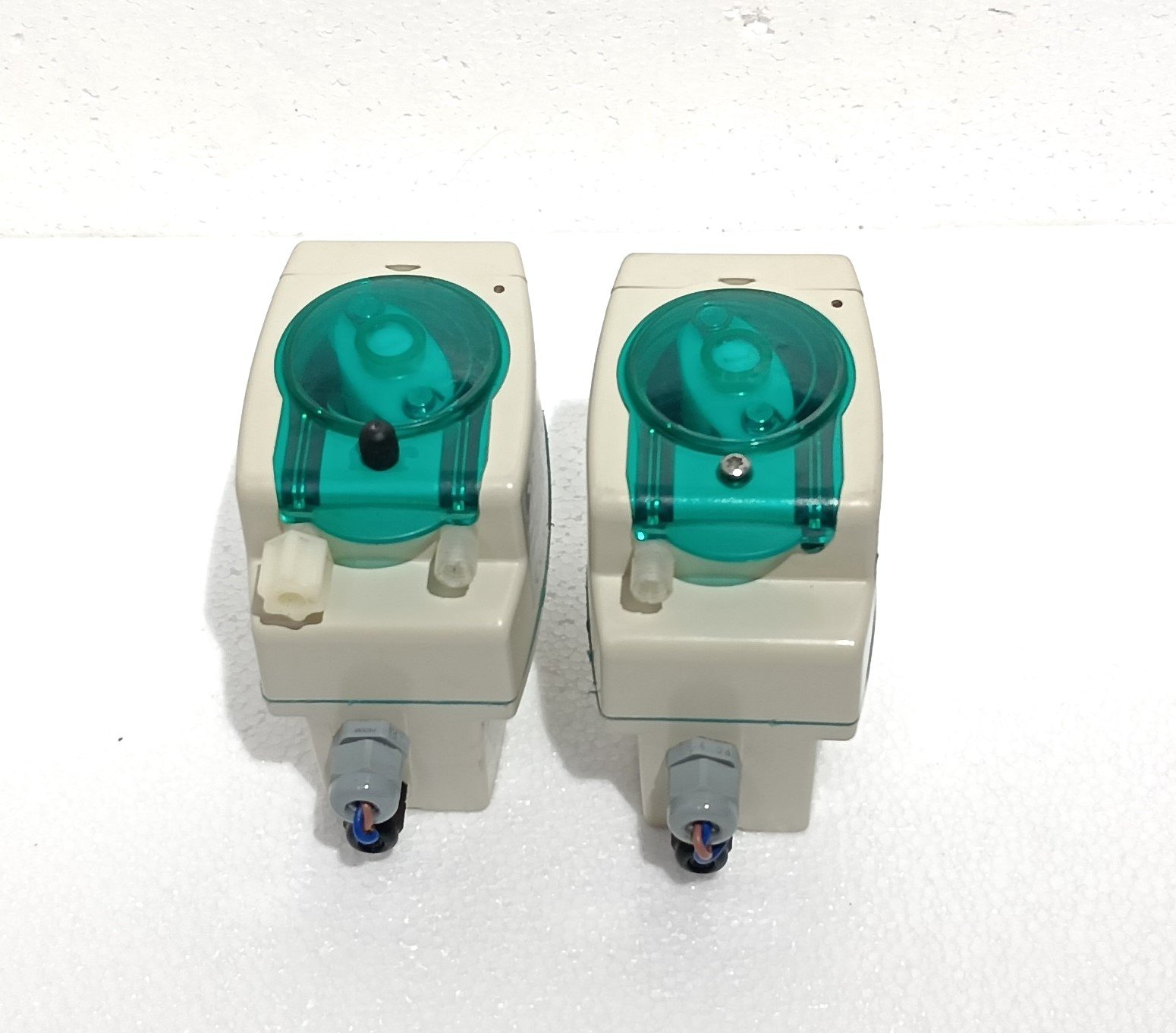

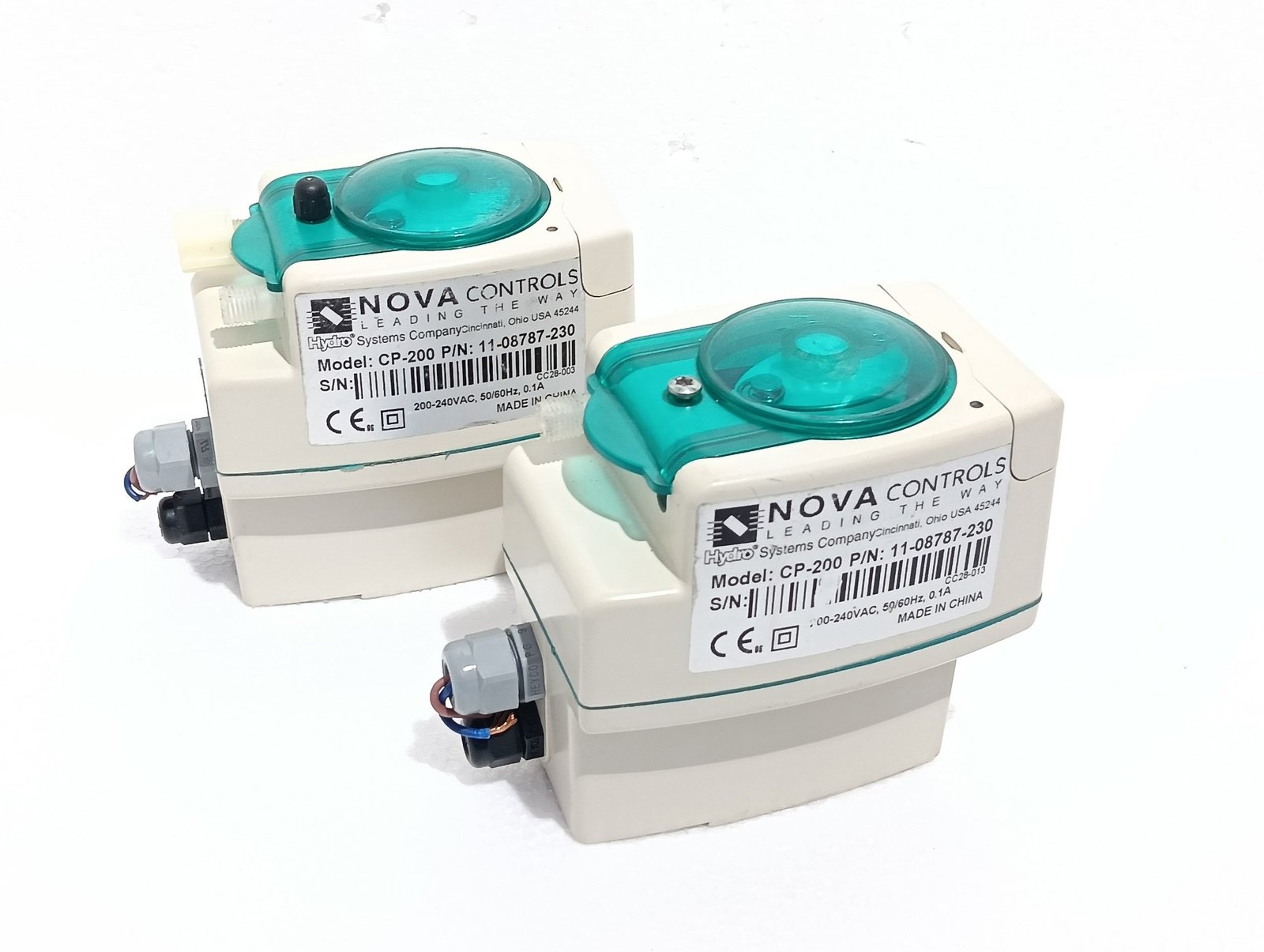

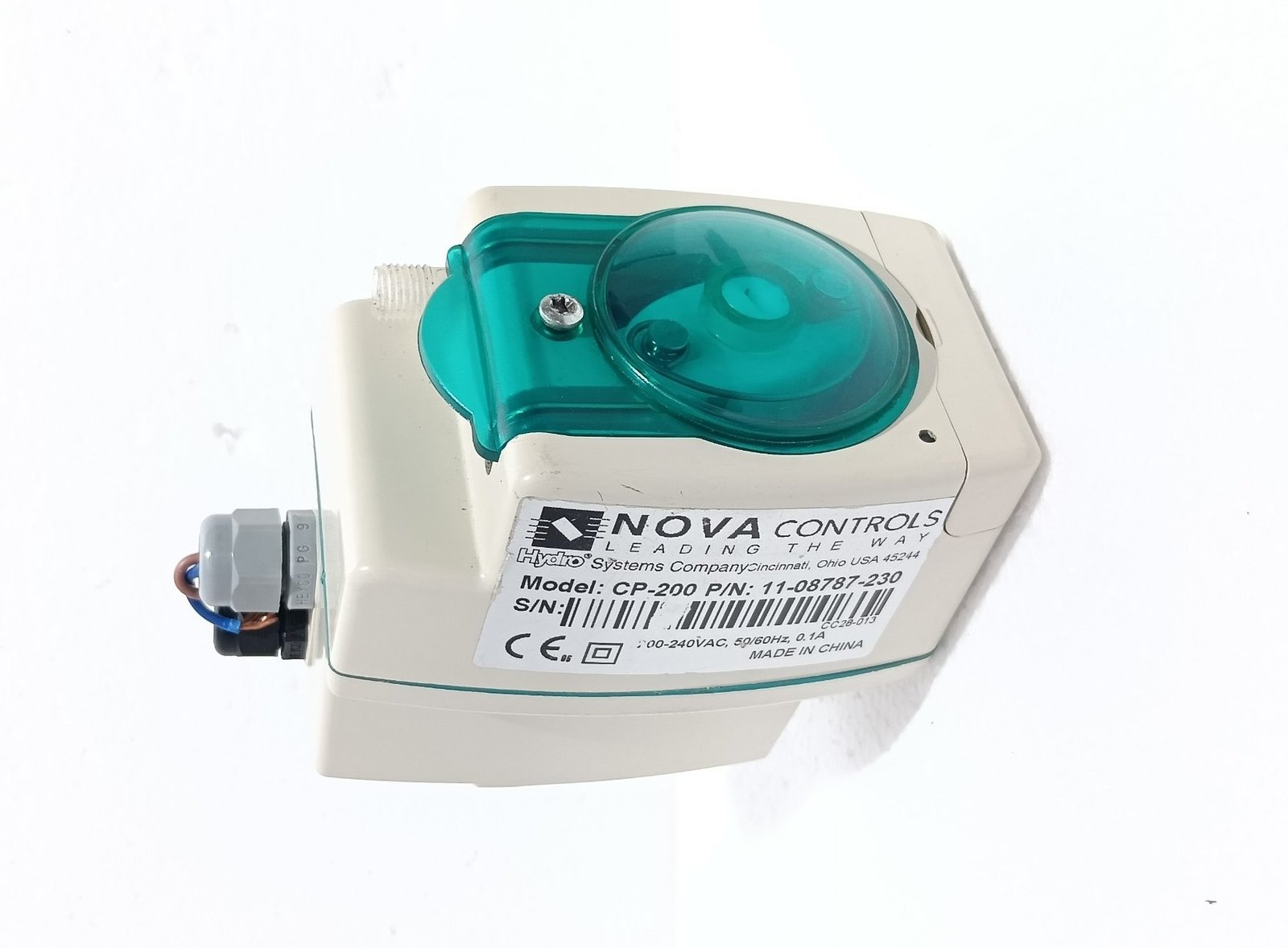

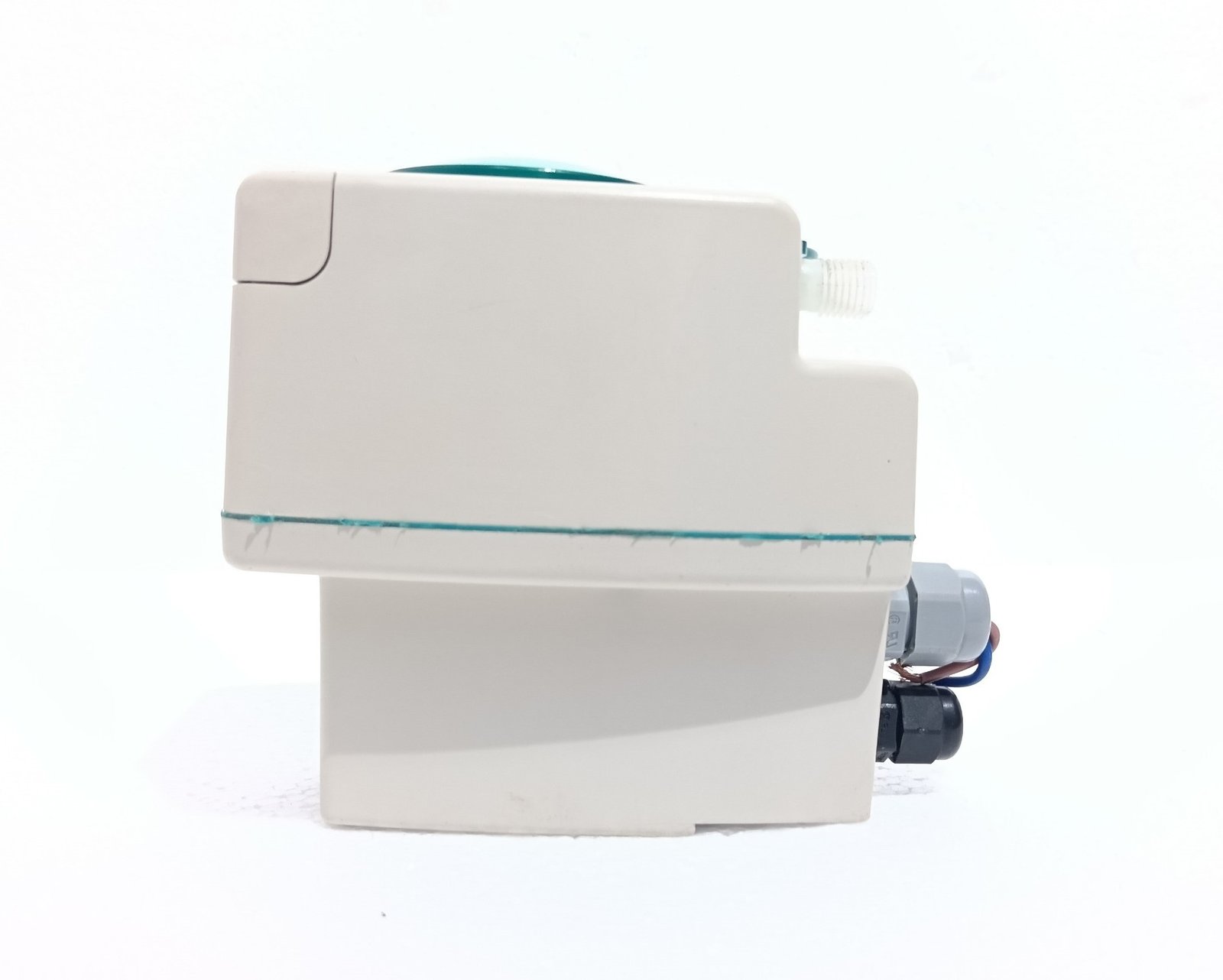

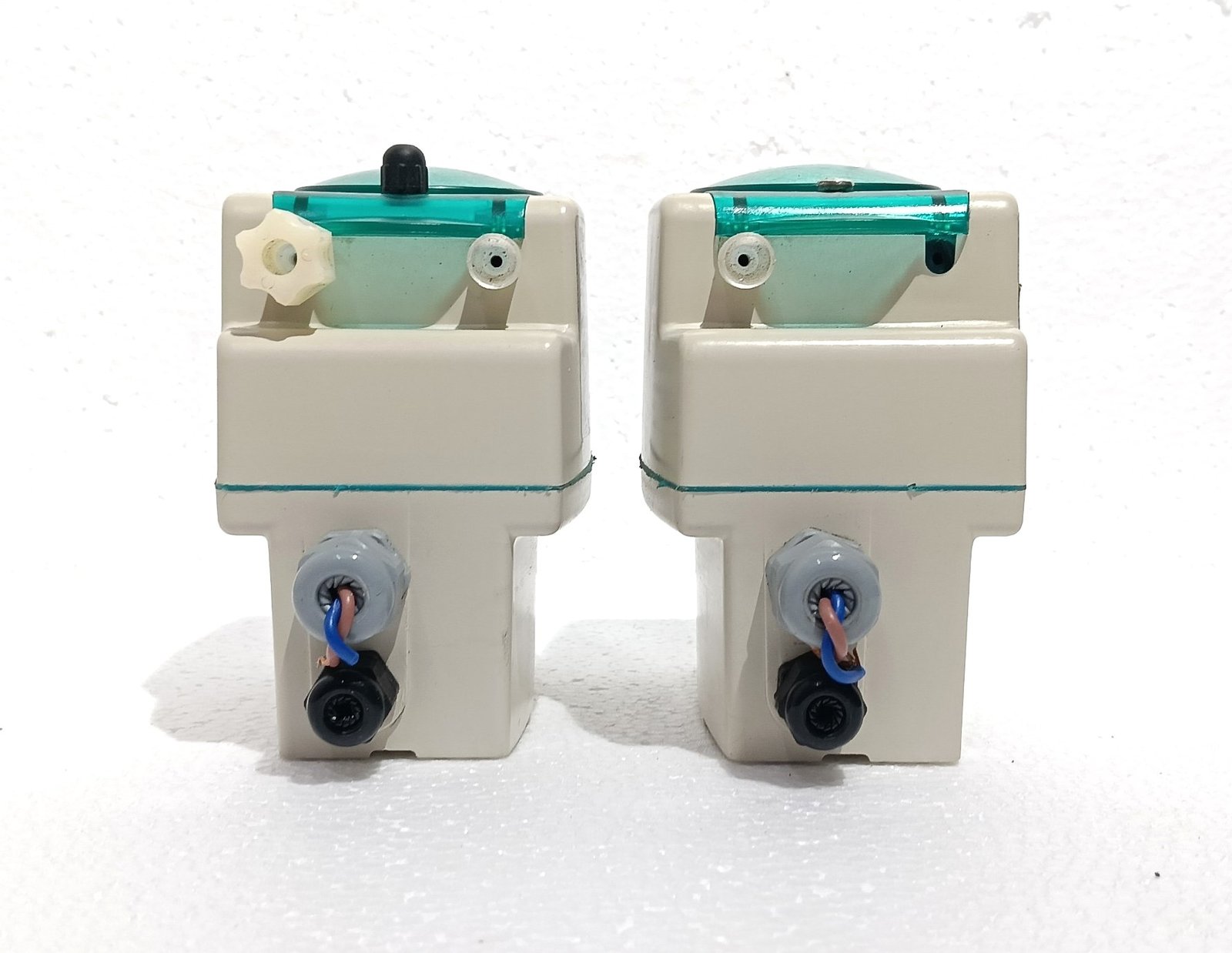

The Hydro Nova Controls CP-200 is a compact, heavy-duty single-pump dispenser designed for precise chemical dosing in commercial warewashing and laundry applications. This model is specifically configured for 230V operation, drawing only 0.1A and compatible with both 50Hz and 60Hz power supplies, making it suitable for international use .
Key Applications
This pump is engineered for reliable chemical dispensing in:
-
Under-counter dishwashers and glass washers
-
Commercial laundry machines (up to 20kg capacity)
-
Hood vent systems and degreasing applications
-
Restaurants, hospitals, hotels, care homes, and schools
The CP-200 handles liquid detergents, drying agents, sanitizers, and degreasers with accuracy and repeatability .
Technical Specifications
| Specification | Detail |
|---|---|
| Model | CP-200 |

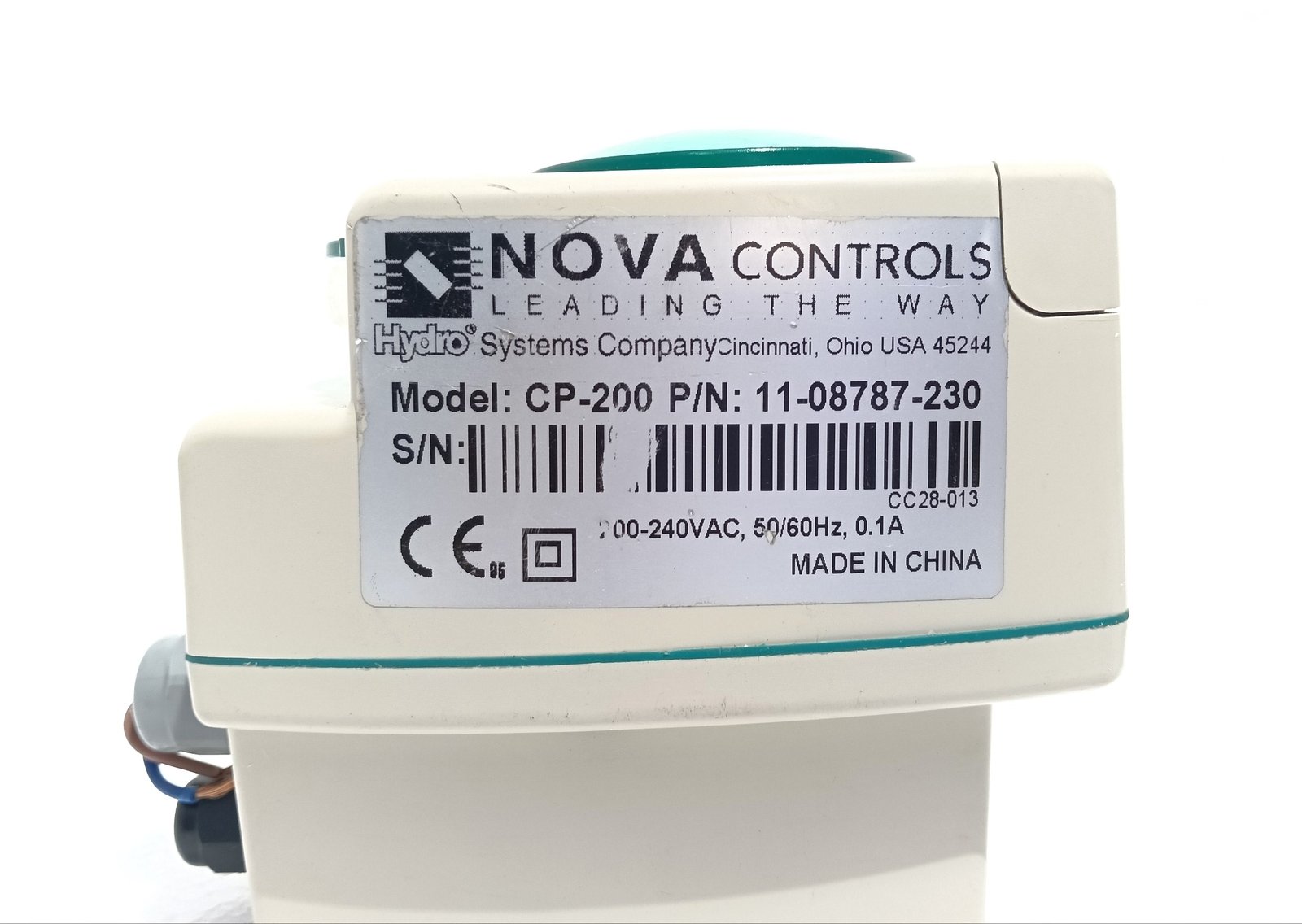

| Part Number | 11-08787-230 |
| Power Rating | 200-240VAC nominal (±10%), 0.1A |
| Frequency | 50/60 Hz |
| Flow Rate (Rinse Tube) | Adjustable, 2-50 ml/min (0.07-1.7 oz/min) |
| Flow Rate (Detergent Tube) | Adjustable, 7-180 ml/min (0.24-6.1 oz/min) |
| Tube Material | EPDM |
| Duty Cycle | 50%, 4-minute max runtime (Speed Mode) |
| IP Rating | IP44 |
| Dimensions (WxHxD) | 76 x 114 x 114 mm |
| Operating Temperature | 10° to 49°C (50° to 120°F) |
| Humidity | 95% RH maximum |
| Installation | Indoor use only |
Features
-
Programmable operation with Speed or Time control modes
-
Adjustable dose timing with delay programming up to 30 minutes in 5-minute increments
-
User-friendly interface with programming remote serving as the control panel
-
Tool-free squeeze-tube replacement for easy maintenance
-
Conductivity control capability for single tank and conveyor dishwashers
-
Lockout protection that resumes after power interruptions
Design Advantages
-
Heavy-duty construction ensures long-term reliability in demanding commercial environments
-
Universal power supply design eliminates regional compatibility concerns
-
Compact footprint allows easy mounting in space-constrained installations
-
Proven Sprite motor gearbox design for consistent performance
