GW INSTEK LCR-6100 PRECISION LCR METER 10HZ-100KHZ LRC METER 0.05% ACCURACY

The GW Instek LCR-6100 is a high-performance, bench-top LCR meter designed to deliver precise and reliable measurements of passive components. Covering a wide test frequency range from 10Hz to 100kHz with a basic accuracy of 0.05% , this device is the perfect tool for research and development, quality assurance, production line testing, and component incoming inspection (IQC) .

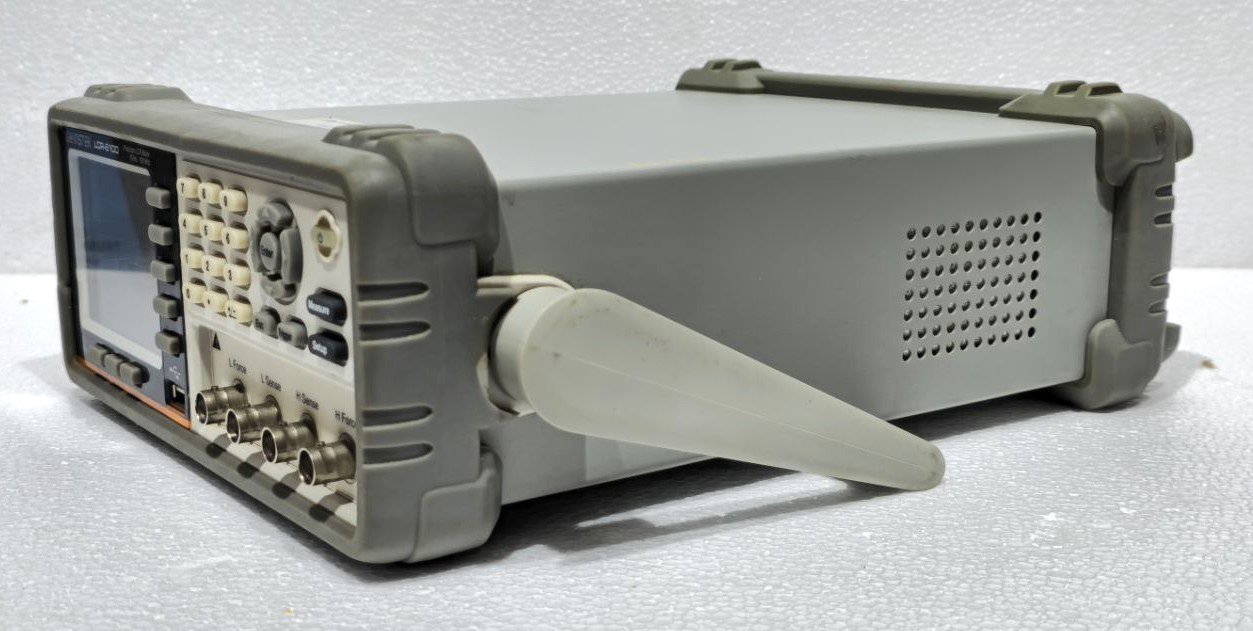

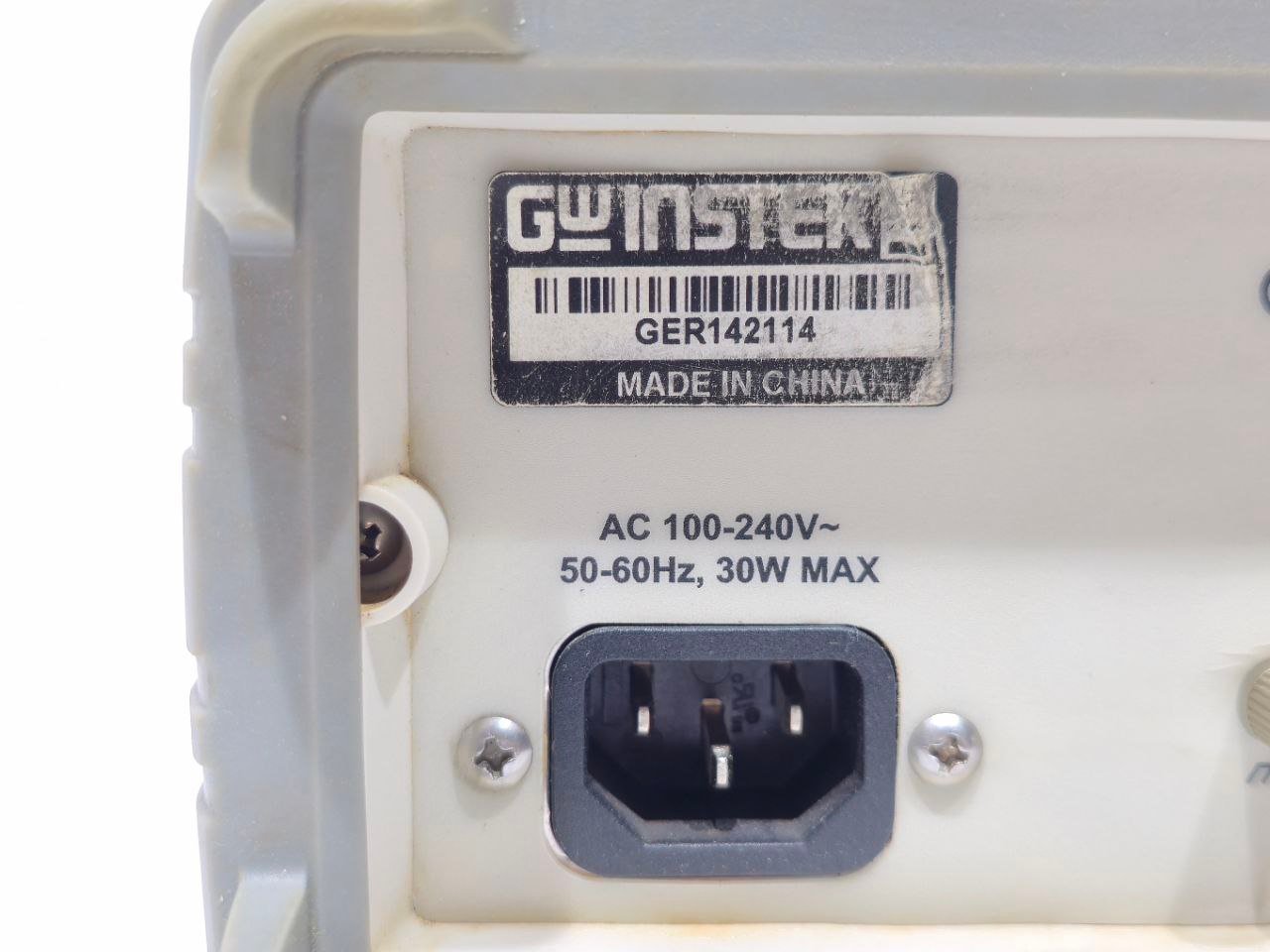

Housed in a space-saving 2U, half-rack enclosure, the LCR-6100 combines powerful measurement capabilities with a user-friendly interface. Its ability to display up to four parameters simultaneously on a vivid 3.5-inch color LCD significantly enhances testing efficiency, making it a high “CP ratio” (Cost-Performance) choice for engineers .

• Wide & Consecutive Frequency Range: Test from 10Hz to 100kHz with the ability to input precise, continuous frequencies for genuine component analysis .

• High Basic Accuracy: Achieve reliable results with a basic accuracy of 0.05% for SLOW and MEDIUM measurement speeds .

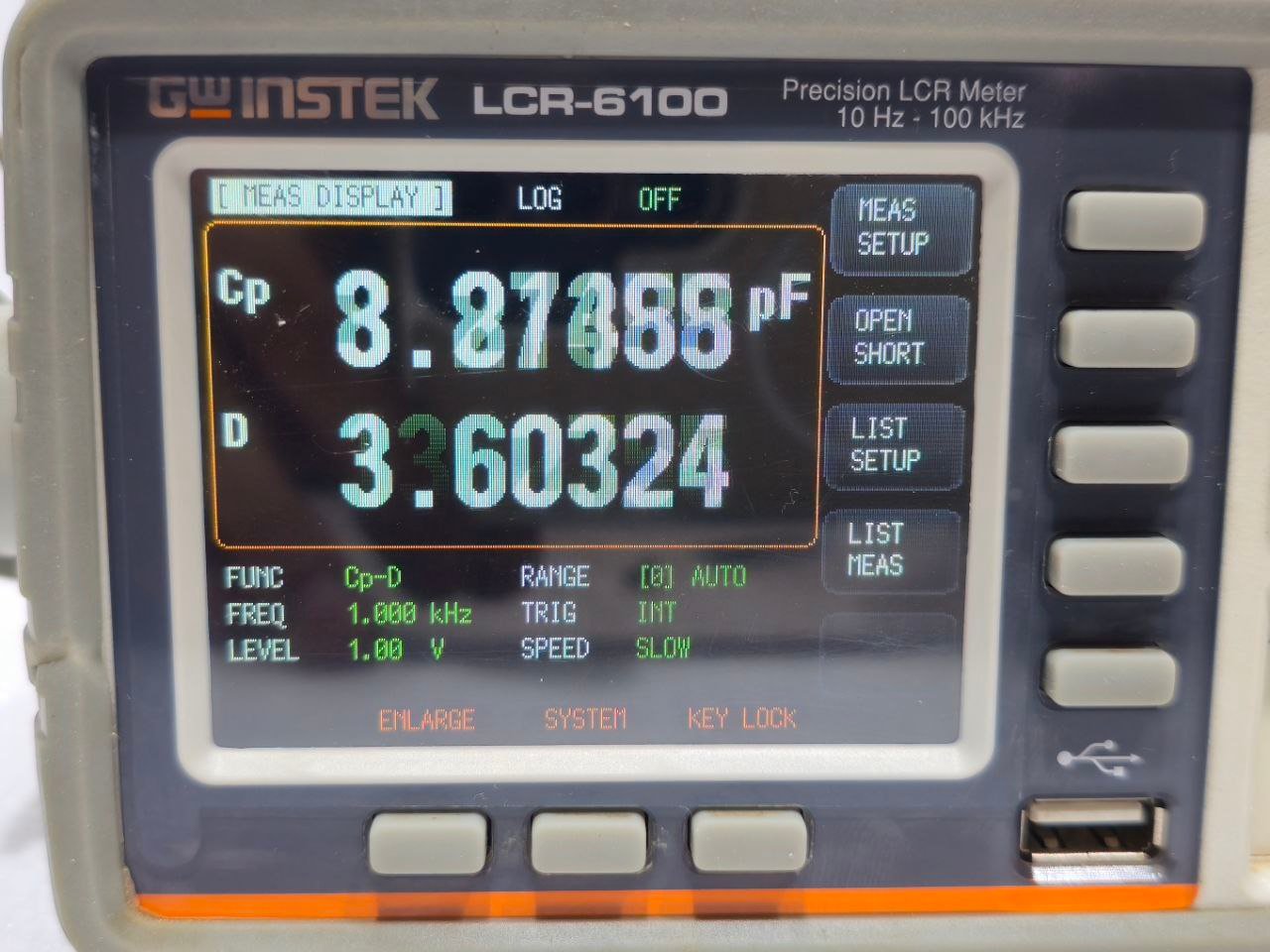

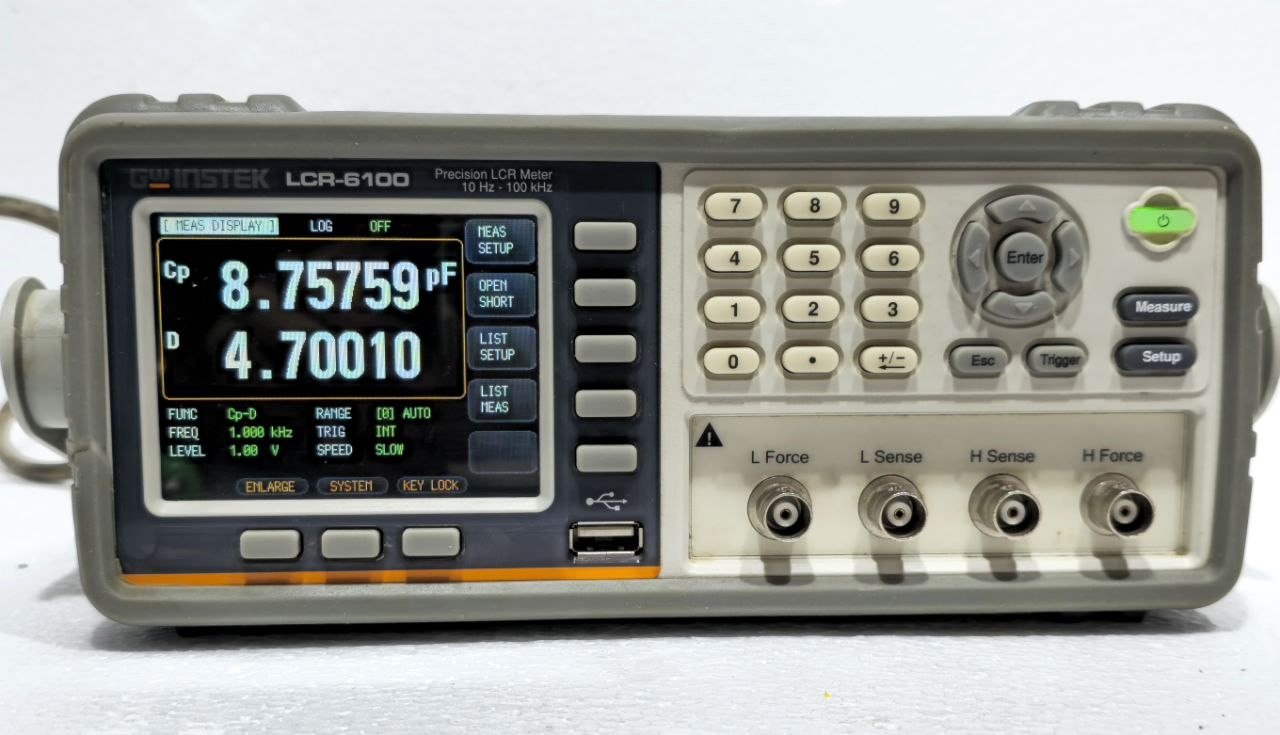

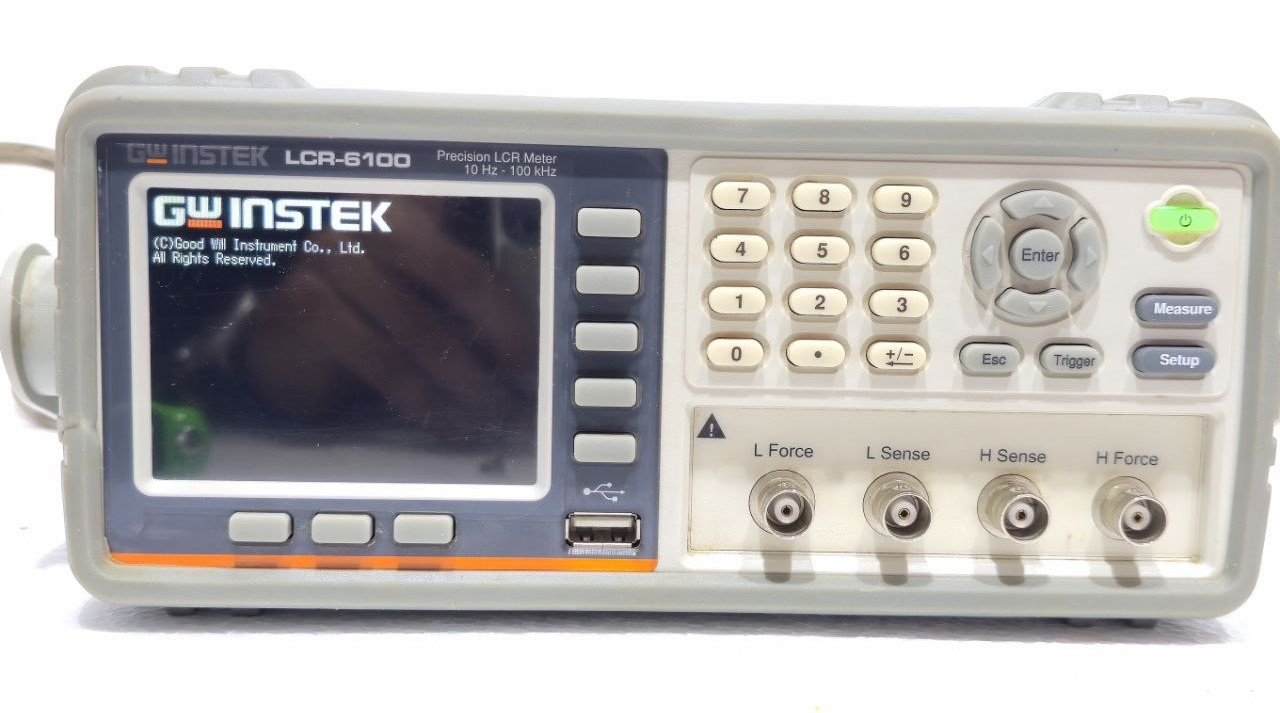

• Quadruple Display: View primary, secondary, and two additional monitoring parameters simultaneously on the 3.5-inch color LCD for comprehensive insight in a single glance .

• High-Speed Measurements: Ideal for production environments with a maximum measurement speed of 25ms (FAST mode) .

• Comprehensive Analysis Functions: Perform DCR measurements, utilize the internal ±2.5V DC bias, and use the PASS/FAIL judgment for quick quality checks .

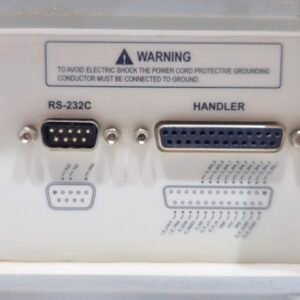

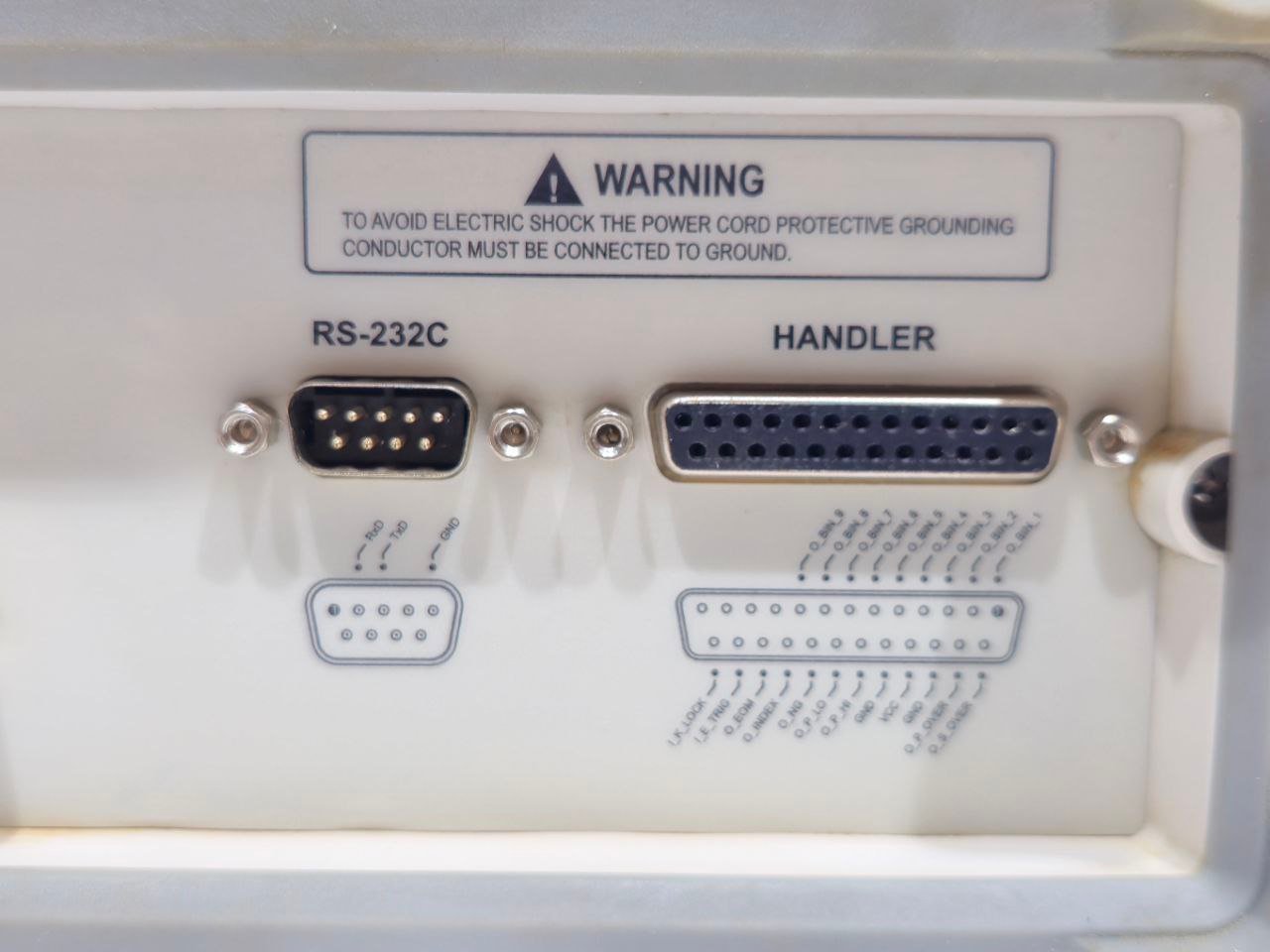

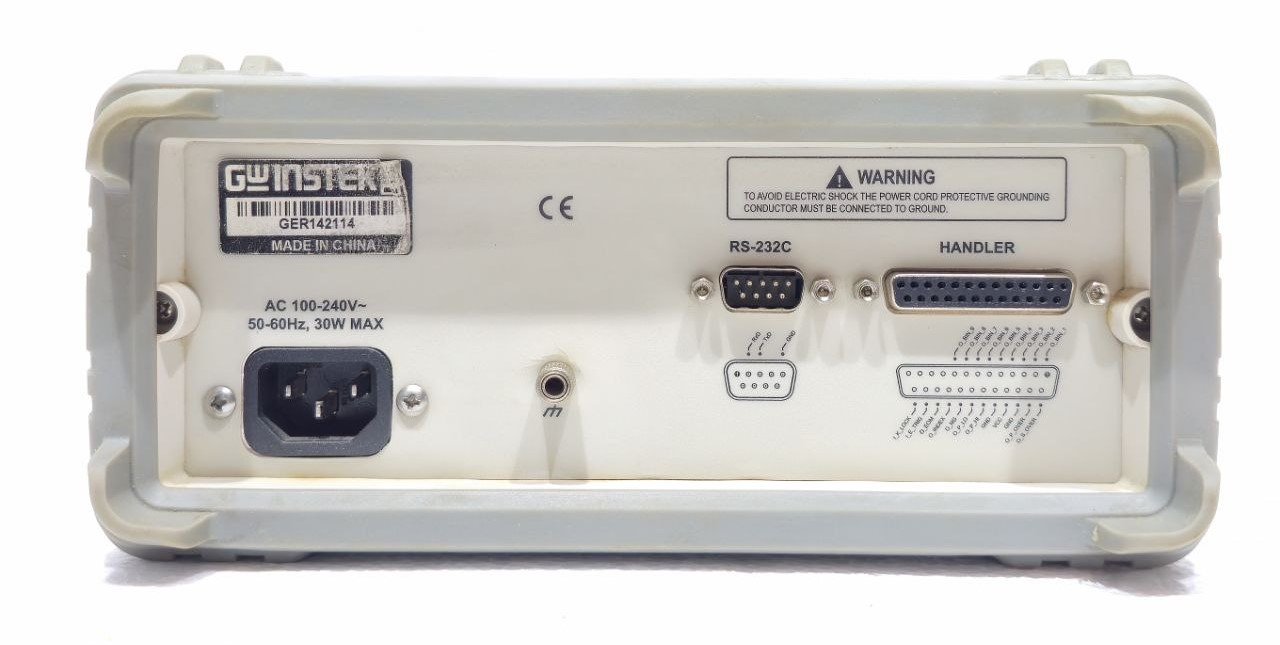

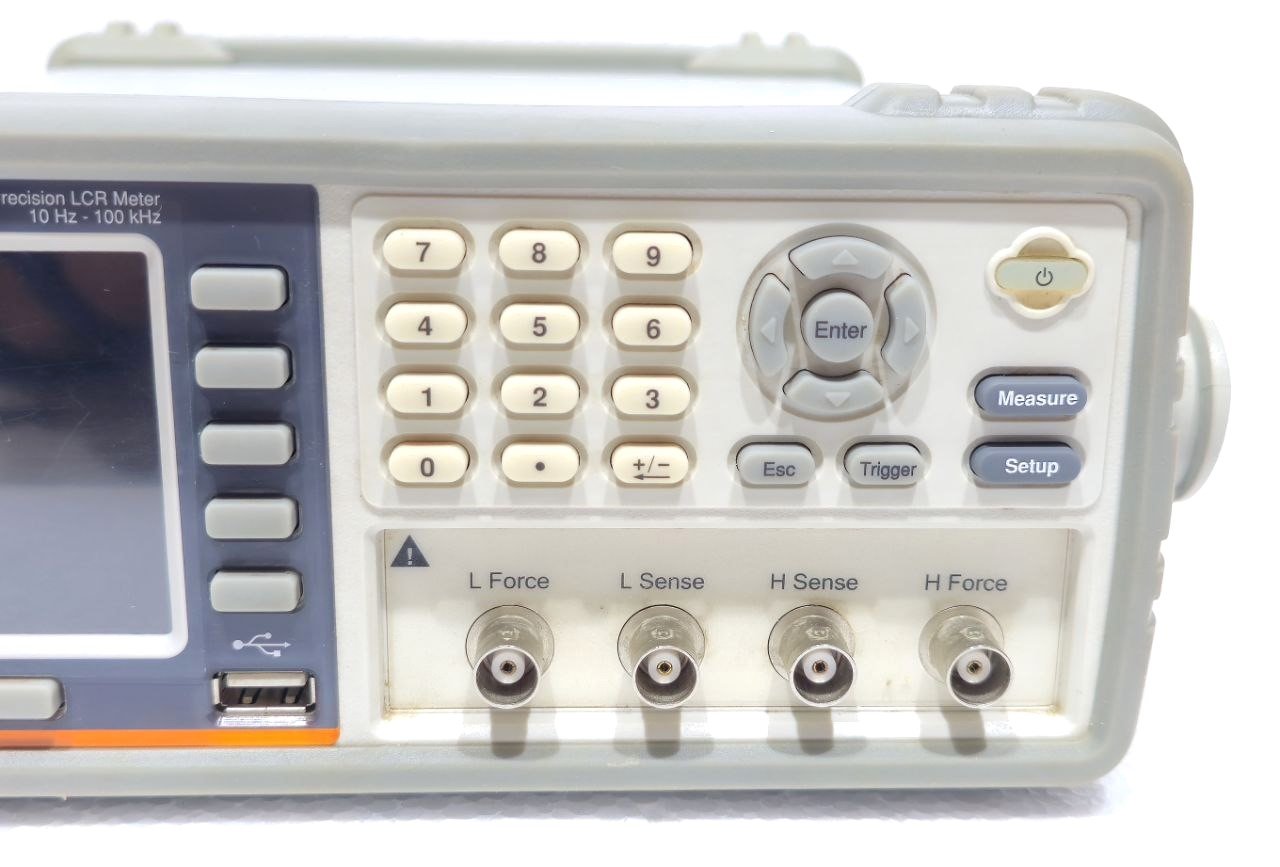

• Versatile Connectivity: Standard interfaces include RS-232C, Handler (for bin sorting), and USB Host for data storage and screen captures .

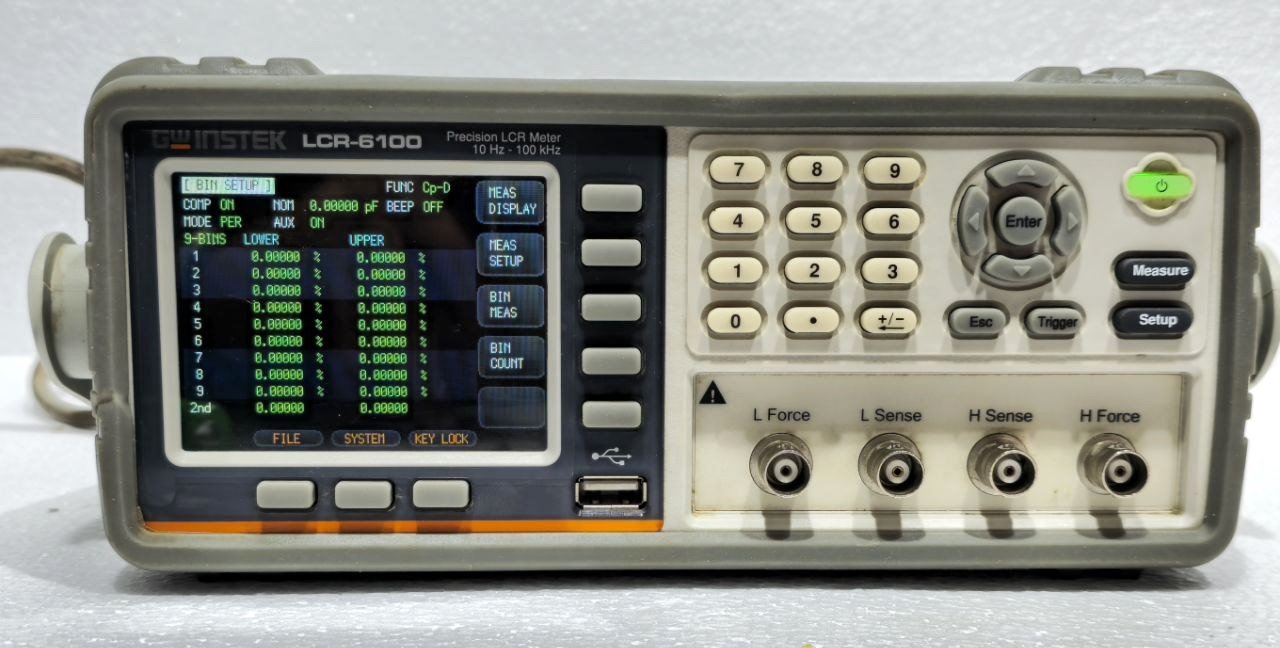

• Component Sorting (BIN Function): Integrates seamlessly with automated handling systems using the 9 BIN and 1 AUX sorting function .

• Convenient Zero Function: Save time with both full-frequency range and spot OPEN/SHORT zeroing without powering down or changing the test fixture .

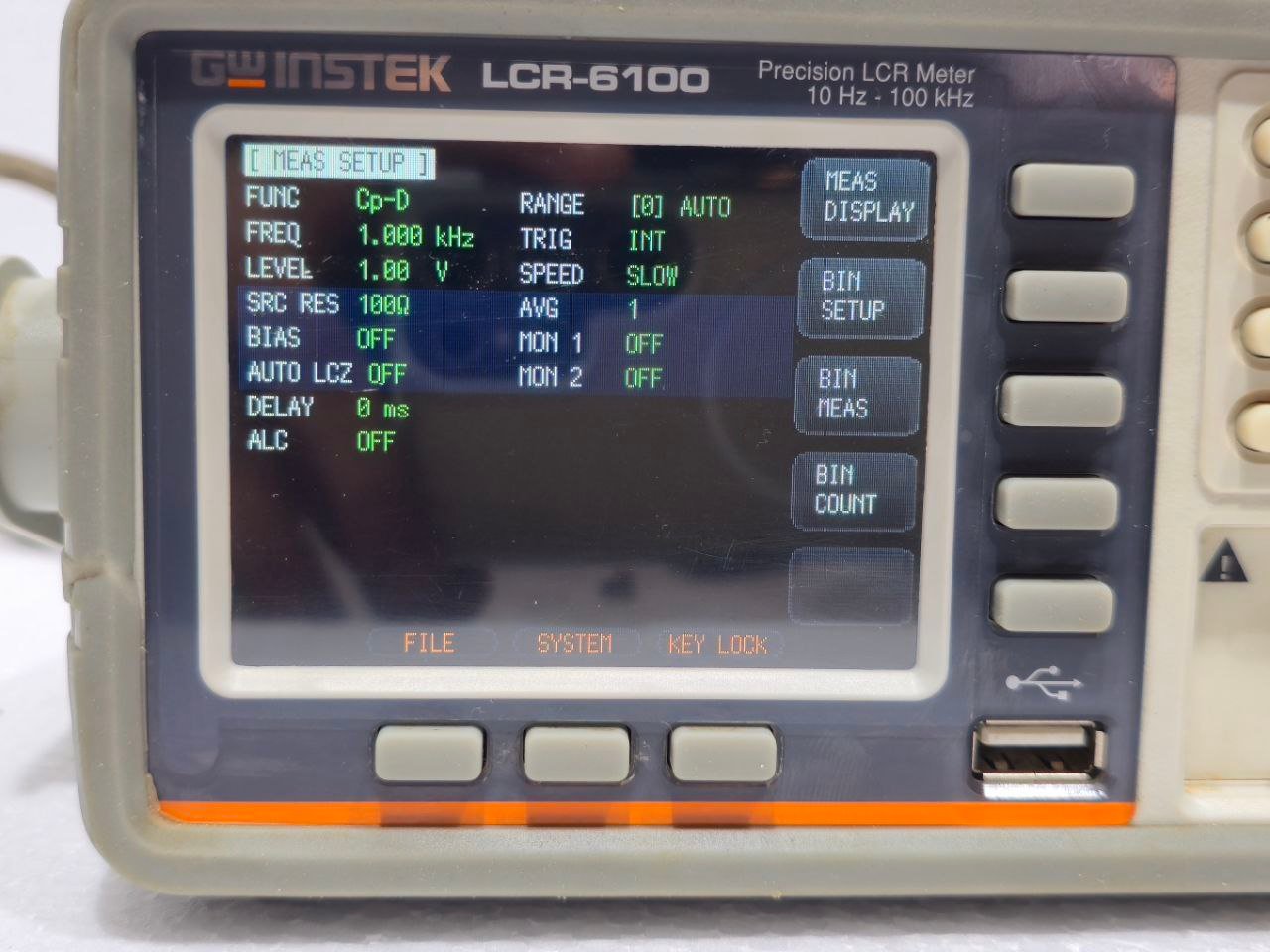

At the heart of the LCR-6100 lies its ability to deliver lab-grade accuracy. With a basic accuracy of 0.05% , you can trust the measurements for critical applications. The instrument offers selectable output impedance (30Ω, 50Ω, 100Ω) to match your specific testing requirements . Whether you are characterizing high-quality factor inductors or low-loss capacitors, the LCR-6100 provides the stability and low-noise performance required .

Time is money, and the LCR-6100 is built to save it. The 3.5″ color LCD goes beyond simple number display. It can show up to four parameters at once (e.g., C, D, and two temperature readings) and features an “Enlarge Display” mode that highlights PASS/FAIL results for rapid visual confirmation .

Furthermore, the innovative “List Test” function allows users to set up 10 test steps with varying frequencies, voltages, or currents to observe how a Device Under Test (DUT) behaves under changing conditions .

• Research & Development: Precise characterization of passive components during the design phase .

• Production Line Testing: High-speed sorting and PASS/FAIL testing of capacitors, resistors, and inductors .

• Incoming Quality Control (IQC): Verification of component specifications from suppliers .

• Education: Teaching impedance theory and component behavior in university labs
