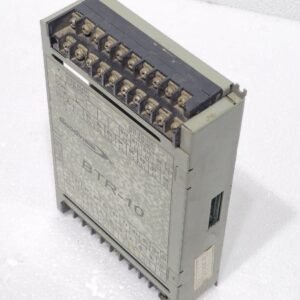

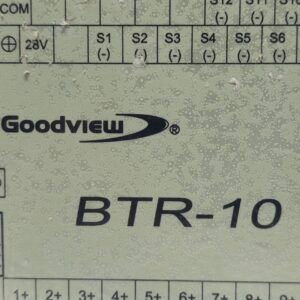

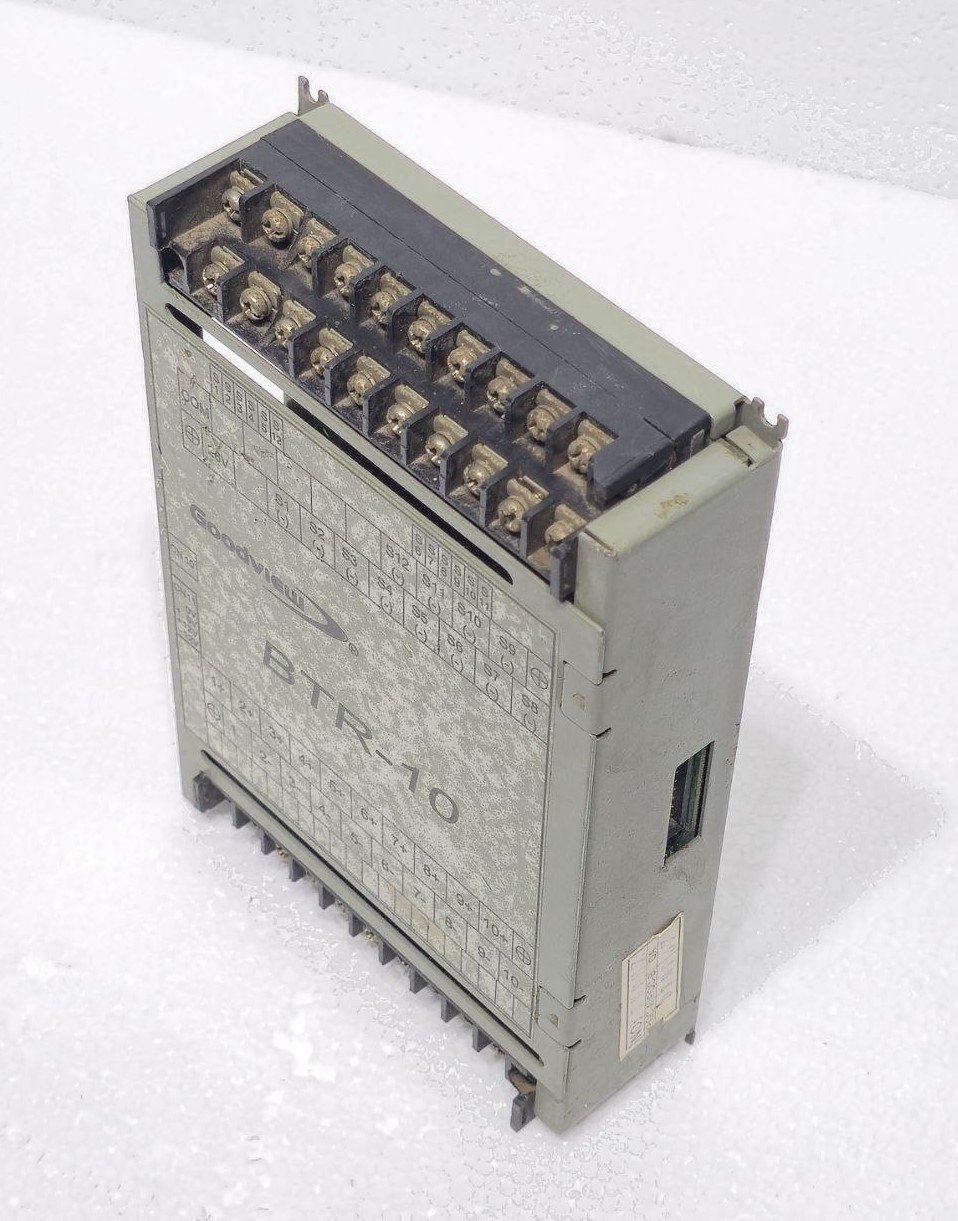

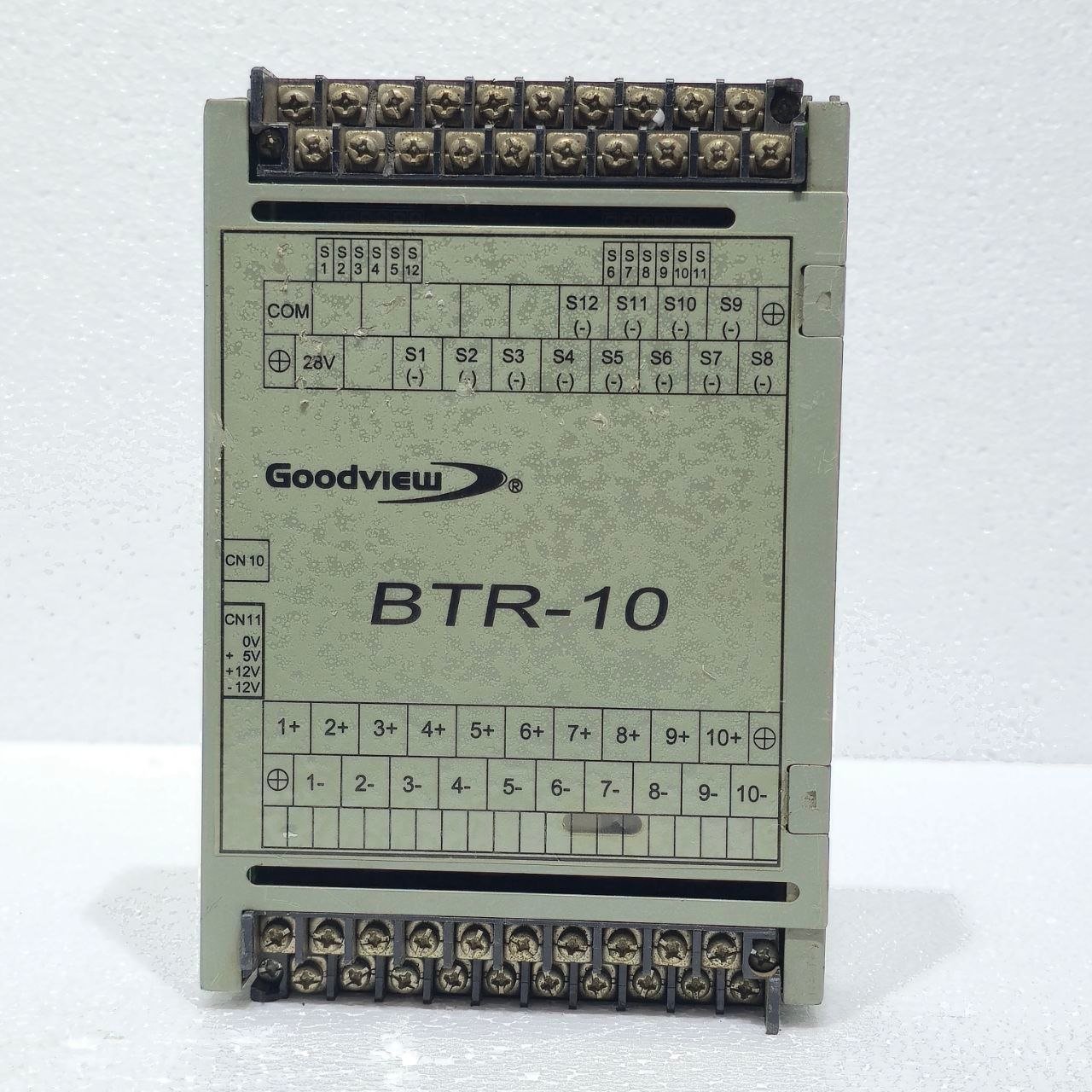

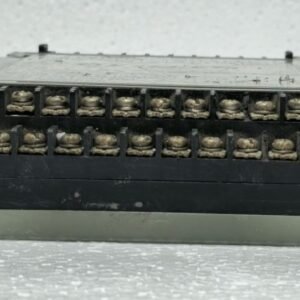

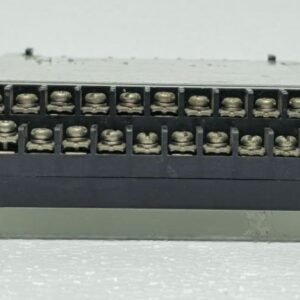

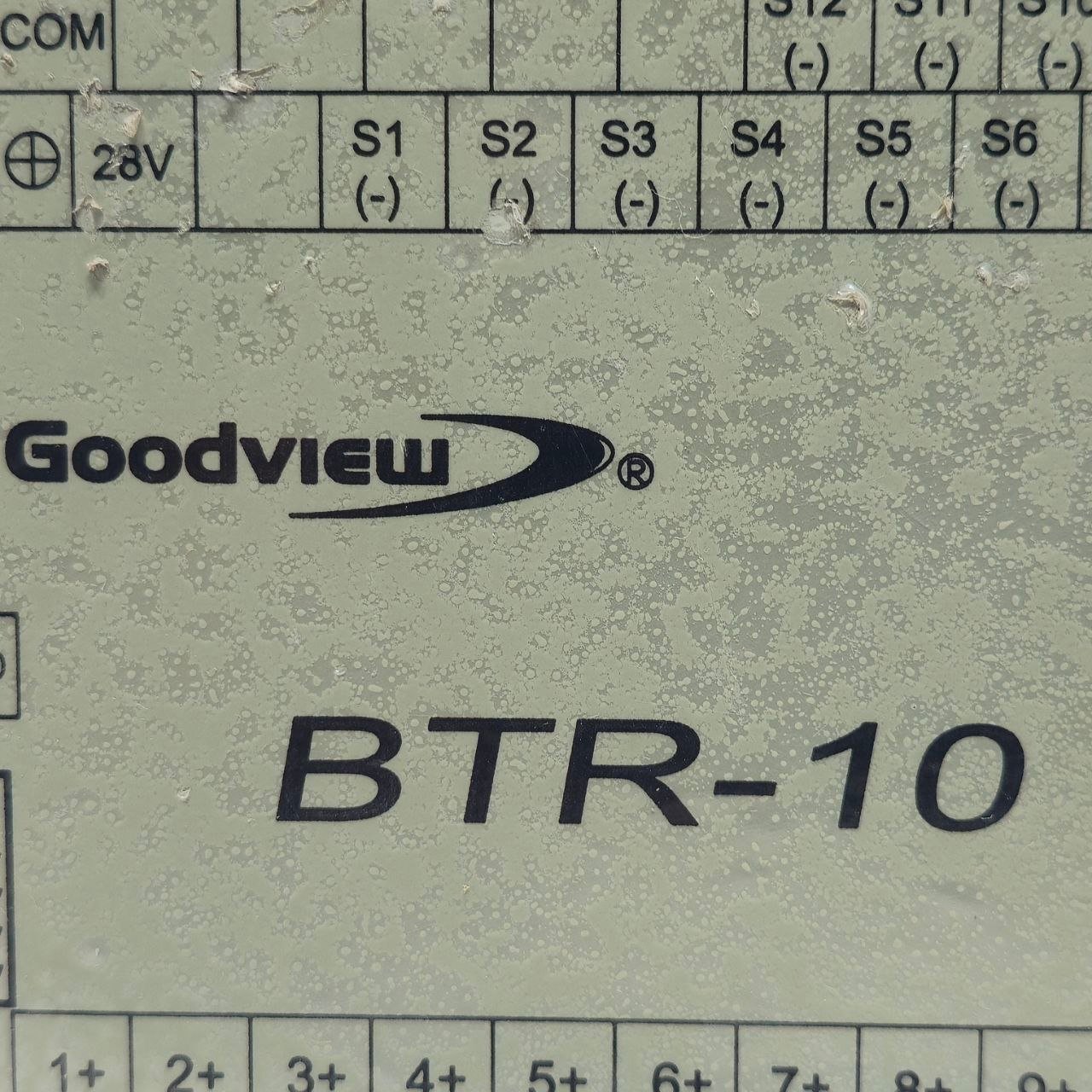

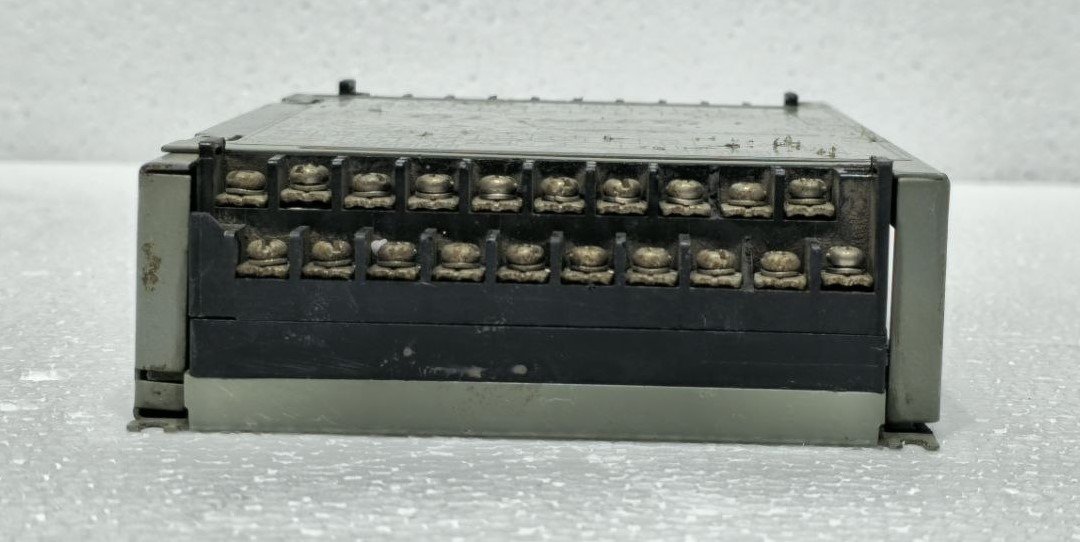

The GOODVIEW BTR-10 is a specialized temperature control I/O board designed for GOODVIEW series injection molding machine control systems, including the AMC-BL890 system. This module provides precise thermal management critical for consistent product quality in plastic injection molding operations. The BTR-10 serves as the dedicated temperature control unit, handling temperature monitoring and regulation across multiple zones of the injection molding process .
Technical Specifications
| Specification | Details |
|---|---|
| Model | BTR-10 (also referred to as BTR-10 DTMI37) |
| Product Type | Temperature Control I/O Board |
| Input Channels | 9 channels for temperature sensing + 1 channel for oil temperature display |
| Input Type | K-type thermocouple |
| Temperature Range | 0–399°C |
| Control Method | PID control with auto-tuning |
| Output Points | 10 points (zones) for SSR control + 2 points for proportional output |
| Output Current | Maximum 40 mA per point |

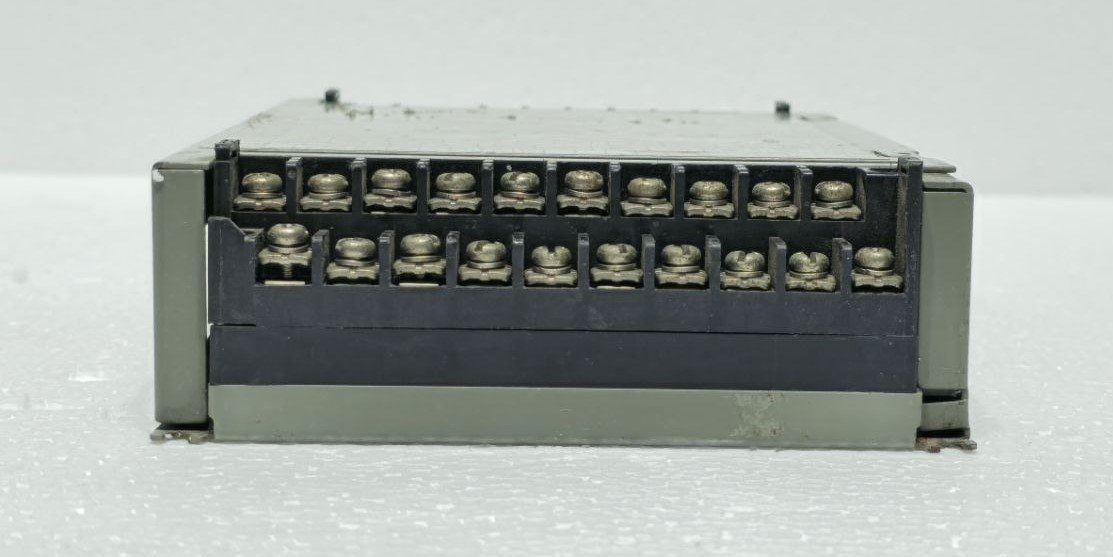

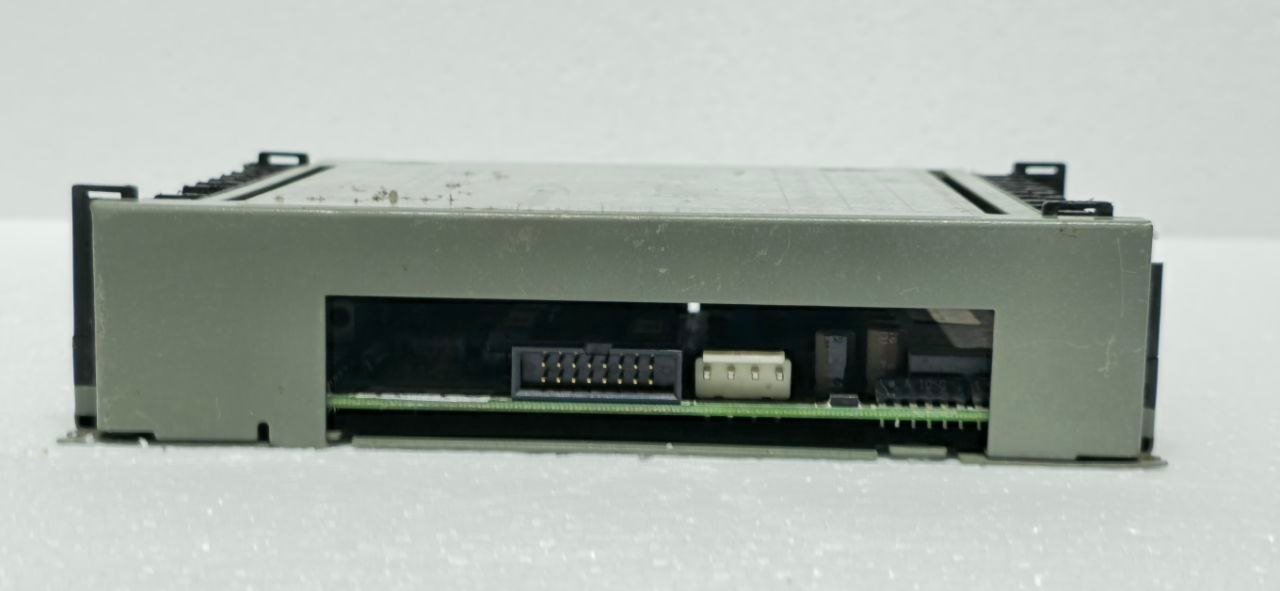

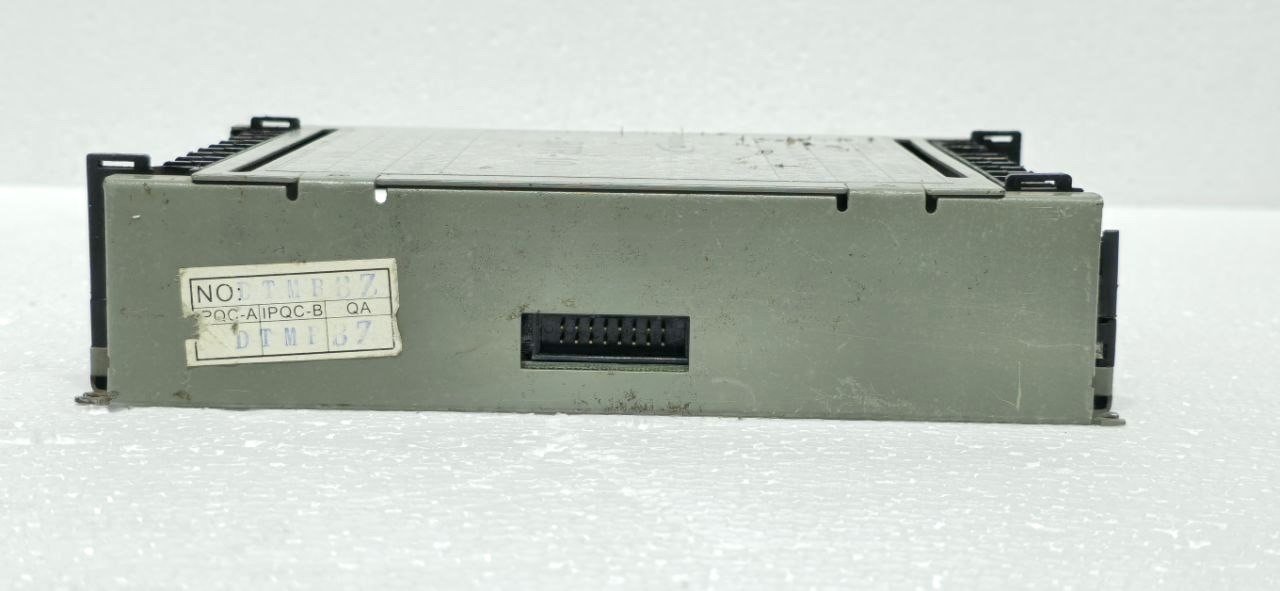

| Connection Type | 16-pin flat ribbon cable |
| Indicator LEDs | 12 LED output indicators + 1 RUN indicator |
| Alarm Types | High oil temperature, low oil temperature, input disconnection |
| Dimensions | 178 × 120 × 40 mm |
| Weight | 750 g |
Key Features
-
Precise Temperature Control: Utilizes PID control with auto-tuning capabilities for accurate temperature maintenance across 9 zones
-
Comprehensive Alarm System: Built-in monitoring for temperature deviations and sensor failures
-
K-Type Thermocouple Compatibility: Standardized input for wide compatibility with existing temperature sensors
-
SSR Output Ready: 10 zone outputs designed for Solid State Relay control applications
-
Visual Status Indicators: Extensive LED array provides immediate operational feedback
Compatibility
This BTR-10 controller board is compatible with GOODVIEW injection molding machine control systems, specifically designed to work within the AMC-BL890 system architecture alongside the following components :
-
BMB-16 Main Unit
-
BIO-24 I/O Board
-
GC-890 LCD Panel
-
APS-500 Power Supply
Applications
-
Plastic injection molding machine temperature control
-
Industrial process thermal management
-
Retrofit and replacement for GOODVIEW control systems
-
Injection molding equipment maintenance and repair
