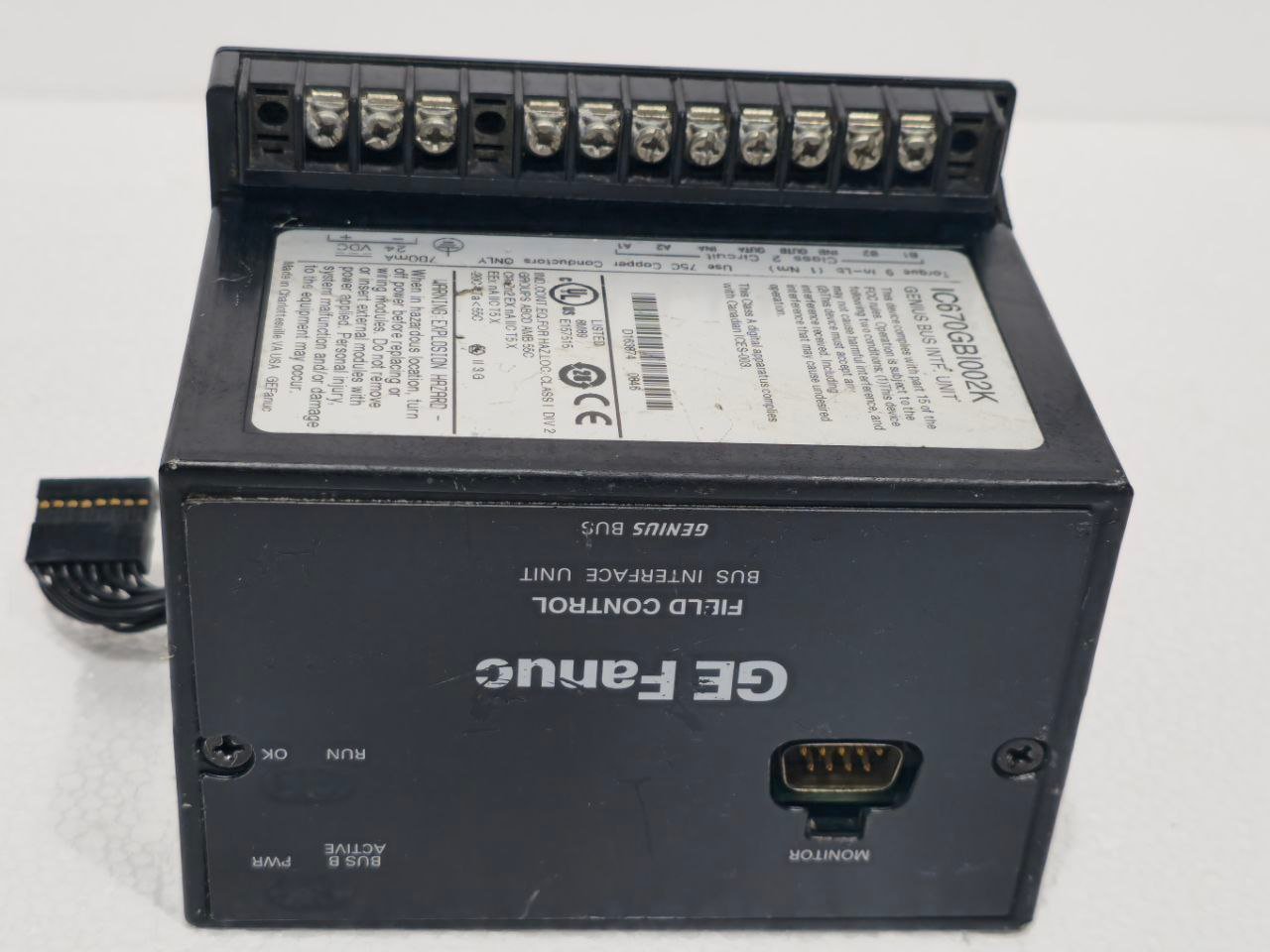

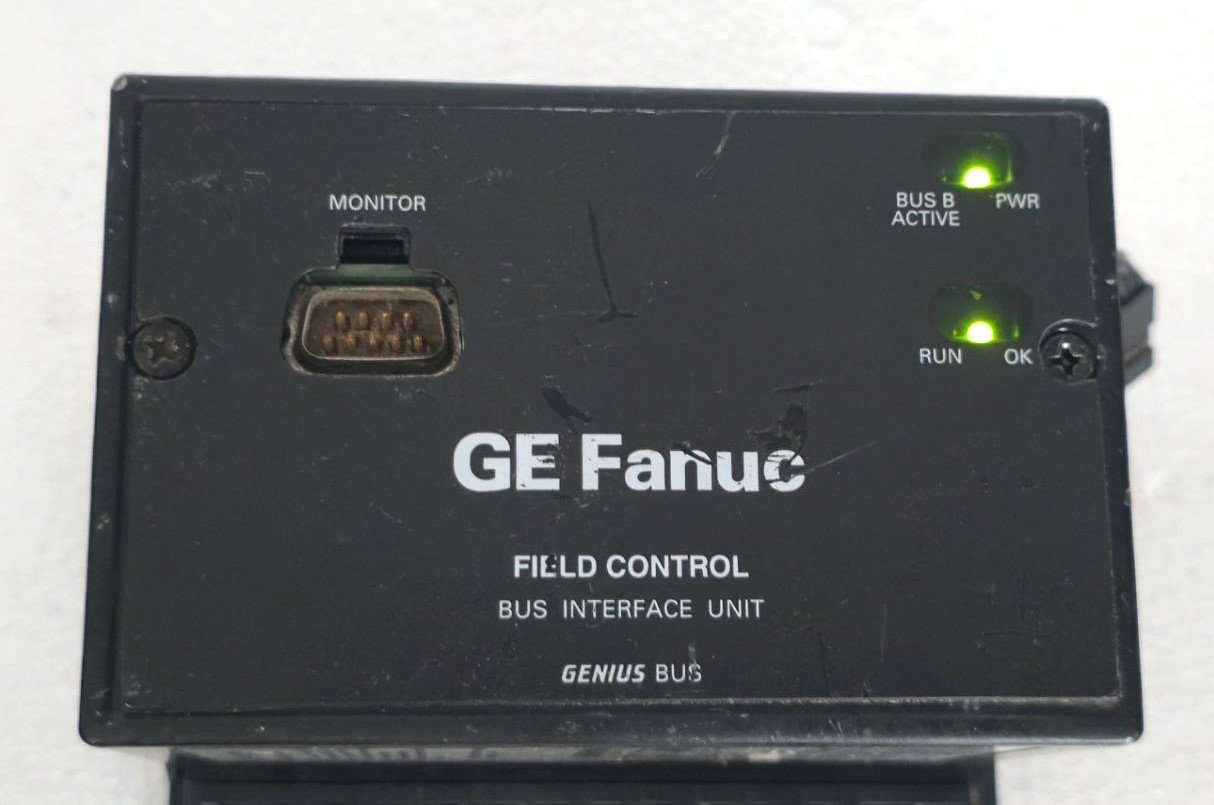

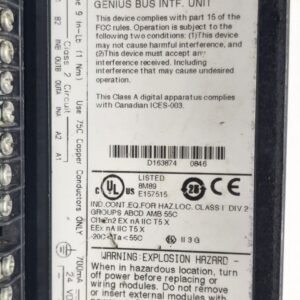

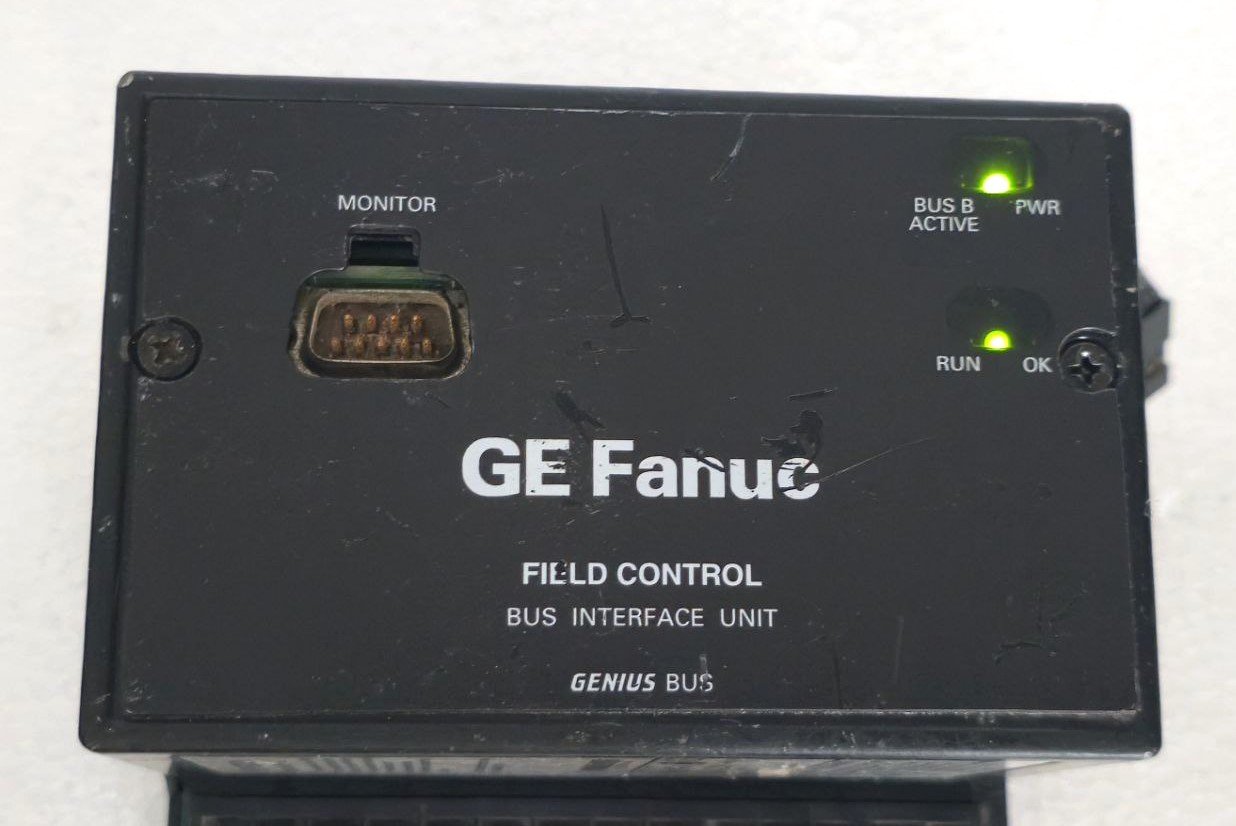

The GE Fanuc IC670GBI002K is a Genius Bus Interface Unit (BIU) that serves as the central communication hub in a Field Control system. It connects a master PLC or computer to up to eight I/O modules via the Genius bus, managing all data exchange and diagnostics .
Here is a summary of its key specifications:
| Specification | Details |
|---|---|
| Product Type | Genius Bus Interface Unit |
| Series | GE Fanuc Field Control |
| Part Number | IC670GBI002 |
| Communication Protocol | Genius Bus |
| Supply Voltage | 18-30 VDC |
| Power Consumption | 16.8 W |
| Output to Modules | 6.5 VDC ±5%, Max 1.4 A |
| Supported I/O Modules | Up to 8 Field Control I/O modules |
| Data Exchange | 128 bytes input and 128 bytes output per scan |
| Key Features | Hot insertion/removal (with compatible modules), supports redundant CPU configurations, built-in diagnostics |
| Operating Temperature | 0°C to +55°C |
| Certifications | UL, CE |
Application and Installation
- Typical Applications: This module is well-suited for various industries:
- Manufacturing: Managing data on automated assembly lines and robotic workcells .
- Process Industries: Used in oil and gas, chemical, and power generation for reliable, real-time control of field devices .
- Infrastructure: Employed in water and wastewater treatment plants to monitor and control pumps, valves, and sensors
