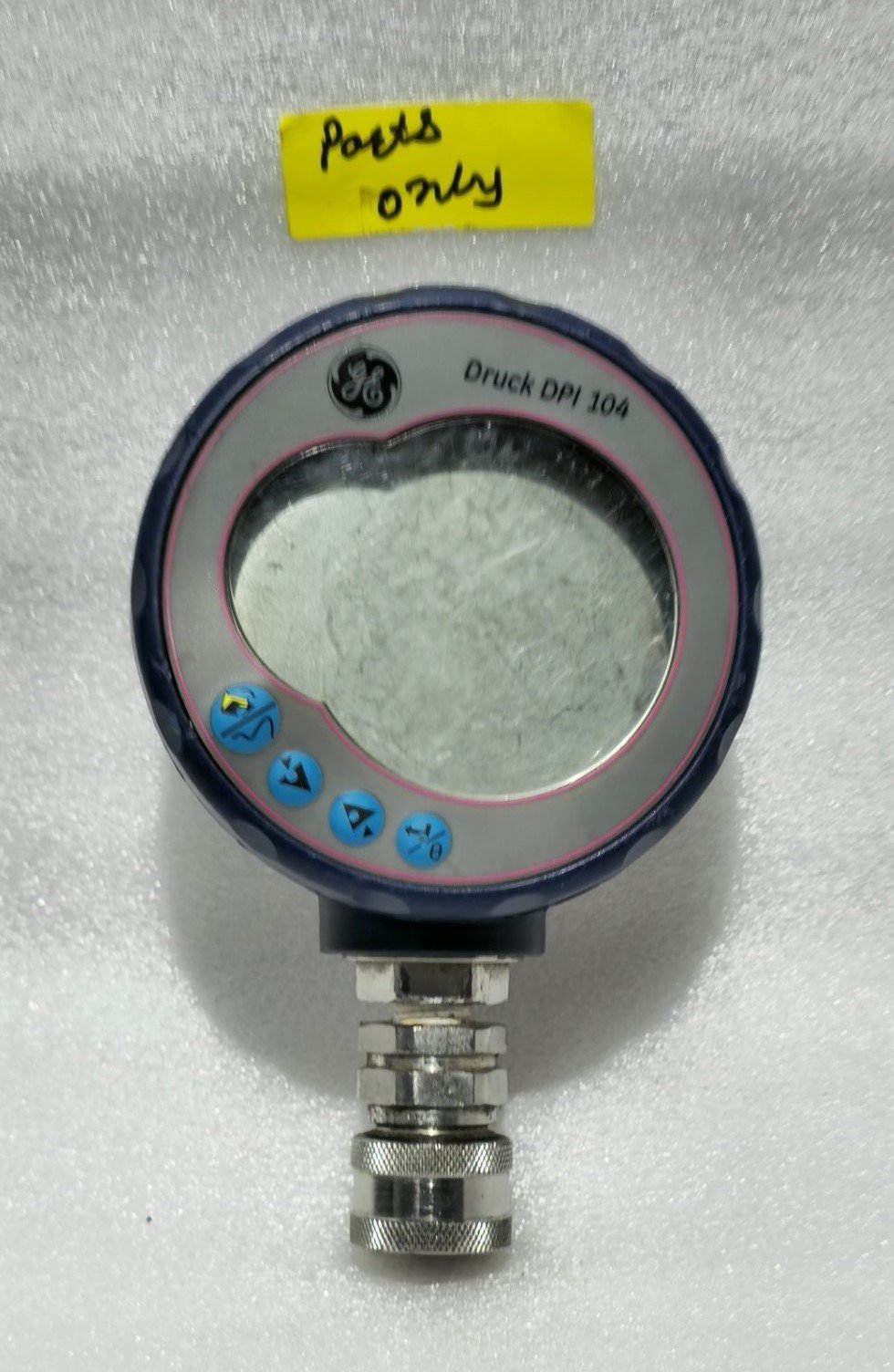

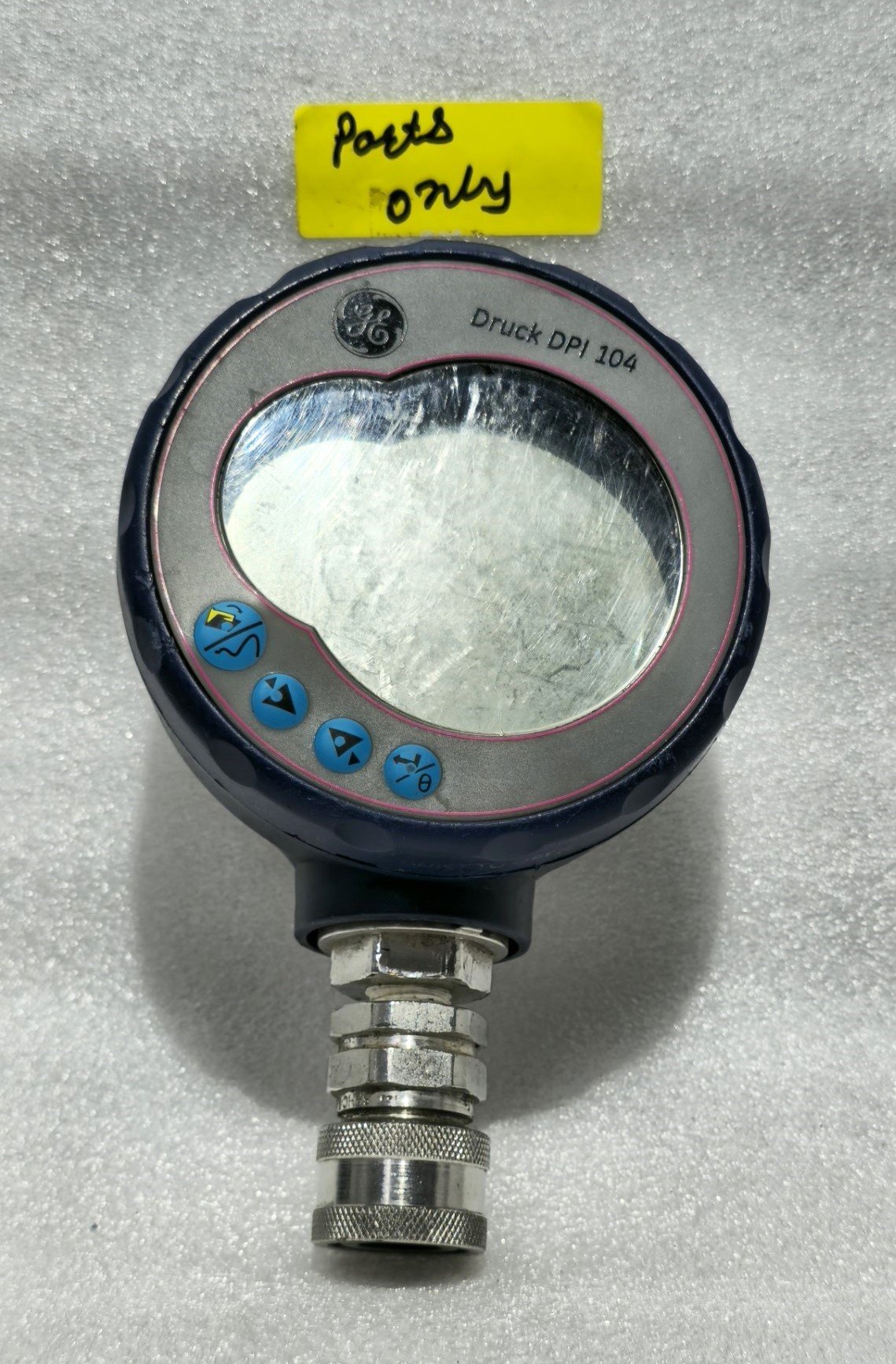

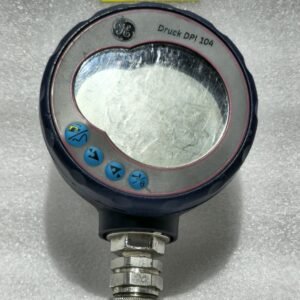

The GE Druck DPI 104 is a premier, microprocessor-controlled digital pressure indicator, engineered for professionals who demand laboratory-grade accuracy in a robust, field-ready instrument. This 70 bar range model delivers the precision and reliability synonymous with the Druck name, making it the ideal choice for critical test and calibration applications.
Key Features & Benefits
The DPI 104 is much more than a standard pressure gauge; it is a versatile digital test gauge designed to replace traditional analog gauges and serve as a master reference tool.
-
High Accuracy: Offers class-leading 0.05% full scale (FS) accuracy, ensuring trustworthy measurements for critical processes and calibration tasks .
-
70 Bar Pressure Range: Specifically configured for a maximum pressure measurement of 70 bar, with a gauge (g) or absolute (a) pressure type available, making it suitable for a wide variety of hydraulic and pneumatic applications .
-

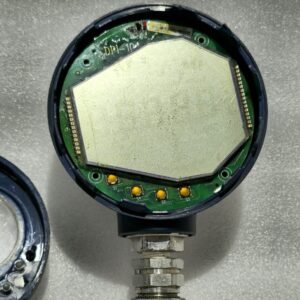

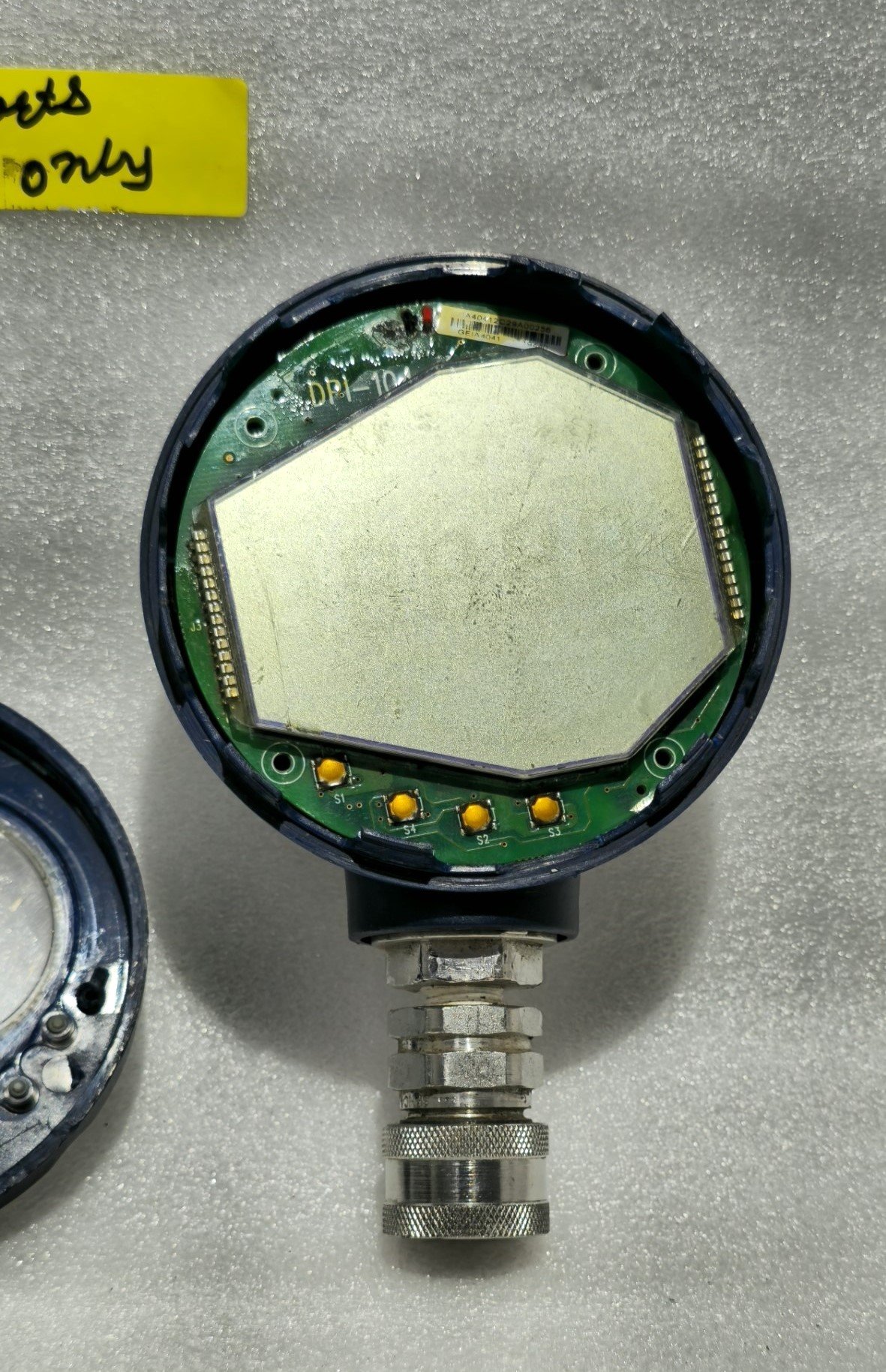

Intelligent Display: Features a large, easy-to-read 5-digit LCD display with a five-digit resolution for precise readings. The display also includes a 20-segment bar graph and % pressure indication for quick visual reference .
-
Versatile Functionality: Comes equipped with essential test functions including Min/Max, Tare, Alarm, and a Pressure Switch Test, providing a comprehensive toolkit for troubleshooting and system analysis .
-

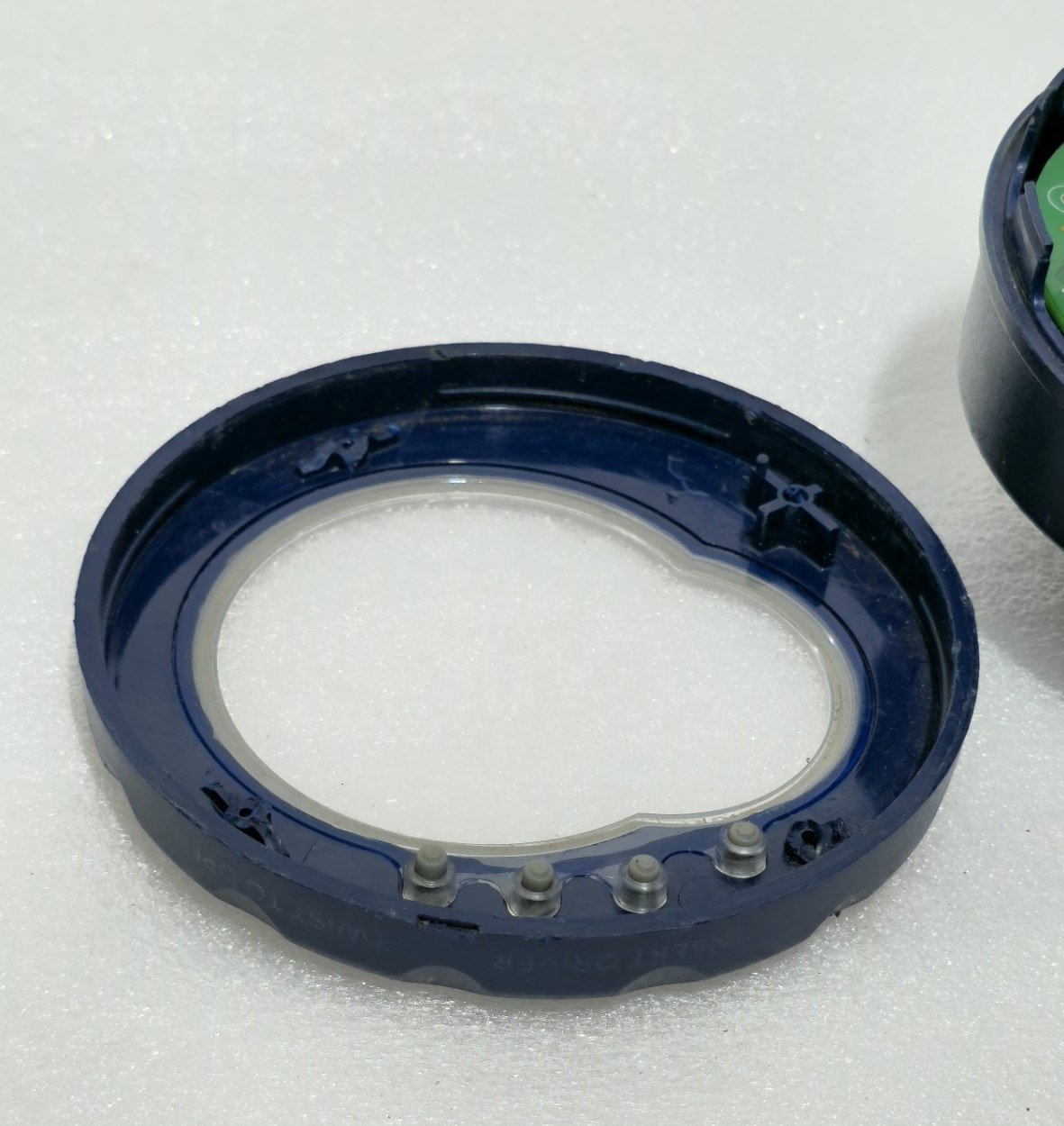

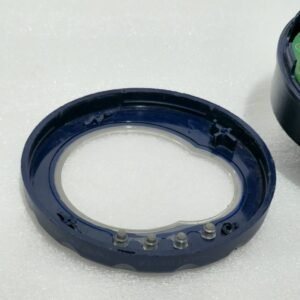

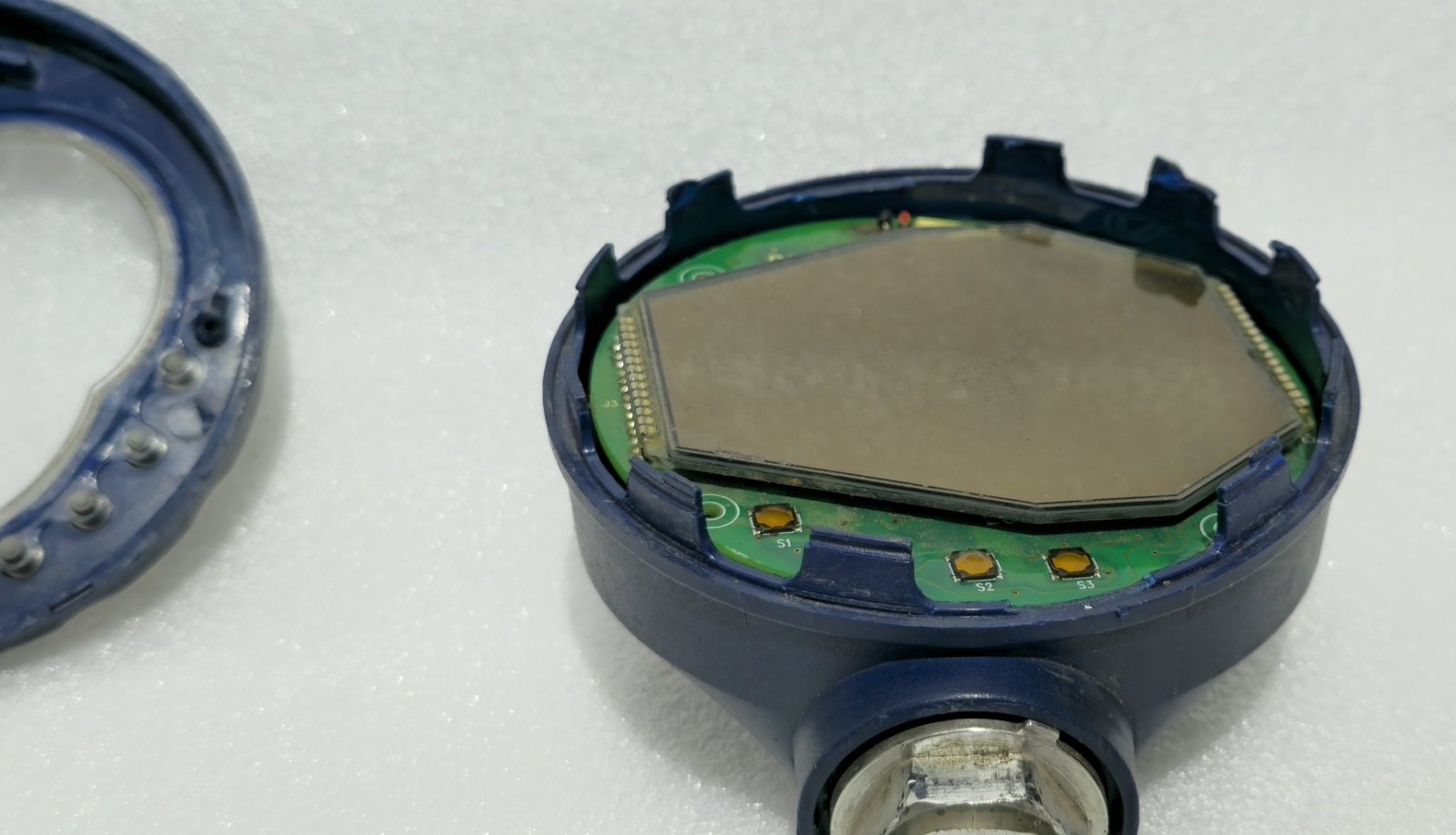

Robust & Adaptable Design: Housed in a durable ABS/PC case, the instrument is built to withstand harsh industrial environments. Its housing rotates 320° around the pressure fitting, and the faceplate can be rotated for optimal viewing in any mounting position .
-
Advanced Connectivity: Includes an RS232 serial interface and is IDOS compatible, allowing for networking capabilities and connection to Universal Pressure Modules (UPM) to extend the device’s pressure range and accuracy. It also offers a programmable 0-5V analog output .
Technical Specifications
| Attribute | Specification |
|---|---|
| Brand | GE Druck |
| Model | DPI 104 |
| Pressure Range | 70 bar (0 to 70 bar / 0 to 1000 psi) |
| Accuracy | ±0.05% Full Scale (FS) |
| Display | 5-digit LCD with circular 20-segment bar graph |
| Pressure Type | Gauge (g) and Absolute (a) options available |
| Output | 0-5V Analog Output, RS232 Interface |
| Case Material | ABS, PC |
| Operating Temp. | -10°C to +50°C (14°F to 122°F) |
| Diameter | 95 mm (3.74 in) |
| Weight | Approx. 350 g (13 oz) |
| Included | Gauge, Calibration Certificate, 9V Battery, User Manual |
Applications
The GE Druck DPI 104 is the perfect solution for a range of demanding applications, including:
-
Test and Calibration: Functions as a master test gauge when used with Druck hand pumps .
-
Process Monitoring: Provides accurate, real-time pressure data for industrial processes .
-
System Maintenance & Troubleshooting: Ideal for verifying system pressures, testing pressure switches, and performing routine maintenance checks.
