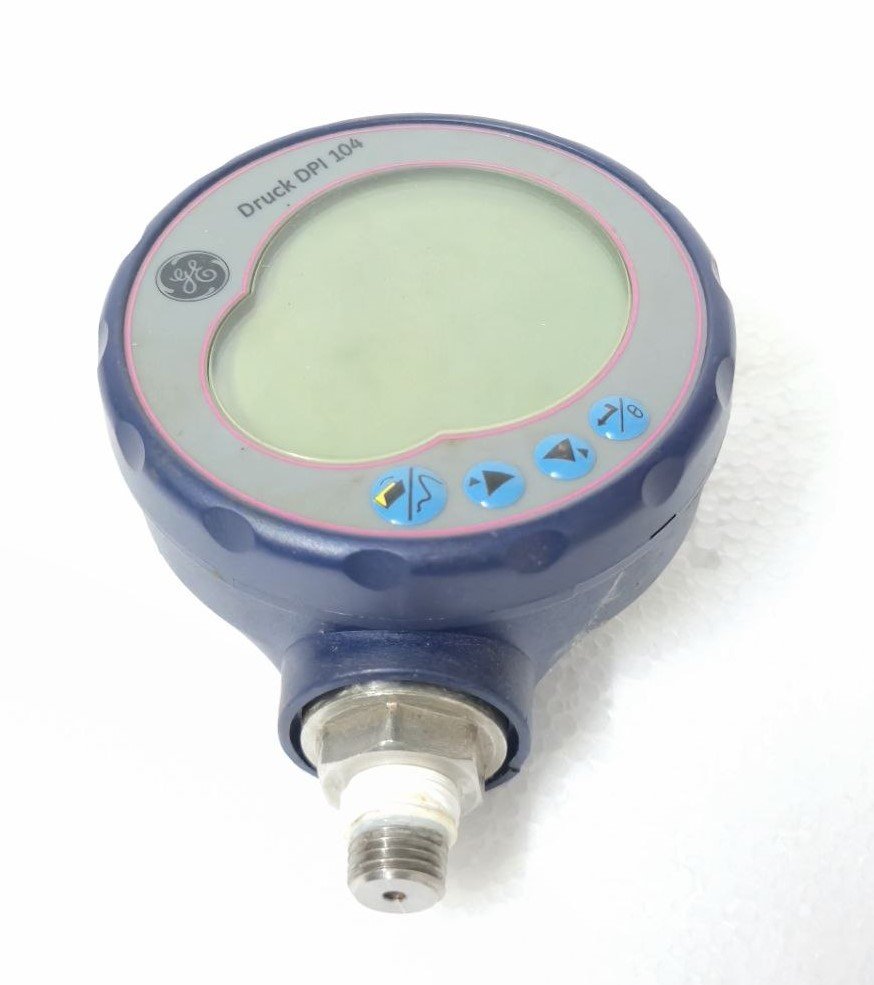

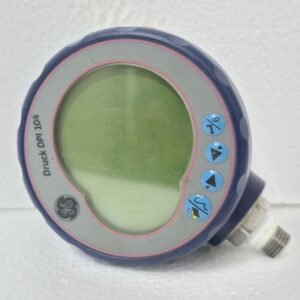

The GE Druck DPI 104 (now manufactured by Baker Hughes) is the industry standard for reliable, high-precision digital pressure measurement. This model is calibrated for a 3000 PSI (200 Bar) range, making it perfect for high-pressure hydraulic systems, pneumatic testing, process monitoring, and panel mounting. Unlike analog gauges, the DPI 104 eliminates parallax error and provides instant, repeatable readings.
Key Specifications
-
Pressure Range: 0 to 3000 psi
-
Accuracy: ±0.05% Full Scale (FS) – includes non-linearity, hysteresis, and repeatability
-

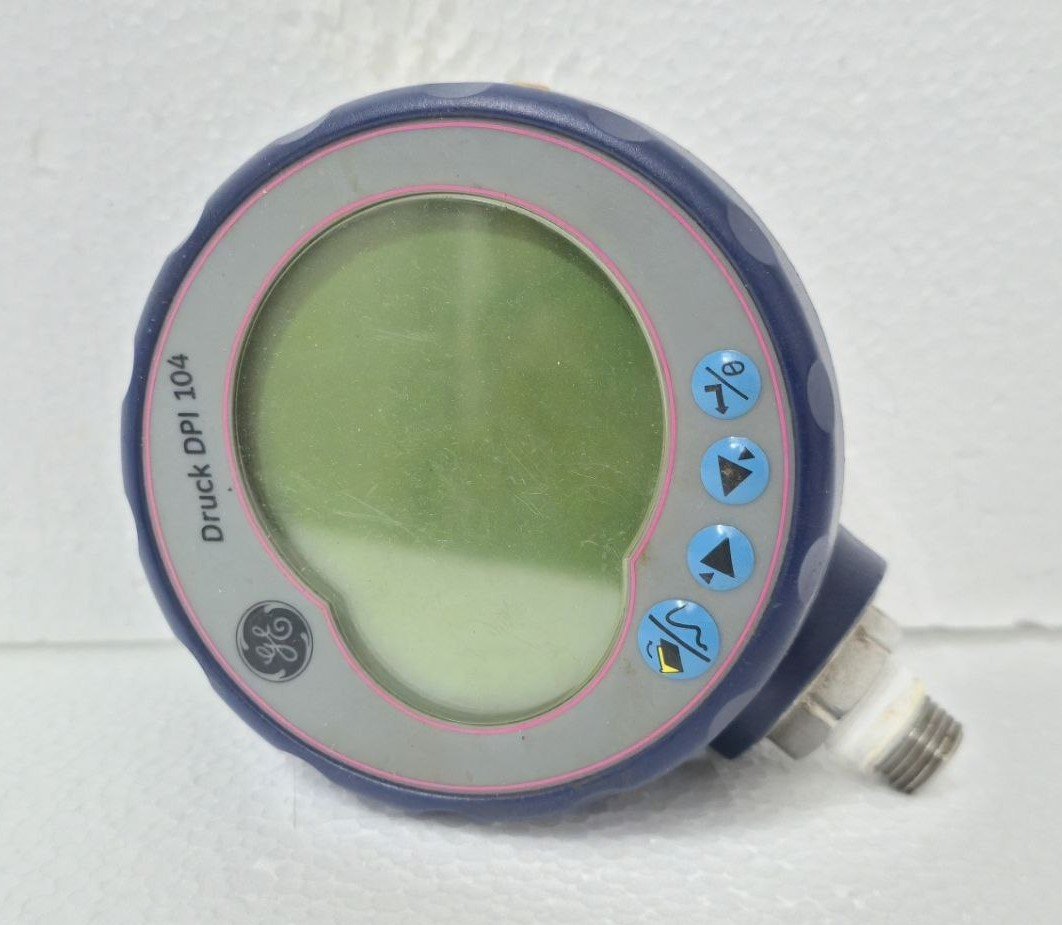

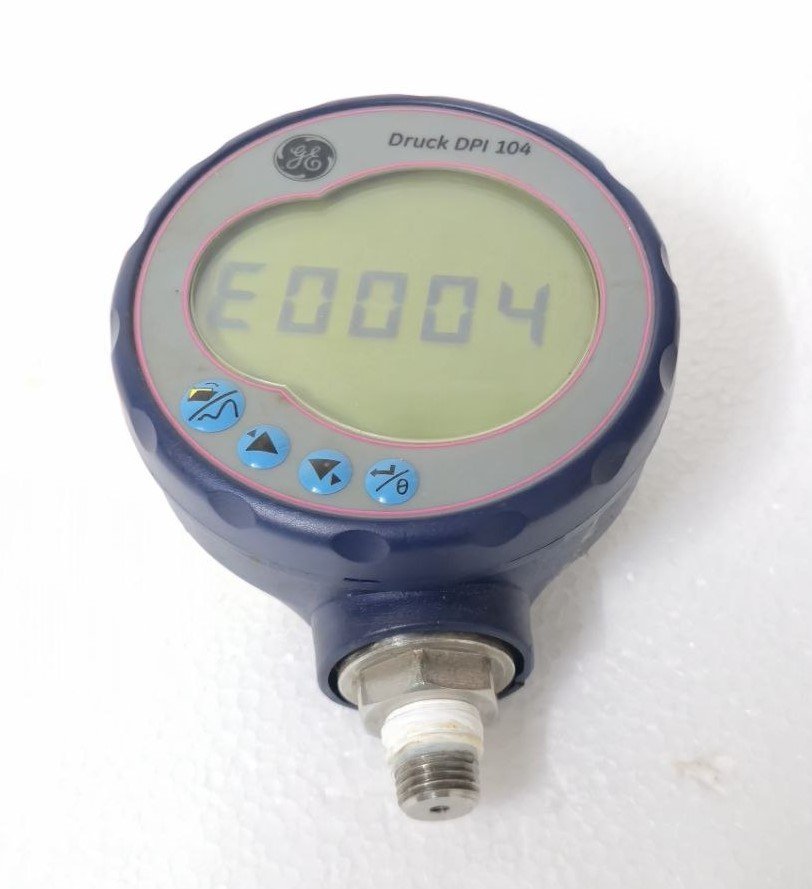

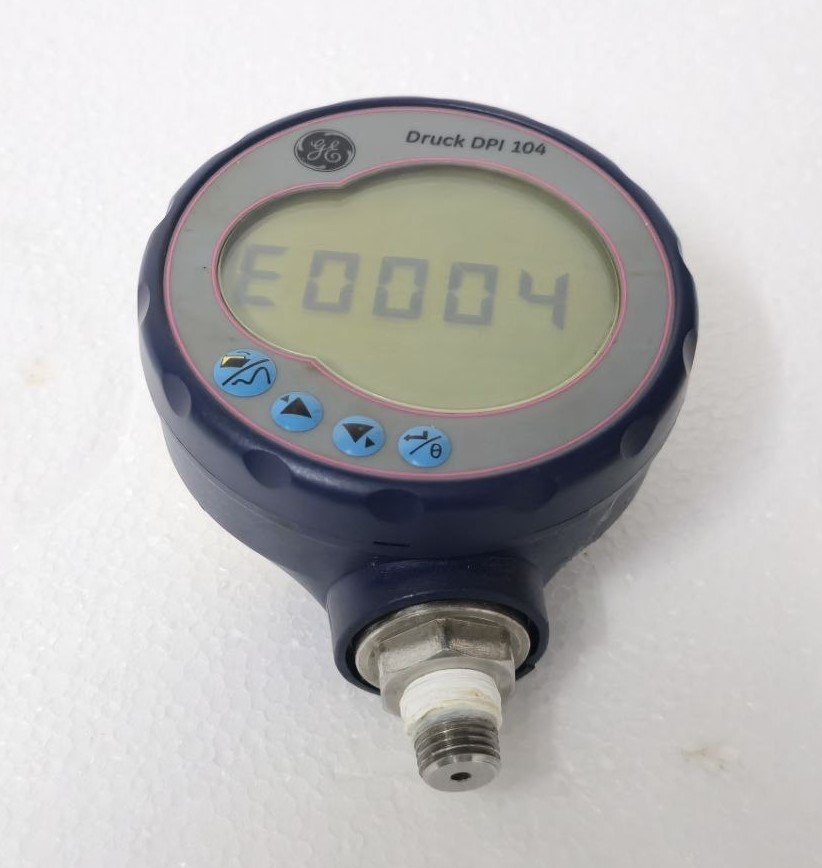

Display: 5-digit LCD with 0.5″ high digits; backlit for low-light conditions
-
Pressure Units: 15 selectable units
-

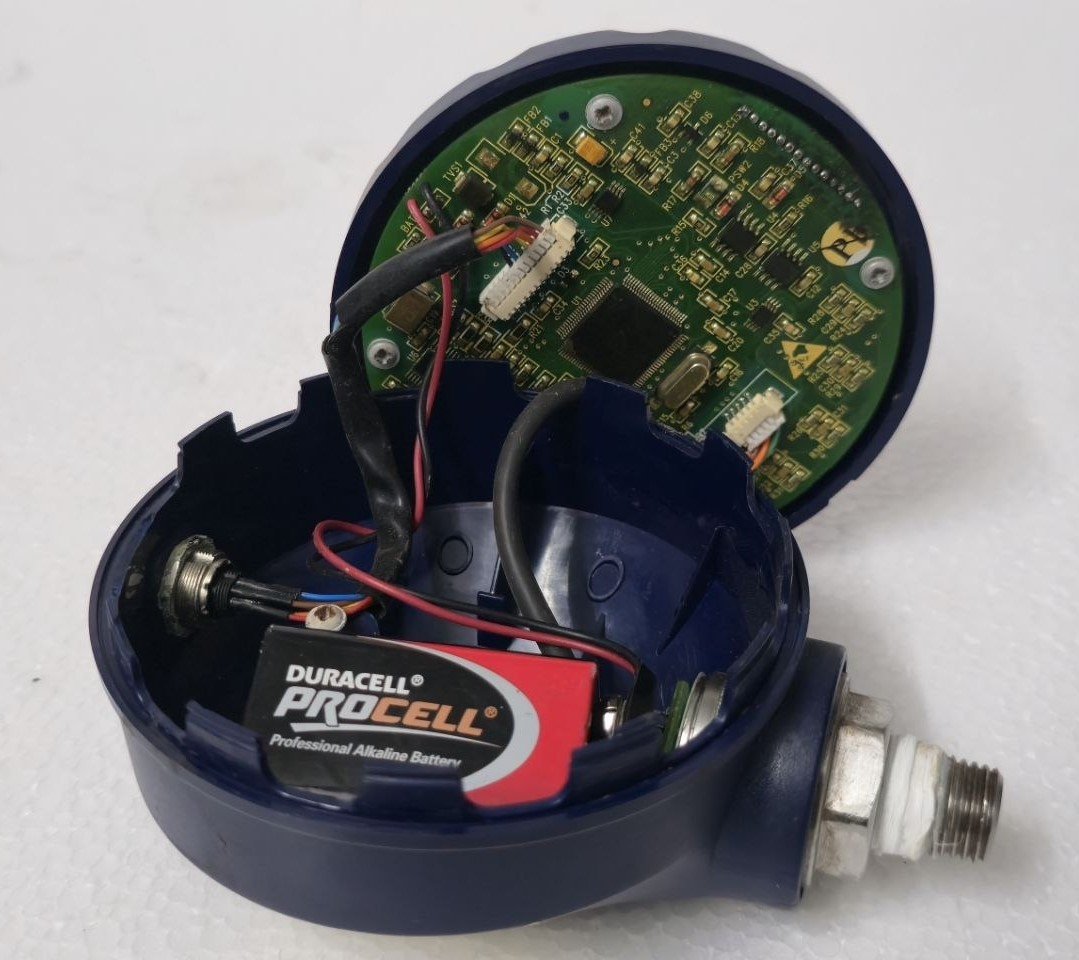

Battery Life: Up to 1,500 hours (3x AA cells)
-
Media Compatibility: Stainless steel (316L) & Inconel wetted parts – compatible with most gases & liquids
-
Temperature Compensation: Automatic from 14°F to 122°F (-10°C to 50°C)
Key Features
-
Rugged & Sealed: IP54/NEMA 3 rating – dust and splash resistant for field use.
-
Zero Drift Correction: On-board zeroing function eliminates thermal or positional errors.
-
Pressure Spike Protection: Withstands overpressure up to 2x FS (6000 psi) without damage.
-
Min/Max Recording: Capture peak pressure events automatically.
-
% Pressure Indication: Visual bar graph for quick reference of pressure level.
-

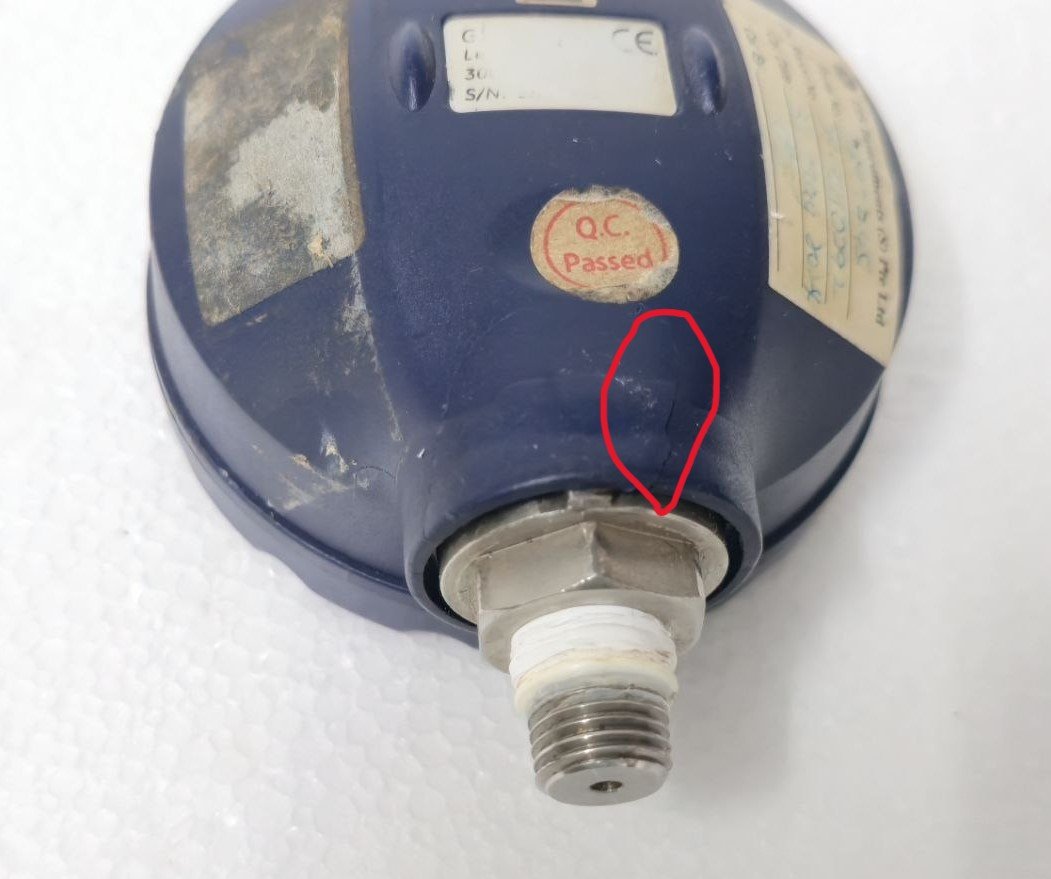

Customizable: Includes a 1/4″ NPT male pressure fitting (adapters available).
Applications
-
Hydraulic Systems: Test pumps, cylinders, and accumulators up to 200 bar.
-
Oil & Gas: Wellhead monitoring, pipeline pressure checks.
-
Calibration Labs: Field standard for verifying other gauges.
-
HVAC/R: High-side refrigerant pressure testing.
-
Water Jet Cutting: Monitor pump output pressure.
Why Choose the DPI 104 over an Analog Gauge?
-
Readability: No guessing between tick marks – exact digital readout.
-
Reliability: No mechanical linkage to wear, stick, or corrode.
-
Safety: No glass face to shatter under pressure.
-
Data Confidence: 0.05% accuracy vs. typical 1–2% for analog gauges.
