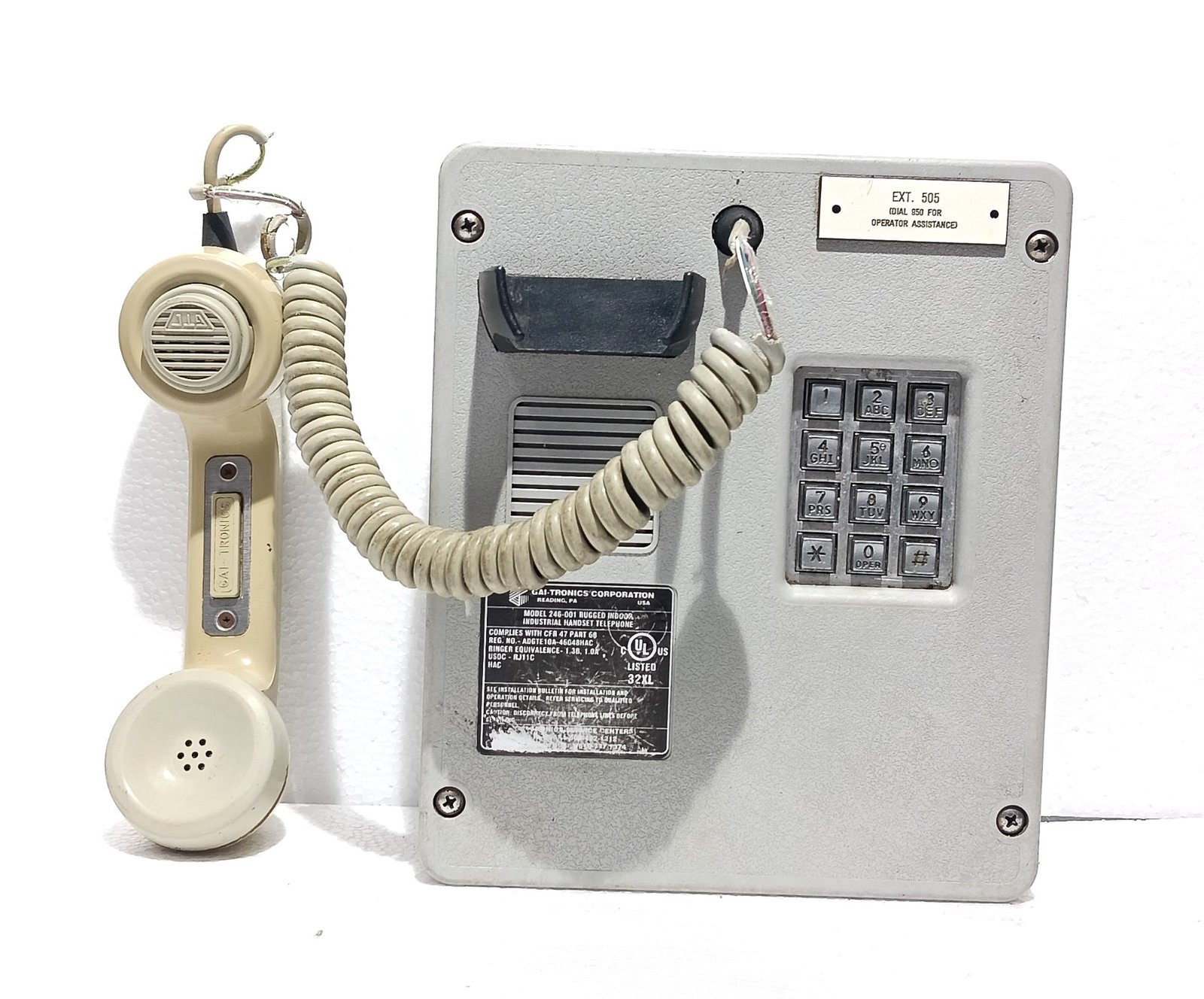

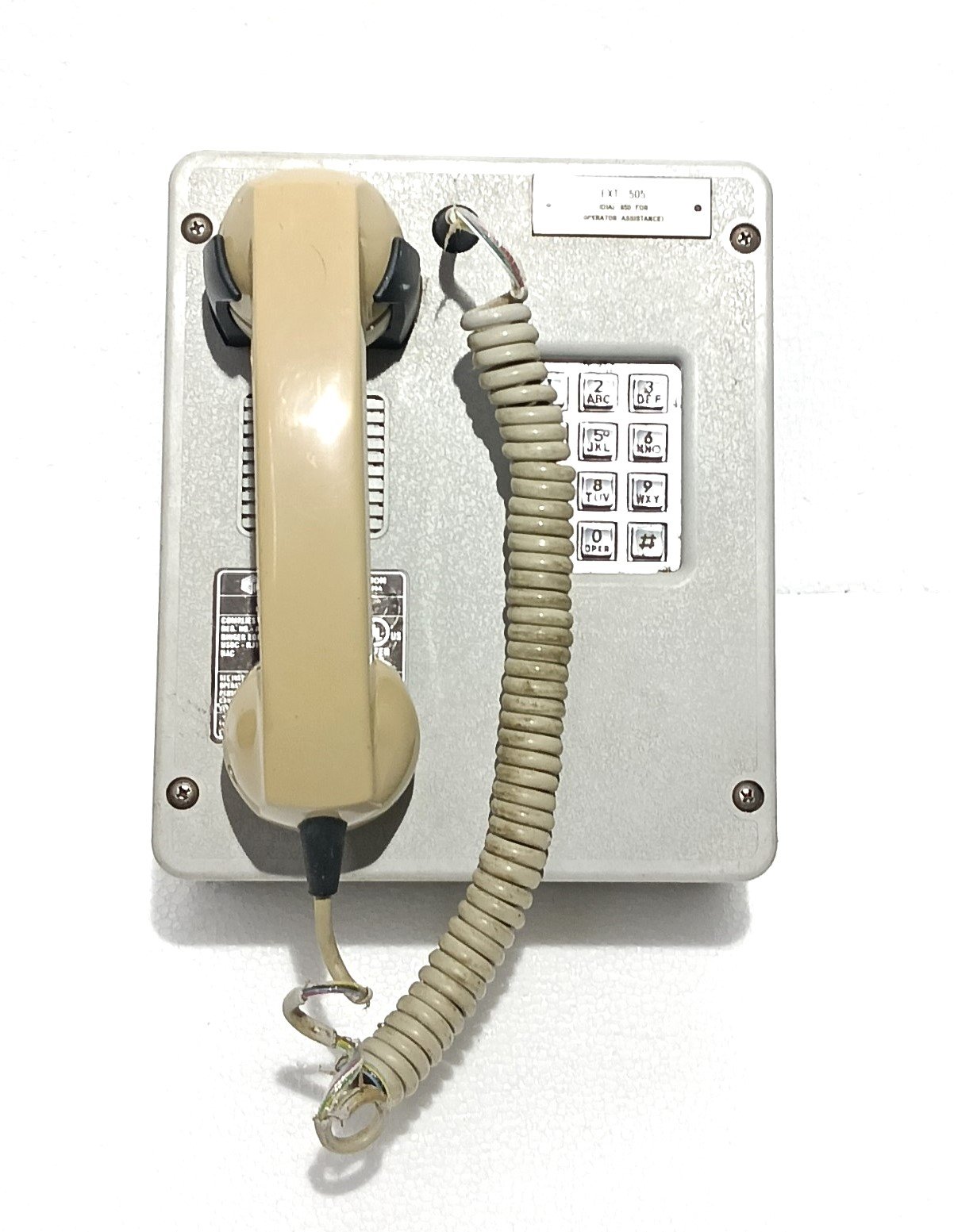

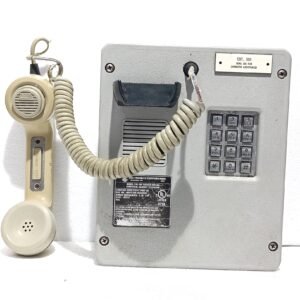

The GAI-TRONICS 246-001 is a premium analog industrial telephone designed to deliver reliable communication where standard telephones fail. Built for harsh indoor settings, this rugged handset telephone combines heavy-duty construction with advanced features to ensure clear, dependable performance in challenging conditions.

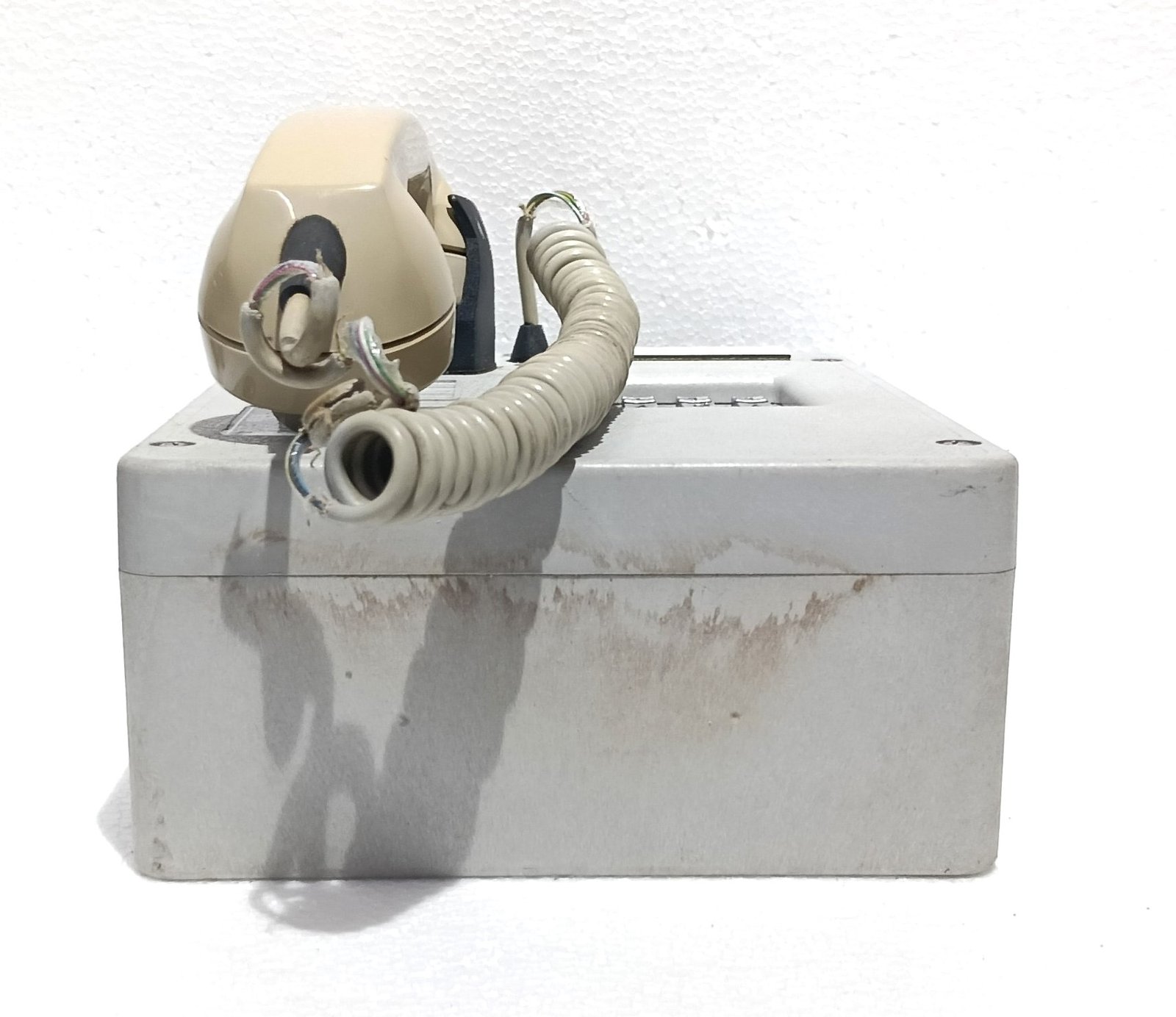

Constructed with a high-impact, glass-reinforced polyester (GRP) enclosure, the 246-001 offers superior durability and corrosion resistance . Its robust design makes it ideal for industrial facilities, manufacturing plants, warehouses, public areas, airports, parking garages, and other demanding locations requiring a dependable communication solution .
Key Features and Specifications
- Industrial-Grade Construction: High-impact, non-metallic anti-corrosive enclosure with NEMA 3R rating for indoor applications

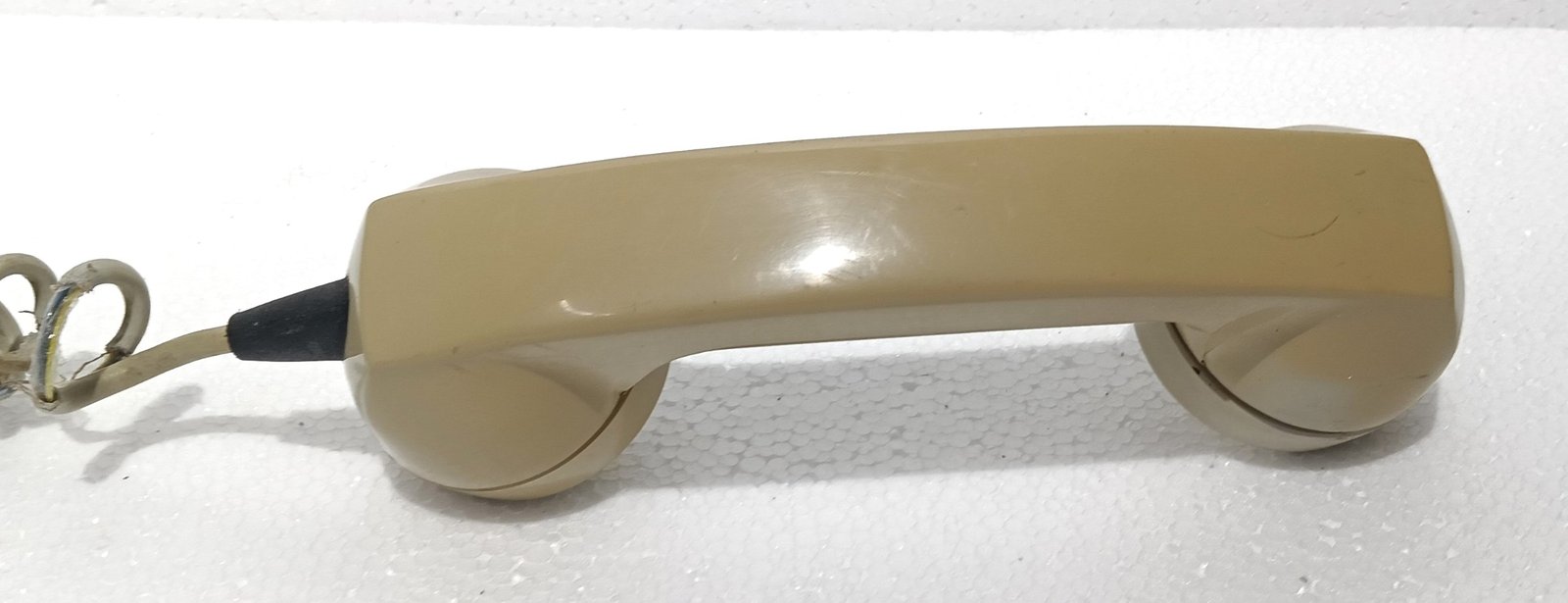

- Rugged Hytrel Handset Cord: Industrial-strength 6-foot cord resists up to 250 pounds of pull-strength and remains flexible in extreme temperatures
- Extreme Temperature Range: Operates reliably from -40°C to +60°C (-40°F to +140°F), ensuring functionality in varied indoor conditions
- Advanced Audio Technology: Volume control handset with noise-canceling microphone for clear communication in noisy industrial environments
- Sealed Metallic Braille Keypad: Durable, contaminant-resistant keypad with Braille labeling for accessibility
- Non-Movable Hookswitch: Proximity-sensing design with no moving parts for enhanced reliability and vandal resistance
- Line-Powered Operation: Fully powered by the telephone line (24-60 VDC), requiring no external power source or batteries
- Hearing Aid Compatible (HAC): Built-in compatibility for use with hearing aids
- UL/CSA 60950 Listed: Certified for telecommunications equipment safety with FCC registration and IC certification
Detailed Specifications
| Specification | Details |
|---|---|
| Model Number | 246-001 |
| Product Type | Indoor Rugged Industrial Telephone |
| Technology | Analog, DTMF Signaling |
| Line Power | 24-60 VDC, 20-60mA (Line Powered) |
| Enclosure Material | High-impact, Glass-Reinforced Polyester |
| Dimensions | 6.9″ D x 8″ W x 9.5″ H |
| Weight | 6.0 lbs (2.72 kg) |
| Handset Cord | 6-ft Hytrel® Coil Cord (Extended) |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Relative Humidity | Up to 95%, non-condensing |
| Ringer Output | 92 dBA @ 2 ft. |
| Certifications | UL/CSA 60950, FCC Registered, IC Certified |
| Network Connection | USOC RJ11 |
| Color | Gray |
| Mounting | Surface Mount |
Applications and Use Cases
The GAI-TRONICS 246-001 excels in diverse indoor environments where reliable communication is essential:
- Industrial Facilities: Manufacturing plants, production floors, and processing facilities where standard phones cannot withstand the environment
- Public Areas: Airports, train stations, college campuses, and commercial locations requiring durable public-use telephones
- Commercial Buildings: Warehouses, parking garages, and facility entrances with demanding usage requirements
- Harsh Environments: Locations with extreme temperatures, dust, moisture, or potential physical impact
