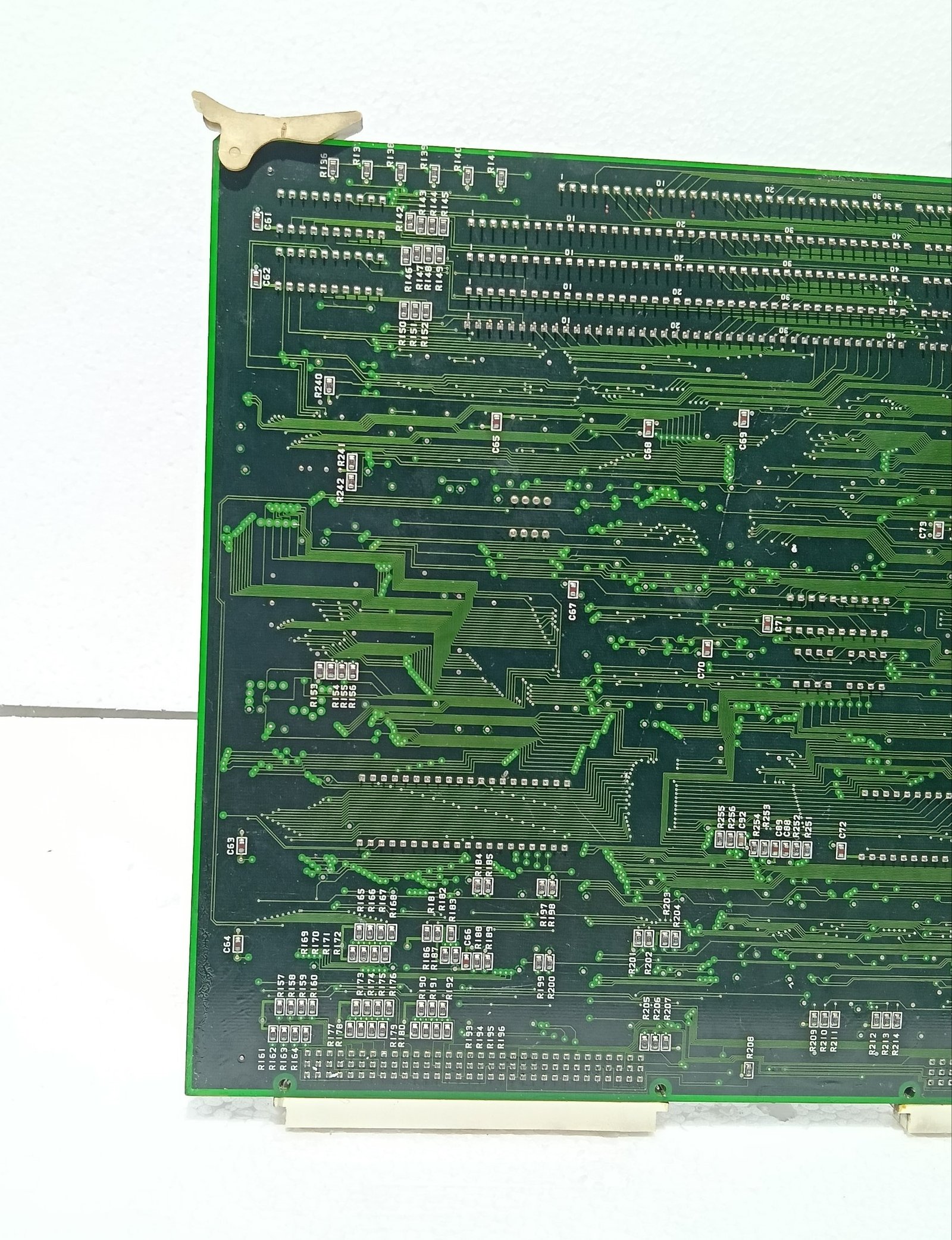

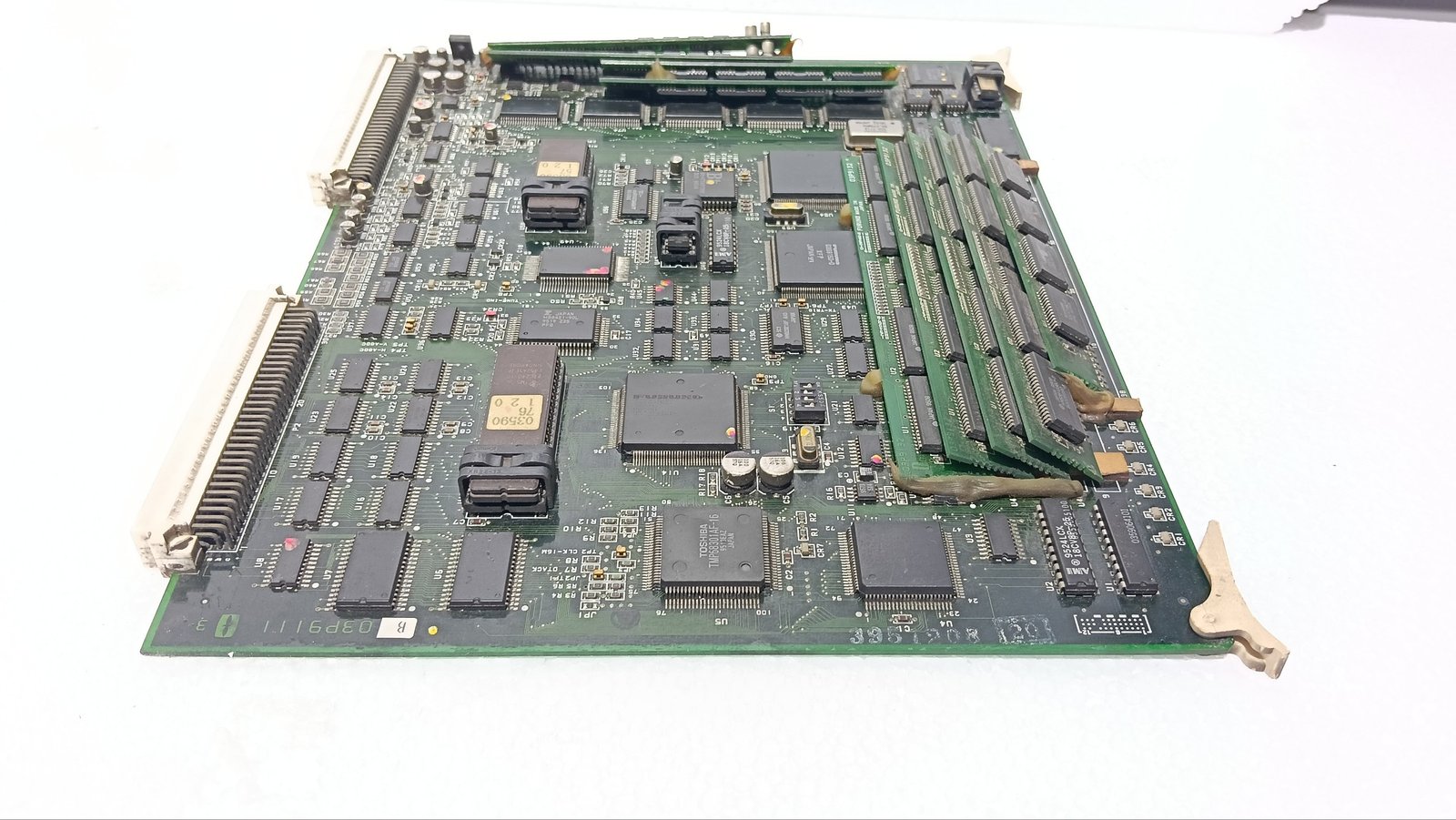

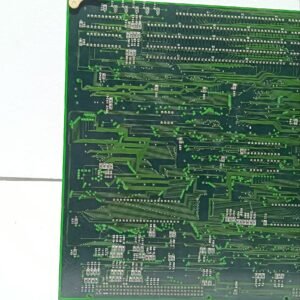

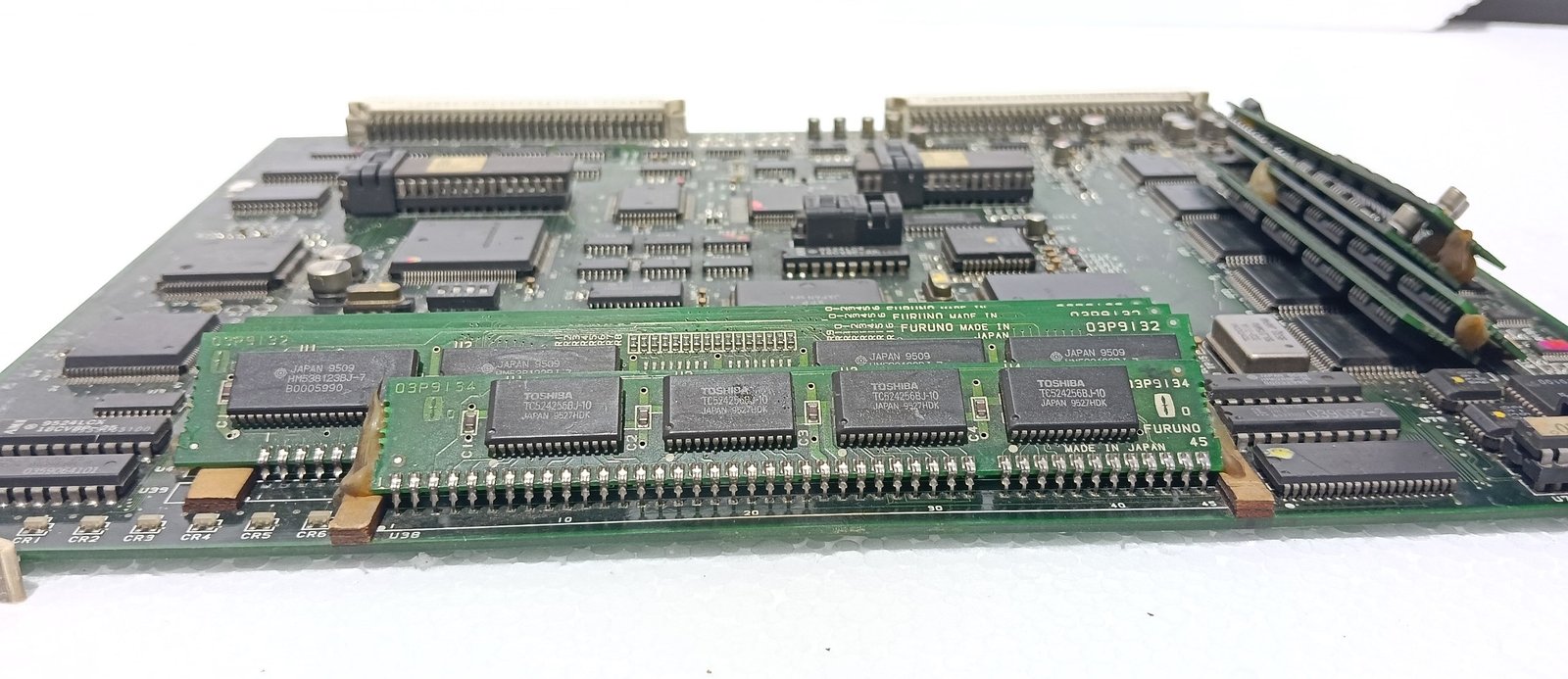

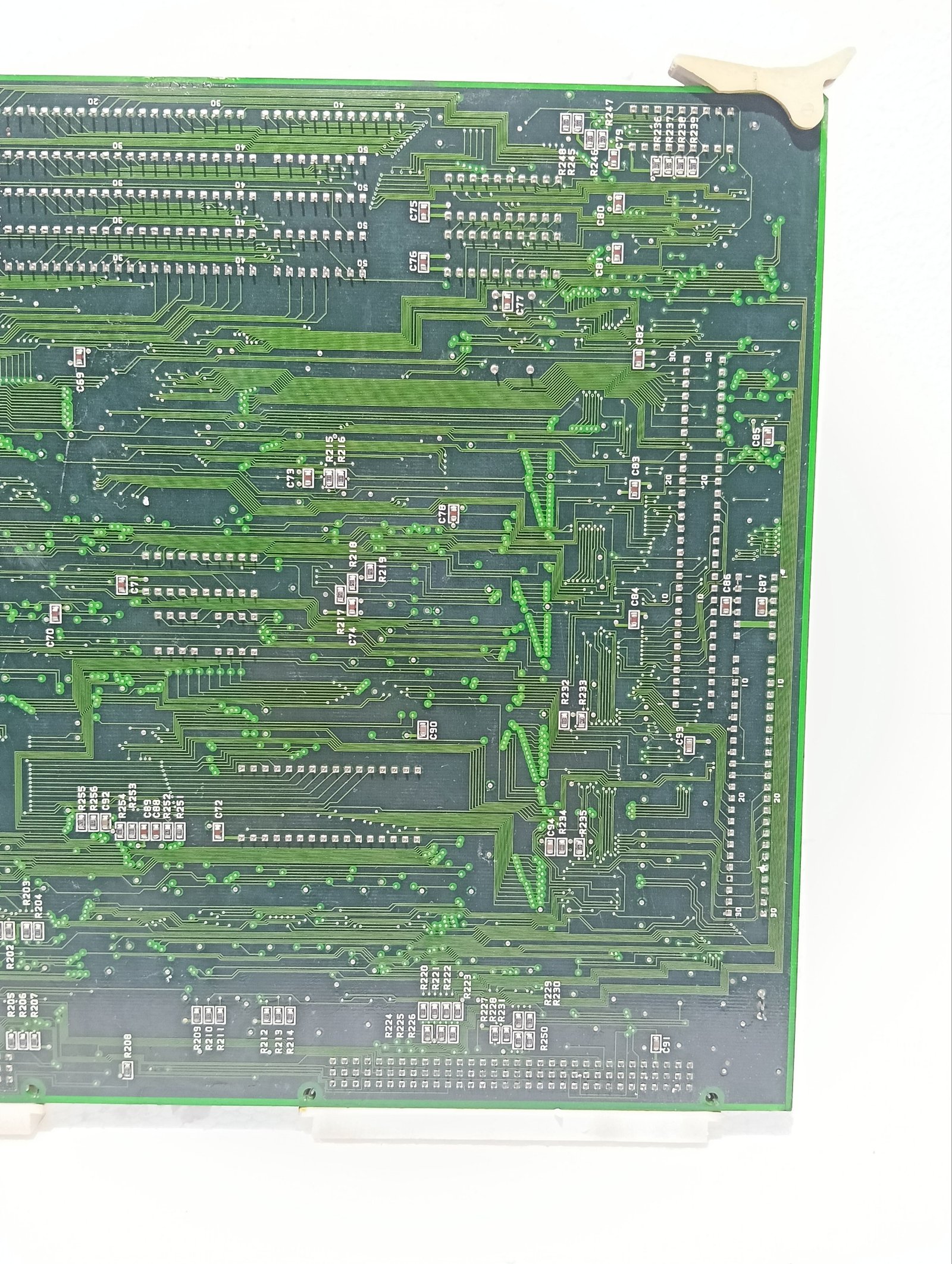

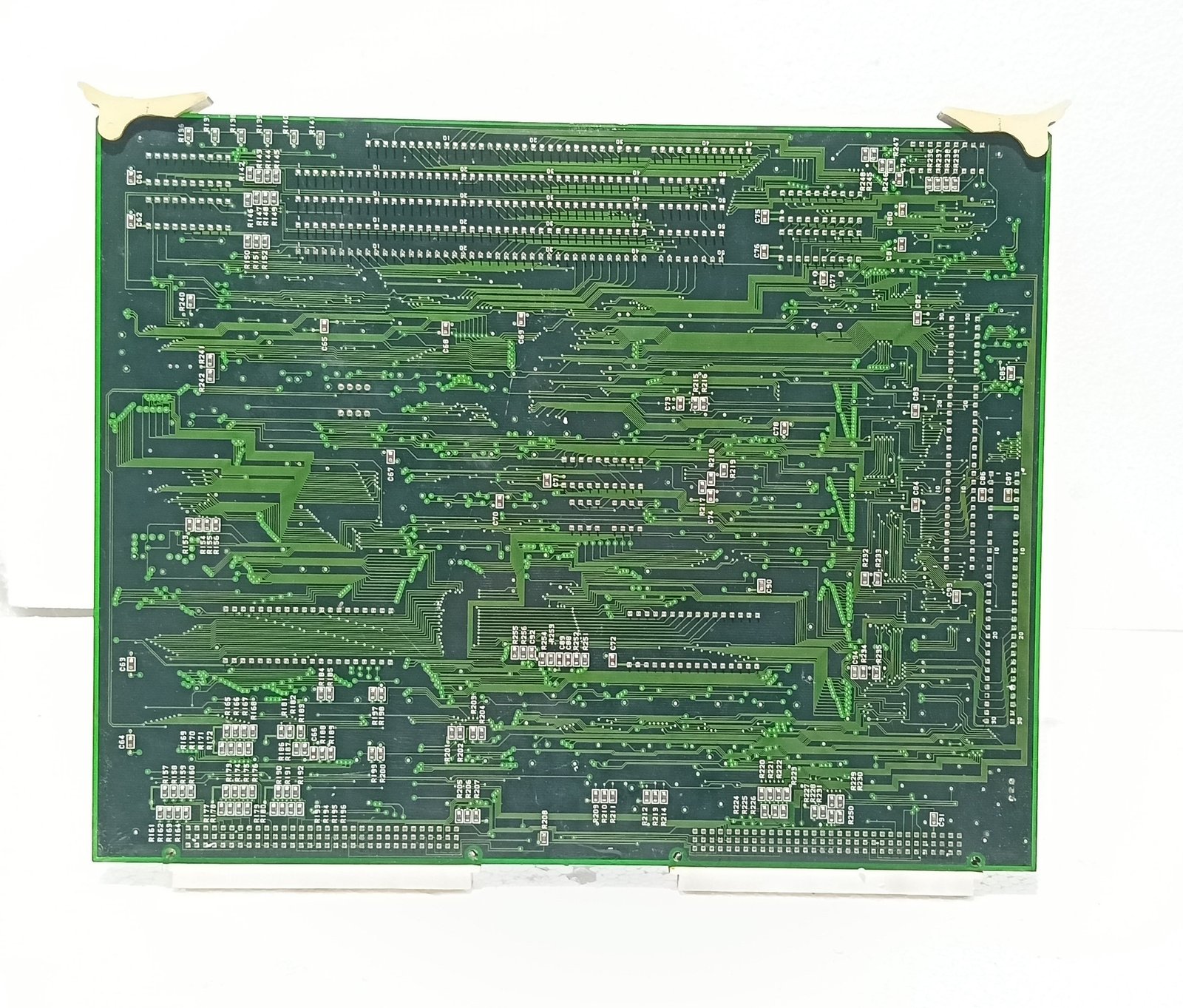

The FURUNO 03P9111-3 is a high-quality printed circuit board assembly, featuring the XR2Z-13 connector. This board is engineered for reliable performance in demanding electronic applications, particularly where stable connections are critical.
Key Feature: The XR2Z-13 Board-to-Board Connector
At the heart of this PCB is the XR2Z-13 connector, a board-to-board interface designed for exceptional durability. Its key attributes include:
-
Superior Contact Reliability: Utilizes a round pin-type contact with a 4-point contact construction to ensure excellent retention and a secure connection, even in environments with vibration and shock .
-
Power Failure Resistance: Engineered to be resistant to power flickers and temporary power failures, contributing to system stability .
-
High Heat Resistance: Suitable for applications where the connector is frequently plugged and unplugged or where operating temperatures are elevated .
-
Ideal for High-Speed Data: The robust design makes it ideal for use in high-speed data processing circuits .
-
UL Certified: Conforms to UL standards (File No. E103202), ensuring compliance with recognized safety requirements .
Technical Specifications :
-
Connector Type: Board-to-Board, Male Plug .
-
Application: For PCB .
-
Rated Current: 1 A .
-
Rated Voltage: AC300 V .
-
Withstanding Voltage: AC1000 V for 1 minute (max leakage current 1 mA or less) .
-
Connection Method: Solder .
-
Contact Plating: Options include Nickel base with Gold plating .
-
Mounting Method: Circuit board hole insertion .
Applications
The FURUNO 03P9111-3 is built for use in systems requiring high reliability and is well-suited for applications in:
-
High-speed data processing equipment .
-
Industrial controls and instrumentation.
-
Telecommunications and networking hardware.
-
Marine and navigation electronics (consistent with FURUNO’s product line).
