FIRE-LITE ALARMS HONEYWELL 41D2 FIRE ALARM ANNUNCIATOR 537BB-A LCD-80F

The Fire-Lite Alarms Honeywell LCD-80F is a compact, backlit 80-character liquid crystal display (LCD) remote fire annunciator designed to provide clear and comprehensive system status information for compatible Fire Alarm Control Panels (FACPs) . This annunciator mimics the display of the host control panel, offering a full point-display capacity that requires no on-site programming for immediate operation .

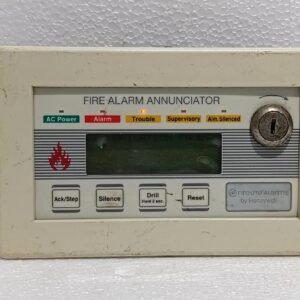

The LCD-80F displays critical system information, including device type identifiers, individual point alarm, trouble, or supervisory status, zone information, custom alpha labels, and a time-and-date display field . Its 20-character by 4-line backlit screen ensures high visibility under both normal and alarm conditions . The unit is also equipped with system status LEDs for AC Power (green), Alarm (red), Trouble (yellow), Supervisory (yellow), and Alarm Silenced (yellow) for at-a-glance system awareness .

Key Features & Benefits:

• Remote System Control: Features control switches for System Acknowledge, Signal Silence, Drill, and Reset, providing complete remote command capabilities. An integrated enable/disable keyswitch prevents unauthorized operation of these critical functions .

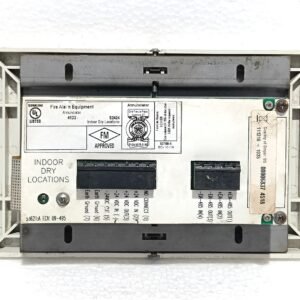

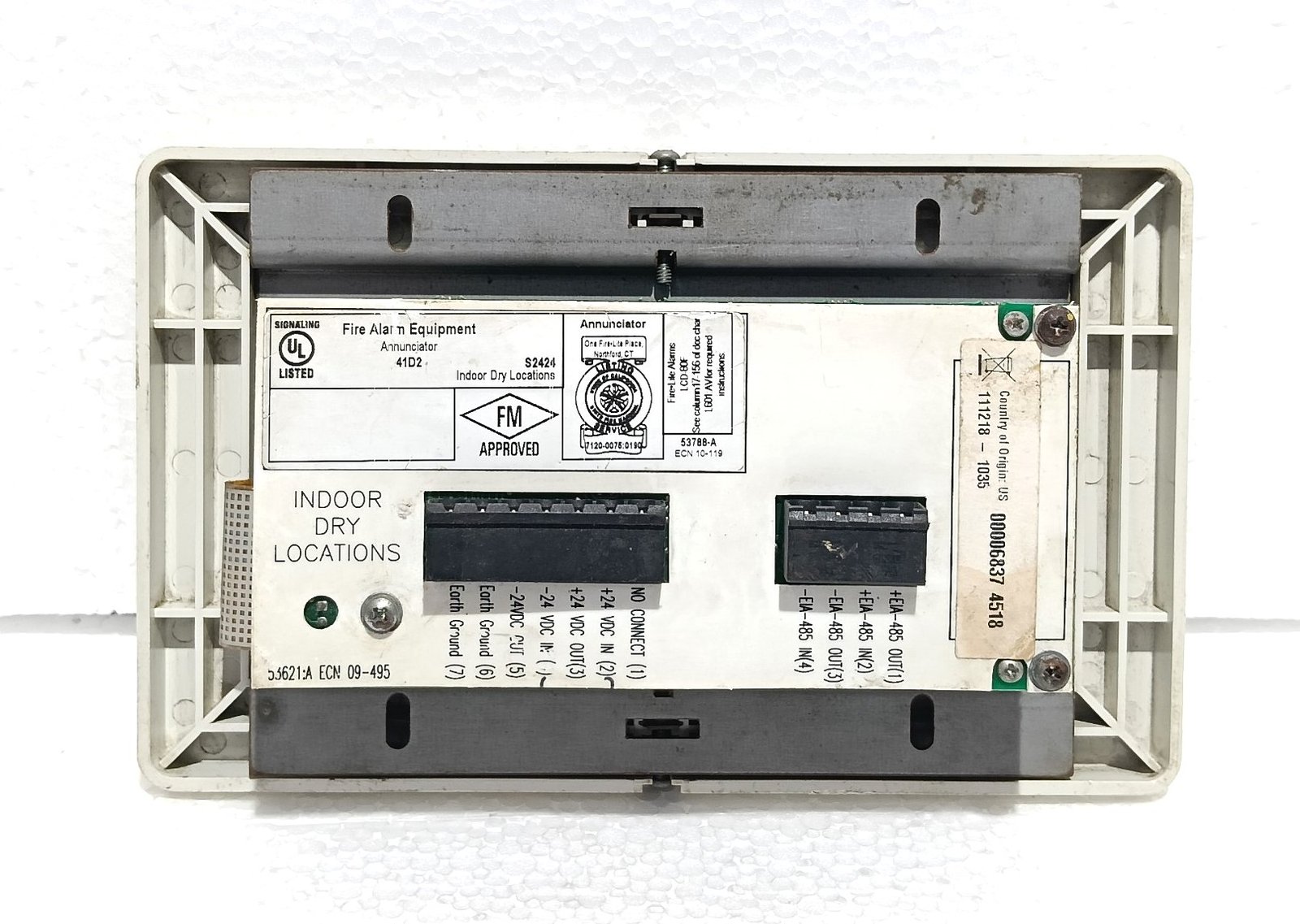

• Simple Installation & Configuration: No programming is required for the annunciator to display panel information. It connects easily to the FACP’s terminal port (TB7) via plug-in terminal blocks and is powered by the host panel or a remote 24 VDC power supply .

• Extensive System Integration: Supports the connection of up to 32 LCD-80F annunciators per FACP. The unit can be remotely located up to 6,000 feet (1,828.8 meters) from the control panel .

• Robust & Aesthetic Design: Offers a sleek, aesthetically pleasing design and includes a local piezo sounder that provides audible resound for alarm and trouble conditions .

• Flexible Mounting Options: Can be semi-flush mounted to a three-gang electrical box (minimum depth 2.188 inches) or surface-mounted using a Fire-Lite SBB-3 surface backbox .

• Power-Saving Backlight: The backlight automatically turns off during AC power loss to conserve battery power, but will reactivate if an alarm condition occurs .

Product Specifications:

• Manufacturer: Fire-Lite Alarms (Honeywell)

• Model: LCD-80F

• Display: 80-character Liquid Crystal Display (20 characters x 4 lines), Backlit

• Control Switches: Acknowledge/Step, Signal Silence, Drill, System Reset

• Status LEDs: AC Power, Alarm, Trouble, Supervisory, Alarm Silenced

• Mounting: Semi-flush (3-gang box) or Surface (SBB-3 backbox)

• Maximum Distance from FACP: 6,000 feet (1,828.8 m)

• Maximum per FACP: 32 annunciators
