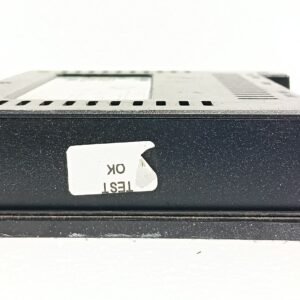

The EXOR ESMA07MU301 eSMART07M is a high-performance 7-inch HMI (Human-Machine Interface) touchscreen operator interface designed for demanding industrial automation and IoT applications. Powered by a 1 GHz ARM Cortex-A8 processor and running the JMobile runtime environment on a Linux RT operating system, this device provides a powerful and responsive platform for machine control and data visualization .
This operator interface is a “stripped-down” product in the best sense, focusing on essential, high-level functionality without compromising on durability or design. Its robust, elegant plastic housing maintains an IP66 protection rating on the front, making it suitable for harsh and hazardous environments. It holds critical certifications including cULus (UL508, Class 1 Div 2), ATEX Zone 2, and DNV-GL .
Key Features & Specifications
-

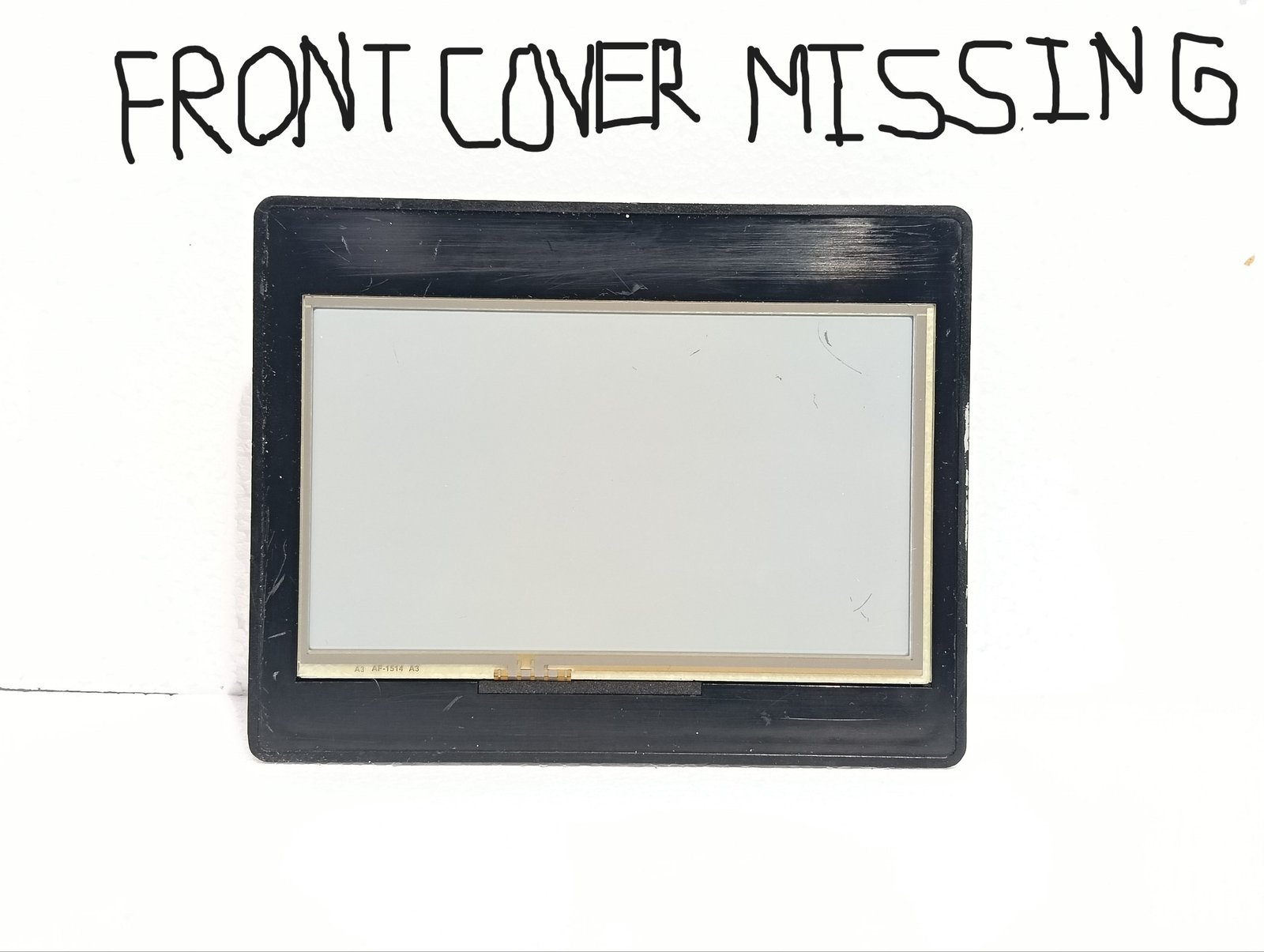

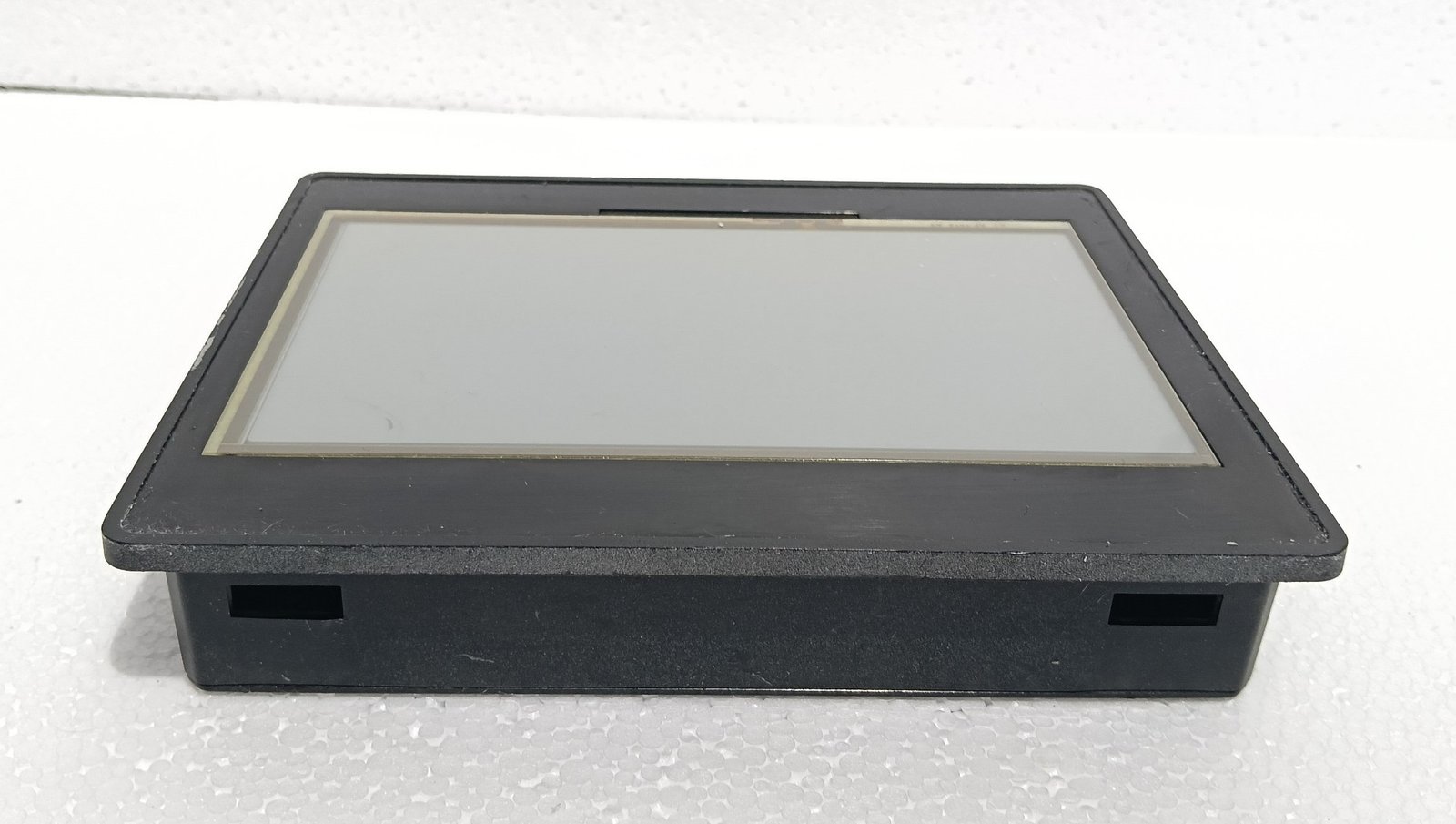

7″ Widescreen Display: Features a 7-inch TFT color display with a 16:9 aspect ratio and a resolution of 800×480 pixels (WVGA) . The LED backlight delivers a brightness of 200 cd/m² and includes a dimming function for flexible lighting conditions .
-
Intuitive Touchscreen: Equipped with a durable resistive touchscreen, ideal for use with gloved hands in industrial settings . The interface also allows for touchscreen calibration to ensure accuracy .
-
High-Performance Hardware: Powered by a 32-bit RISC single-core CPU at 1 GHz, with 512 MB of RAM and 4 GB of Flash memory to handle complex applications and data logging .
-
Software & Protocol Support: Runs on JMobile, EXOR’s powerful software platform, which offers an extensive library of industrial communication protocols and supports OPC UA (server and client) . This makes it an excellent gateway for bridging legacy systems with IIoT platforms for Industry 4.0 readiness .
-
Robust & Certified: Features an IP66 front / IP20 rear protection rating . It has received critical industry approvals, including cULus (UL508, Class 1 Div 2), ATEX (Zone 2), and DNV-GL, making it suitable for a wide range of environments .
Technical Specifications
| Specification | Detail |
|---|---|
| Part Number | ESMA07MU301 |
| Display | 7″ TFT Color (64K Colors), 800×480 WVGA |
| Touchscreen | Resistive |
| CPU | 32-bit RISC, 1 GHz |
| Memory | 512 MB RAM / 4 GB Flash |
| Operating System | Linux RT 3.12 |

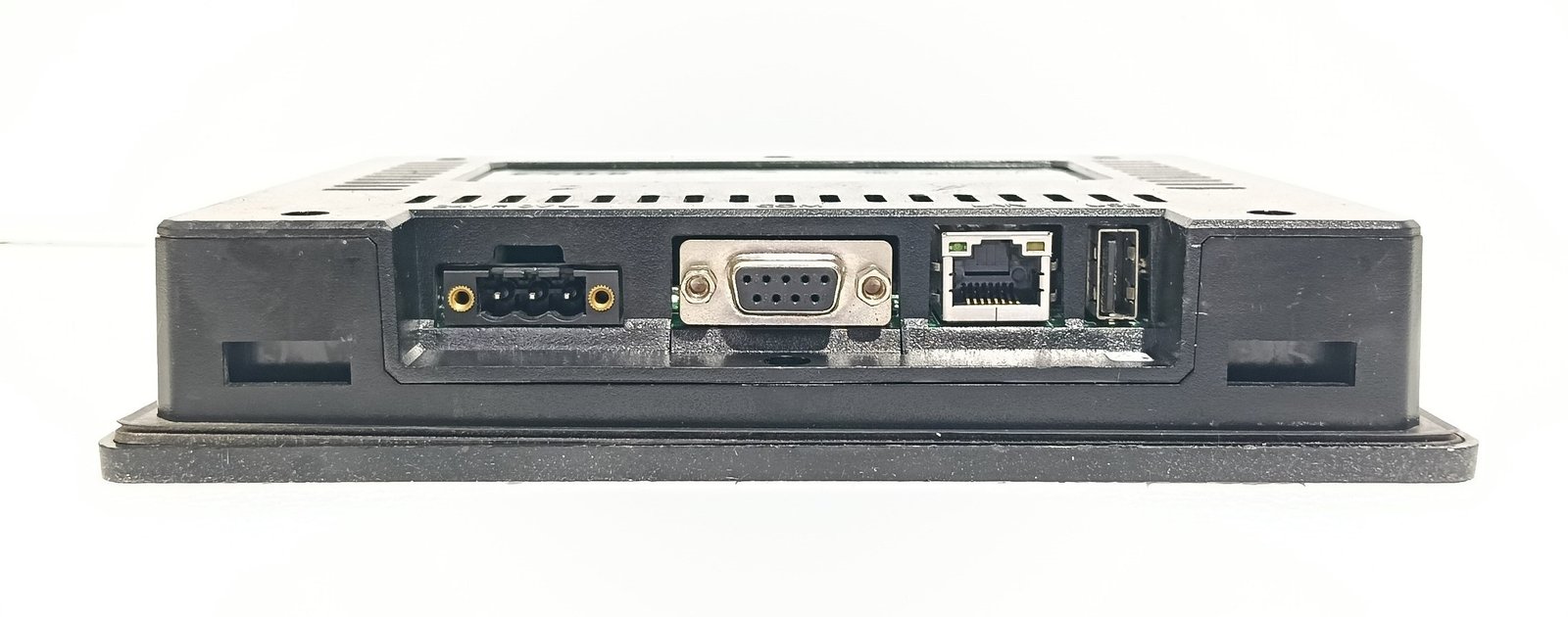

| Ethernet Ports | 1 x 10/100 Mbit |
| Serial Ports | 1 x RS-232/RS-485/RS-422 (Software Configurable) |
| USB Ports | 1 x Host V2.0 (Max 500mA) |
| Power Supply | 24 Vdc (Range: 10 to 32 Vdc) |
| Current Consumption | 0.3 A @ 24 Vdc (Max) |
| RTC | Yes (Supercapacitor Backup) |
| Protection Rating | IP66 (Front) / IP20 (Rear) |

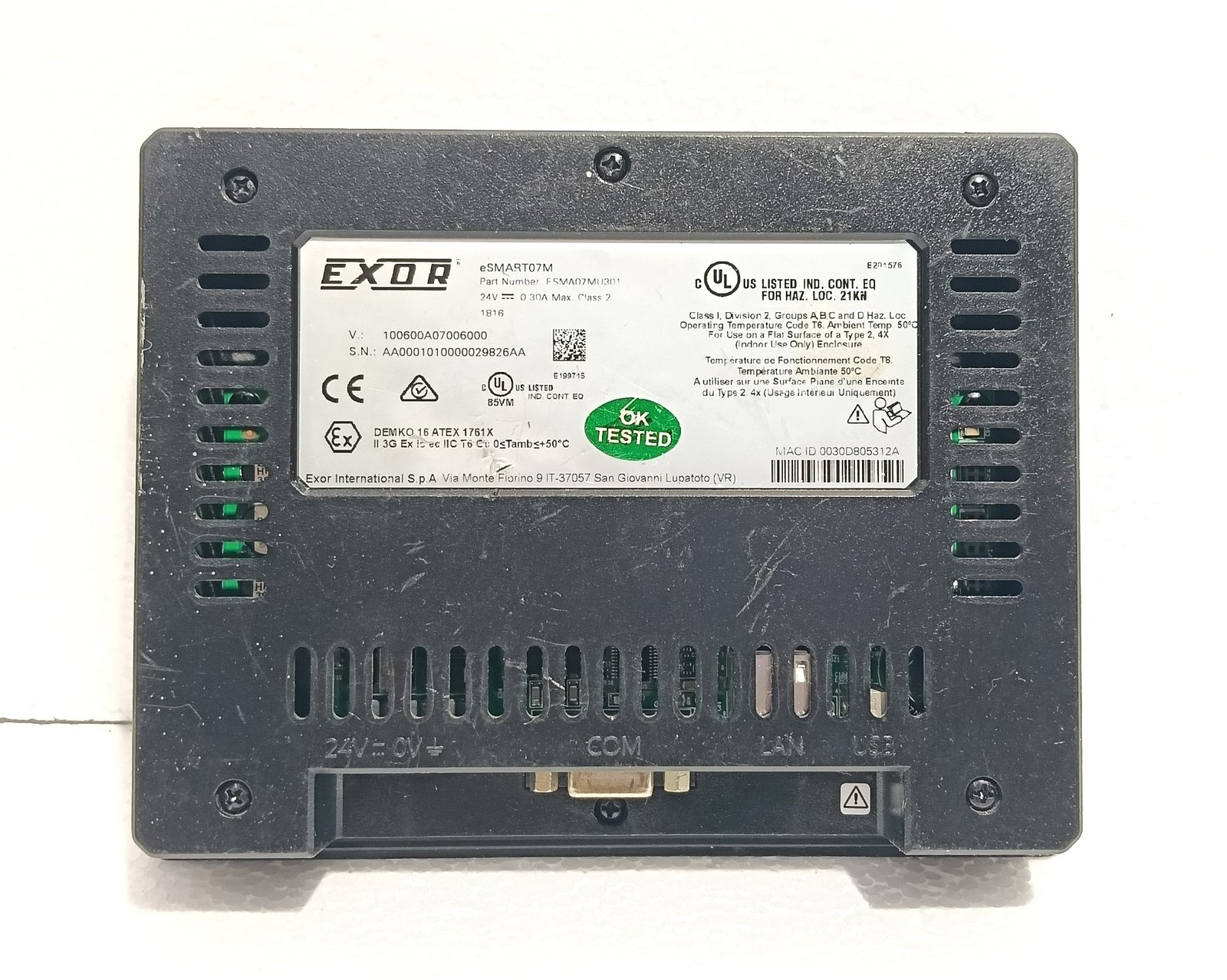

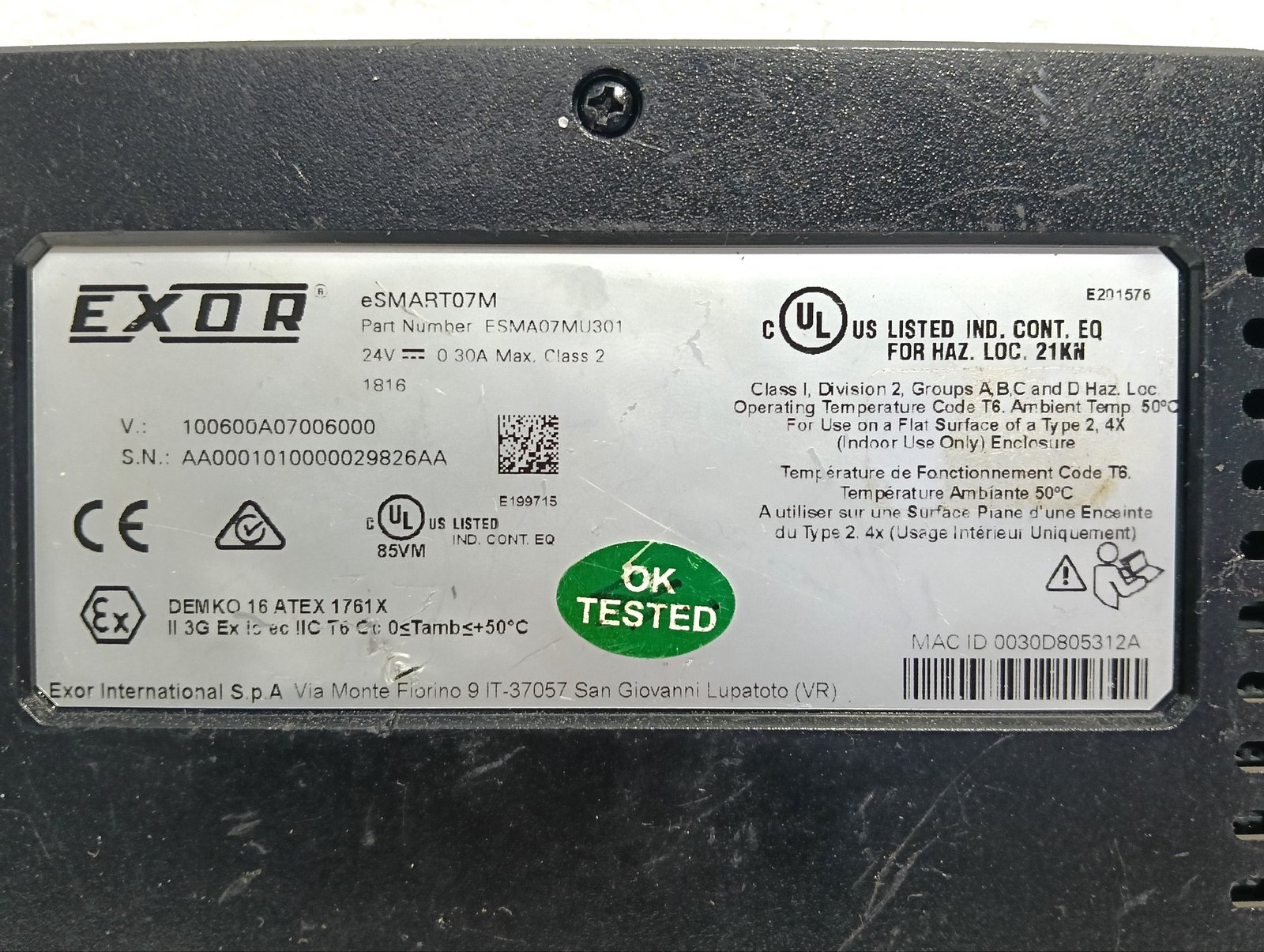

| Approvals | CE, cULus (UL508, Class 1 Div 2), ATEX Zone 2, DNV-GL |
| Operating Temp | 0 to 50°C |
| Dimensions (W x H x D) | 187 x 147 x 34 mm |
| Weight | Approx. 0.6 Kg |
Product Applications
-
Industrial Automation: Machine control, process monitoring, and data visualization on the factory floor .
-
Smart Factories (IIoT): Acts as a gateway, facilitating communication between legacy systems and modern IIoT platforms .
-
Hazardous Environments: Suitable for use in ATEX Zone 2 and Class 1 Div 2 locations thanks to its robust design and certifications .
-
Marine Applications: Its DNV-GL approval validates its use in demanding marine environments
