Description

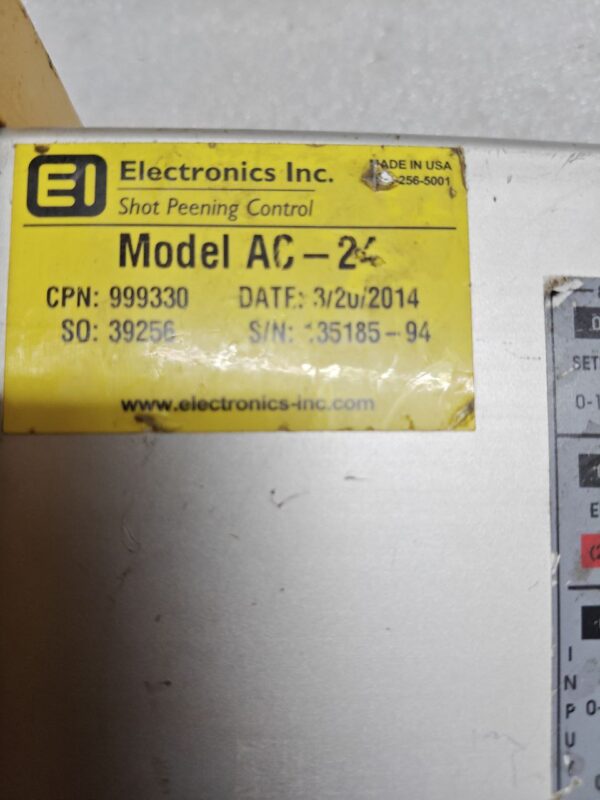

Electronics Inc AC-24 Amperage Controller CPN 999330 SO 39256 S/N 3504

• Monitors motor current
• Four-digit display
• 10 LED bar graph
• High-low alarm contacts
• Accepts remote command setpoint
• Provides analog recorder output
• Easy panel mounting (1/2 DIN)
• Provides automatic operation (closed-loop system) for the LP-24, VLP-24 and WM 3000-24 MagnaValve
• 24 Vdc
• CE compliant

The AC-24 Controller provides automatic operation ( a closed-loop system) for the MagnaValve. The feedback from the controller allows the MagnaValve to regulate steel shot in shot peening and blast cleaning applications where accurate and repeatable flow rates are desired. The controller may operate as a stand-alone control or work with a customer’s programmable controller via standard analog 0-10 Vdc interface.
