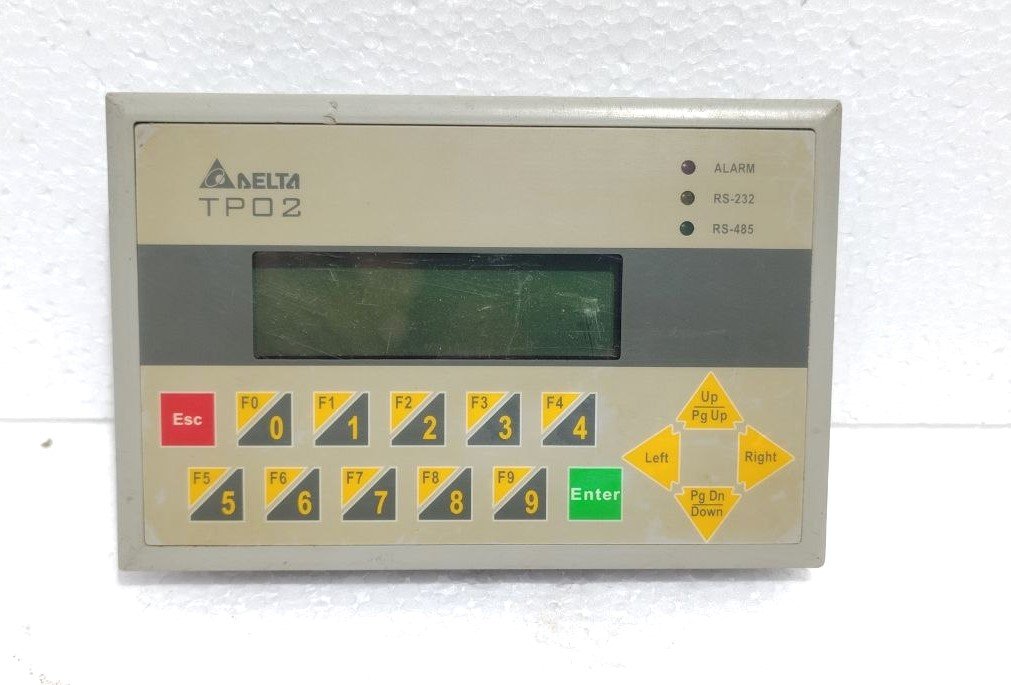

DELTA TP02G-AS1 TERMINAL PANEL TP02GAS1W9470249 24VDC 3W V2.00A0 TYPE 4

The Delta TP02G-AS1 is a cost-effective and lightweight text panel in Delta’s TP Series. It is designed to display two lines of text or messages simultaneously, providing a simple and intuitive interface for controlling machinery, POS systems, parking meters, and other industrial equipment . This model features a STN-LCD with a 160×32 pixel resolution, ensuring clear, legible text .

Key Features

• Simple 2-Line Display: Monochrome STN-LCD screen clearly displays text and operational messages .
• Versatile Communication: Equipped with both RS-232 and RS-485 ports, allowing flexible connection to PLCs, drives, and other automation devices .
• Rugged and Reliable: The front panel meets NEMA 4 / IP65 standards, making it resistant to water and dust for use in demanding industrial environments .
• Efficient Configuration: Features a slot for a program copy card, allowing for fast and easy duplication of settings without a PC. The unit is programmed via user-friendly TPEdit software .
• User-Friendly Control: Includes 16 multiple function keys and supports password protection for secure operation .

Detailed Specifications

• Model: TP02G-AS1
• Power Input: 24VDC, 3W
• Display: 2.8″ STN-LCD, 160×32 Dots
• Memory: 256KB Flash Memory
• Communication: RS-232 (COM1), RS-485 (COM2)
• Front Panel Rating: NEMA 4 / IP65
• Operating Temperature: 0 to 50°C
• Dimensions (WxHxD): 147x97x35.5mm

Applications:

The TP02G-AS1 is ideal for simple control and monitoring tasks, often used in conjunction with PLCs (Programmable Logic Controllers) and other industrial equipment. The 160×32 pixel screen can display two lines of text or messages simultaneously, and it supports multiple languages
