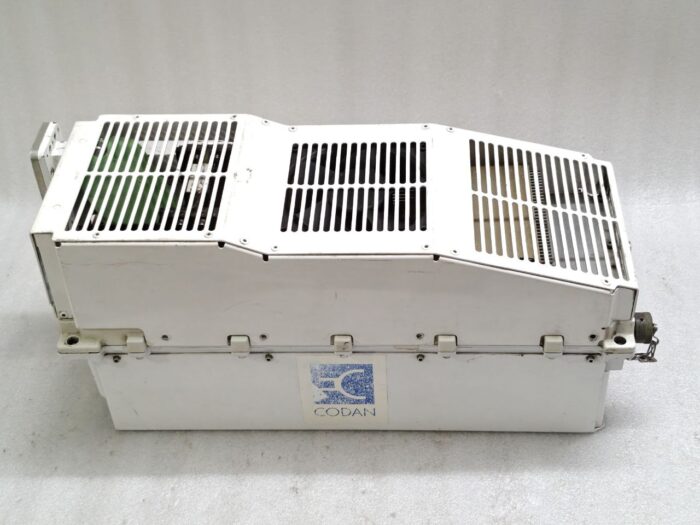

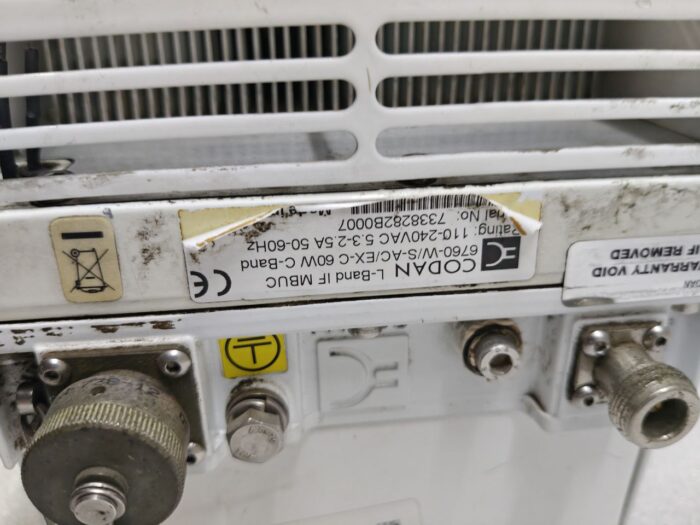

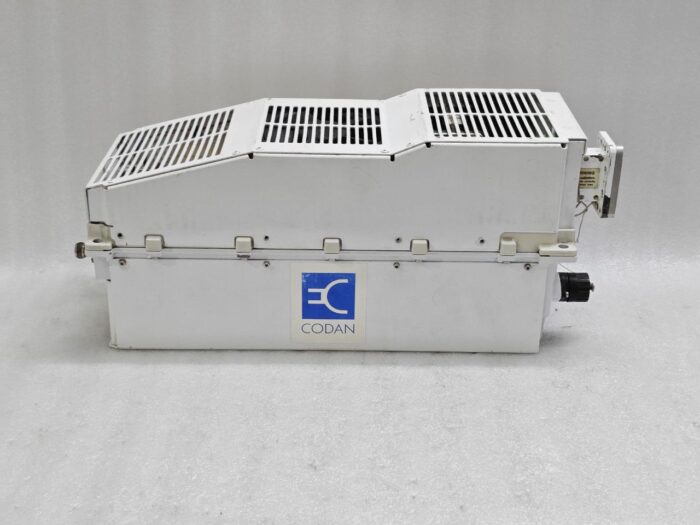

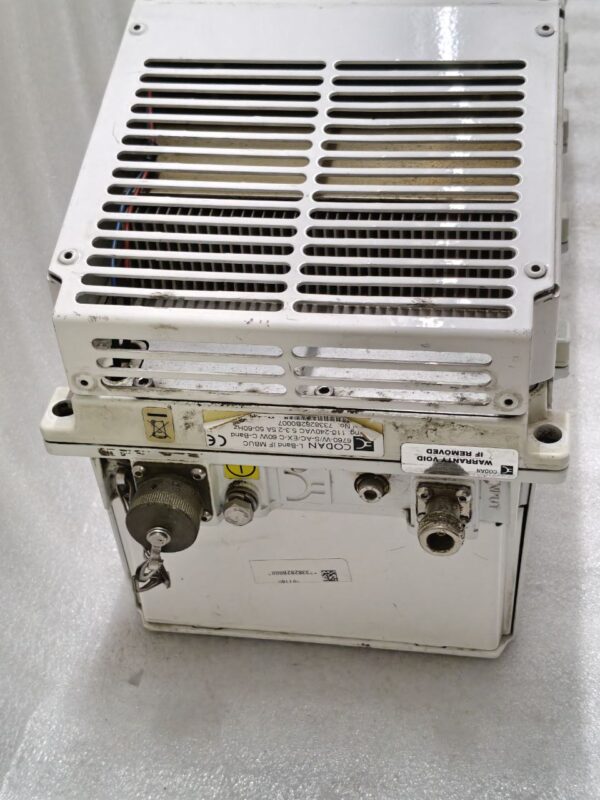

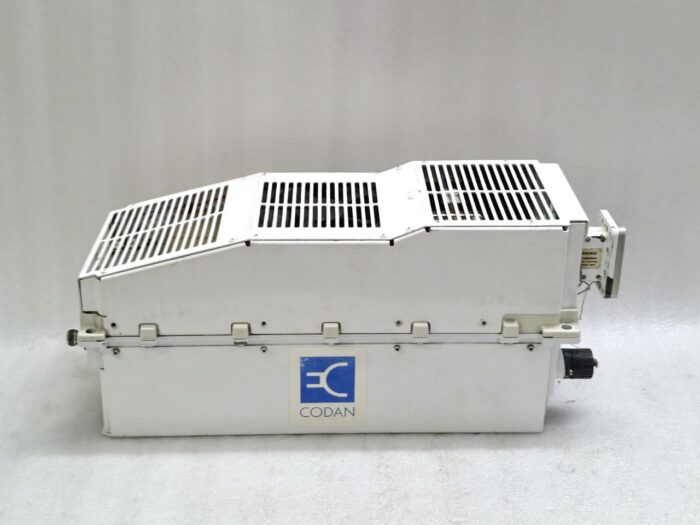

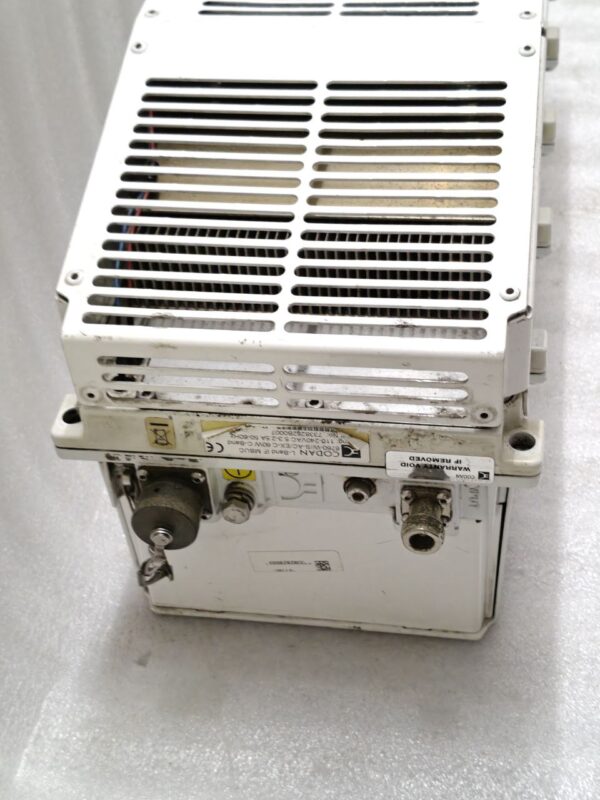

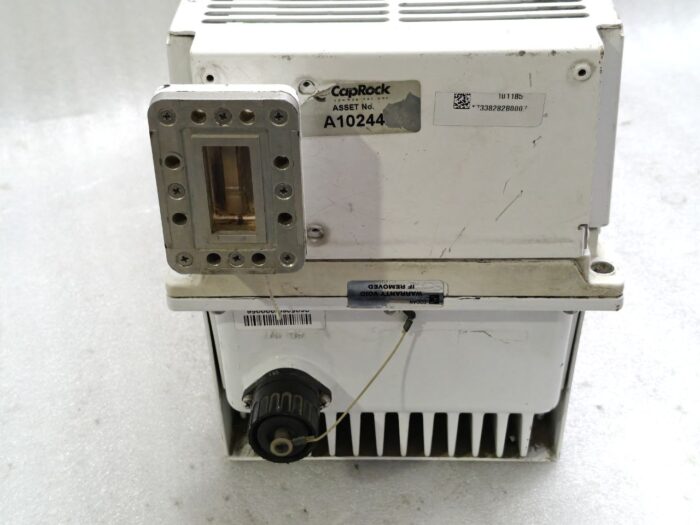

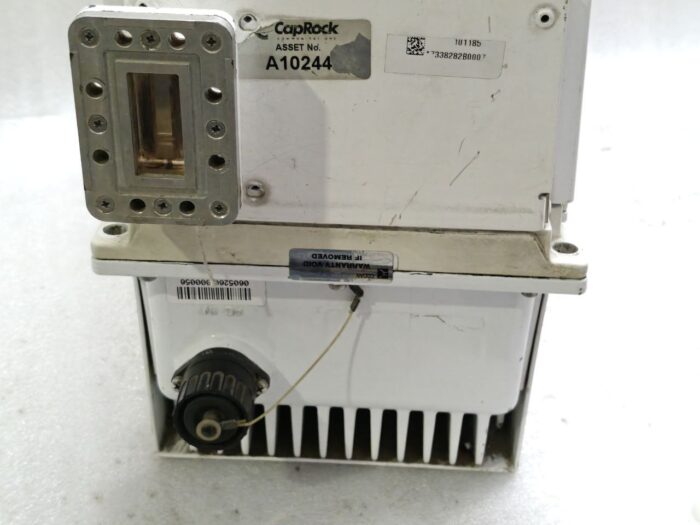

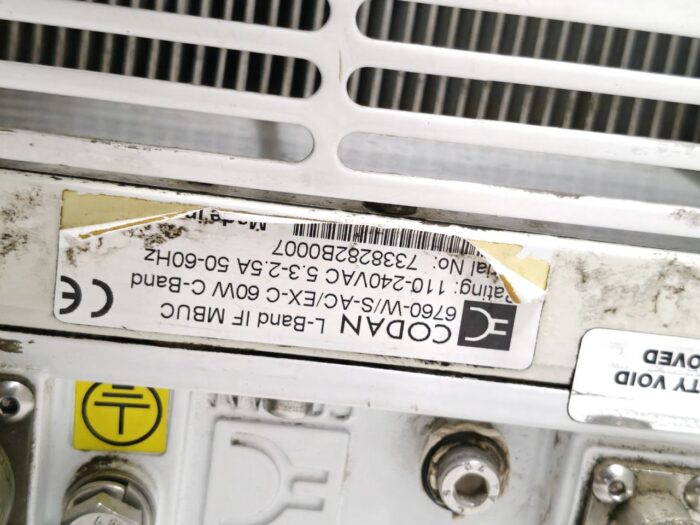

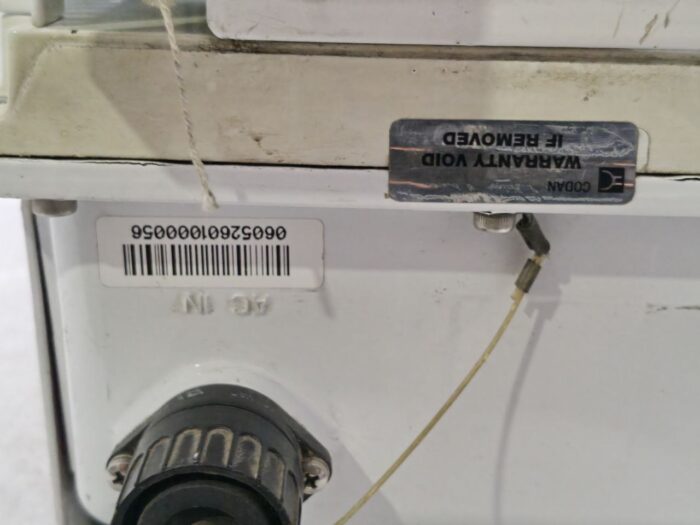

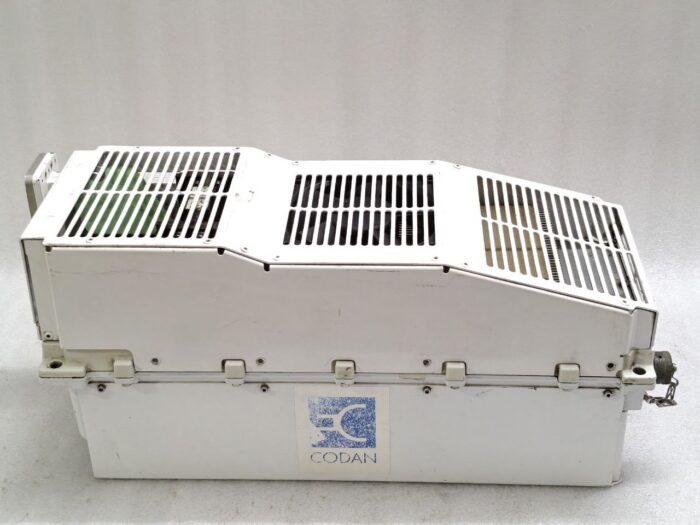

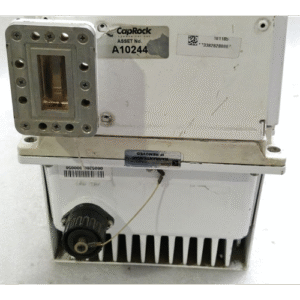

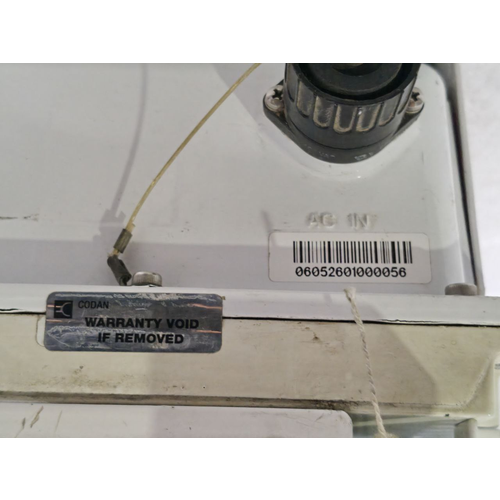

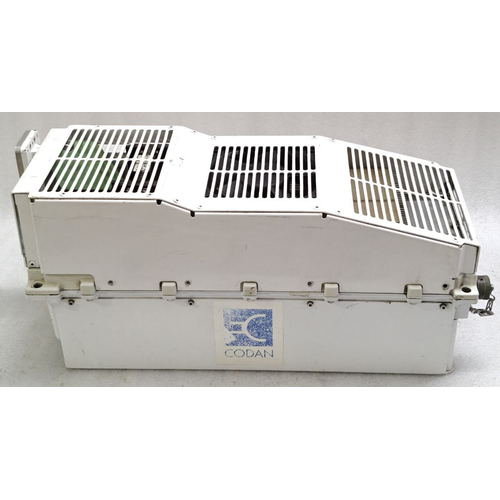

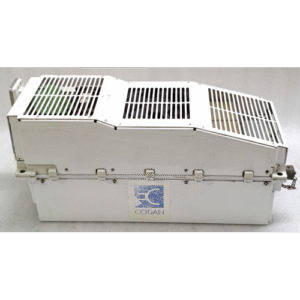

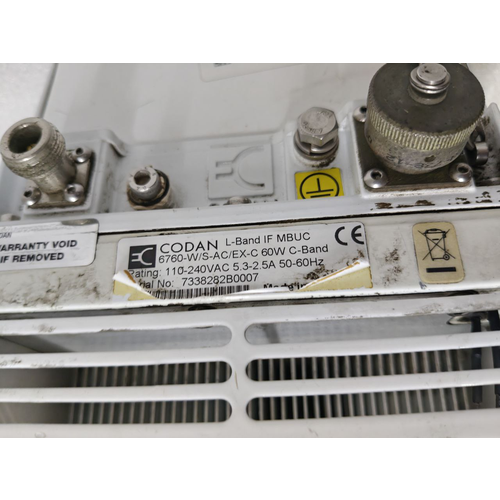

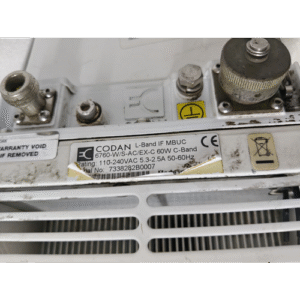

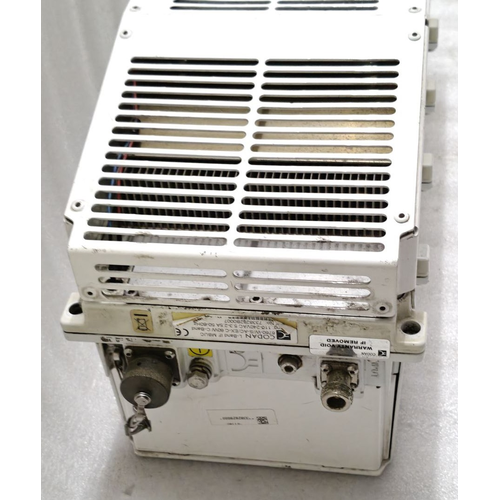

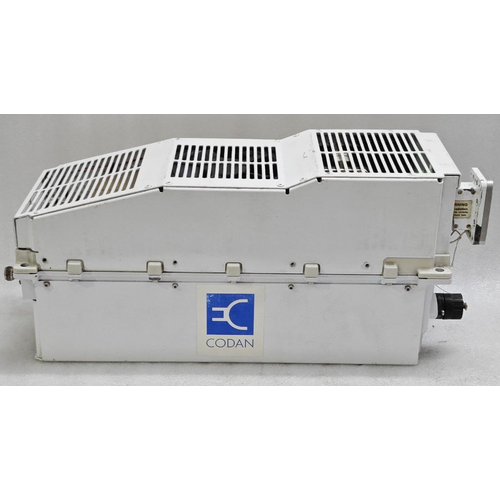

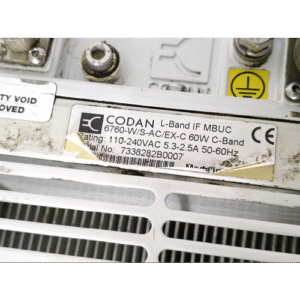

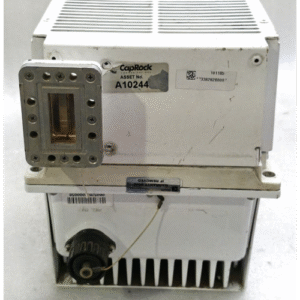

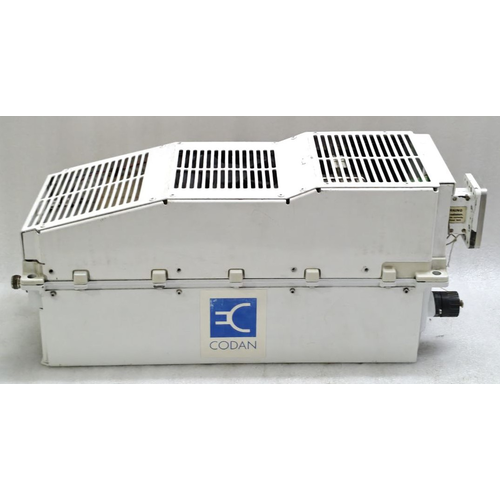

Codan 6760 W/S AC/EX C 60W L Band IF C Band MBUC. Made in Australia 16594-1

Overview
The Codan 6760 is a high-performance, C-Band Mast/Bulkhead Mounted Block Upconverter (MBUC) designed for robust satellite communications (Satcom) in fixed and transportable applications. As part of Codan’s renowned 6700 series, this unit is engineered in Australia for reliability in demanding environments, including remote areas, maritime applications, and mobile platforms.

Core Function
Its primary purpose is to take a low-frequency L-Band Intermediate Frequency (IF) signal from a satellite modem and convert it (“upconvert”) to a higher-power C-Band radio frequency (RF) signal suitable for transmission to a satellite via an antenna.

Key Features

• High Power Output: 60 Watts (typically ~47.8 dBm) of solid-state power amplifier (SSPA) performance, ensuring a strong, clear signal for reliable uplink.

• C-Band Transmission: Operates in the C-Band frequency range (e.g., 5.850 – 6.425 GHz), which is prized for its resilience to rain fade and adverse weather conditions, making it ideal for critical communications in tropical and rainy climates.

• L-Band IF Input: Accepts a standard L-Band input signal (e.g., 950 – 1450 MHz or 950 – 1750 MHz) from a wide range of satellite modems, ensuring broad compatibility.

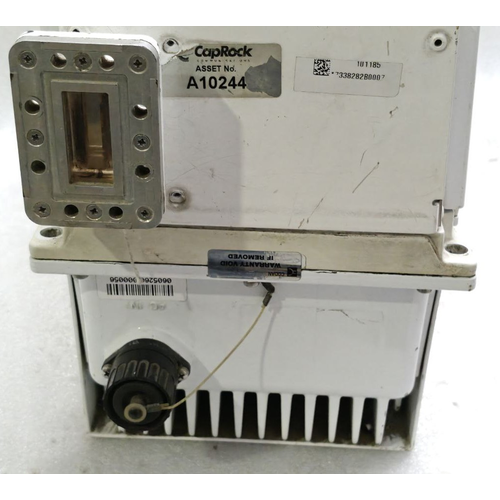

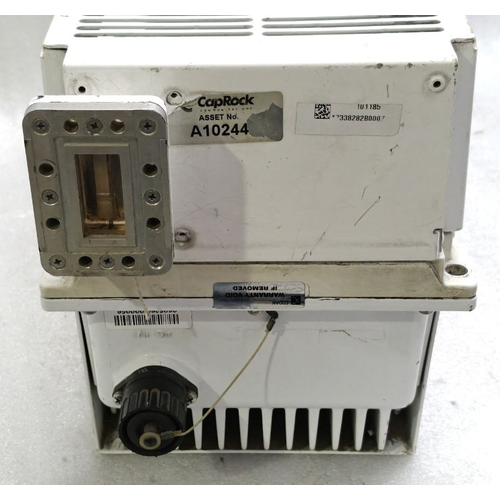

• Ruggedized Enclosure: The Mast/Bulkhead Mount (MBUC) design allows the unit to be installed directly on the antenna mast or a nearby bulkhead. This minimizes waveguide/cable losses between the amplifier and the antenna, optimizing system performance.

• Australian Made & Engineered: Manufactured by Codan in Australia, representing high-quality design, durability, and reliability, often meeting stringent military and government standards.

• WS ACEX Platform: Part of the advanced ACEX product line, which typically includes features like:

  • Remote Monitoring and Control (often via IP/USB).

  • Comprehensive built-in fault diagnostics and status reporting.

  • High efficiency for reduced power consumption.

  • Robust thermal management for operation in extreme temperatures.

Typical Applications

• Government & Defense: Secure, tactical, and strategic communications networks.

• Emergency Services & Disaster Recovery: Deployable communications for first responders.

• Maritime Communications (Satcom): On-board systems for ships and vessels.

• Remote Area Communications: Providing critical connectivity for mining, oil & gas, and remote enterprise operations.

• Broadcast & Media: Transportable systems for live news gathering and event broadcasting.

Technical Specifications (Representative)
