CLIPSAL C-BUS2 L5504RVF SERIES 4 CHANNEL VOLTAGE FREE RELAY 1034921 50-60HZ

Part Number: 1034921
Brand: Clipsal | Schneider Electric
Range: C-Bus

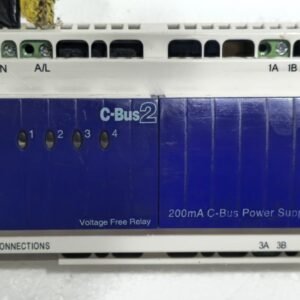

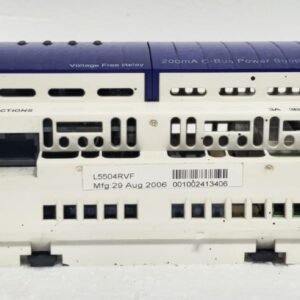

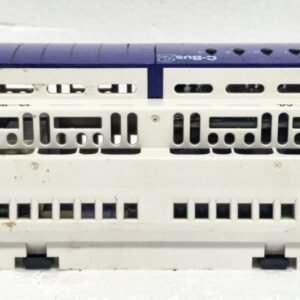

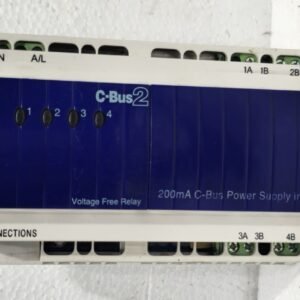

The Clipsal L5504RVF is a DIN rail mounted, 4-channel voltage free relay designed for the C-Bus smart home and building automation system. This unit combines load switching capabilities with an integrated 200mA C-Bus Power Supply, making it an essential component for establishing a reliable C-Bus network .

• 4 Independent Voltage Free Contacts: Allows for the switching of various load types including incandescent, fluorescent, LED, and inductive loads (240V AC) .

• Integrated C-Bus Power Supply: Features an on-board 200mA power supply to run other C-Bus devices (such as touch screens, presence detectors, or input switches) on the network, reducing the need for external PSUs .

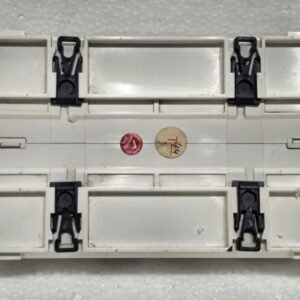

• DIN Rail Mounting (8 Modules): Fits neatly into standard electrical switchboards or enclosures (Width: 144mm) .

• “Voltage Free” Relays: The relay contacts are isolated from the C-Bus side, allowing safe switching of external power sources without interference .

• Learn Mode & Local Override: Includes local toggle buttons for manual override of channels and supports “Learn Mode” programming without a PC for basic setup .

• System Clock & Network Burden: Software-selectable features that help synchronize data communication on larger C-Bus networks .
