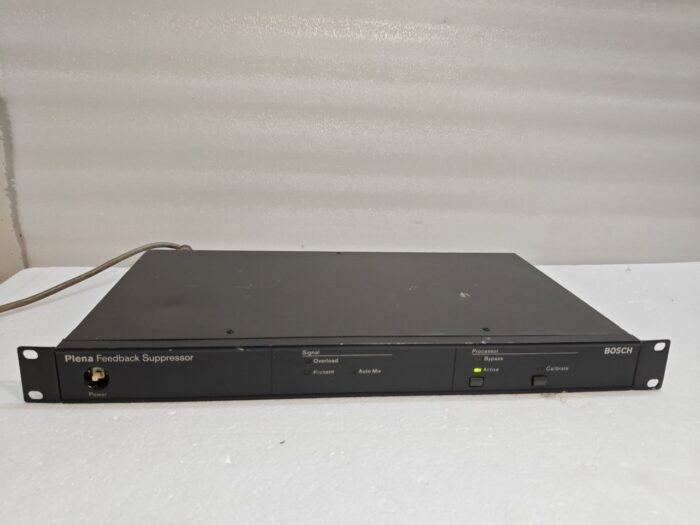

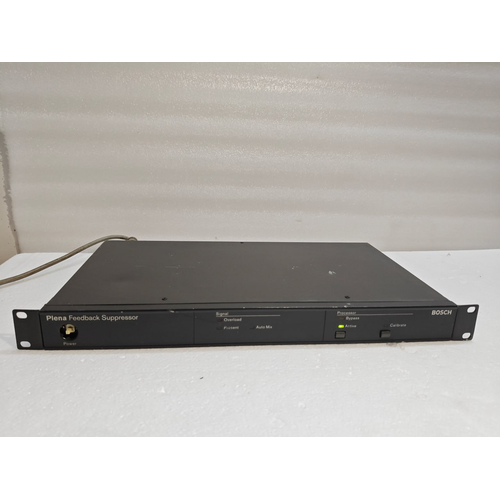

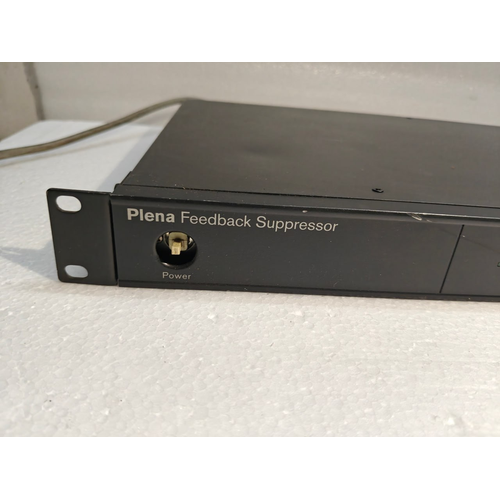

Bosch LBB 1968/00 8900 196 80001 Plena Feedback Suppressor Netherland 12:03
$339.15
1 in stock
Did you like this product? Add to favorites now and follow the product.
Add to Wishlist
Add to Wishlist
Description

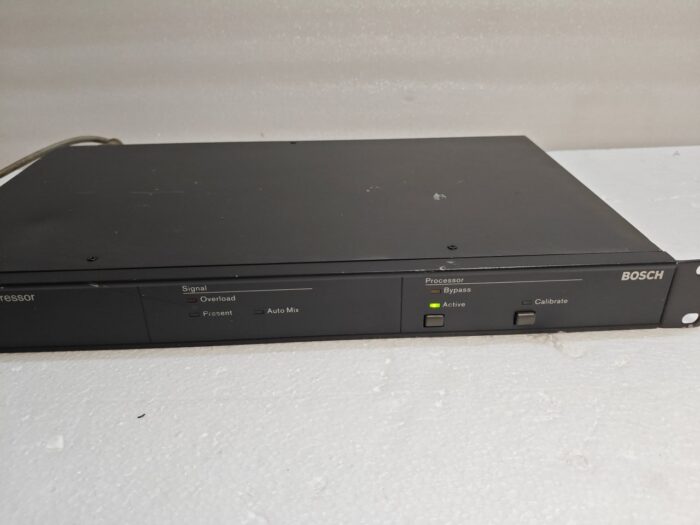

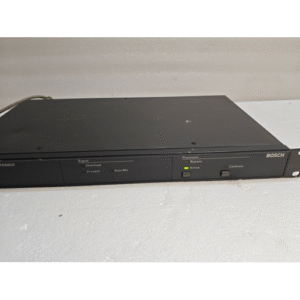

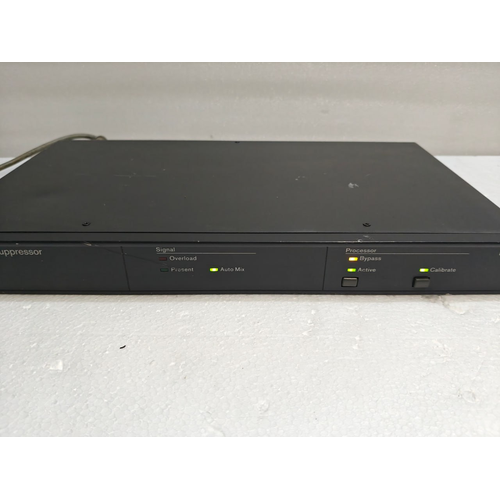

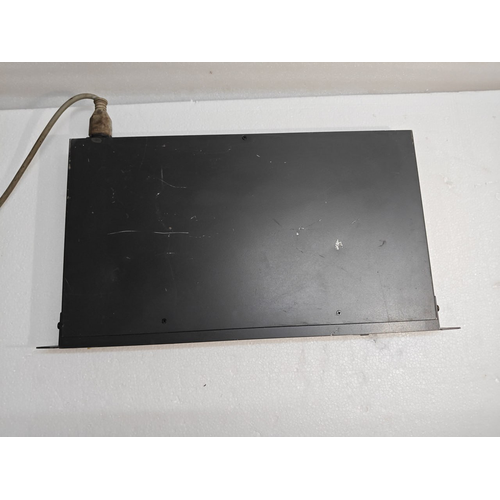

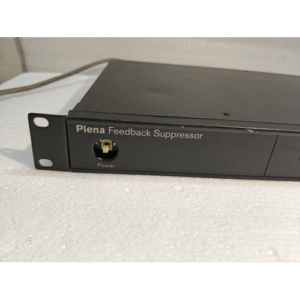

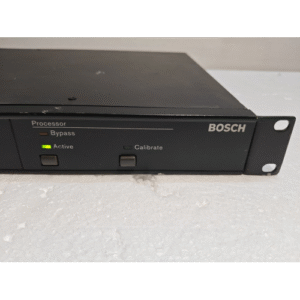

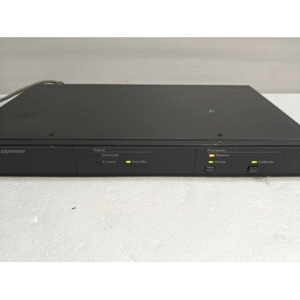

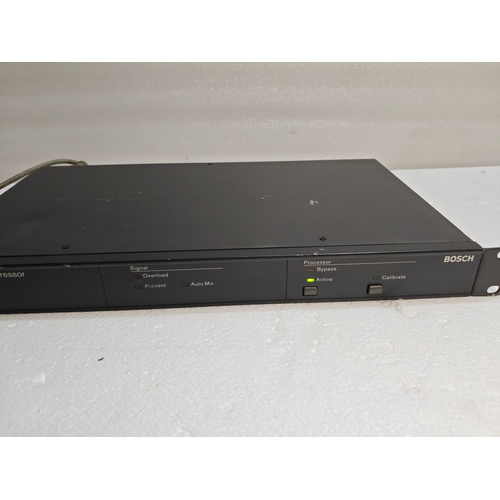

Bosch LBB 1968/00 8900 196 80001 Plena Feedback Suppressor Netherland
Technical Specifications:
| Electrical | |
|---|---|
| Mains power supply | |
| Voltage | 230/115 VAC, ±10%, 50/60 Hz |
| Inrush current | 1.5 A @ 230 VAC / 3 A @ 115 VAC |
| Max power consumption | 50 VA |
| Performance | |
| Sample rate (fs) | 32 kHz |
| Frequency response | 125 Hz to 15 kHz |
| Distortion | <0.1 % @ 1 kHz |
| Gain (bypass mode) | 0 dB line in, 24 / 36 / 48 dB mic in |
| Gain (active mode) | 0 dB line in, 24 / 36 / 48 dB mic in |
| S/N | > 90 dB |
| Signal delay | <11 ms |
| Decorrelator | Frequency shift, 5 Hz up Masked noise |

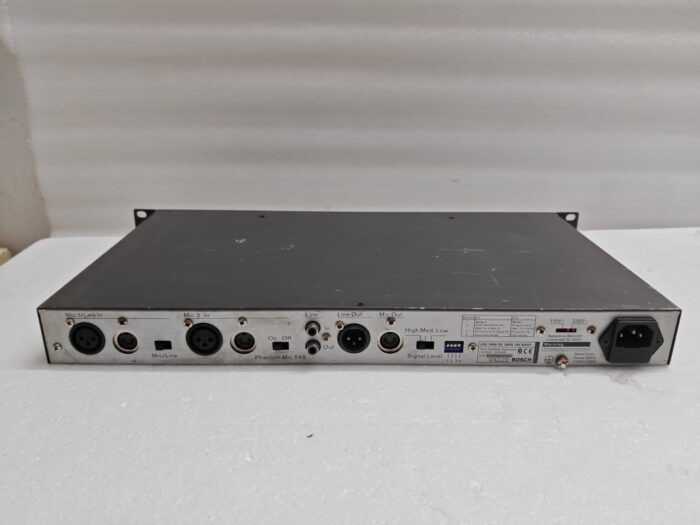

| Mic / line input | 1 x |

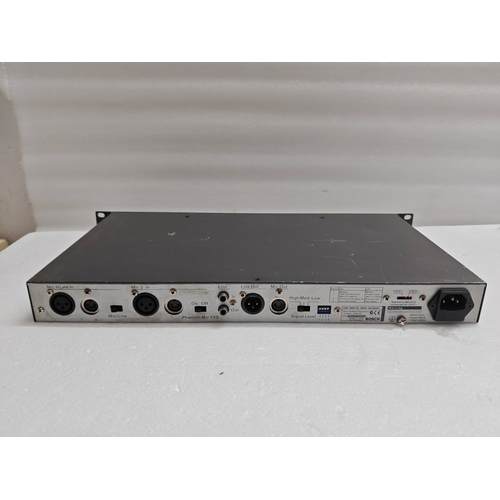

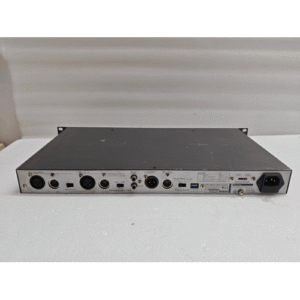

| Connectors | 3-pin XLR, 5-pin DIN, balanced |
| Max level | 18 / 6 / -6 dBV line in, -18 / -30 / -42 dBV mic in |
| Impedance | 10 kohm / 2 kohm (line / mic) |
| CMRR | > 25 dB (50 Hz to 20 kHz) |
| Phantom power | 16 V (mic only, switchable) |
| Priority control | Loop through of pin 4 and 5 of DIN |
| Mic input | 1 x |
| Connectors | 3-pin XLR, 5-pin DIN, balanced |
| Max level | -18 / -30 / -42 dBV |
| Impedance | 2 kohm |
| Phantom power | 16 V (switchable) |
| Priority control | Loop-through of pin 4 and 5 of DIN |
| Line input | 1 x |
| Connector | Cinch, unbalanced |
| Max input level | 18 / 6 / -6 dBV |
| Impedance | 20 kohm |
| Line output | 1 x |
| Connector | 3-pin XLR, balanced |
| Max level | 18 / 6 / -6 dBV (line in), 6 dBV (mic in) |
| Impedance | <100 ohm |
| Line output | 1 x |
| Connector | Cinch, unbalanced |
| Max level | 18 / 6 / -6 dBV (line in), 6 dBV (mic in) |
| Impedance | <100 ohm |
| Mic output | |
| Connector | 5-pin DIN, balanced |
| Max level | 22 / -34 / -46 dBV (line in), 34 dBV (mic in) |
| Impedance | <100 ohm |
| Priority control | Loop-through of pins 4 and 5 of DIN from inputs |
| Mechanical | |

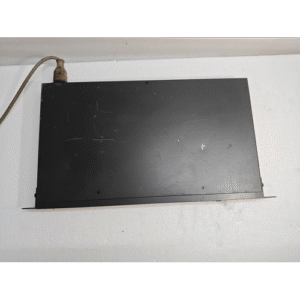

| Dimensions (H x W x D) | 56 x 430 x 270 mm, (19″ wide 1U high) |
| Weight | 3 kg (6.6 lb) |
| Mounting | Stand-alone, 19″ rack |
| Color | Charcoal |
| Environmental | |
| Operating temperature | -10 ºC to +55 ºC (14 ºF to +131 ºF) |
| Storage temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
| Relative humidity | <95% |

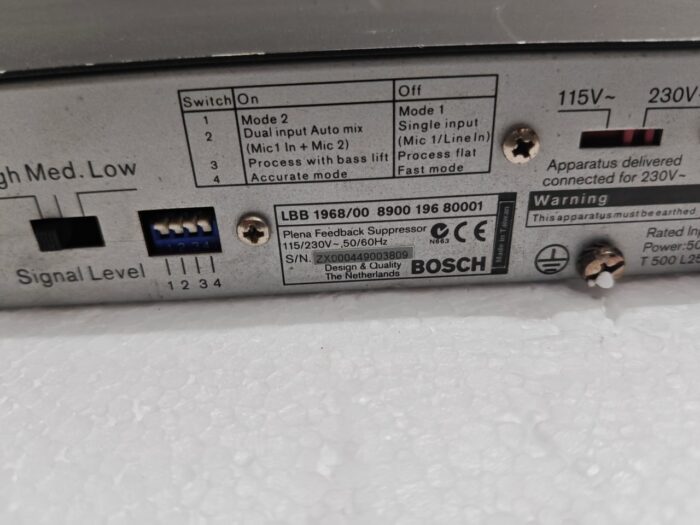

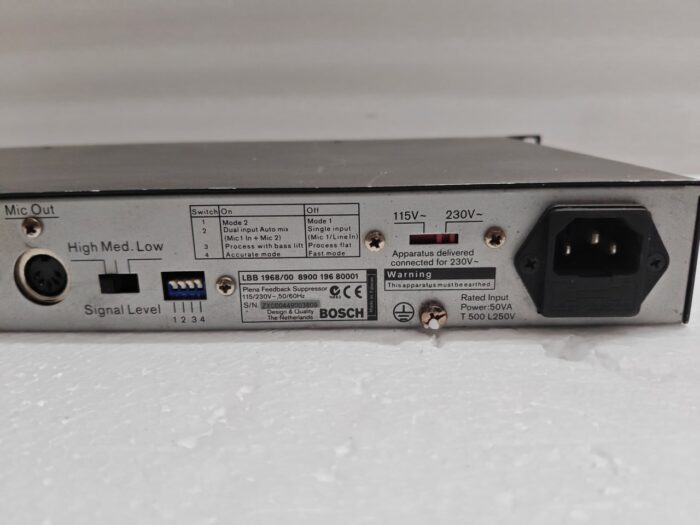

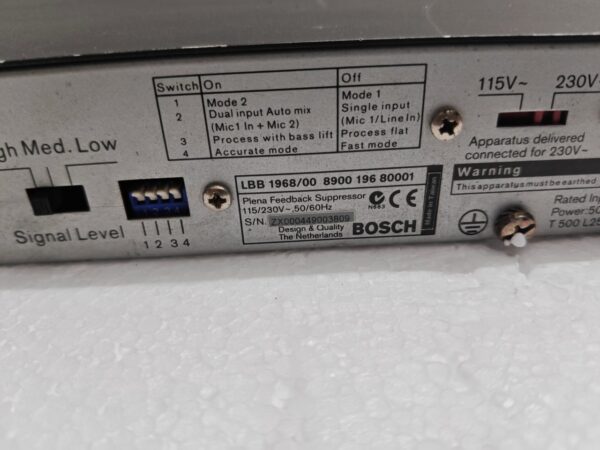

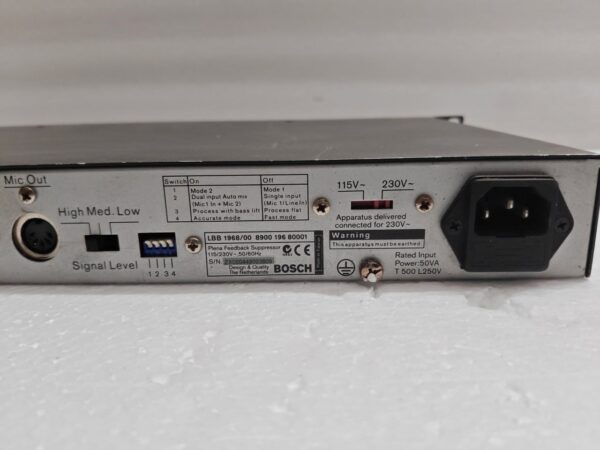

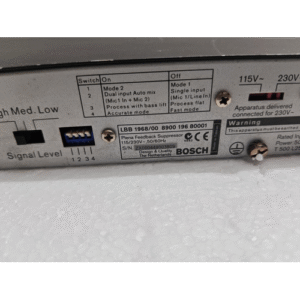

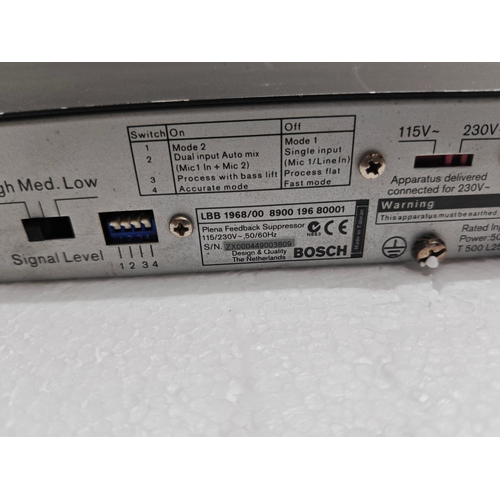

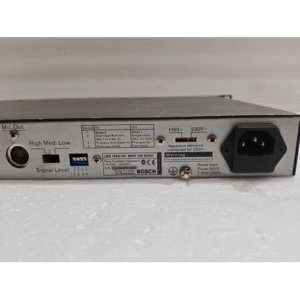

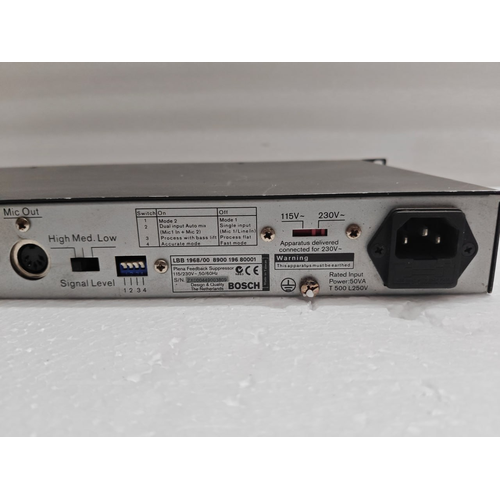

- S/N: ZX000449003809
- LBB 1968/00
- 8900 196 80001
- MADE IN TAIWAN
Additional information
| Product Conditioned | USED |
|---|---|
| BRAND | Bosch |
| MODEL | LBB 1968/00 |
| MPN | LBB 1968/00 |
| TYPE | PLC Input Module |
| Country/Region of Manufacture | Taiwan |
Brand
BOSCH
