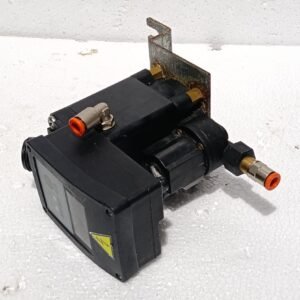

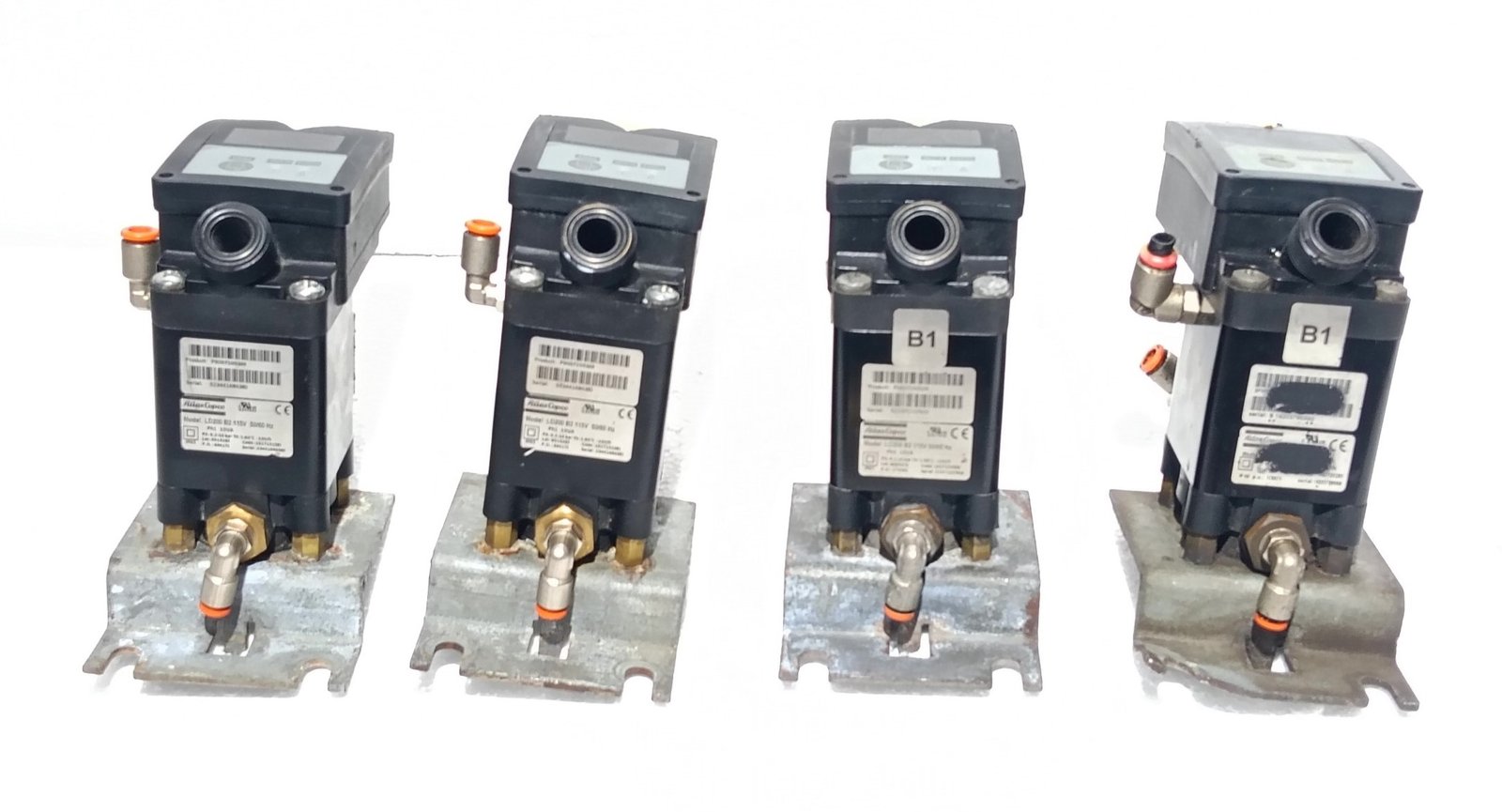

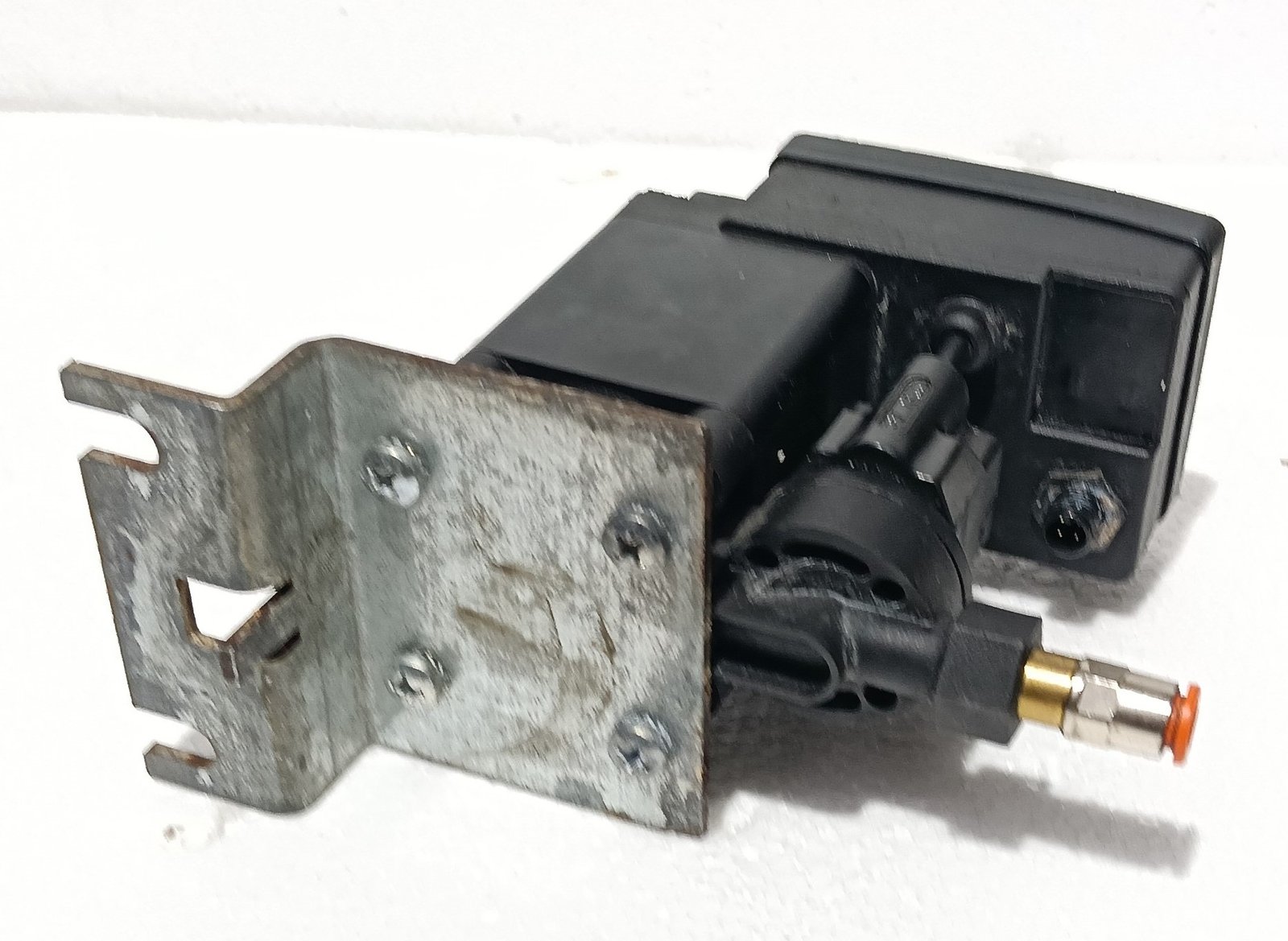

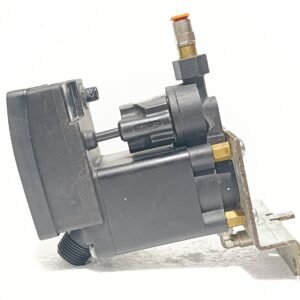

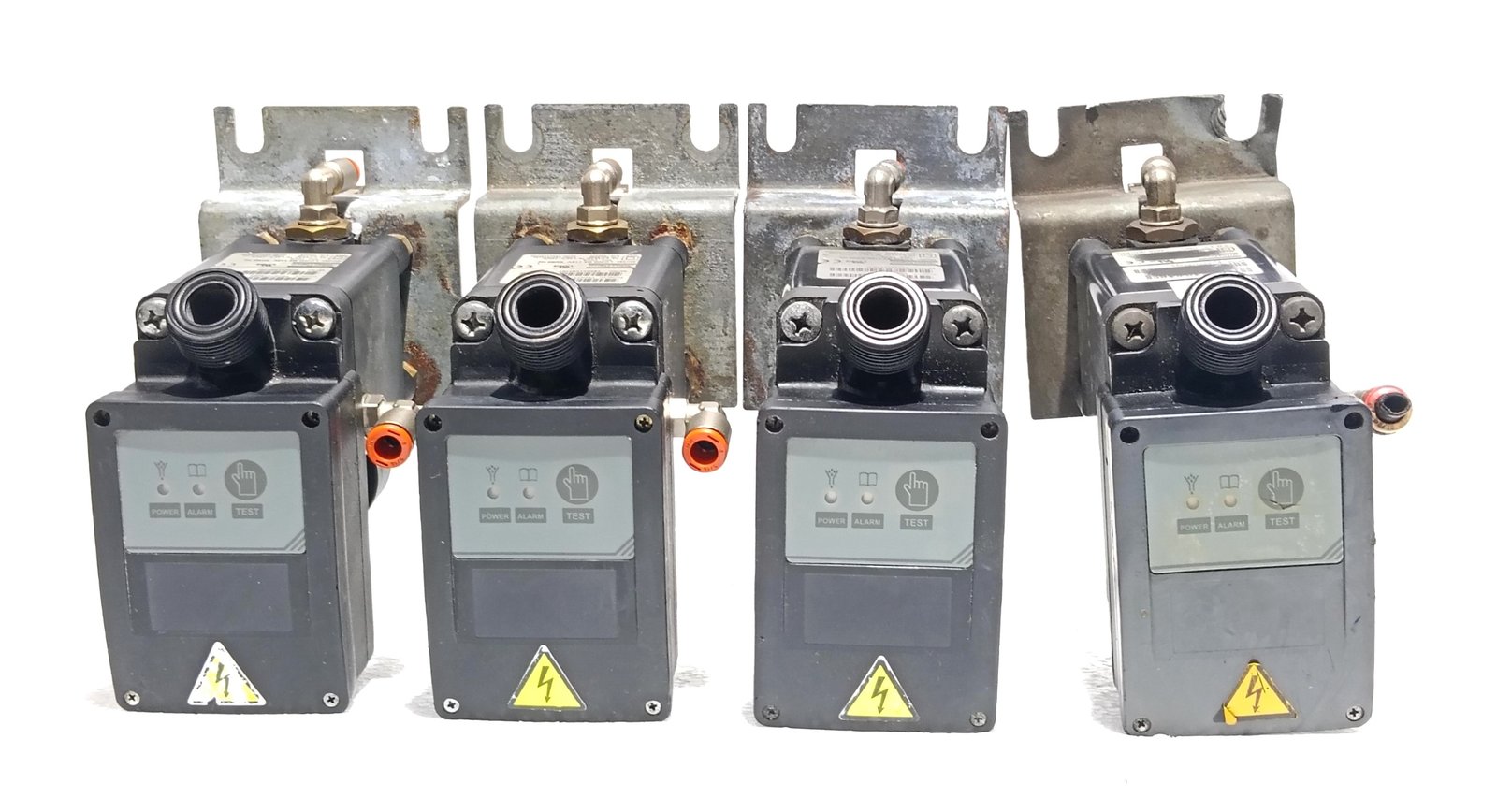

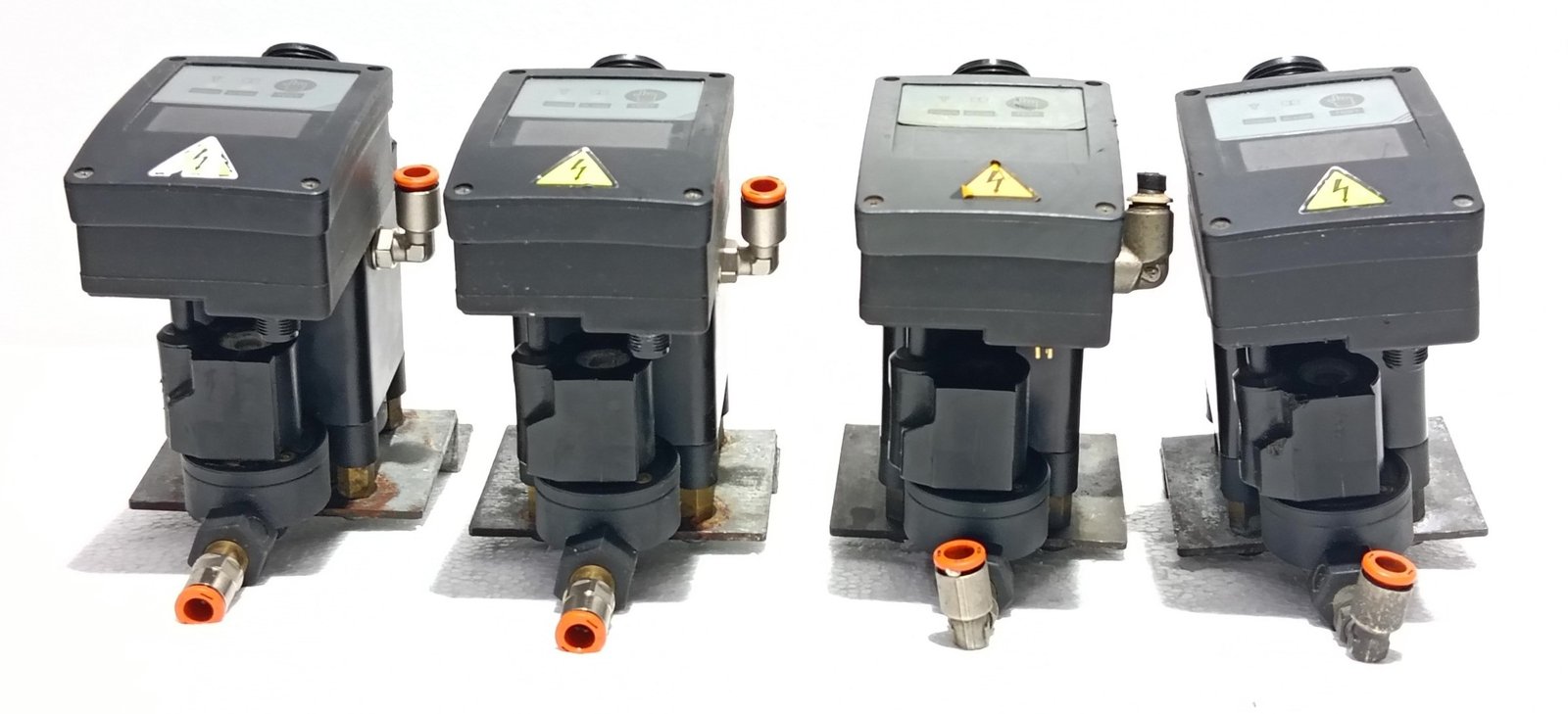

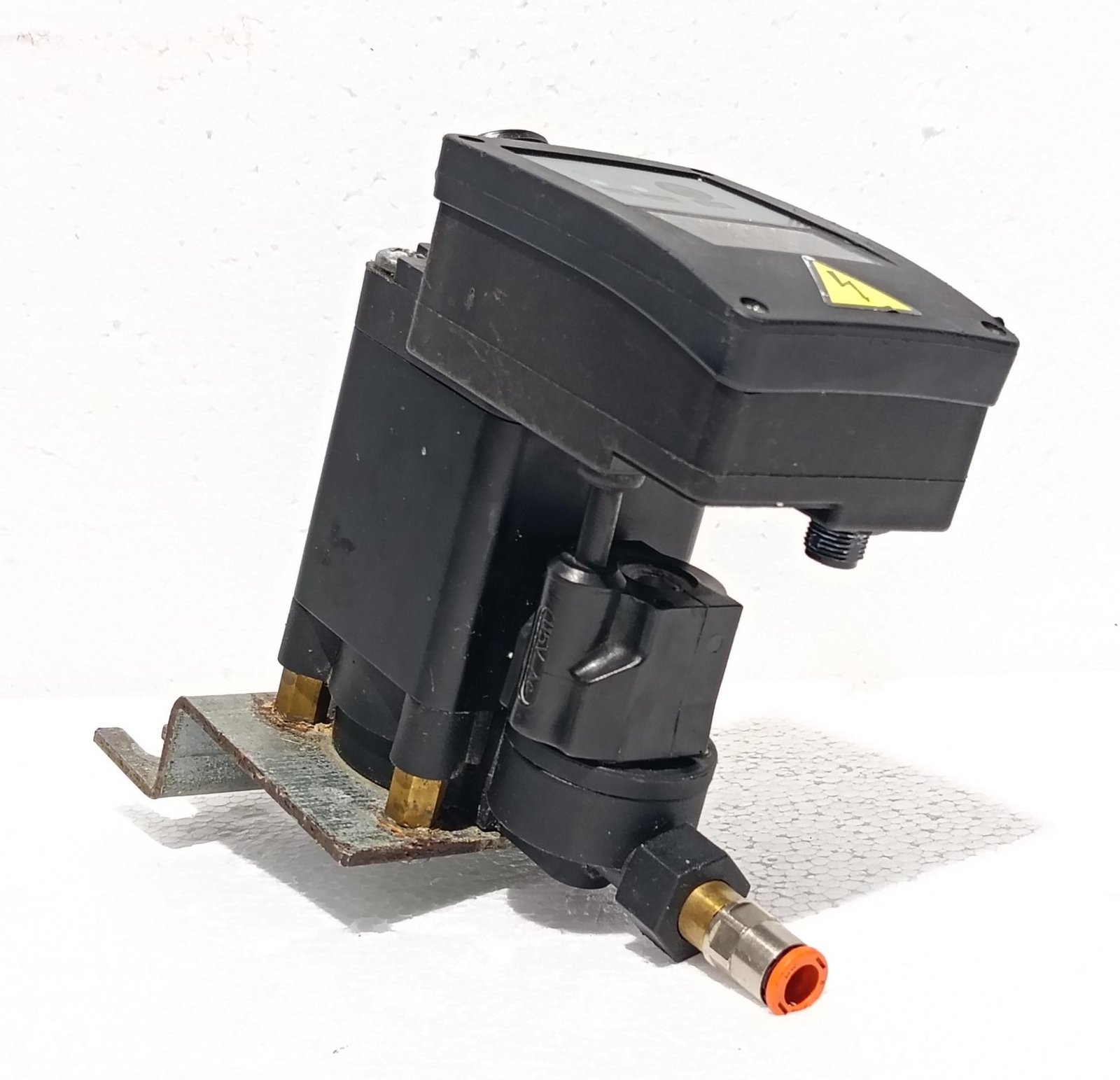

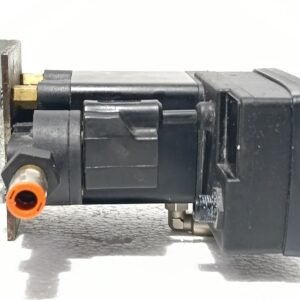

The Atlas Copco LD200 B2 115V IP65 Drain Valve. Engineered specifically for oil-injected screw compressors, this genuine OEM electropneumatic condensate drain automatically removes oil-laden condensate without air loss, protecting your downstream equipment from corrosion and contamination.
Key Features
-
Model: LD200 B2
-
Voltage: 115V AC – Ideal for North American industrial power standards
-
Protection Class: IP65 – Dust-tight and protected against low-pressure water jets, suitable for harsh compressor environments
-
Connection Size: 1/2″ BSP (standard)
-
Drain Capacity: Handles high condensate flow rates from large oil-injected rotary screw compressors
-
Operating Principle: Timer-controlled or level-sensing (depending on configuration) – zero air loss design
Benefits
-
Prevents Oil Carryover: Effectively discharges oil-water mixture from separators, reducing environmental compliance risk.
-
Reduces Air Loss: Unlike manual or basic float traps, the LD200 B2 minimizes compressed air waste, saving energy.
-
Rugged & Reliable: IP65-rated housing withstands moisture, dust, and compressor room vibration.
-
Low Maintenance: Simple inline service with replaceable wear parts.
-
115V Direct Connect: No transformer needed for standard 115V control panels.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | LD200 B2 |
| Supply Voltage | 115V AC (±10%) |
| Frequency | 50/60 Hz |
| Enclosure Rating | IP65 |
| Max Pressure | 16 bar (232 psi) |
| Operating Temp. | +1°C to +60°C (34°F–140°F) |
| Inlet/Outlet Port | 1/2″ BSP |
| Body Material | Aluminum / technopolymer |
| Cycle time | Programmable (0.5–10 sec) |
Applications
-
Oil-injected rotary screw compressors
-
Compressed air dryers (refrigerated or desiccant)
-
Aftercoolers & moisture separators
-
Receivers and filter bowls with condensate accumulation
