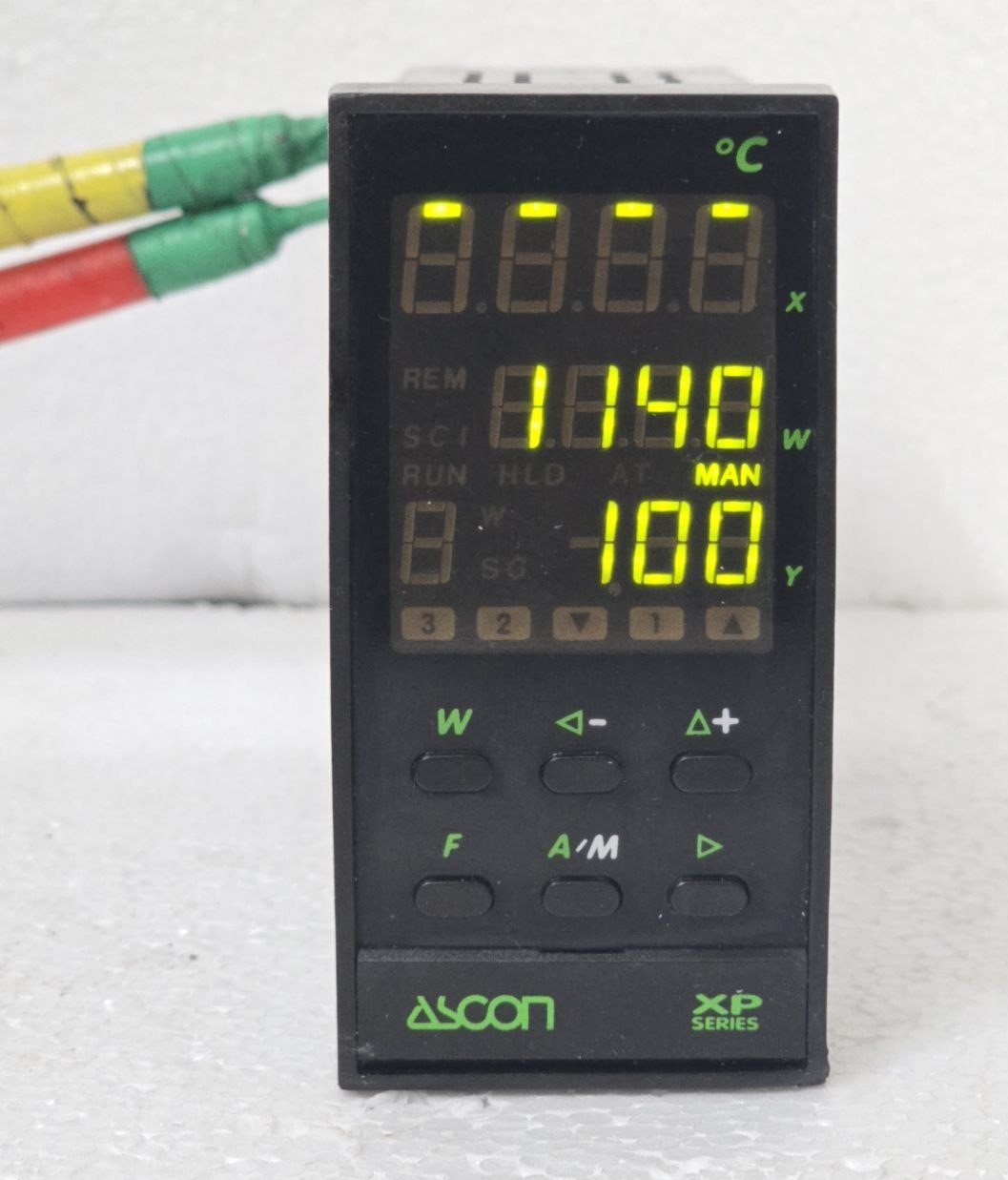

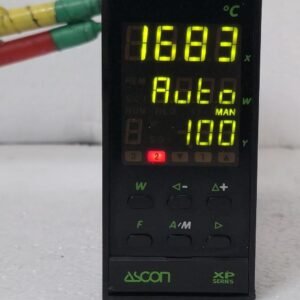

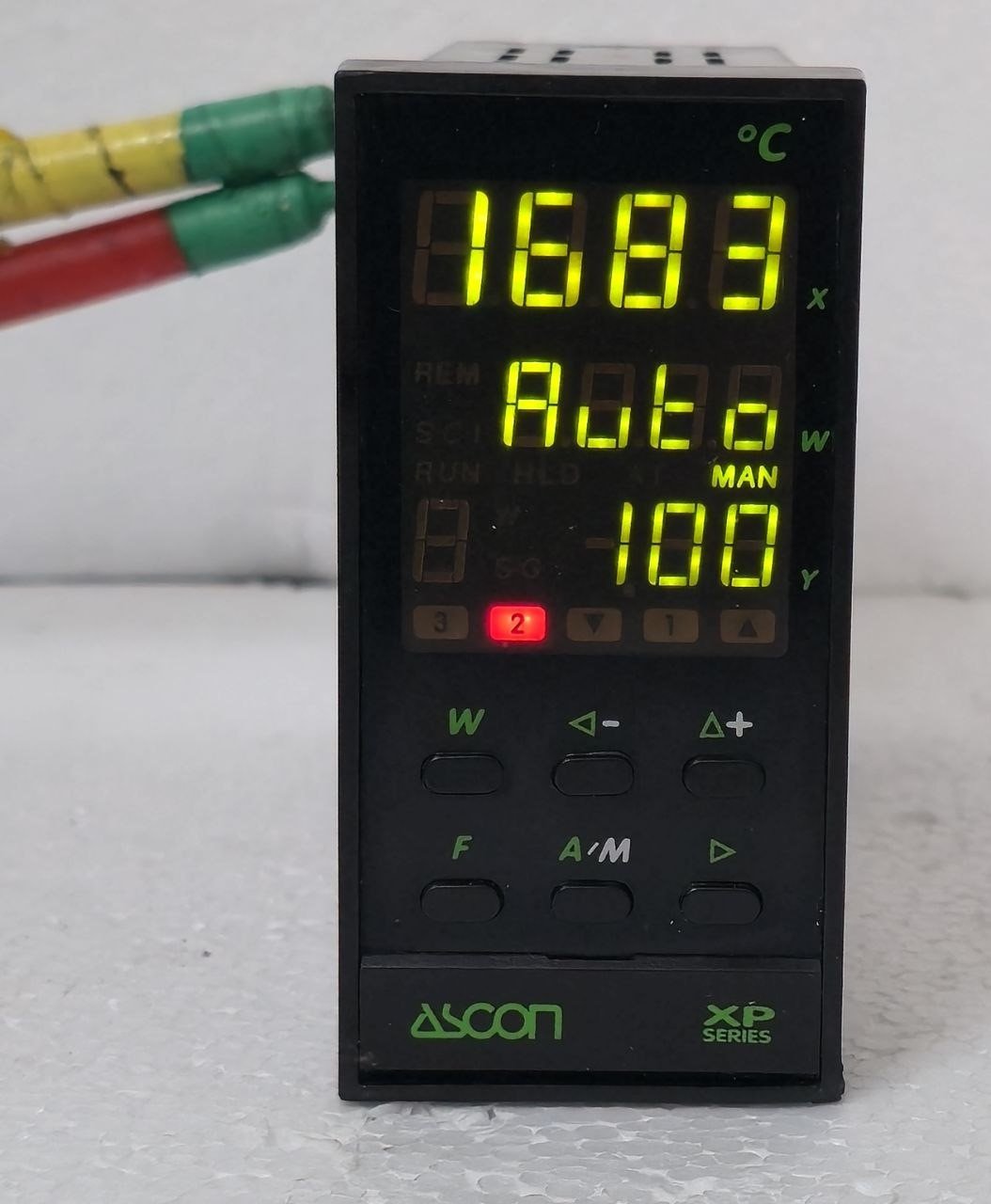

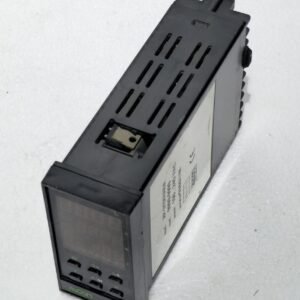

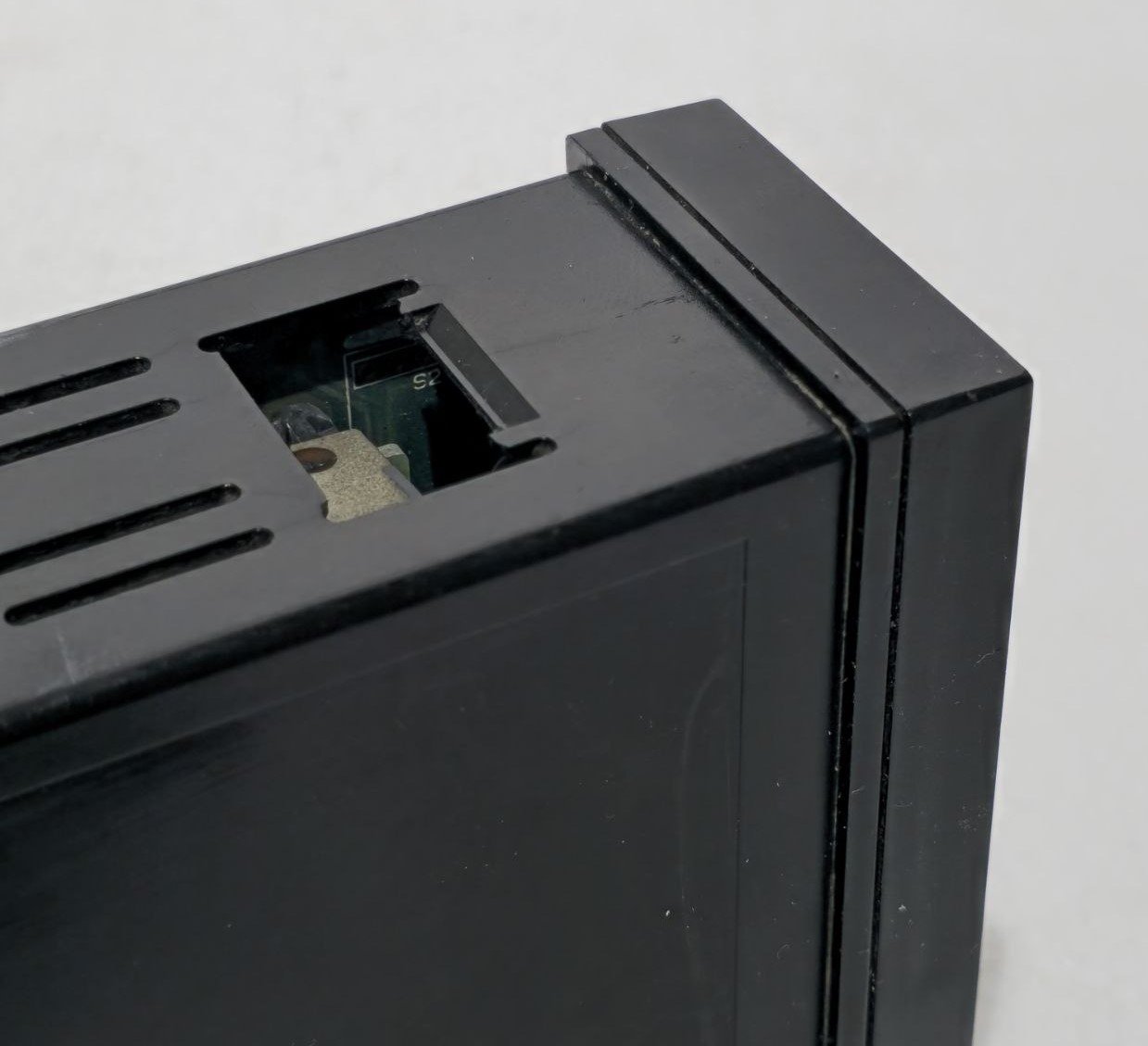

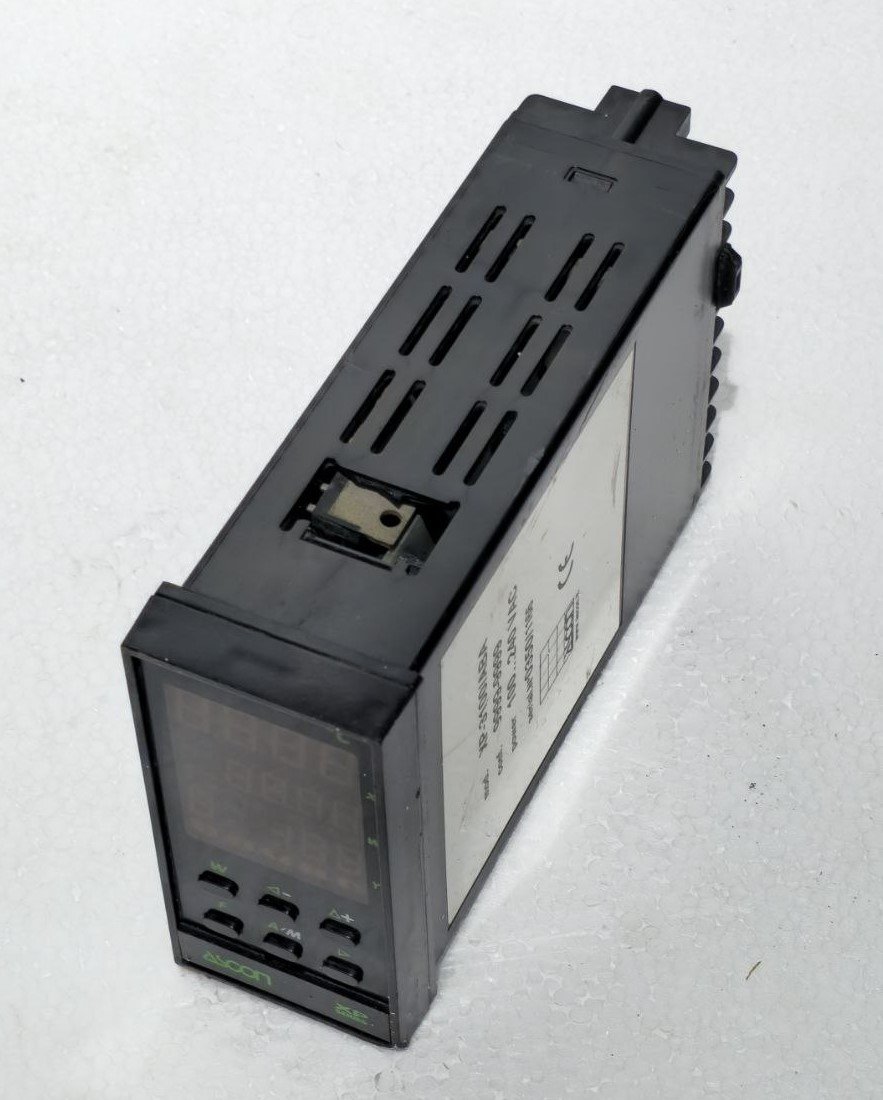

The ASCON XM-00-1/K2.S2/SF is a high-performance 1/8 DIN temperature controller designed for extreme industrial thermal processes. This specific configuration supports ultra-high temperature ranges (up to 1600°C) using thermocouple inputs. Featuring dual LED displays and advanced PID algorithms, it delivers precise heat/cool control for furnaces, kilns, and plastic processing machinery.
Key Technical Specifications
Product Configuration Code:
-
Series: XM (1/8 DIN, advanced process controller)
-
Power Supply: 100-240V AC (-15/+10%)
-
Output Configuration:
-
Out 1 (Control): Relay (Standard)
-
Out 2 (Alarm/Cool): SSR Driver (Voltage Pulse)
-
Out 3 (Secondary): Relay (Standard)
-
Sensor & Range Capabilities:
-
Input Type: Universal Thermocouple (TC) & RTD
-
Thermocouple K (NiCr-Ni):
-
Range 1: 0/1200 °C
-
Range 2: 0/1600 °C
-
-
High-Temperature T/C Support: S & R types (0…1600°C)
Applications
The wide temperature range (0°C to 1600°C) makes this controller ideal for:
-
Industrial Ceramic Kilns
-
High-Temperature Heat Treatment Furnaces
-
Burning-in Ovens
-
Plastic Extruders (Barrel zone control)
