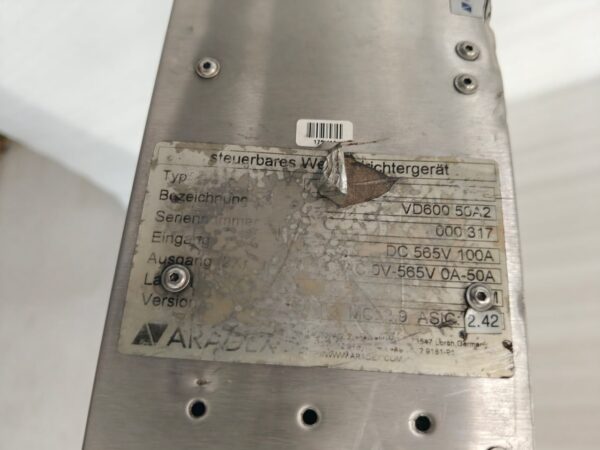

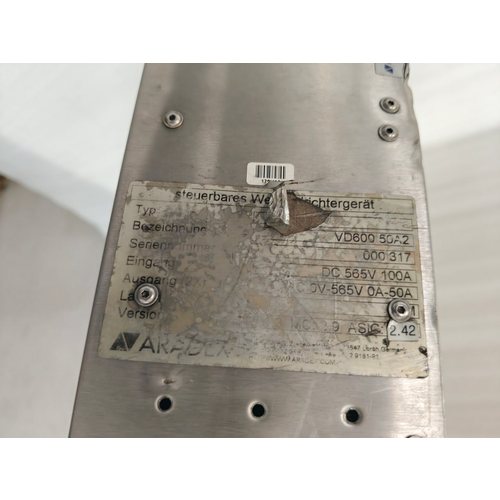

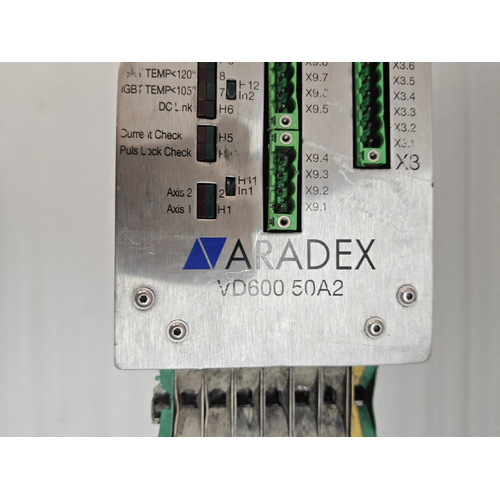

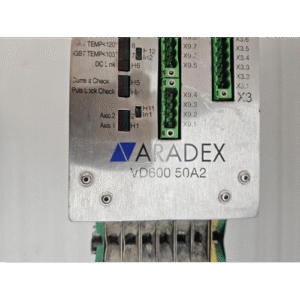

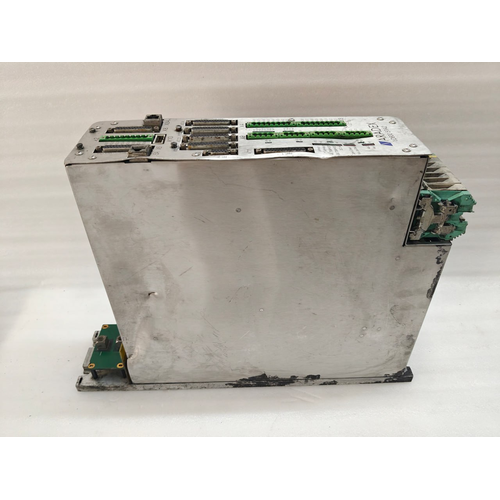

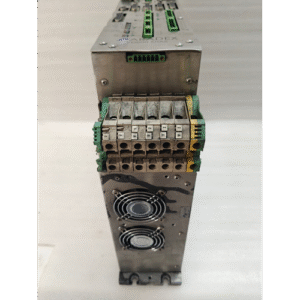

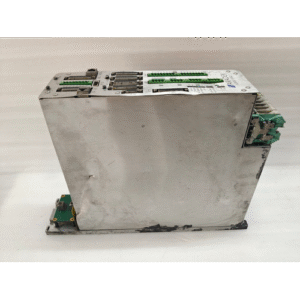

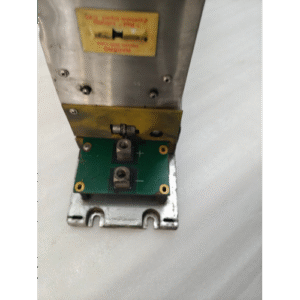

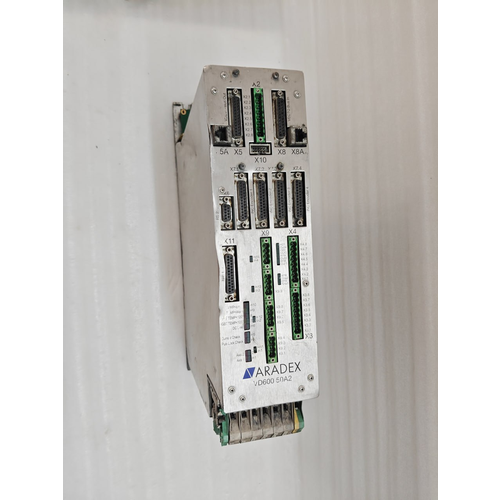

ARADEX VD600-SUPPLY D 565/160 L g 3AC 400V 50HZ
- VD600 50 A2

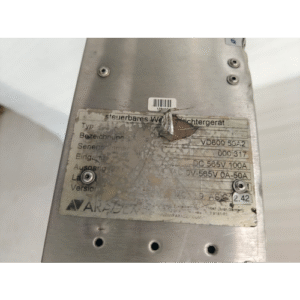

- 000317
- DC 565V 100A
- AC DV-565V 0A-50A
- VERSION: 1.3 MC2.9 ASIC
The ARADEX VD600-SUPPLY is a high-performance, regenerative power supply module designed for demanding industrial automation applications. It acts as the central DC link power source for ARADEX servo drive systems, converting incoming three-phase AC mains power into a stable, regulated DC bus voltage. This unit is engineered for efficiency, reliability, and precise control in complex motion systems.
The specific model D 565160 L g indicates a configuration with specific firmware, options, or connector types, typically defined by the manufacturer for specific system integration needs.
Key Features & Technical Specifications
-
Input Power: 3AC 400V 50HZ
-
Connects directly to a standard industrial three-phase 400V AC, 50Hz power grid. (May also be compatible with 60Hz operation, but should be verified with the manufacturer’s datasheet).
-
-
Output Power:
-
Provides a stabilized DC Bus Voltage (typically around 600V DC – hence the “VD600” name) to power one or multiple servo drives in a multi-axis system.
-
-
Regenerative Capability:
-
This is a critical feature. Unlike standard power supplies, the VD600-SUPPLY can feed braking energy from the motors (e.g., during deceleration) back into the AC mains supply. This improves overall system efficiency, reduces heat generation, and can lead to significant energy savings.
-
-
Technology: Based on modern IGBT (Insulated-Gate Bipolar Transistor) technology for high-efficiency power conversion and active control of the DC bus.
-
Communication: Often features a fieldbus interface (like PROFIBUS, PROFINET, or EtherCAT) for seamless integration into a higher-level PLC control system, allowing for monitoring of status, faults, and operational parameters.
-
Design: Built as a compact module for mounting on a standard DIN rail within a control cabinet. Designed for robust performance in an industrial environment.
Applications
The ARADEX VD600-SUPPLY is ideal for applications requiring high dynamic performance and frequent braking, such as:
-
Packaging Machinery
-
Printing Presses
-
Textile Machinery
-
Machine Tools (CNC)
-
Robotics and Automated Handling Systems
-
Test Benches and Simulators
Benefits
-
Energy Efficiency: Regenerates braking energy, lowering electricity costs.
-
Stable DC Bus: Ensures consistent performance for all connected servo drives, even under fluctuating loads.
-
Reduced Heat Dissipation: By feeding energy back to the grid instead of dissipating it as heat through resistors, it reduces the thermal load on the control cabinet.
-
System Integration: Designed to work seamlessly with the ARADEX VD series of servo drives and motion controllers.
-
High Reliability: Industrial-grade components and design ensure long service life and minimal downtime.
