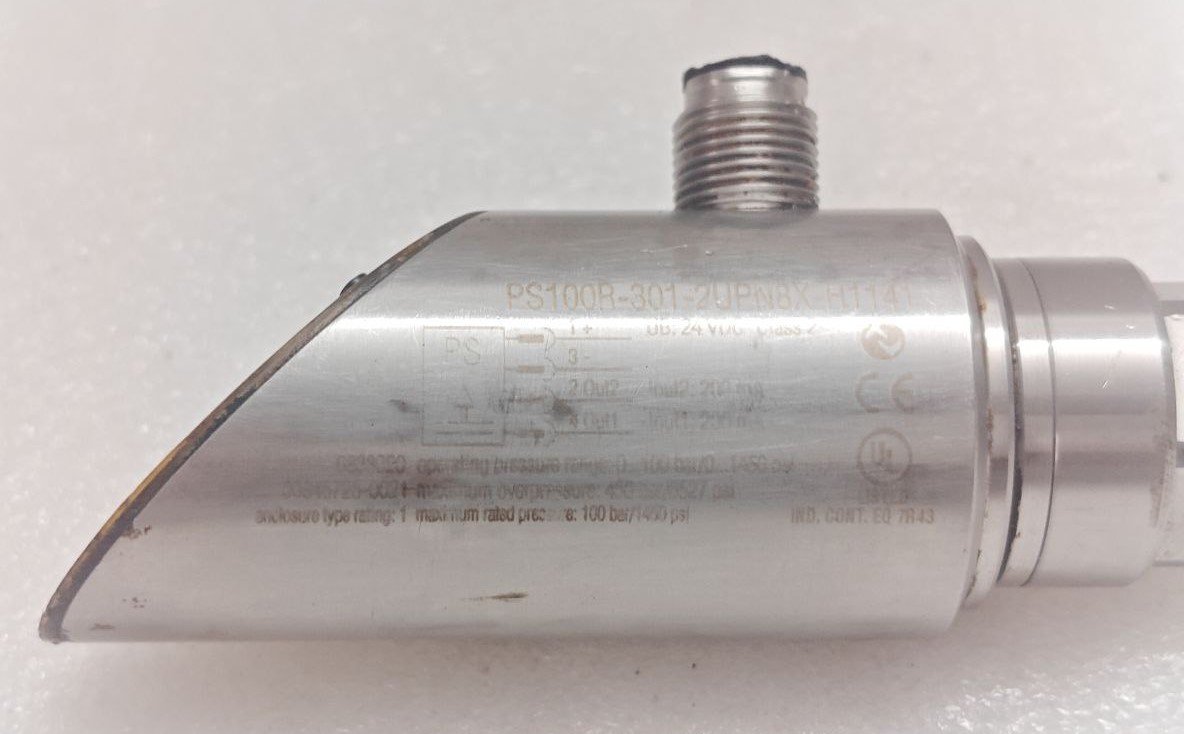

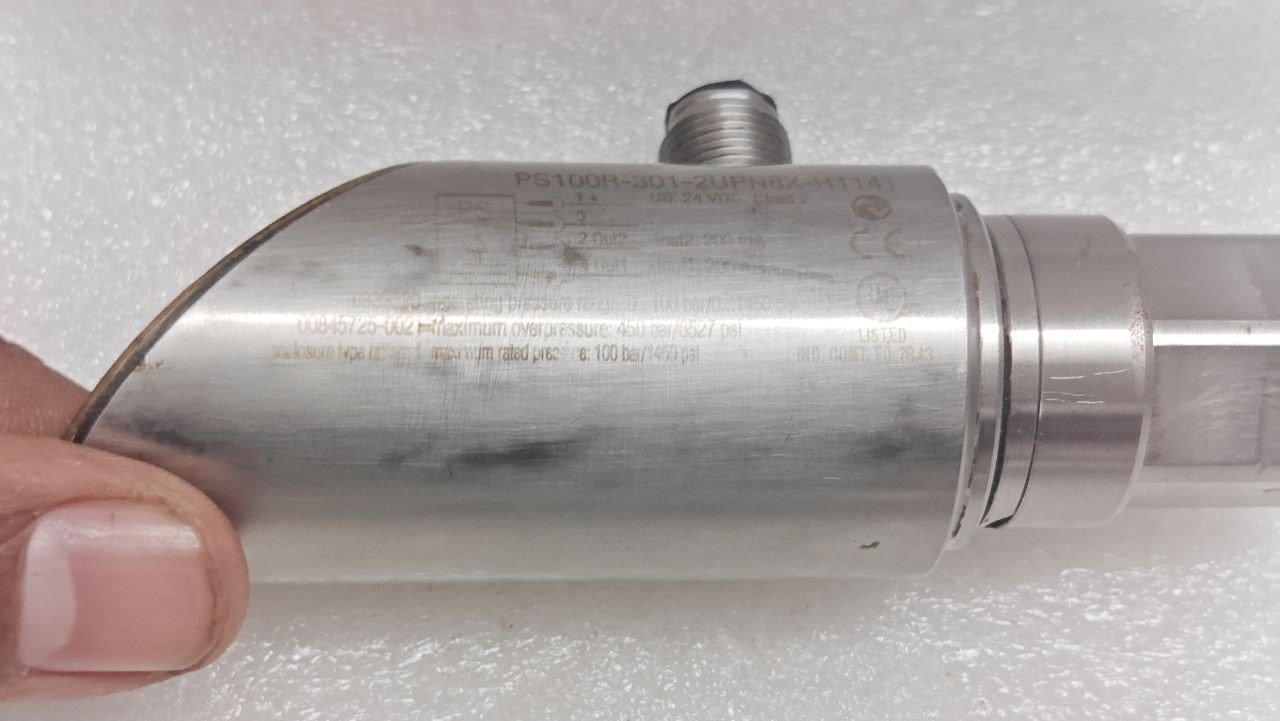

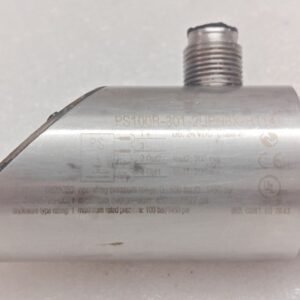

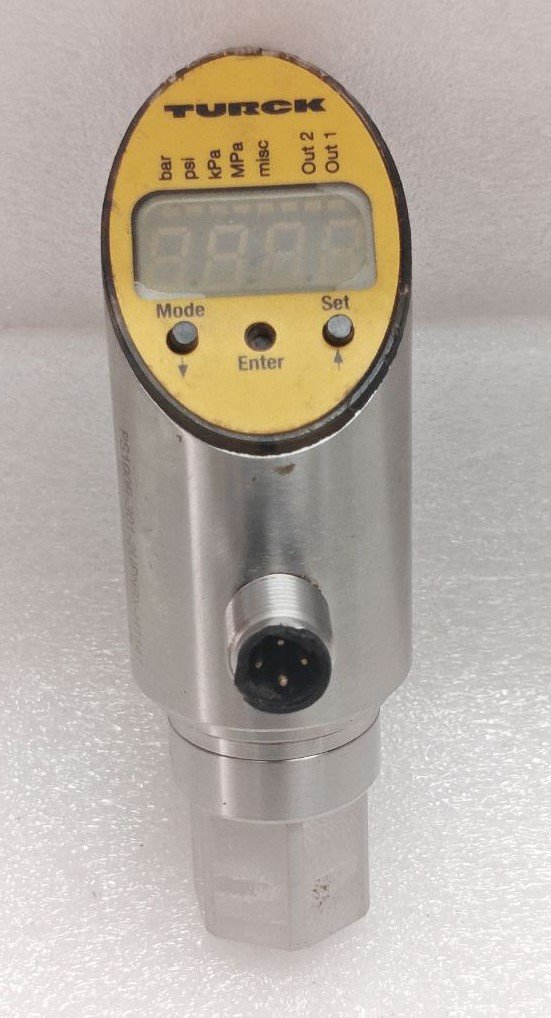

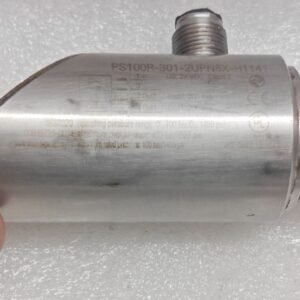

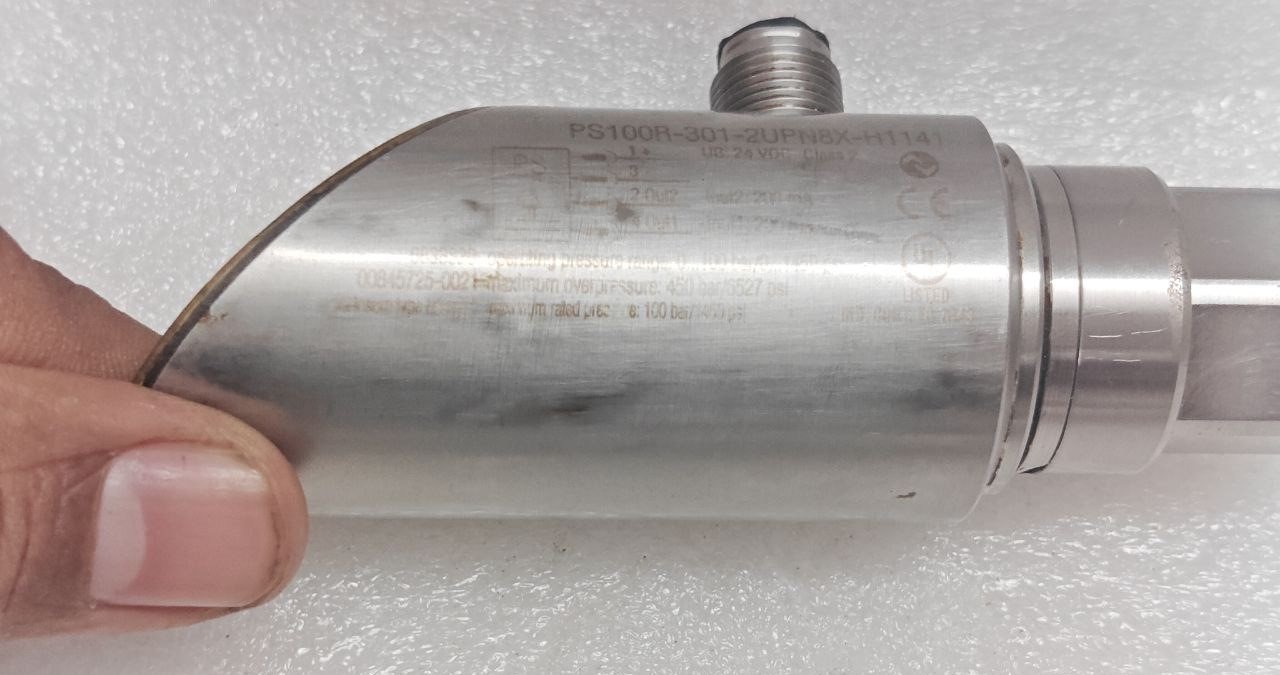

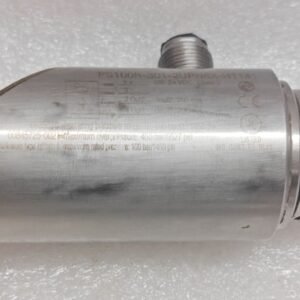

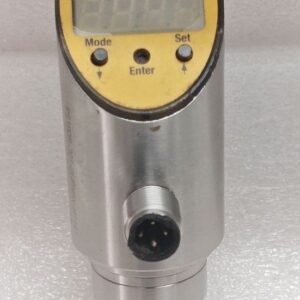

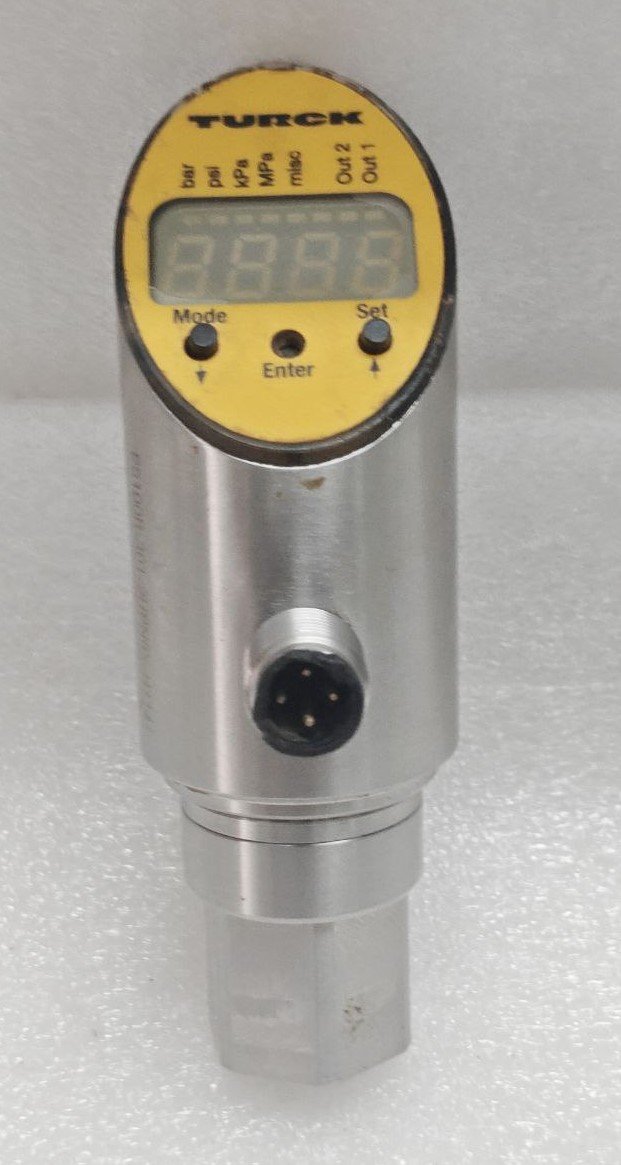

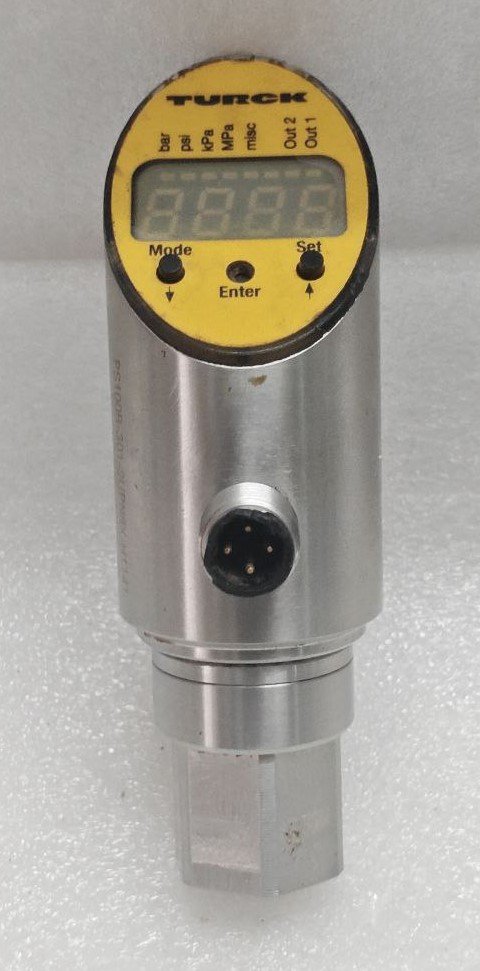

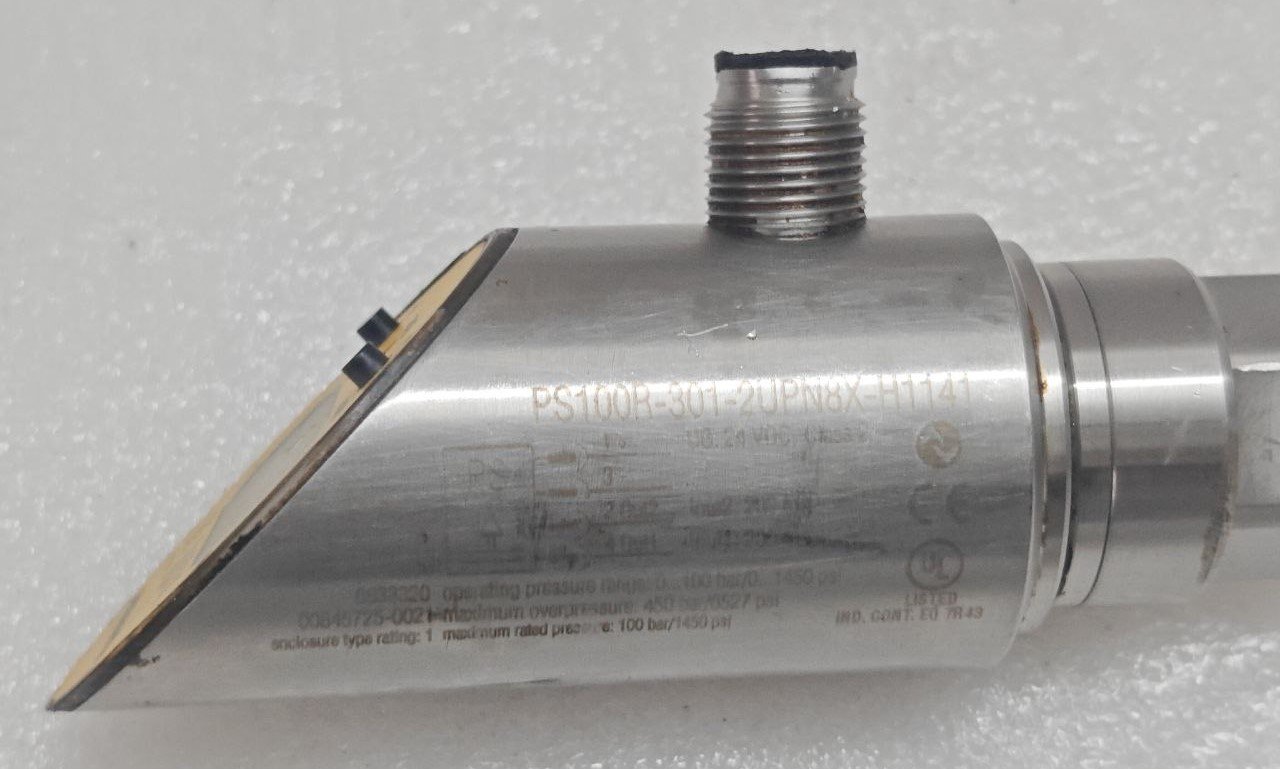

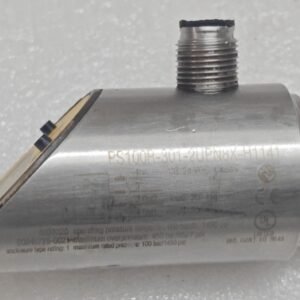

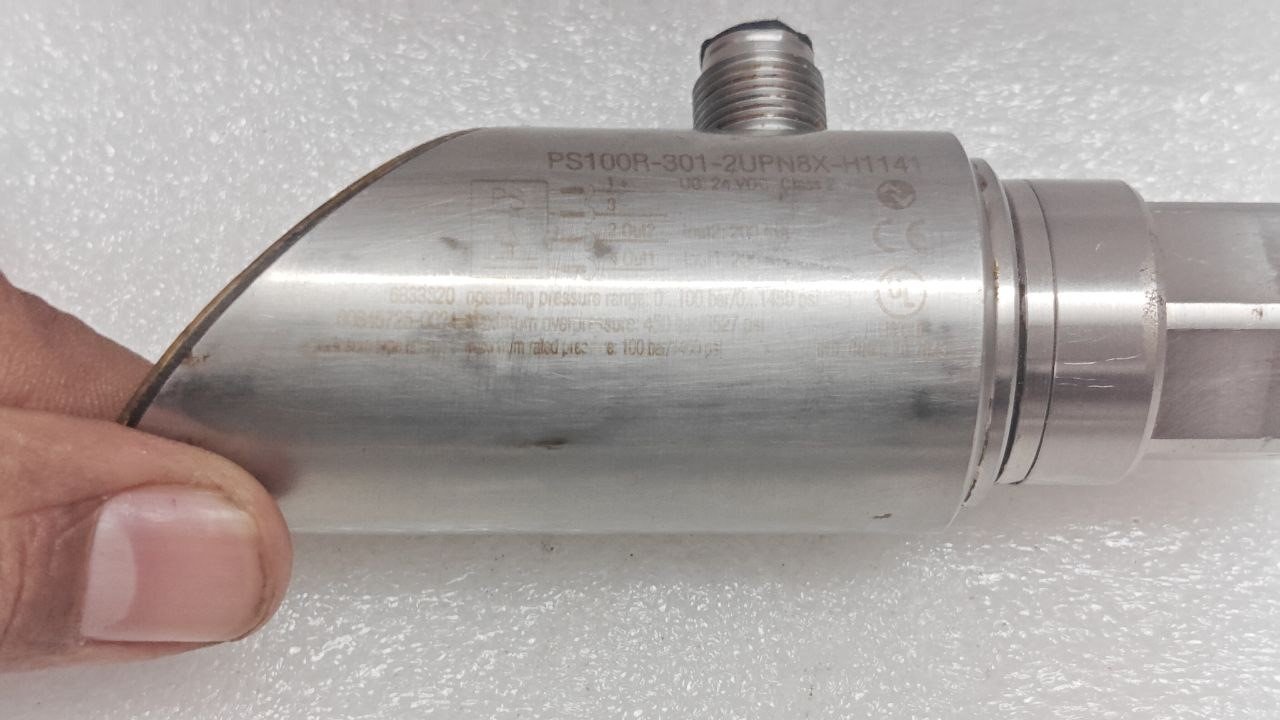

TURCK PS100R PRESSURE TRANSMITTER, 0-450 BAR, G 1/4 MALE, 4-PIN M12 CONNECTOR 12:35

Product Overview

The TURCK PS100R is a robust, high-performance pressure transmitter designed for demanding industrial applications. It converts mechanical pressure into a standardized electrical signal, providing reliable and accurate measurement of liquids and gases. With its high pressure rating of 450 bar (approximately 6525 psi), all-stainless-steel construction, and industry-standard connections, it is an ideal solution for hydraulic systems, test benches, and heavy machinery.

Key Features

• High Pressure Range: Measures from 0 to 450 Bar, making it suitable for hydraulic systems, presses, and other high-pressure applications.

• Robust Construction: Fully welded, all-stainless-steel (316L) housing and pressure port ensures excellent corrosion resistance and durability in harsh environments.

• High Accuracy: Delivers reliable and precise measurements with high long-term stability.

• Industrial Connectivity: Features a 4-pin M12 connector for quick, secure, and standardized electrical connection, facilitating easy installation and maintenance.

• Standard Pressure Port: G ¼ Male thread is a common industrial standard, allowing for easy integration into existing systems.

• Excellent Environmental Protection: Rated at IP67 / IP69K, making it resistant to dust, water immersion, and high-pressure, high-temperature wash-downs.

• LED Status Indicator: Built-in LED provides visual feedback on the device’s operational status (e.g., power, output).

Technical Specifications

Typical Applications

The PS100R is designed for a wide range of high-pressure industrial monitoring and control tasks, including:

• Hydraulic Systems & Power Units: Monitoring pressure in cylinders, pumps, and accumulators.

• Industrial Machinery: Presses, injection molding machines, and die-casting machines.

• Test and Measurement Benches: For validating components and systems.

• Mobile Hydraulics: Construction, agricultural, and forestry machinery.

• Process Automation: Monitoring and controlling pressure in industrial processes.

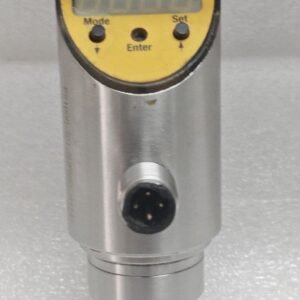

M12 Pinout (Typical for 4-Pin)

The function of the pins on the 4-pin M12 connector depends on the output signal variant:

• For 4…20 mA (2-wire) Transmitter:

  • Pin 1: Supply +

  • Pin 3: Signal / Supply –

  • Pins 2 & 4: Not used (NC)

• For Voltage Output (0-10V / 0-5V) Transmitter (3-wire):

  • Pin 1: Supply +

  • Pin 3: Supply – (0V)

  • Pin 4: Signal Output

  • Pin 2: Not used (NC)
