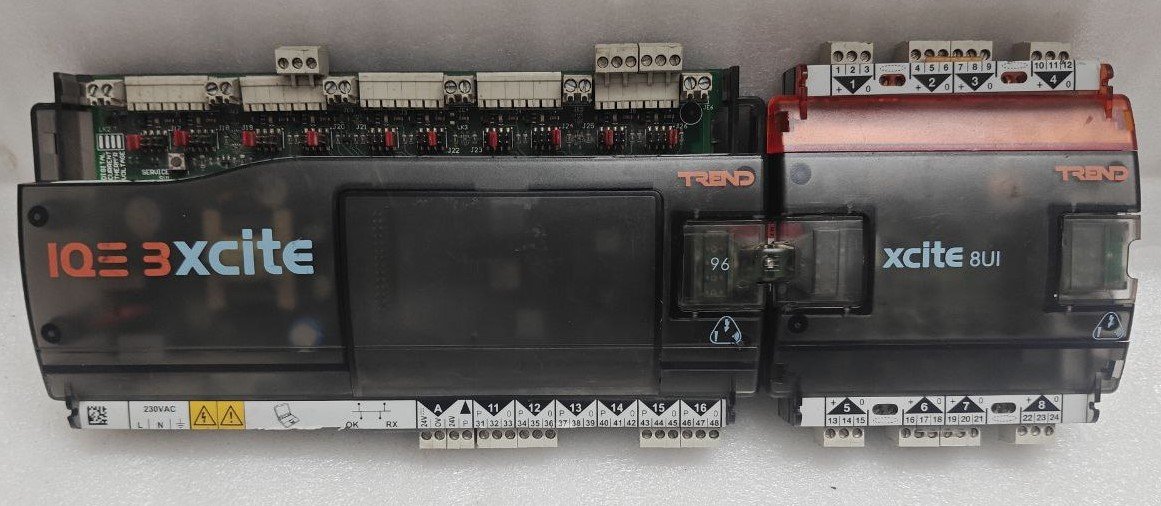

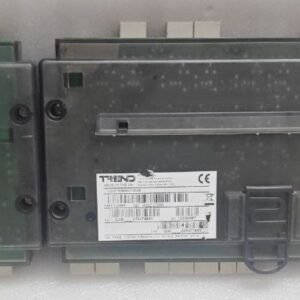

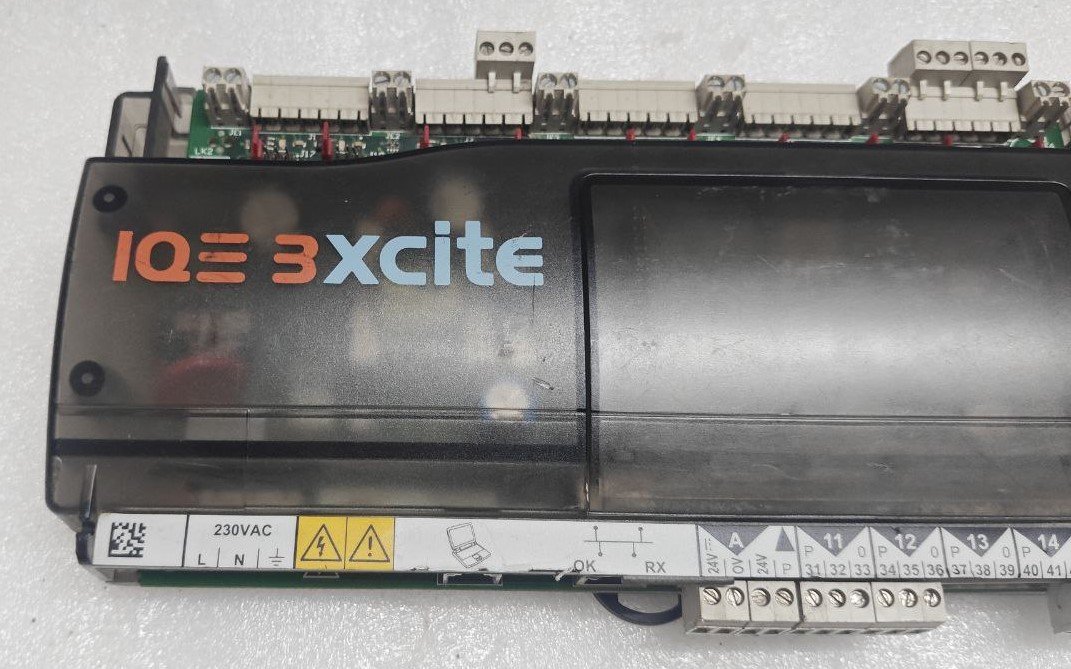

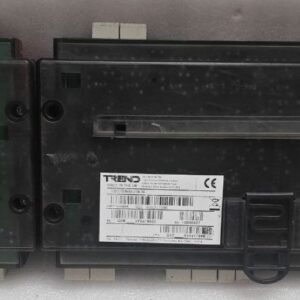

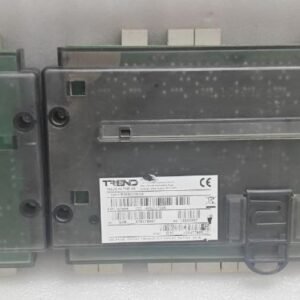

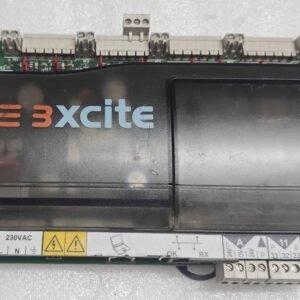

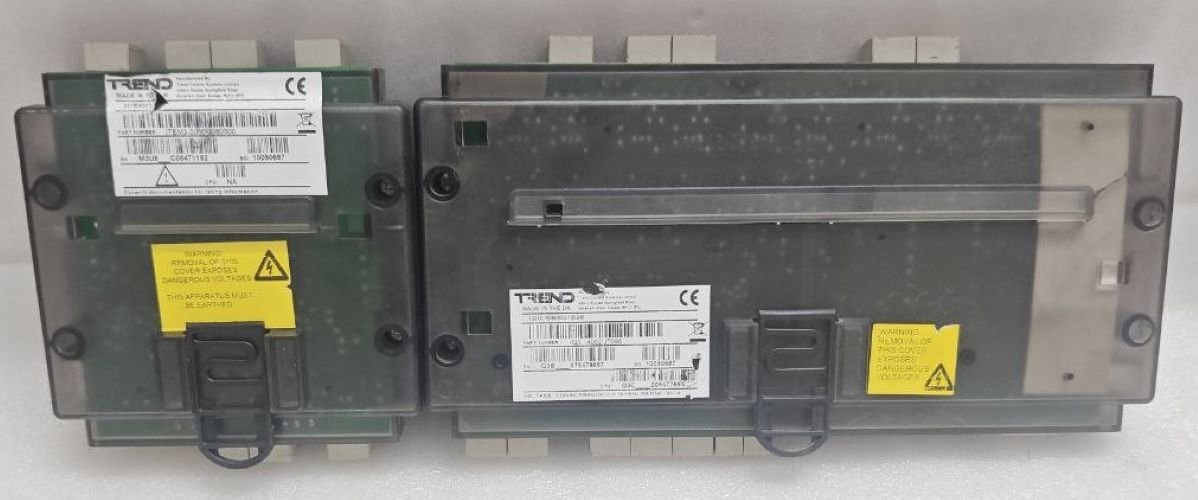

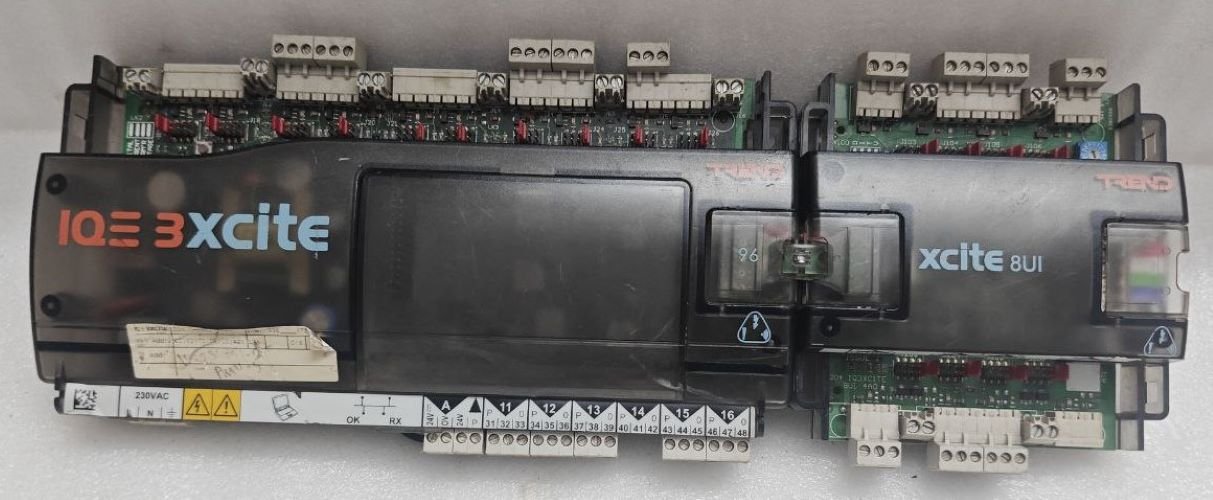

The TREND IQ3-4002U7096 is a high-performance, programmable system controller from the renowned TREND IQ3 XCITE series. Designed as a BACnet Building Application Automation Controller (B-AAC), it delivers powerful, standalone control for complex HVAC and building management applications. With its robust processing power, extensive I/O capabilities, and native BACnet/IP and MS/TP connectivity, this controller is engineered to be the intelligent core of modern, efficient buildings.
Key Features & Benefits
-
Powerful BACnet B-AAC Compliance: Operates as a fully programmable, high-level controller on a BACnet network, capable of peer-to-peer communication, data sharing, and executing complex control sequences without a central supervisor.
-
Advanced IQ3 XCITE Platform: Built on TREND’s future-proof IQ3 architecture, offering superior processing speed, larger memory capacity, and enhanced stability for demanding applications.
-

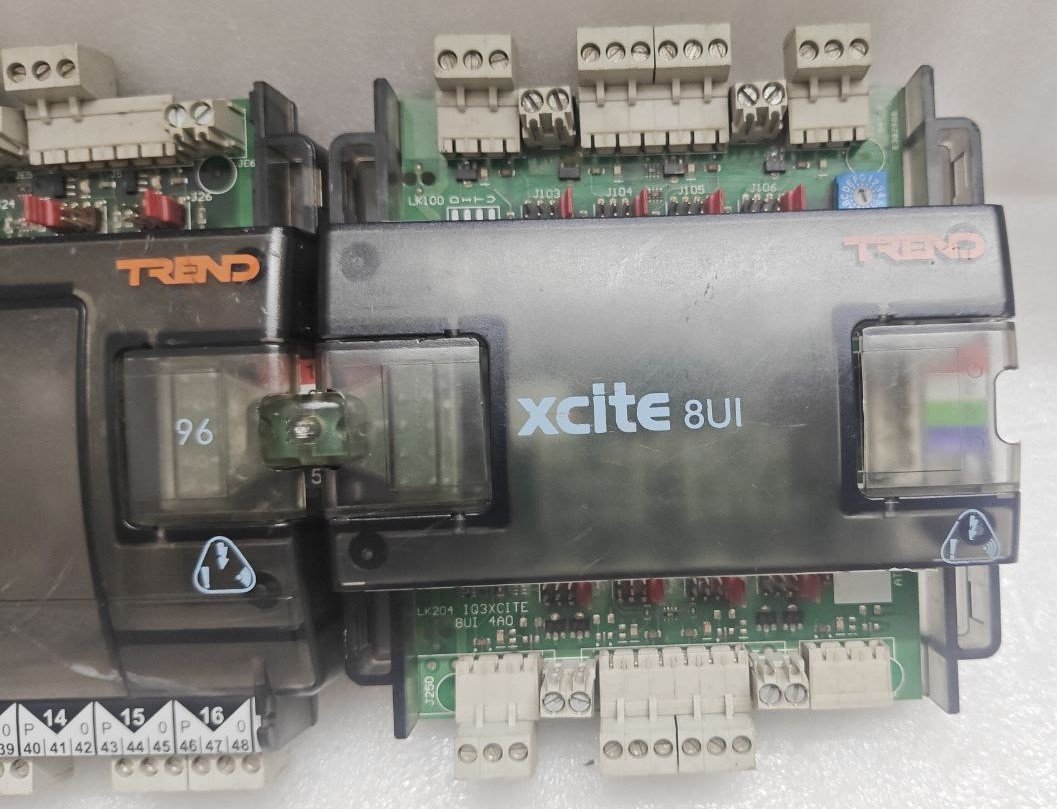

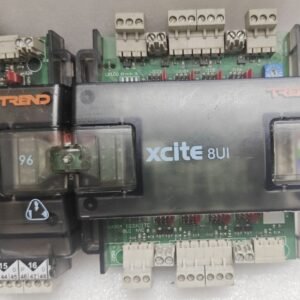

Versatile I/O Configuration: Equipped with 8 Universal Inputs (#2 SEO refers to this as “8UI”), providing maximum flexibility to connect a wide range of sensors (temperature, humidity, pressure, etc.) or digital status points without needing additional hardware.
-
Dual Network Connectivity:
-
BACnet/IP for high-speed communication over Ethernet networks.
-
BACnet MS/TP for connecting to field devices and lower-level controllers on a cost-effective serial bus.
-
-
Wide Power Supply Range (100-240V AC): Simplifies installation and deployment in regions with different electrical standards, offering global compatibility.
-
Standalone Operational Capability: Can store its application program and retain critical data even if disconnected from the larger BMS network, ensuring continuous system operation.
-
Intuitive Programming with IQ®Vision: Programmable using TREND’s standard IQ®Vision software, which uses a graphical, block-based programming environment (CGraph) to streamline the creation and troubleshooting of control strategies.
Technical Specifications (Based on Model Number)
-
Product Line: TREND IQ³ XCITE
-

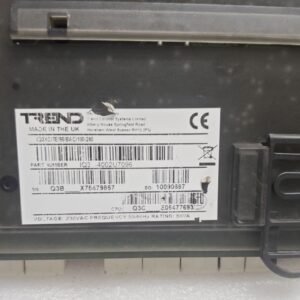

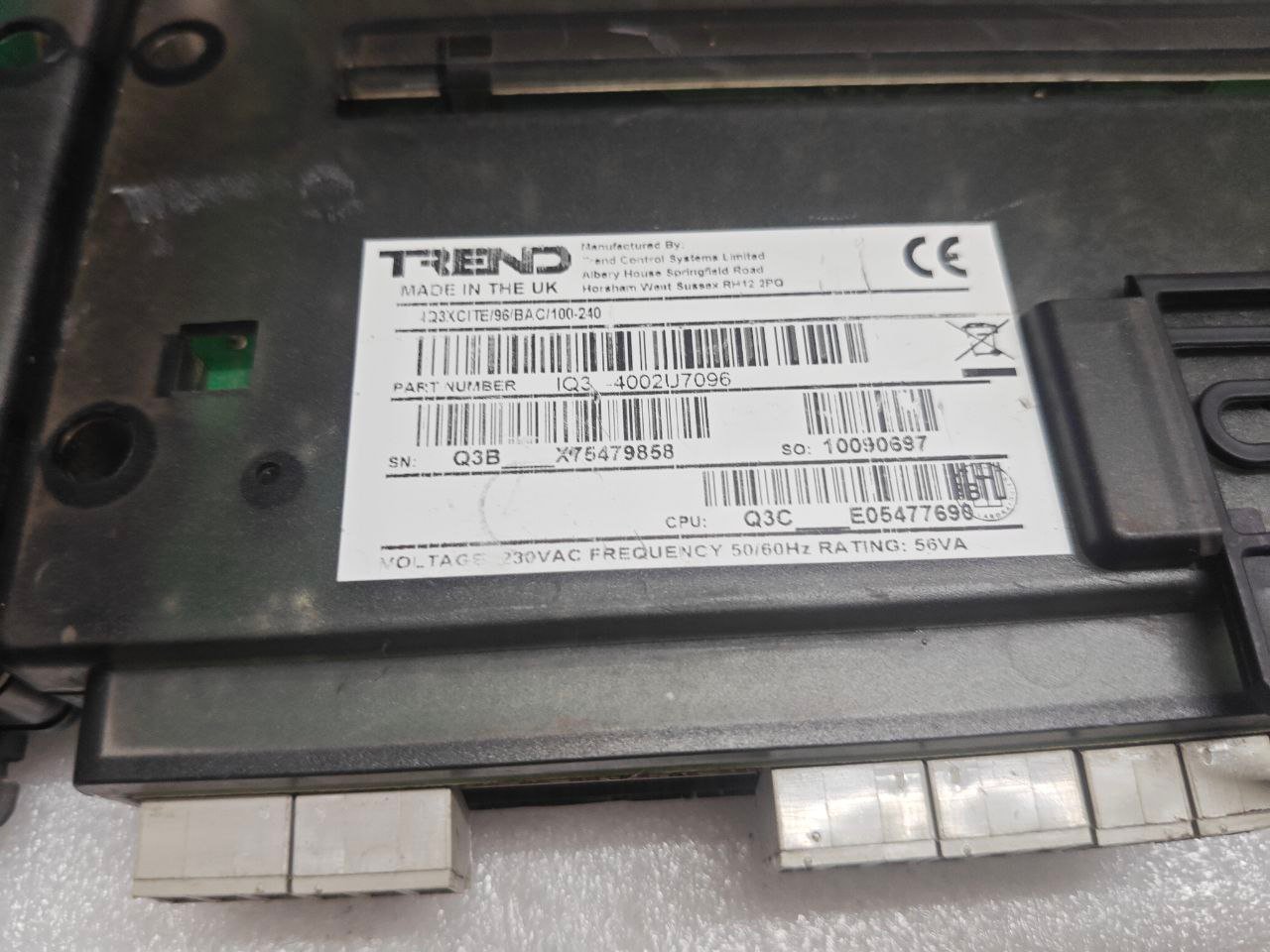

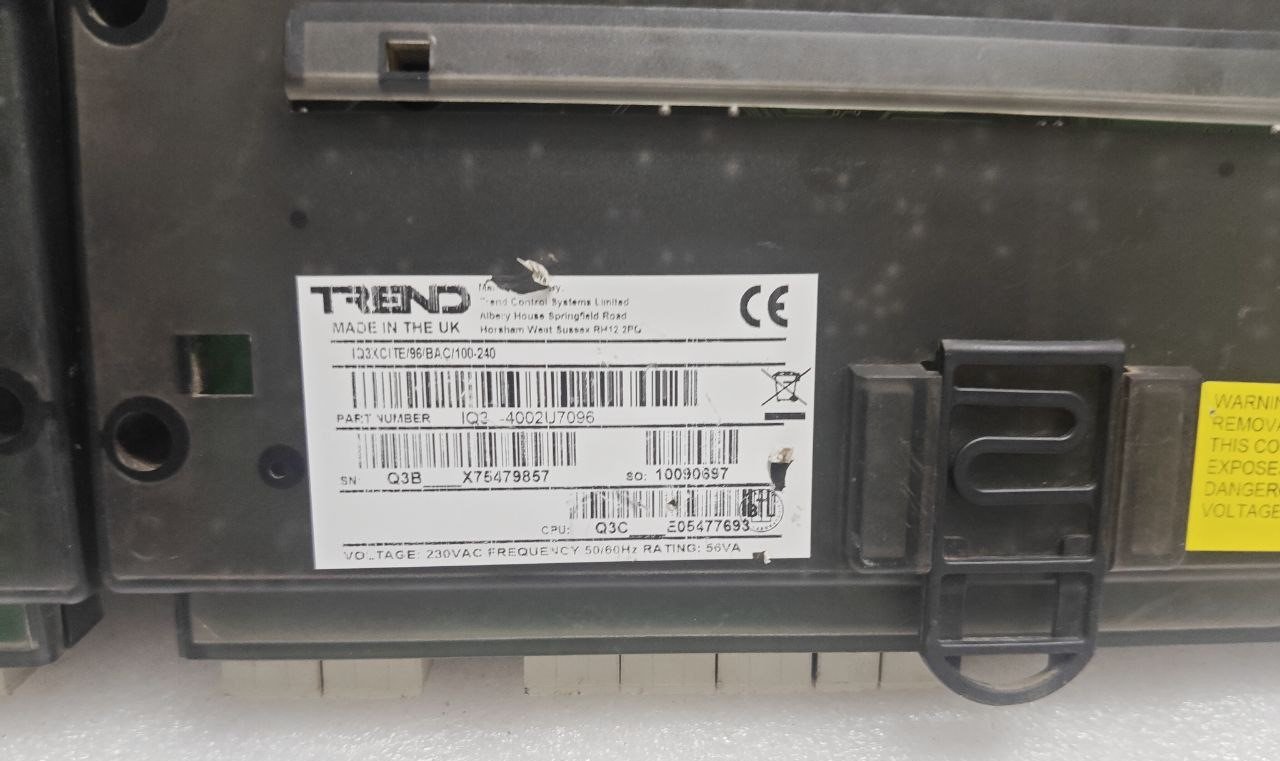

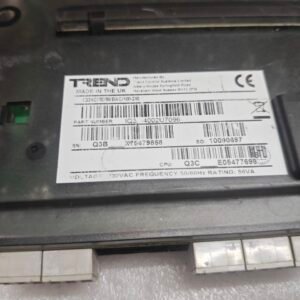

Model: IQ3-4002U7096
-
Controller Type: BACnet Building Application Automation Controller (B-AAC)
-
Inputs/Outputs: 8 x Universal Inputs (UI)
-
Communication Protocols: BACnet/IP and BACnet MS/TP
-
Power Supply: 100-240V AC, 50/60Hz
-
Typical Applications: Air Handling Units (AHUs), Fan Coil Units (FCUs), Heat Pumps, Central Plants, and other complex HVAC systems requiring sophisticated control logic.
Primary Applications
The IQ3-4002U7096 is ideal for controlling a wide array of building systems, including:
-
Custom Air Handling Units (AHUs)
-
Chiller and Boiler Plant Sequencing
-
VAV System Supervisors
-
Energy Management and Lighting Control
-
Any application requiring a powerful, programmable controller with multiple sensor inputs
