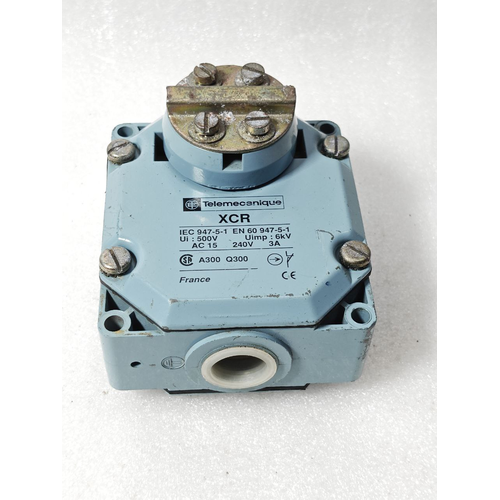

TELEMECANIQUE XCR LIMIT SWITCH DEVIATION SWITCH FRANCE AC 15 240V 16:16

• BRAND: TELEMECANIQUE
• MODEL: XCR-A12
• TYPE: LIMIT SWITCH
• DEVIATION SWITCH
• IEC 947-5-1
• EN 60 947-5-1
• Ui: 500V, Uimp: 6KV
• AC 15, 240V, 3A
• A300, Q300
• MADE IN FRACE

Professional-Grade Limit Switch for Precise Position Control and Machine Safety

The Telemecanique XCR series is a renowned line of rugged limit switches designed in France for industrial automation. This specific model is engineered to provide reliable detection and control of mechanical movement in the most demanding environments. As a “deviation switch,” it is perfectly suited for applications like conveyor belt misalignment tracking, crane end-of-travel safety, and position verification on automated machinery.

Operating on a universal AC voltage range of 15 to 240V, this switch offers exceptional flexibility for integration into various control systems. Built to the highest standards, the XCR ensures long-term durability, operational safety, and consistent performance, making it a trusted component in factories and plants worldwide.

Key Features & Benefits

• Robust Metal Housing: The die-cast zinc or aluminum body provides excellent resistance to impact, corrosion, and harsh industrial conditions, ensuring longevity.

• Precise Position Detection: The switch offers accurate and repeatable actuation, critical for controlling machine cycles and ensuring processes stop or start at the exact required point.

• Sealed for Protection: Features a high IP (Ingress Protection) rating (typically IP65, IP66, or IP67), making it dust-tight and protected against powerful water jets. This allows for reliable operation in wet, dusty, or oily environments.

• Versatile Actuator Options: Available with various actuator types (e.g., roller lever, plunger) to suit different mechanical actuation needs and mounting configurations.

• Clear Visual Indication: Equipped with a highly visible status indicator (mechanical flag) for quick on-site confirmation of the switch’s state, simplifying maintenance and troubleshooting.

• Trusted Telemecanique Quality: As part of the Schneider Electric brand family, this switch is synonymous with reliability, safety, and global technical support.

Technical Specifications

• Brand: Telemecanique (Schneider Electric)

• Product Series: XCR

• Type: Limit Switch / Deviation Switch

• Country of Origin: France

• Operating Voltage: 15 – 240V AC

• Contact Configuration: Typically 1 NO (Normally Open) + 1 NC (Normally Closed) or similar, depending on the exact model.

• Electrical Rating: AC-15 duty (for control circuit loads).

• Housing Material: Metal (Zinc or Aluminum)

• Ingress Protection: IP65, IP66, or IP67 (dependent on specific model)

Common Applications

This limit switch is ideal for a wide range of industrial automation and safety applications, including:

• Conveyor Systems: As a deviation or misalignment switch to prevent belt damage.

• Machine Tools: Defining end-of-travel limits for moving parts.

• Material Handling: Position control on cranes, hoists, and automated guided vehicles (AGVs).

• Packaging Machinery: Detecting the position of products or machine components.

• Process Control: Initiating or halting a process based on the position of a valve, door, or gate.
