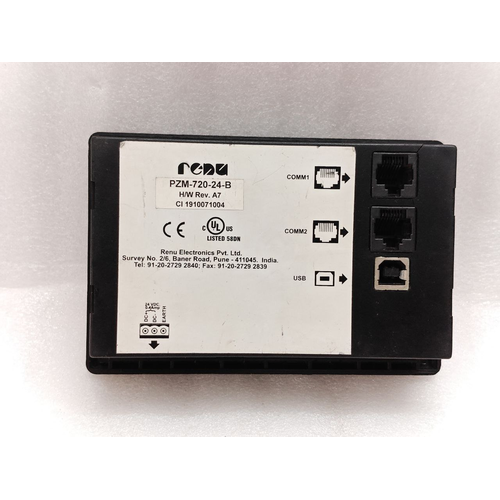

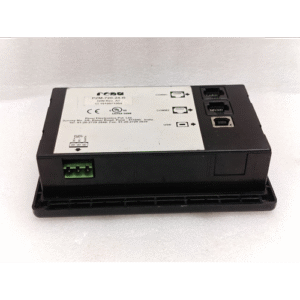

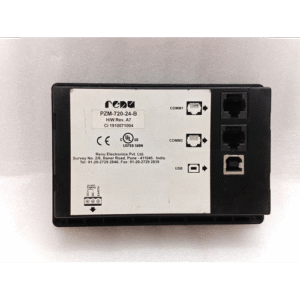

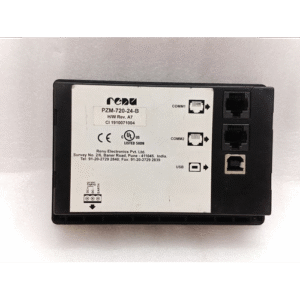

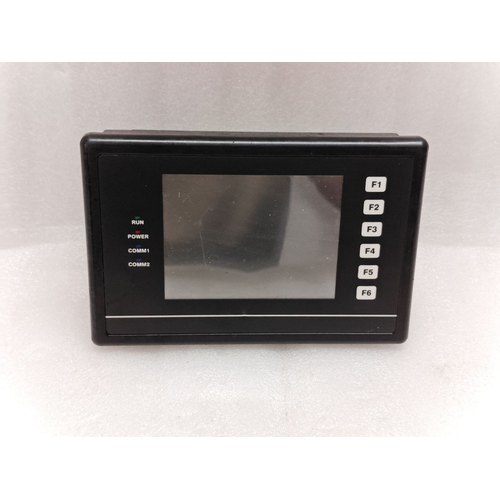

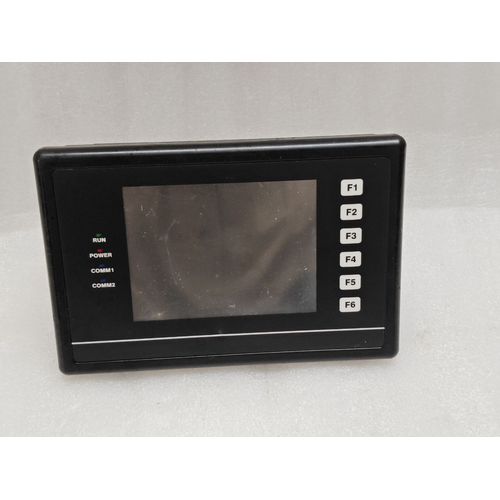

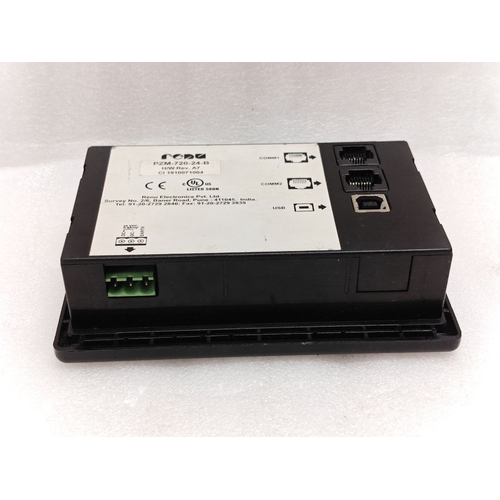

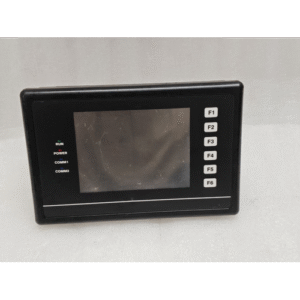

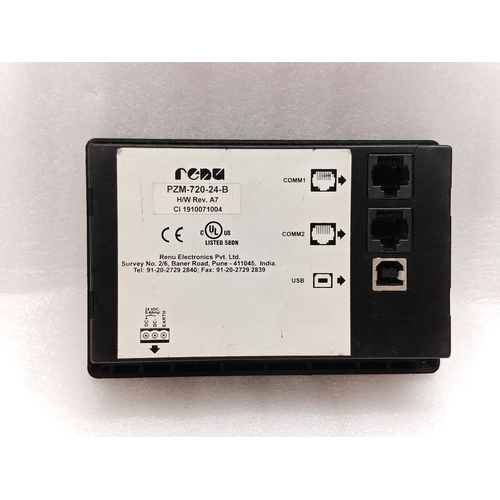

RENU ELECTRONICS PVT LTD PZM 720 24 B / PZM72024B REV A7 CI 1910071004
- BRAND: RENU
- RENU ELECTRONICS PVT LTD
- MODEL: PZM-720-24-B
- H/W: REV. A7
- CI 1910071004
- COUNTRY: INDIA
Product Description: RENU ELECTRONICS PZM-720-24-B Industrial Power Supply Module
Headline:Â Reliable 720W 24VDC Industrial Switching Power Supply, Model PZM-720-24-B
Short Description:
The RENU ELECTRONICS PZM-720-24-B is a high-performance, single-output 24V DC industrial switching power supply designed for demanding applications. With a robust output of 720W (30A), this unit delivers stable and clean power for automation systems, industrial machinery, telecommunications, and LED lighting installations. The “REV A7” and “CI 191007” markings indicate a modern, revised design with a high standard of quality control.
Key Features & Benefits
-
High Power Output: 720 Watts of continuous power at 24V DC / 30A, capable of driving multiple high-current devices and systems.
-
Industrial Grade Reliability:Â Built with high-quality components to ensure stable operation 24/7 in harsh industrial environments, including wide temperature ranges and variable load conditions.
-
High Efficiency (>90% typical):Â Reduces power consumption and heat generation, leading to lower operating costs and increased product longevity.
-
Active PFC (Power Factor Correction):Â Features a high power factor (typically >0.95), which minimizes harmonic distortion and is compliant with EN61000-3-2 standards. This makes it energy-efficient and suitable for use in professional installations without burdening the mains supply.
-
Comprehensive Protections:
-
Overload Protection (OLP):Â Safeguards the power supply and connected equipment from excessive current draw.
-
Overvoltage Protection (OVP):Â Automatically shuts down the output if voltage exceeds a safe threshold.
-
Short Circuit Protection (SCP):Â Protects the unit in case of a output short circuit.
-
Over Temperature Protection (OTP):Â Prevents damage from overheating.
-
-
Robust Construction:Â Housed in a durable metal casing that provides effective EMI/RFI shielding and acts as a heatsink for optimal thermal performance.
-
Universal AC Input:Â Accepts a wide input voltage range (85 ~ 264VAC), making it suitable for use with power grids virtually anywhere in the world without needing a manual selector switch.
-
Forced Air Cooling:Â An integrated cooling fan ensures optimal thermal management under high load, maintaining performance and reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PZM-720-24-B |
| Revision | A7 (Latest design revision) |
| Output Power | 720 Watts |
| Output Voltage | 24V DC |
| Output Current | 30A Max |
| Input Voltage | 85 ~ 264 VAC (Universal Input) |
| Input Frequency | 47 ~ 63 Hz |
| Efficiency | >90% (Typical) |
| Power Factor (PF) | >0.95 (Typical) |
| Protections | Overload (OLP), Over Voltage (OVP), Short Circuit (SCP), Over Temperature (OTP) |
| Cooling | Built-in DC Fan |
| Operating Temp. | -10°C to +60°C (with derating above 50°C) |
| Storage Temp. | -20°C to +85°C |
| Safety Standards | Complies with IEC/EN/UL 62368-1 (Please verify with official datasheet) |
| EMC Standards | Complies with EN 55032 (Class B), EN 61000-3-2, EN 61000-3-3 (Please verify) |
| Indicators | DC OK (Green LED) |
| Connections | Screw Terminal Block |
Applications
This versatile power supply is ideal for a wide range of applications, including:
-
Industrial Automation:Â PLC systems, motor drives, robotic controllers, sensor networks.
-
Machinery:Â CNC machines, 3D printers, packaging equipment.
-
Telecommunications & Networking:Â Powering networking racks, base station equipment.
-
Security Systems:Â CCTV systems, Access Control panels, Alarm systems.
-
LED Applications:Â High-power LED displays, architectural lighting, and industrial LED lighting arrays.
-
Test and Measurement Equipment.
