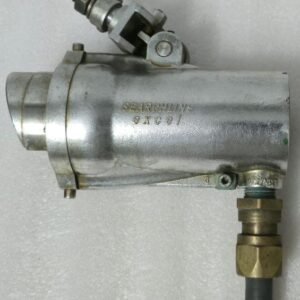

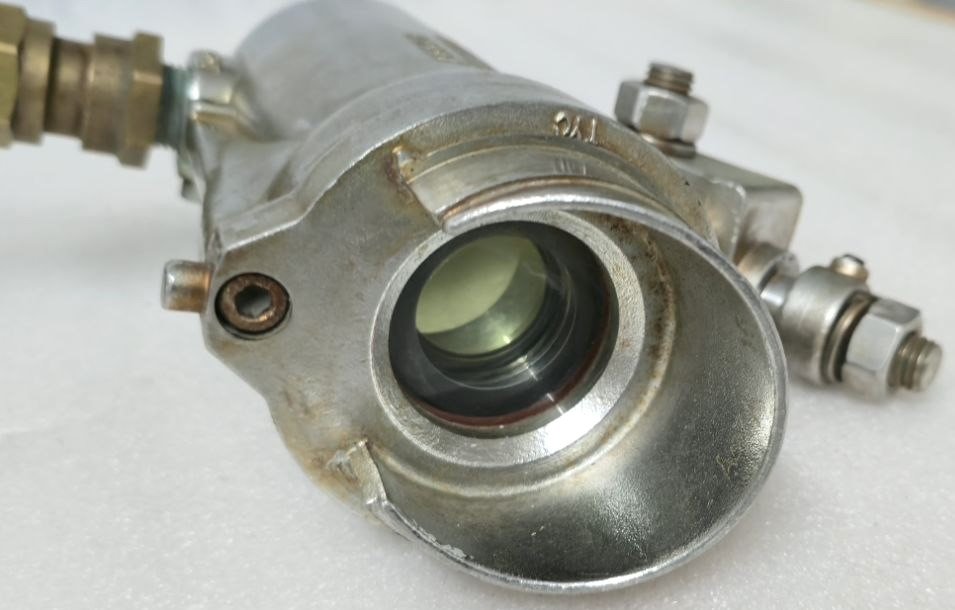

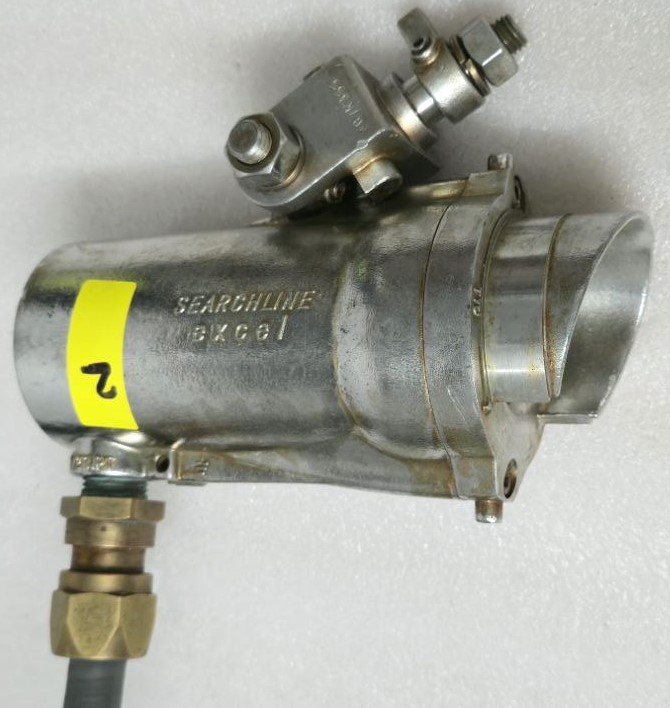

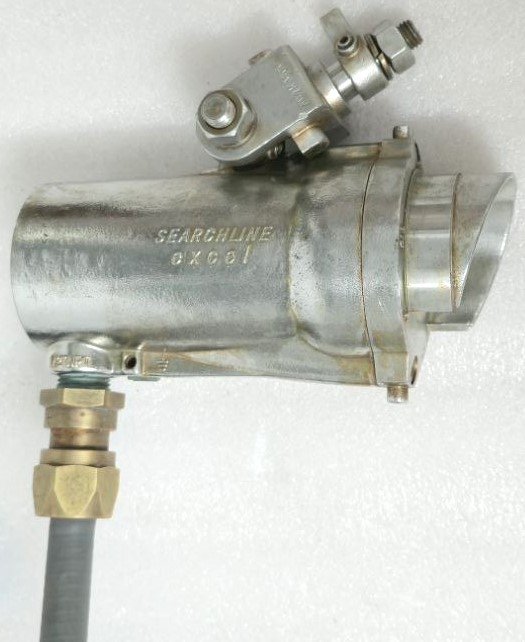

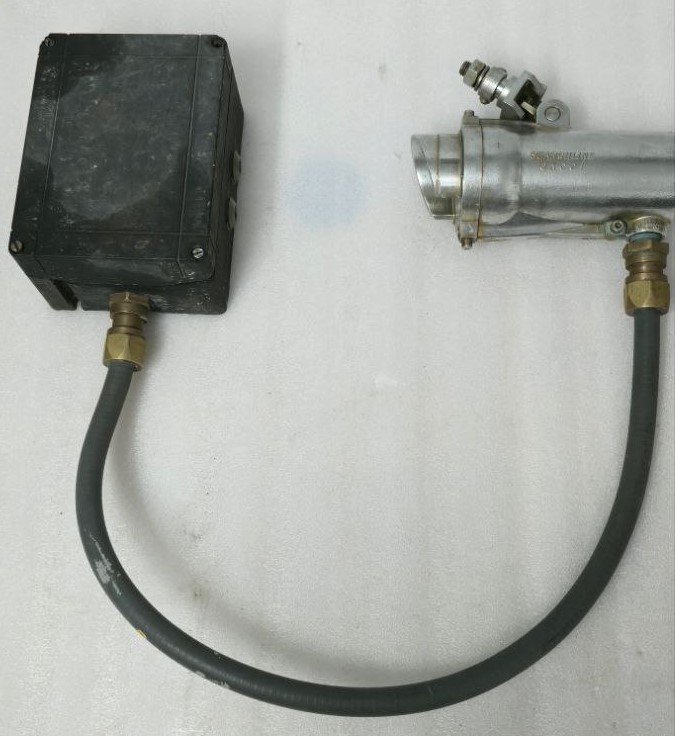

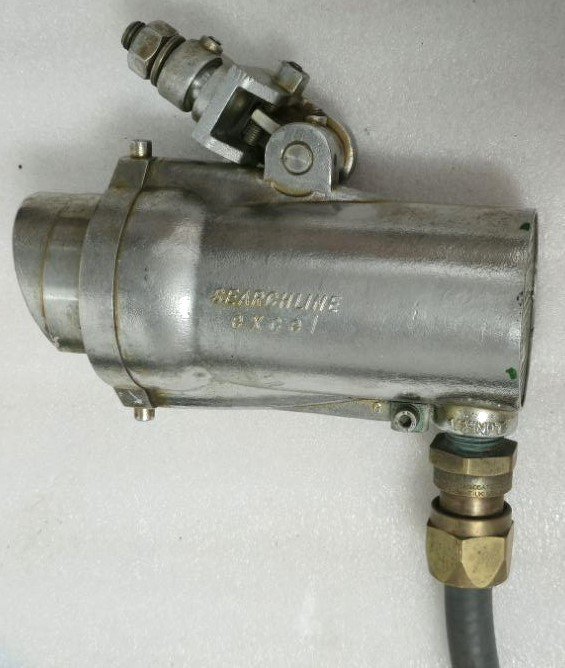

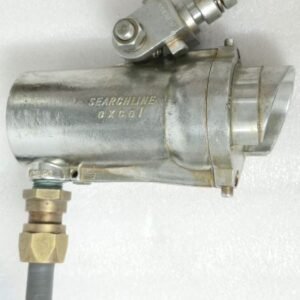

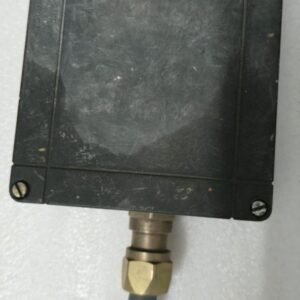

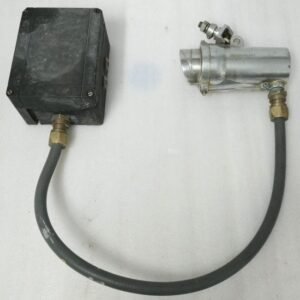

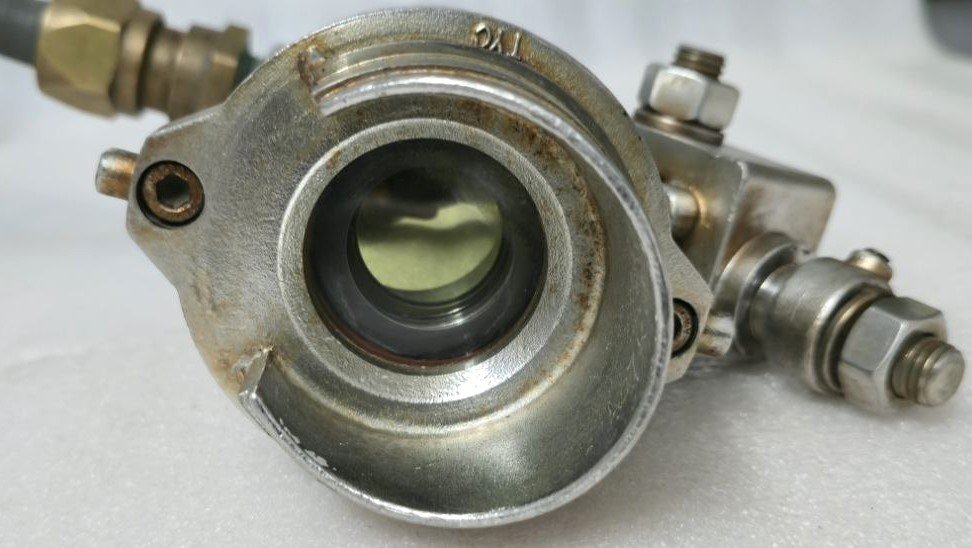

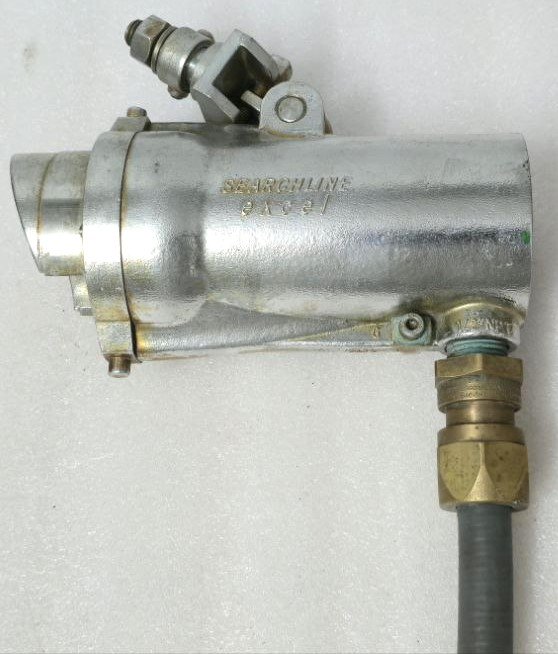

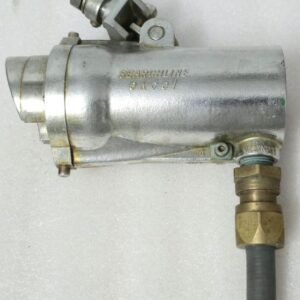

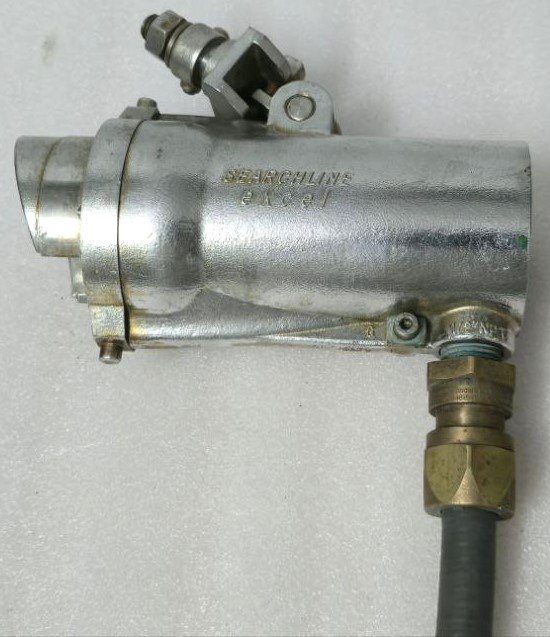

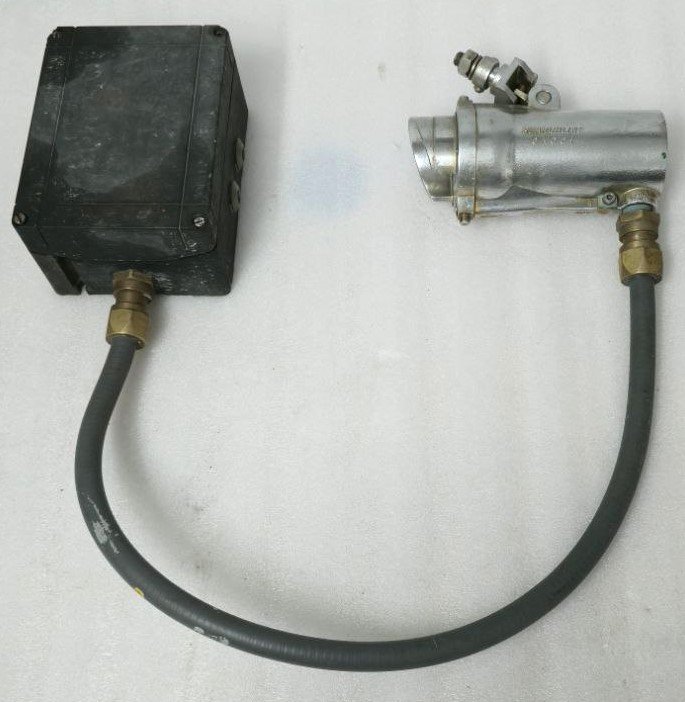

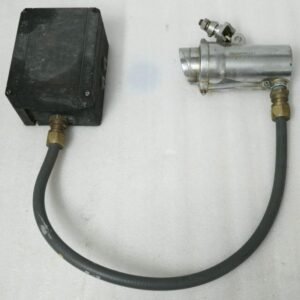

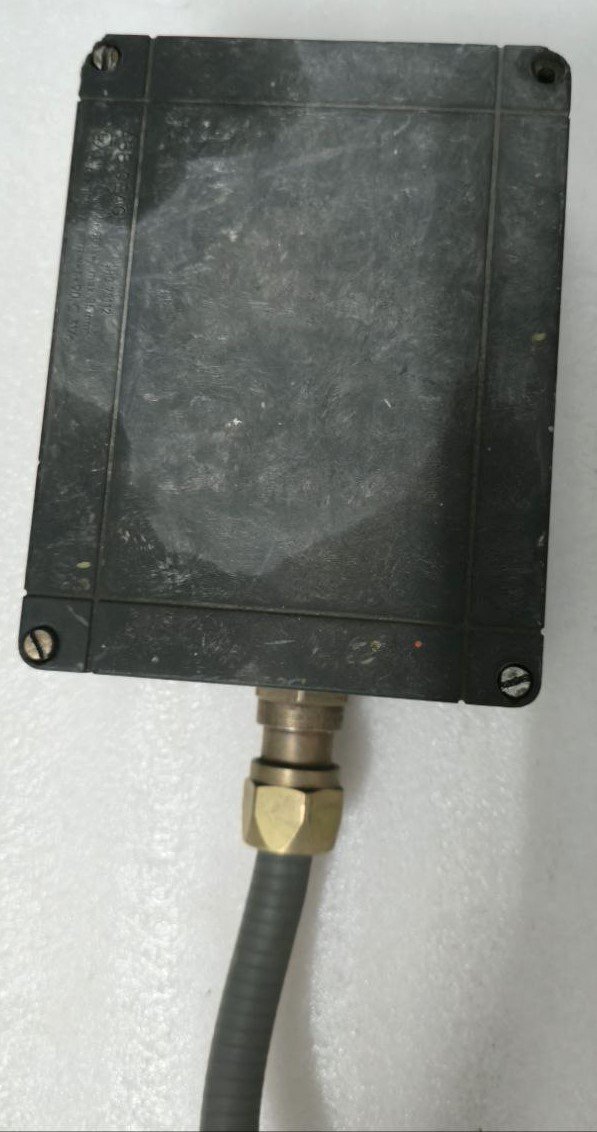

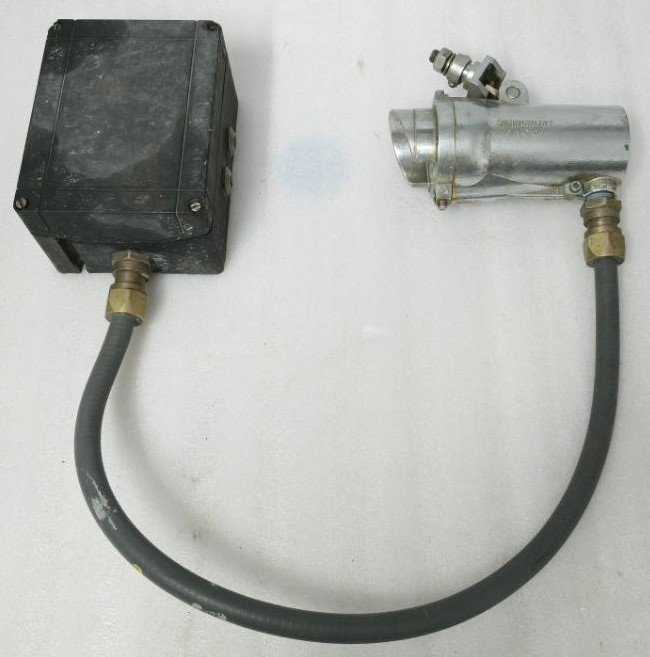

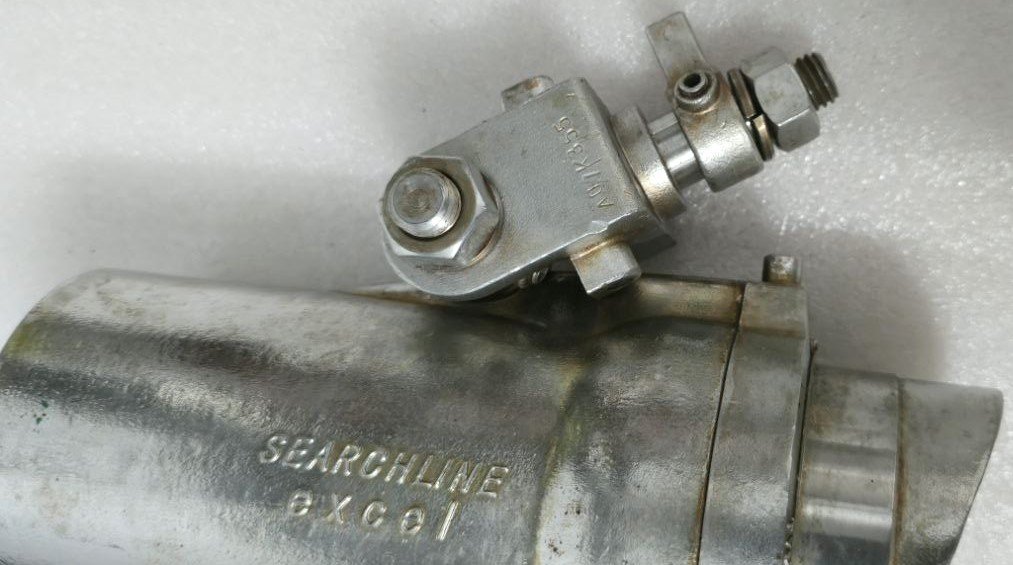

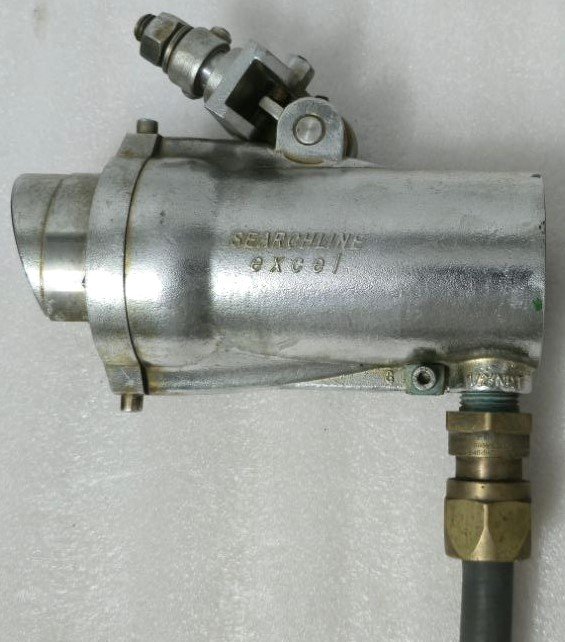

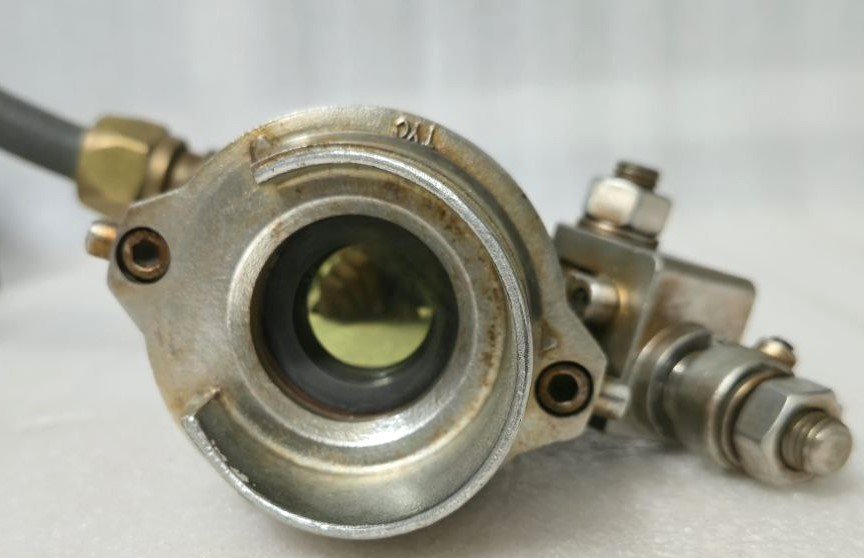

Z SIEGER 2104B2111 RX SHORT FLAMMEBLE DETECTOR 32VDC 10W SEARCHLINE EXCEL #2

Z SIEGER 2104B2111 RX SHORT FLAMMEBLE DETECTOR 32VDC 10W SEARCHLINE EXCEL #2

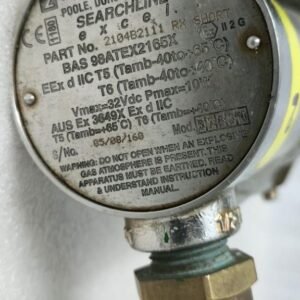

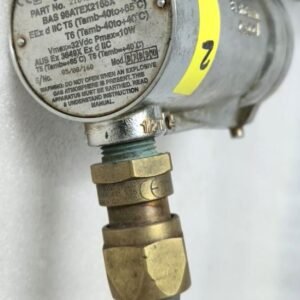

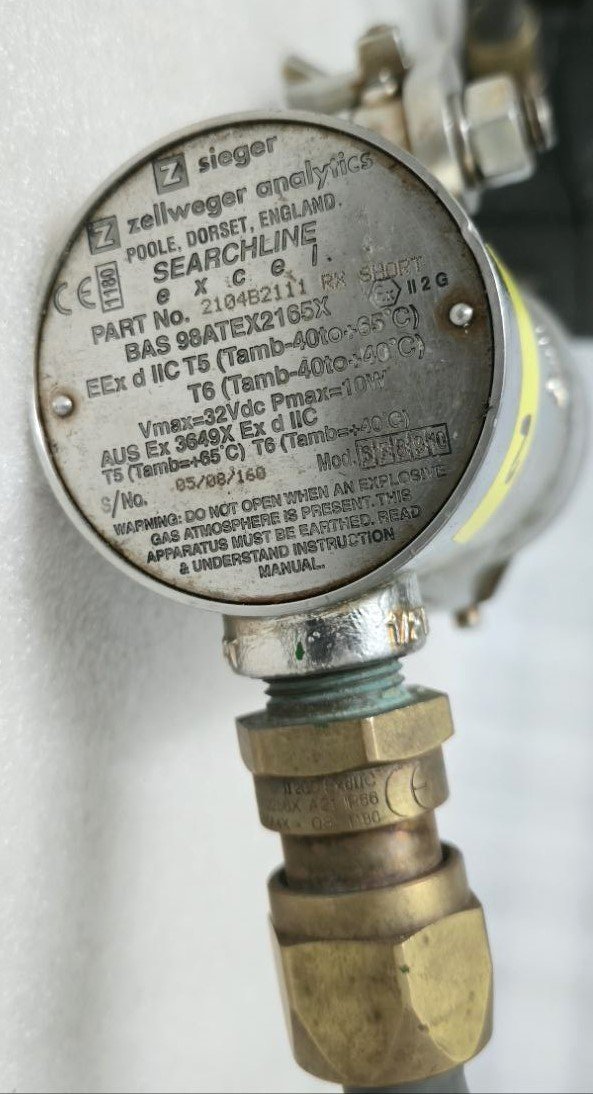

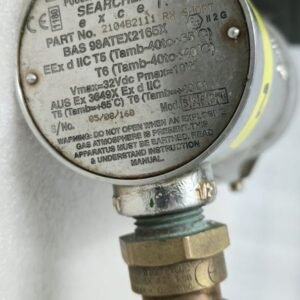

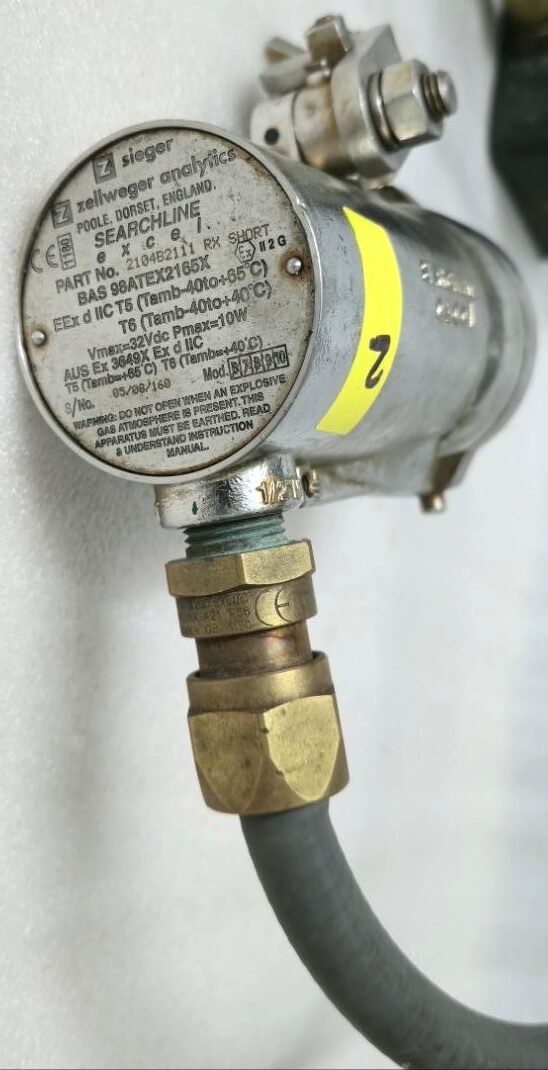

• BAS 98ATEX2165X
• EEx d IIC T5 (Tamb-40TO+65C)
•                T6 (Tamb-40TO+40C)
• AUS Ex 3649X Ex d IIC
• T5 (Tamb=+65C) T6 (Tamb=+40C)
• PART NO: 2104B2111 RX SHORT
• S/NO: 05/08/160
• MOD: 878910

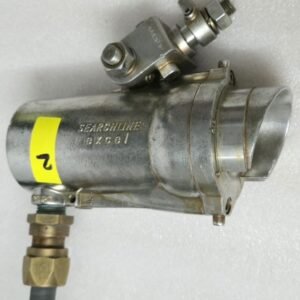

Product: Searchline Excel 2 (SearchLine Excel #2)
Model: 2104B2111
Manufacturer: Z. Sieger (now part of Emerson Automation Solutions)
Type: Fixed Point Flammable Gas Detector
Key Features:

• Detection: Open-path (or “line-of-sight”) flammable gas detector. It detects hydrocarbon gases (like methane, propane) by sensing along an invisible beam between the transmitter and receiver.
• Technology: Likely uses infrared (IR) absorption technology (common for the Searchline Excel series) for reliable detection, immune to poisoning and many environmental factors.
• Application: Designed for monitoring large, open areas for gas clouds (e.g., offshore platforms, refineries, chemical plants, LNG terminals).
• Power Rating: 10W
• Operating Voltage: 32 VDC (Standard for many industrial fixed gas detectors).
• Certification: RX likely indicates that it is ATEX/IECEx certified for use in Explosive (Ex) atmospheres. “RX” often stands for the certification type for “Increased Safety” and “Non-incendive” protection concepts.
• “SHORT” likely indicates the detection range version. The Searchline Excel 2 comes in different range models (e.g., Short, Standard, Extended). “Short” is typically for ranges up to 30-60 meters.

Probable Full Description:

Emerson Z. Sieger Searchline Excel 2 Open Path Flammable Gas Detector.
Model 2104B2111 is a short-range, 32 VDC, 10W, ATEX/IECEx certified (RX) infrared line-of-sight detector designed for reliable monitoring of hydrocarbon gas leaks in hazardous areas.

Typical Specifications (Inferred):

• Detection Principle: Infrared (IR) Absorption (Open Path)
• Target Gases: Methane & other hydrocarbons
• Range: Short Path (e.g., 0-30m or 0-60m)
• Output: Industry-standard 4-20mA analog and digital (HART protocol likely)
• Enclosure: Robust, corrosion-resistant for harsh industrial environments
• Certifications: ATEX, IECEx, SIL 2 capable (typical for this series)
