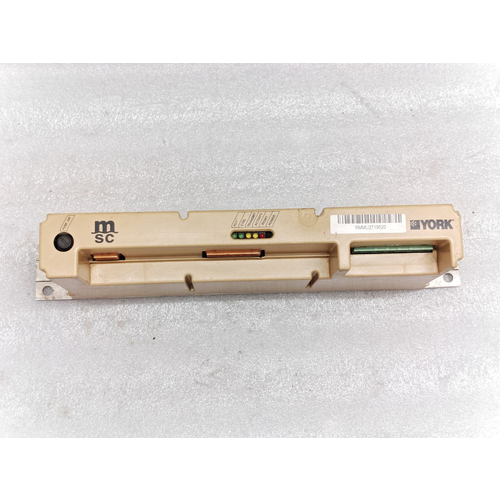

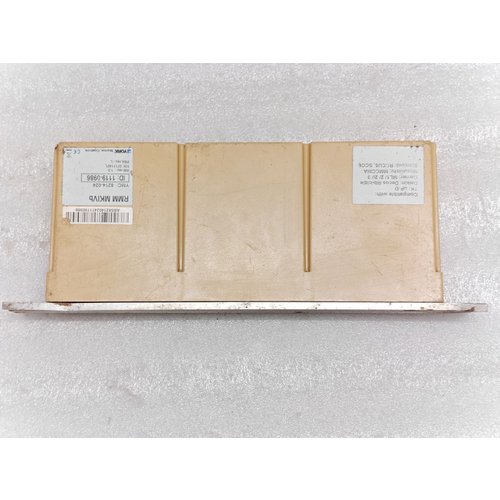

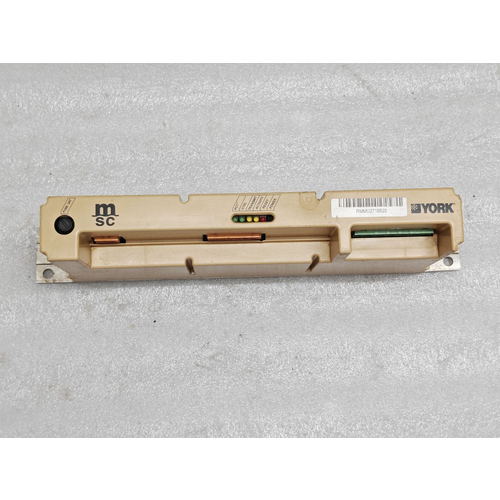

YORK RMM MKIVB 1112-2727 Remote Monitoring Module YMC 8214 024 REV 1.0 ID 1119

YORK RMM MKIVB 1112-2727 Remote Monitoring Module YMC 8214 024 REV 1.0 ID 1119

The YORK RMM MKIVB 1112-2727 is a sophisticated Remote Monitoring Module (RMM) designed specifically for YORK® air conditioning and refrigeration chillers. This module serves as the critical communication link between the chiller’s onboard microprocessor control system (typically a YORK® OptiView™ or similar control center) and a remote building management system (BMS) or facility manager.

Part of the established YORK MKIVB family of controls, this module enables real-time data monitoring, system status alerts, and historical data logging, facilitating proactive maintenance and optimized chiller performance.

Key Features and Functionality:

• Protocol Translation: The primary function of the RMM is to translate the chiller’s native communication protocol into industry-standard languages. It commonly supports protocols like:

  • BACnet MS/TP (Most common for building automation)

  • Modbus RTU

  • LONWORKS (Depending on configuration)
    This allows for seamless integration with most major BMS platforms from vendors like Siemens, Johnson Controls, Honeywell, and Schneider Electric.

• Real-Time Data Monitoring: Provides remote access to a comprehensive set of chiller operating parameters, including:

  • Leaving and Entering Chilled Water Temperatures

  • System Pressures

  • Motor Load and Amperage

  • Operating Status (Running, Stopped, Fault)

  • Setpoints and Control Values

• Alarm and Fault Reporting: Immediately relays critical alarms and diagnostic fault codes from the chiller to the BMS and facility operators. This allows for rapid response to issues, minimizing downtime and preventing potential equipment damage.

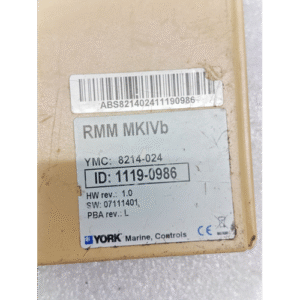

• Hardware Identity: The specific part number 1112-2727 and identifiers like YMC 8214 024, REV 1.0, and ID 1119 are used for precise ordering, configuration, and firmware management, ensuring compatibility with specific chiller models and control board revisions.

Technical Specifications (Representative):

• Manufacturer: YORK / Johnson Controls

• Product Line: MKIVB Control Family

• Model: RMM (Remote Monitoring Module) 1112-2727

• Board Identification: YMC 8214 024

• Revision: 1.0

• ID: 1119

• Compatibility: Designed for YORK centrifugal, screw, and reciprocating chillers equipped with MKIVB or compatible control panels.

• Input Power: Typically 24VAC, sourced from the chiller’s control circuit.

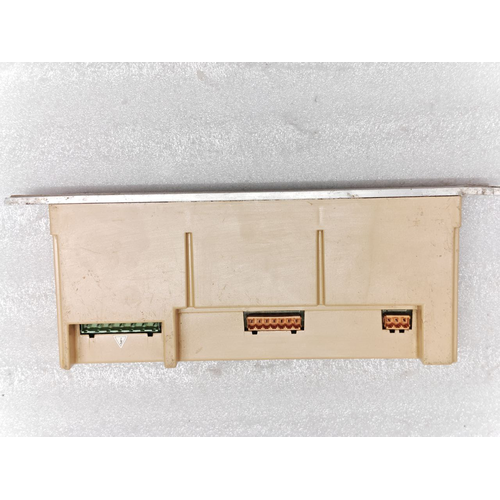

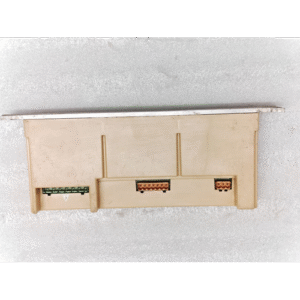

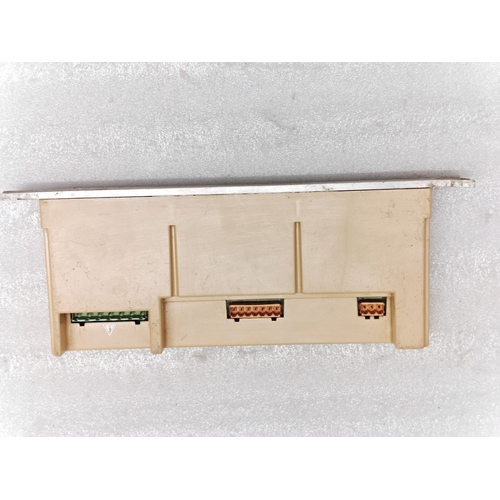

• Communications Ports: Terminal blocks for connection to the chiller’s main board and for the BMS network (e.g., RS-485 for BACnet MS/TP).

Applications and Benefits:

• Centralized Monitoring: Enables operators to monitor chiller performance from a central control room or remotely.

• Predictive Maintenance: By tracking performance trends and receiving early warnings, maintenance can be scheduled proactively.

• Improved Efficiency: Allows for optimization of chiller operation based on real-time data and building load demands.

• Reduced Downtime: Immediate fault notification leads to faster troubleshooting and resolution.
