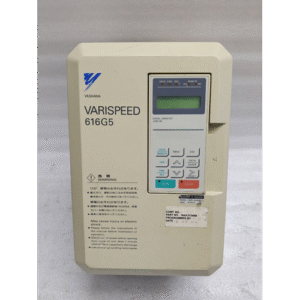

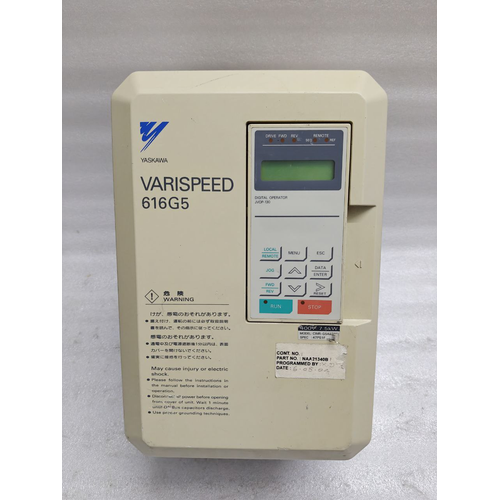

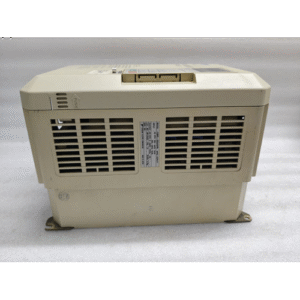

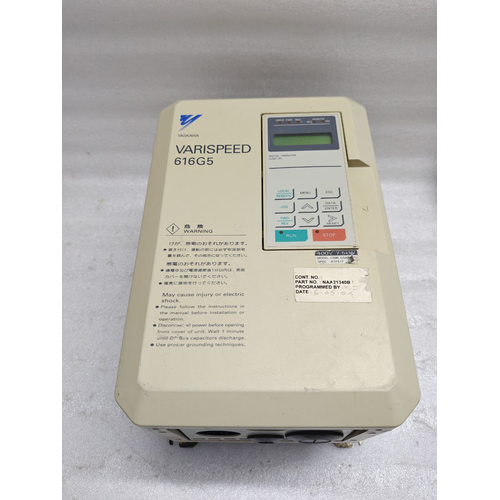

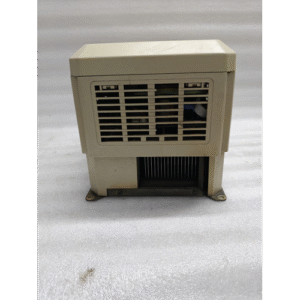

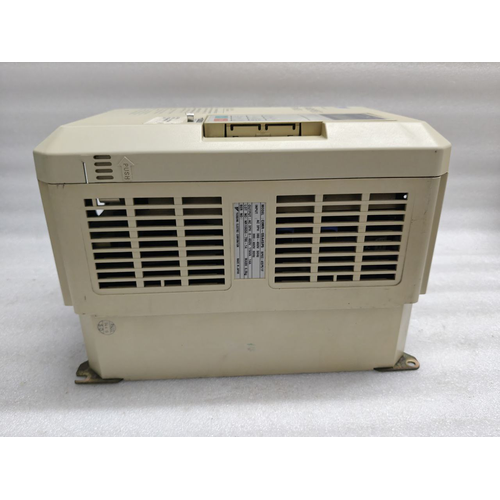

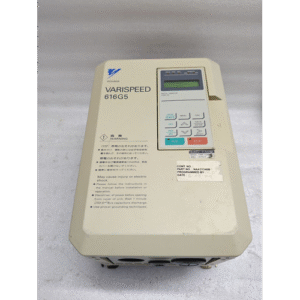

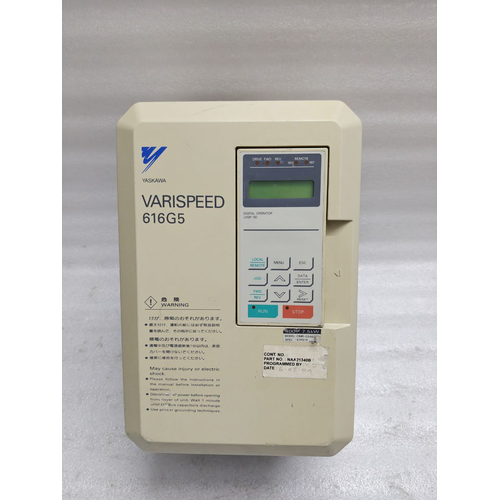

The Yaskawa CIMR-G5A5P5 is a general-purpose, high-performance AC variable frequency drive (VFD) from the renowned VARISPEED-616G5 series. Designed for robust and reliable control of three-phase induction motors, this drive is engineered for industrial applications requiring precise speed regulation, enhanced energy savings, and smooth motor operation. With a power rating of 11 kVA for a 380-460V 3-phase input, it is a versatile solution for a wide range of machinery and processes.
KEY FEATURES
-
Advanced Control Modes:Â Features Sensorless Vector Control for high starting torque and excellent speed regulation, as well as Energy Saving Control to automatically optimize voltage for reduced power consumption.
-
Robust Design:Â Built with a heavy-duty industrial rating, ensuring reliable operation in demanding environments. It includes a standard NEMA 1 / IP20 enclosure for basic protection against dust and accidental contact.
-

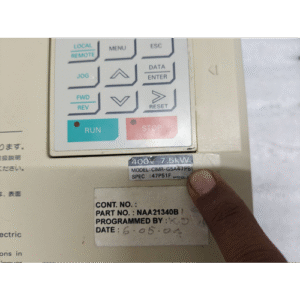

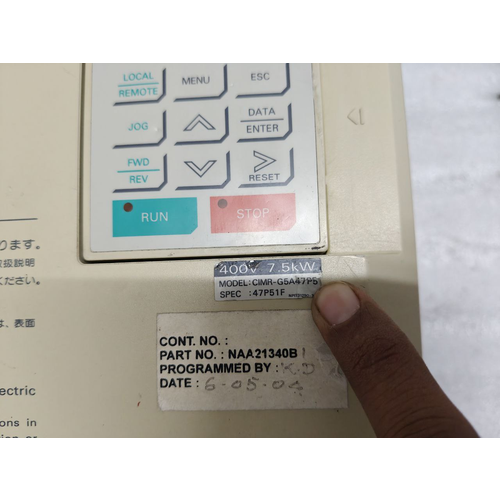

Easy Setup & Operation:Â A digital operator with a clear LCD display allows for straightforward parameter configuration, monitoring, and control. Copy units are available for quick duplication of settings across multiple drives.
-
Comprehensive Protection:Â Integrated safety features include overcurrent, overvoltage, undervoltage, motor overload, ground fault, and short-circuit protection to safeguard both the drive and the motor.
-
Flexible I/O:Â A comprehensive set of programmable digital and analog inputs/outputs allows for easy integration into existing control systems (PLCs, sensors, potentiometers).
-
Dynamic Braking (Optional):Â Supports an optional external dynamic brake unit for applications requiring high-inertia deceleration or frequent stopping.
TECHNICAL SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Model | CIMR-G5A5P5 |
| Series | VARISPEED-616G5 |
| Input Supply | 380 – 460 VAC, 3-Phase, 50/60 Hz |
| Rated Power | 11 kVA |
| Output Current | 15.0 AÂ (This is the key current rating for this model) |
| Motor Power | 7.5 kW / 10 HPÂ (Typical motor capacity) |
| Control Method | PWM (Sinusoidal Pulse Width Modulation) |
| Control Modes | V/f Control, Sensorless Vector Control |
| Enclosure | NEMA 1 / IP20 (Open Type) |
| Overload Capacity | 150% of rated output current for 60 seconds |
| Key Features | Digital Operator, Auto-Tuning, PID Control, RS-485 Communication (Modbus), Multiple Accel/Decel patterns |
TYPICAL APPLICATIONS
This general-purpose drive is ideal for a wide array of industrial applications, including:
-
Pump and Fan Control (for significant energy savings)
-
Conveyor Systems
-
Packaging Machinery
-
Machine Tools
-
Mixers and Agitators
-
Material Handling Systems
