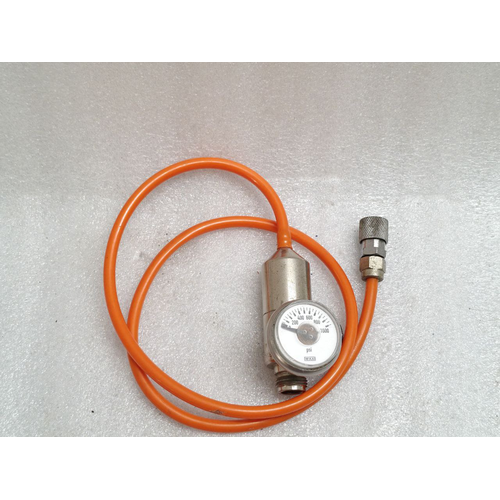

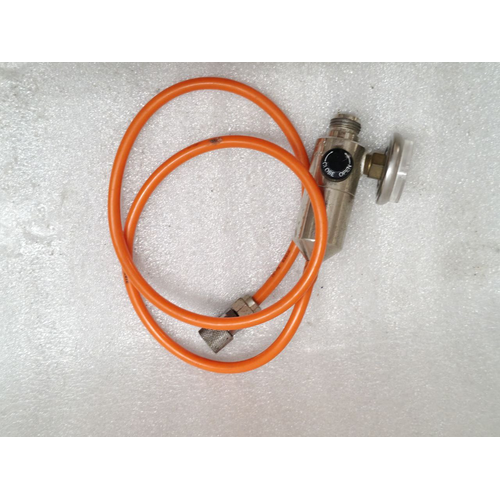

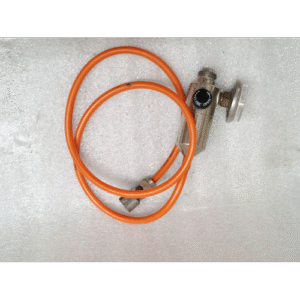

WIKA FIXED FLOW REGULATOR 1000 PSI REG002 0.1 / MIN SMT
The WIKA REG002 is a high-precision, fixed-flow regulator designed for applications requiring a consistent and reliable low flow rate at high inlet pressures. With a robust design rated for up to 1000 PSI and a factory-set flow rate of 0.1 mL/min, this regulator is an ideal solution for chemical injection, sampling, dosing, and other critical processes in demanding industries.
Key Features & Benefits:
-
Fixed, Precision Flow Rate: Factory-calibrated to deliver a consistent flow of 0.1 milliliters per minute (mL/min), ensuring repeatable performance and eliminating the need for field adjustment.
-
High-Pressure Capability: Built to handle inlet pressures up to 1000 PSI (69 Bar), making it suitable for use directly from high-pressure supply lines or cylinders.
-
Stainless Steel Construction: Manufactured from high-quality stainless steel (typically 316L), providing excellent corrosion resistance and durability in harsh environments, including those with exposure to aggressive chemicals.
-
Compact SMT Porting: Features SMT (Surface Mount Technology) ports for a compact, streamlined installation, saving space in panel or manifold setups.
-
Reliable & Maintenance-Free: As a fixed-flow device with no moving external parts, the REG002 offers exceptional long-term reliability with minimal required maintenance.
-
Leak-Free Performance: Precision machining and sealing ensure leak-free operation, enhancing safety and process integrity.
Technical Specifications:
-
Model: REG002
-
Manufacturer: WIKA
-
Type: Fixed Flow Regulator
-
Flow Rate: 0.1 mL/min (Milliliters per minute)
-
Maximum Inlet Pressure (P1): 1000 PSI / 69 Bar
-
Outlet Flow: Fixed, non-adjustable
-
Port Connection: SMT (Surface Mount Technology)
-
Body Material: Stainless Steel (e.g., 316L)
-
Seals: Typically Viton® or other compatible materials (dependent on fluid media)
Typical Applications:
This regulator is perfect for applications where a small, precise, and unchanging flow rate is critical, such as:
-
Chemical Injection: Precise dosing of inhibitors, biocides, or scale treatments in oil and gas pipelines.
-
Sample Conditioning: Delivering a constant sample stream to analytical instruments and process analyzers.
-
Laboratory & Pilot Plants: For precise reagent feeding or fluid metering in research and development.
-
Water Treatment: Dosing of additives and treatment chemicals.
-
Industrial Lubrication: Metering small amounts of oil or lubricant in machinery.
