VEINDLAND GMBH NMEA EXPANDER 1NMEATO4 M0101 11:09

VEINLAND GMBH

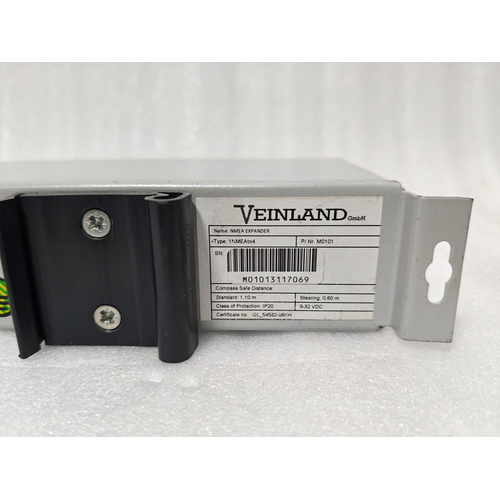

P/N: M0101

NAME: NMEA EXPANDER

TYPE: 1NMEATO4

MIS 1NMEATO4

S/N: M01013117069

POWER SUPPLY: 9-32 V DC

STANDARD: 1.10 M

STEERING: 0.60 M

CLASS OF PROTECTION: IP20

CERTIFICATE NO: GL_54582_08HH

MIS 1NMEATO4

The VEINDLAND GMBH NMEA Expander 1NMEATO4 M0101 is the ultimate solution for boat builders, marine electricians, and serious boaters designing sophisticated vessel networks. If you need to run multiple NMEA 2000 backbone legs from a single data source—like a chart plotter, AIS transponder, or engine gateway—this expander is the critical component you need.

It seamlessly bridges the gap between a primary data source and multiple sub-networks, preventing data collisions and ensuring a clean, reliable signal across your entire vessel.

Key Features & Benefits

• 1 Input to 4 Isolated Outputs: Creates four separate NMEA 2000 networks from one source. This is ideal for separating navigation, helm, engine room, and mast networks, simplifying cable runs and improving system stability.

• Bi-Directional Data Gateway: Allows full NMEA 2000 “Plug & Play” communication between all connected devices on all networks. Devices can both send and receive data (e.g., a GPS source can feed all plotters, and a control head can talk to the engine).

• Signal Repeater & Booster: Amplifies the NMEA 2000 data signal, effectively extending the maximum possible network length beyond standard limits and ensuring data integrity over long distances on large boats.

• Galvanic Isolation: Protects sensitive electronics from potential ground loops and voltage spikes that can occur between different areas of a boat, safeguarding your entire marine electronics investment.

• Plug-and-Play Installation: Features standard Micro-C M12 connectors for simple integration into any existing or new NMEA 2000 backbone. Requires a standard 9-16V DC power connection.

• Rugged Marine-Grade Construction: Built by VEINDLAND GMBH to withstand the harsh marine environment, featuring a robust housing that is resistant to water, vibration, and corrosion.

Primary Applications & Use Cases

• Creating Separate Network Legs: Run a dedicated drop line to the flybridge, another to the main helm, a third to the aft cockpit, and a fourth to the engine room—all fed from a single central chart plotter.

• Integrating Engine Data: Connect a single engine gateway (e.g., J1939 to NMEA 2000) and distribute crucial engine data (RPM, fuel flow, temperature, alarms) to multiple displays throughout the vessel.

• Extending Network Range: Use as a signal repeater on large yachts or sailboats with long cable runs to the mast or bow to prevent data loss.

• System Segmentation: Prevent non-essential or high-load devices (e.g., a powerful radar) from causing issues on sensitive instrument networks by placing them on a separate, isolated leg.

Technical Specifications

• Model: M0101

• Function: NMEA 2000 Gateway / Expander / Repeater

• Configuration: 1 Input, 4 Outputs (all bi-directional)

• Connectors: 5x Micro-C (M12) female (1x Input, 4x Output, requires separate power T-connector)

• Power Supply: 9 – 16 V DC

• Protection: Galvanic Isolation between ports

• Certification: Fully compliant with NMEA 2000 standards.
